Dell PowerEdge C6145 Manuale utente
Dell PowerEdge
C6145
Getting Started
With Your System
Guide de mise en route du système
Primeiros passos com o sistema
Procedimientos iniciales con el sistema
Dell PowerEdge
C6145
Getting Started
With Your System
Notes, Cautions, and Warnings
NOTE:
A NOTE indicates important information that helps you make better use of
your computer
CAUTION: A CAUTION indicates potential damage to hardware or loss of
data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
______________
Information in this publication is subject to change without notice.
© 2011 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission
of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of
Dell Inc. AMD®is a registered trademark and AMD Opteron™ is a trademark of
Advanced Micro Devices, Inc. Red Hat Enterprise Linux®and Enterprise Linux®are
registered trademarks of Red Hat, Inc. in the United States and/or other countries.
Novell®is a registered trademark and SUSE™ is a trademark of Novell Inc. in the United
States and other countries. Citrix®and XenServer®are either registered trademarks or
trademarks of Citrix Systems, Inc. in the United States and/or other countries. VMware®
is a registered trademarks or trademarks of VMWare, Inc. in the United States or other
countries.
Other trademarks and trade names may be used in this publication to refer to either the
entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Regulatory Model B05S
January 2011 P/N 6HNH8 Rev. A00
Getting Started With Your System | 5
CAUTION: Restricted Access Location
This server is intended for installation only in restricted access locations as
defined in Cl. 1.2.7.3 of IEC 60950-1: 2001 where both these conditions apply:
Access can only be gained by service persons or by users
who have been
instructed about the reasons for the restrictions applied to the location and
about any precautions that shall be taken.
Access is through the use of a tool or lock and key, or other means of
security, and is controlled by the authority responsible for the location.
Installation and Configuration
WARNING: Before performing the following procedure, review and follow the
safety instructions that came with the system.
Unpacking the System
Unpack your system and identify each item.
Installing the Tool-Less Rail Solution
WARNING: Whenever you need to lift the system, get others to assist you.
To avoid injury, do not attempt to lift the system by yourself.
WARNING: The system is not fixed to the rack or mounted on the rails. To
avoid personal injury or damage to the system, you must adequately
support the system during installation and removal.
WARNING: To avoid a potential electrical shock hazard, a third wire safety
grounding conductor is necessary for the rack installation. The rack
equipment must provide sufficient airflow to the system to maintain proper
cooling.
CAUTION: When installing rails in a square-hole rack it is important to
ensure that the square peg slides through the square holes.
Getting Started With Your System | 6
1
Pull on the latch release buttons on the end piece midpoints to open
the rail latches.
2
Align the end pieces of the rails on the vertical rack flanges to seat
the pegs in the bottom hole of the first U and the top hole of the
second U. Engage the back end of the rails until the latches lock in
place.
NOTE:

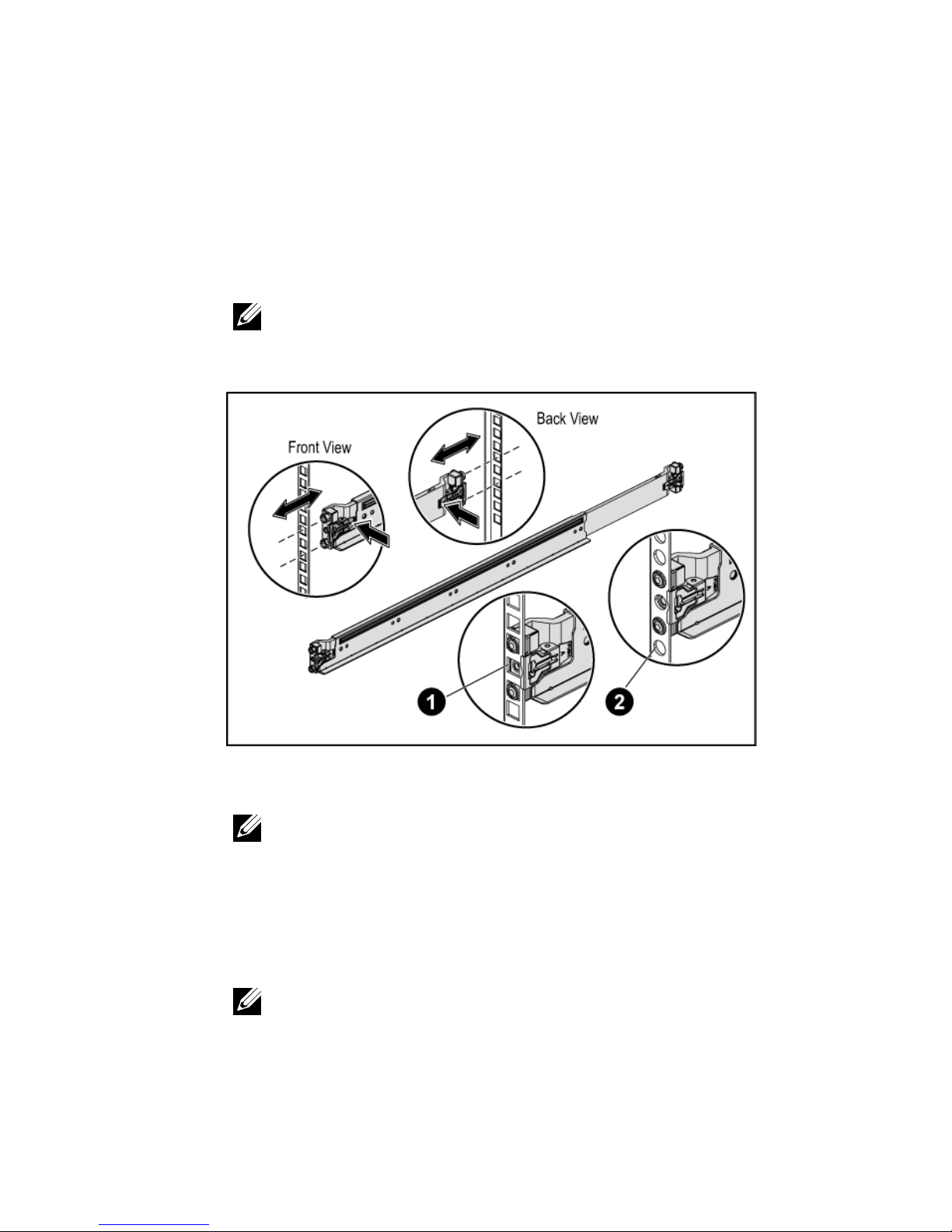

The rails can be used in both square-hole (item 1 in the following figure)
and round-hole racks (item 2 in the following figure).
3
Repeat Step 1 and Step 2 to position and seat the front end pieces on
the vertical flanges.
NOTE:
To remove the rails, pull on the latch release button on the end piece
midpoint and unseat each rail.
4
On each vertical rack flange on the rear, put two screw bases into the
two square holes right above the rail.
5
Install the chassis stabilizer shipping brackets (optional) on the rear
rack flanges and simultaneously fasten the screws.
NOTE:
To transport systems already installed in the rack, ensure that the two
chassis stabilizer shipping brackets (optional) are in place.
Getting Started With Your System | 7
6
Slide the system into the rack.
7
Tighten the thumbscrews to secure the ears of the system to the front
of the rack flanges.
Getting Started With Your System | 8
Optional-Connecting the Keyboard, Mouse, and Monitor

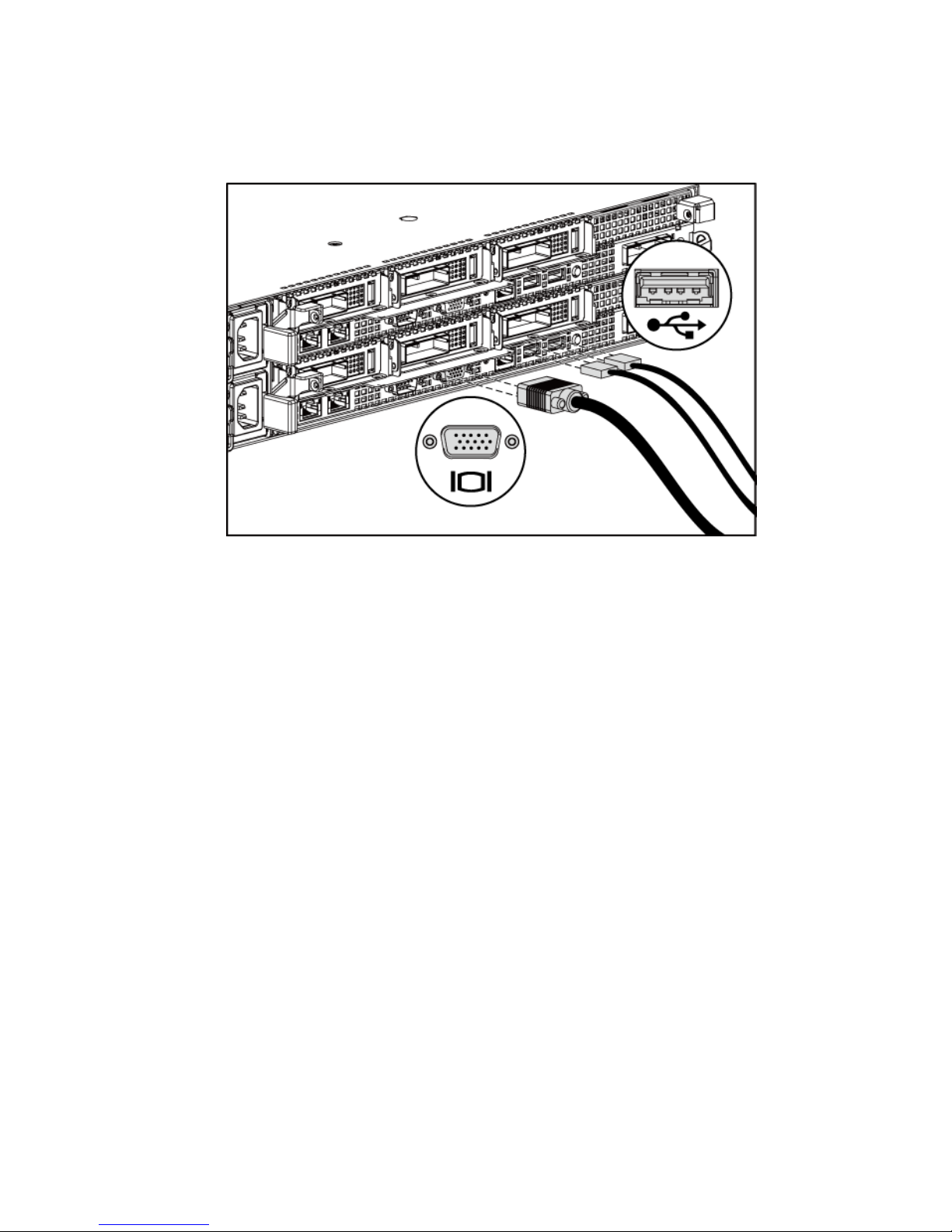

Connect the keyboard, mouse, and monitor (optional).
The connectors on the back of your system have icons indicating which cable to
plug into each connector. Be sure to tighten the screws (if any) on the monitor’s
cable connector.
Getting Started With Your System | 9
Connecting the Power Cable(s)

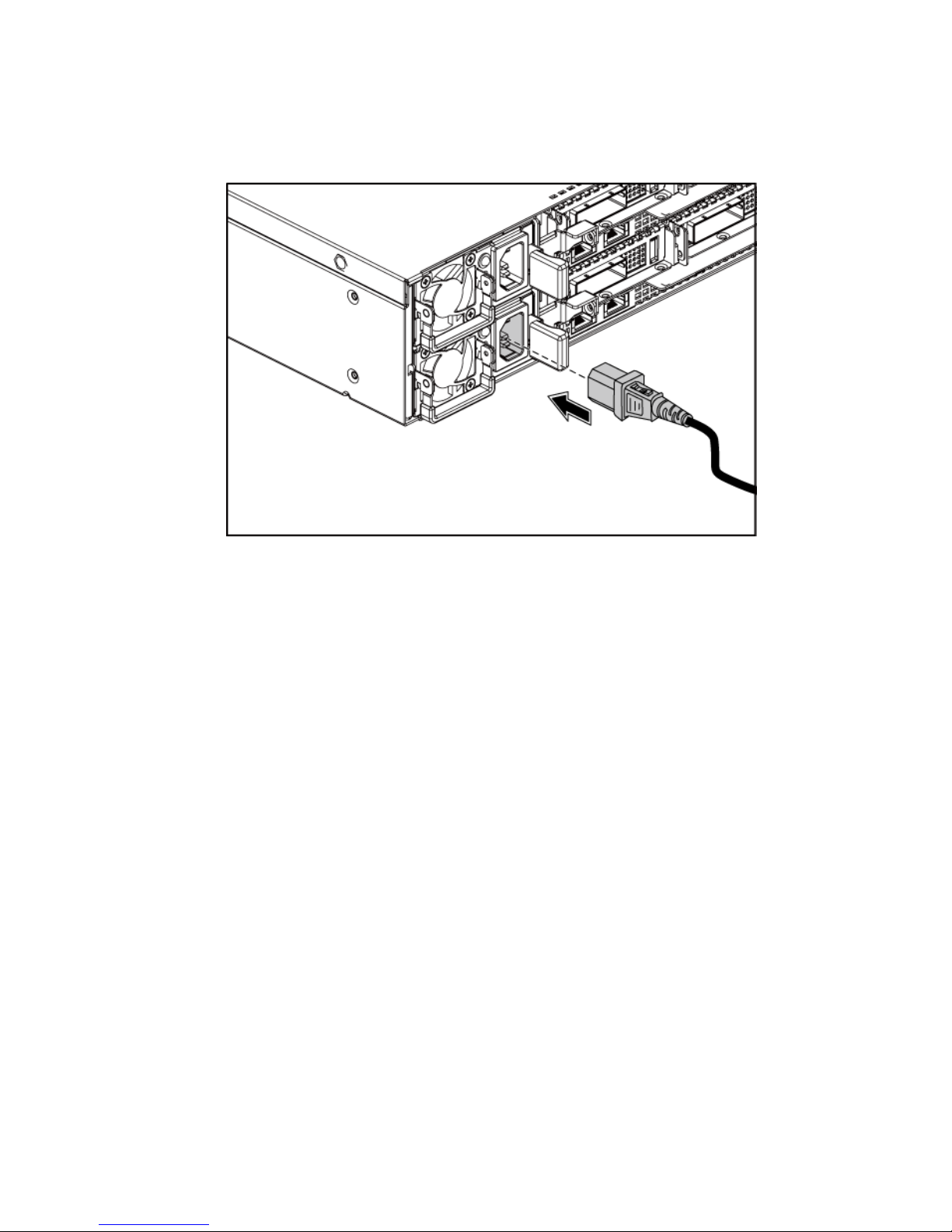

Connect the system’s power cable(s) to the system and, if a monitor is used,
connect the monitor’s power cable to the monitor. Plug the other end of the
power cables into a grounded electrical outlet or a separate power source such as
an uninterrupted power supply or a power distribution unit.
Getting Started With Your System | 10
Turning on the System
Press the power button(s) either on the front or back of the system and on the
monitor. The power indicators should light.
