Dell PowerEdge C6220 Manuale

FILE LOCATION: D:\Projects\Service Guide\Server\2011_Scorpion\RIS\BMC

Manual\BMC\C6220_BMC_HOM_tp.fm

Template Last Updated -03/06/2010

Dell PowerEdge C6220

Using the Baseboard

Management Controller

FILE LOCATION: D:\Projects\Service Guide\Server\2011_Scorpion\RIS\BMC Manu-

al\BMC\C6220_BMC_HOM_tp.fm

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

____________________

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.

Microsoft®, Windows®, Windows Server®, MS-DOS®, Windows Vista®, and Internet Explorer®are

either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other

countries. Red Hat®and Red Hat®Enterprise Linux®are registered trademarks of Red Hat, Inc. in

the United States and/or other countries. Oracle and Java are registered trademarks of Oracle and/or

its affiliates. Intel is a registered trademark of Intel Corporation in the U.S. and other countries.

Other trademarks and trade names may be used in this publication to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

2012 - 03 Rev. A00

FILE LOCATION: D:\Projects\Service Guide\Server\2011_Scorpion\RIS\BMC

Manual\BMC\C6220_BMC_HOM_bk0TOC.fm

Contents 3

Contents

Intelligent Platform Management

Interface . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Baseboard Management Controller. . . . . . . . . . . . 5

Supported Platform . . . . . . . . . . . . . . . . . . . . 5

BMC Key Features and Functions . . . . . . . . . . . . . 5

Using the Web User Interface . . . . . . . . . . . . . . . 6

Logging in to the Web User Interface . . . . . . . . . . . 7

Remote Management Controller . . . . . . . . . . . . . 9

Properties. . . . . . . . . . . . . . . . . . . . . . 10

Chassis . . . . . . . . . . . . . . . . . . . . . . . 11

Configuration . . . . . . . . . . . . . . . . . . . . 12

Sessions . . . . . . . . . . . . . . . . . . . . . . 21

Update . . . . . . . . . . . . . . . . . . . . . . . 22

Utilities . . . . . . . . . . . . . . . . . . . . . . . 24

Server Information . . . . . . . . . . . . . . . . . . . . 25

Power . . . . . . . . . . . . . . . . . . . . . . . . 25

Thermal . . . . . . . . . . . . . . . . . . . . . . . 31

System Event Log. . . . . . . . . . . . . . . . . . . . . 35

Event Management . . . . . . . . . . . . . . . . . 36

Serial Over LAN . . . . . . . . . . . . . . . . . . . . . 42

vKVM & vMedia . . . . . . . . . . . . . . . . . . 43

FILE LOCATION: D:\Projects\Service Guide\Server\2011_Scorpion\RIS\BMC

Manual\BMC\C6220_BMC_HOM_bk0TOC.fm

4Contents

Using the Video Viewer . . . . . . . . . . . . . . . . . 47

Video Viewer Menu . . . . . . . . . . . . . . . . . 48

IPMI 1.5/2.0 Command Support List . . . . . . . . . . . 51

Sensor Summary . . . . . . . . . . . . . . . . . . . . . 61

Threshold Settings and Converting Formulas . . . . . . 66

Template Last Updated - 2/7/2007 5

Intelligent Platform Management

Interface

The Intelligent Platform Management Interface (IPMI) defines a set of

standardized, message-based interfaces that monitor system hardware health

(fan speed, temperature, voltage, power supply, and so on.), control system

components, and store data about important system events in a system event

log (SEL) for later examination. IPMI provides the foundation for remote

platform management.

NOTE: To learn more about IPMI, see intel.com/design/servers/ipmi/.

Baseboard Management Controller

The key component in the IPMI system is the baseboard management

controller (BMC), a microcontroller located on the server’s system board.

BMC is the “intelligence” within the IPMI architecture, responsible for

monitoring and controlling the server’s manageable devices.

BMC is connected to the various sensors through the Intelligent Platform

Management Bus (IPMB), a subset of the I2C bus. System software

communicates with BMC using a keyboard controller style (KCS) interface.

Supported Platform

PowerEdge C6220

BMC Key Features and Functions

The features supported by BMC are as follows:

• Support for IPMI v1.5 and v2.0

• Out-of-band monitoring and control for server management over LAN

• Dedicated NIC for remote management via network

• FRU information report, which includes system board part number,

product name, and manufacturer.

• Health status/hardware monitoring report

• View and clear events log

• Event notification by lighting chassis LED indicator and Platform Event

Trap ( PET)

FILE LOCATION: D:\Projects\Service Guide\Server\2011_Scorpion\RIS\BMC

Manual\BMC\C6220_BMC_HOM_section1.fm

• Platform Event Filtering (PEF) to take selected action for selected events

• Chassis management, which includes power control, status report, front

panel buttons, and LEDs control

• Watchdog and auto server re-start and recovery

• Multi-session user and alert destination for LAN channel

Using the Web User Interface

The BMC firmware features an embedded web server, enabling users to

connect to the BMC using an Internet browser (Windows Internet Explorer)

without needing to install KVM and virtual storage software on a remote

console.

Web-based GUI is supported on the following browsers:

• Microsoft Windows:

– Internet Explorer 6, 7, 8, 9

– Mozilla Firefox 7, 8, 9

– Google Chrome 3.0 (optional)

•Linux:

– Mozilla Firefox 7, 8, 9

•MacOS

– Safari V5.X

* Default Java Machine — Java Runtime Environment (JRE) is not yet supported.

Open Java Development Kit (OpenJDK) is supported and recommended. For more

information, see openjdk.java.net.

FILE LOCATION: D:\Projects\Service Guide\Server\2011_Scorpion\RIS\BMC

Manual\BMC\C6220_BMC_HOM_section1.fm

Logging in to the Web User Interface

Users must enter the PowerEdge C6220 embedded server IP address or URL

(default DHCP\static IP address) into the address bar of the web browser.

When connecting to the PowerEdge C6220 using a web browser, Secure

Sockets Layer (SSL) is automatically activated and the display user login form

is displayed prompting for the username and password. This authentication

with SSL protection prevents unauthorized intruders from gaining access to

the PowerEdge C6220 web server. If authentication is passed, you can manage

the server by privilege.

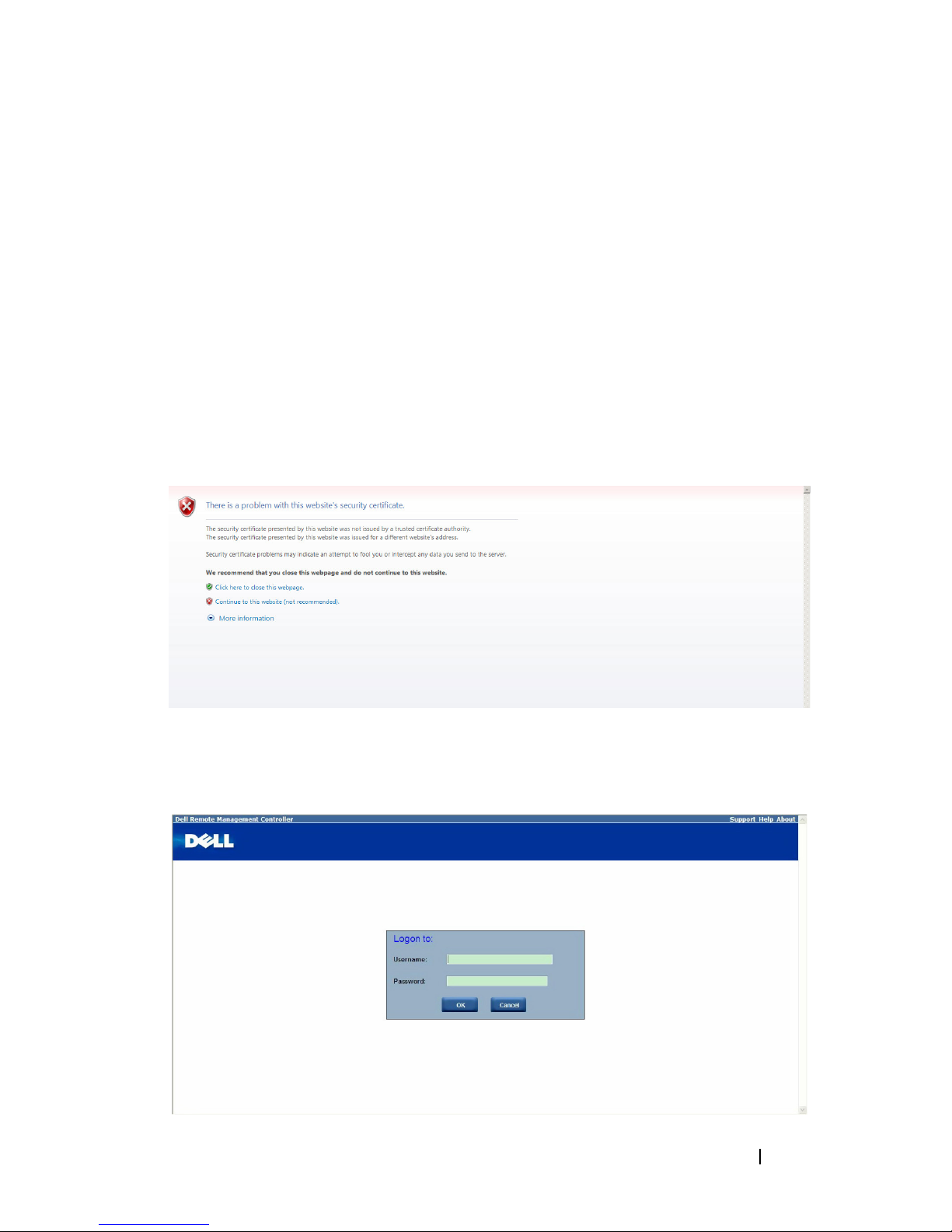

A security certificate warning displays, choose Continue to this website (not

recommended) to continue.

The user authentication web page is displayed. Enter the default user name

and password, and click OK.

FILE LOCATION: D:\Projects\Service Guide\Server\2011_Scorpion\RIS\BMC

Manual\BMC\C6220_BMC_HOM_section1.fm

NOTE: The default username and password are in lowercase characters. It is

advised to change the root password once you have logged in.

Click the Help button on the top right corner for assistance. Click Logout to

exit.

The Remote Management Controller’s web UI is divided into two areas. On

the left is the multi-level navigation menu bar, which is divided into four

categories and each category is subdivided into several submenus. On the

right is the information pane, which displays list of information, commands

or configuration options that are associated with the category selected from

the navigation menu bar.

Table 1-1. Default User Name and Password

Field Default

User Name root

Password root

FILE LOCATION: D:\Projects\Service Guide\Server\2011_Scorpion\RIS\BMC

Manual\BMC\C6220_BMC_HOM_section1.fm

Remote Management Controller

The Remote Management Controller menu provides general information

about the server including the BMC firmware and network information.

Administrators and operators can use this menu to check the sled server

health and access all network configuration options. It also provides options

for managing security, user access, session status, updating the BMC

firmware, and performing remote system shutdown or reboot.

The remote management controller menu provides access to the following

configuration options:

• Properties

•Chassis

• Configuration

• Sessions

•Update

• Utilities

FILE LOCATION: D:\Projects\Service Guide\Server\2011_Scorpion\RIS\BMC

Manual\BMC\C6220_BMC_HOM_section1.fm

Properties

The Properties option enables you to view the remote sled server BMC

firmware information.

Table 1-2. Firmware Summary

Item Description

Product Name Sled server system board model name

Product Information Remote Management Controller firmware

Firmware Version Remote Management Controller firmware version

Building Time Date the firmware was last flashed in the following

format:

MM DD YYYY HH: MM: SS

ASIC Type Application-specific integrated circuit (ASIC) type

Refresh Button Use this button to refresh the firmware information
