Dell™ PowerEdge™ C1100

Getting Started

With Your System

Guide de mise en route

Primeiros passos com o sistema

Procedimientos iniciales con el sistema

Dell™ PowerEdge™ C1100

Getting Started

With Your System

Regulatory Model CS24-TY

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data

if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and PowerEdge, are trademarks of Dell Inc.;

Citrix and XenServer are trademarks of Citrix Systems, Inc. and/or more of its subsidiaries, and may

be registered in the United States Patent and Trademark Office and in other countries; Intel and Xeon

are registered trademarks of Intel Corporation in the U.S. and other countries; VMware is a registered

trademark of VMware, Inc. in the United States and/or other jurisdictions; Red Hat and Red Hat

Enterprise Linux are registered trademarks of Red Hat, Inc. in the United States and other countries;

SUSE is a registered trademark of Novell, Inc. in the United States and other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Regulatory Model CS24-TY

February 2010 P/N F0VN9 Rev. A00

Getting Started With Your System 3

Installation and Configuration

WARNING: Before performing the following procedure, review the safety

instructions that came with the system.

Unpacking the System

Unpack your system and identify each item.

Installing the Tooled Rail Solution

WARNING: Whenever you need to lift the system, get others to assist you.

To avoid injury, do not attempt to lift the system by yourself.

WARNING: The system is not fixed to the rack or mounted on the rails. To avoid

personal injury or damage to the system, you must adequately support the system

rack during installation and removal.

CAUTION: Before installing systems in a rack, install front and side stabilizers

on stand-alone (single) racks or the front stabilizer on racks joined to other racks.

Failure to install stabilizers accordingly before installing systems in a rack could

cause the rack to tip over, potentially resulting in bodily injury under certain

circumstances. Therefore, always install the stabilizer(s) before installing

components in the rack.

CAUTION: Many repairs may only be done by a certified service technician.

You should only perform troubleshooting and simple repairs as authorized in your

product documentation, or as directed by the online or telephone service and

support team. Damage due to servicing that is not authorized by Dell is not

covered by your warranty. Read and follow the safety instructions that came

with the product.

4Getting Started With Your System

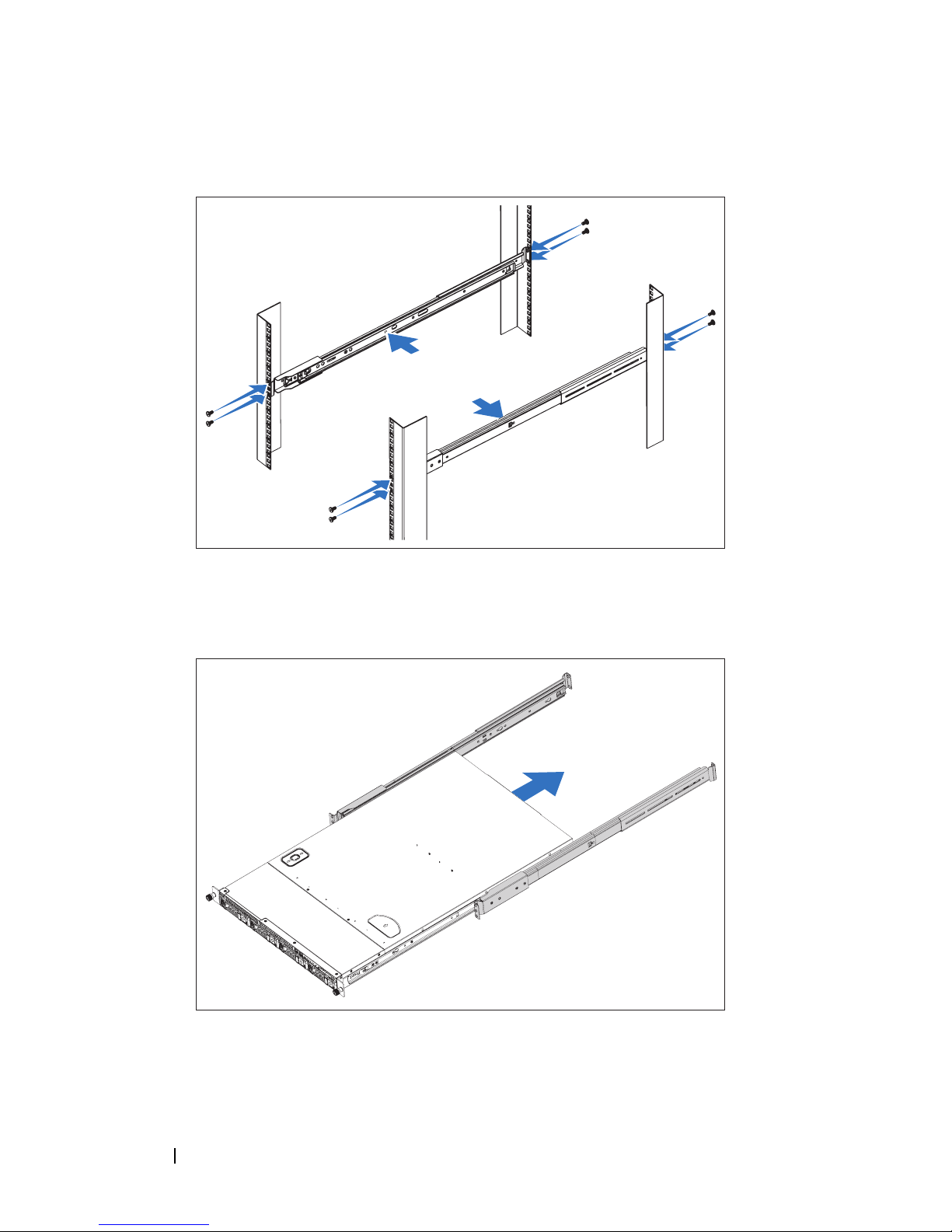

Install the sliding rails into the rack.

Align the inner rails with the sliding rails of the rack and push the system

into the sliding rails until the locking latch clicks into place.

Getting Started With Your System 5

Slide the system into the rack and tighten the thumbscrews to secure the

ears of system to the front of the rack.

Installing the Tool-less Rail Solution

WARNING: Whenever you need to lift the system, get others to assist you.

To avoid injury, do not attempt to lift the system by yourself.

WARNING: The system is not fixed to the rack or mounted on the rails. To avoid

personal injury or damage to the system, you must adequately support the system

rack during installation and removal.

CAUTION: Before installing systems in a rack, install front and side stabilizers

on stand-alone (single) racks or the front stabilizer on racks joined to other racks.

Failure to install stabilizers accordingly before installing systems in a rack

could cause the rack to tip over, potentially resulting in bodily injury under certain

circumstances. Therefore, always install the stabilizer(s) before installing

components in the rack.

CAUTION: When installing rails in a square-hole rack it is important to ensure

that the square peg slides through the square holes.

6Getting Started With Your System

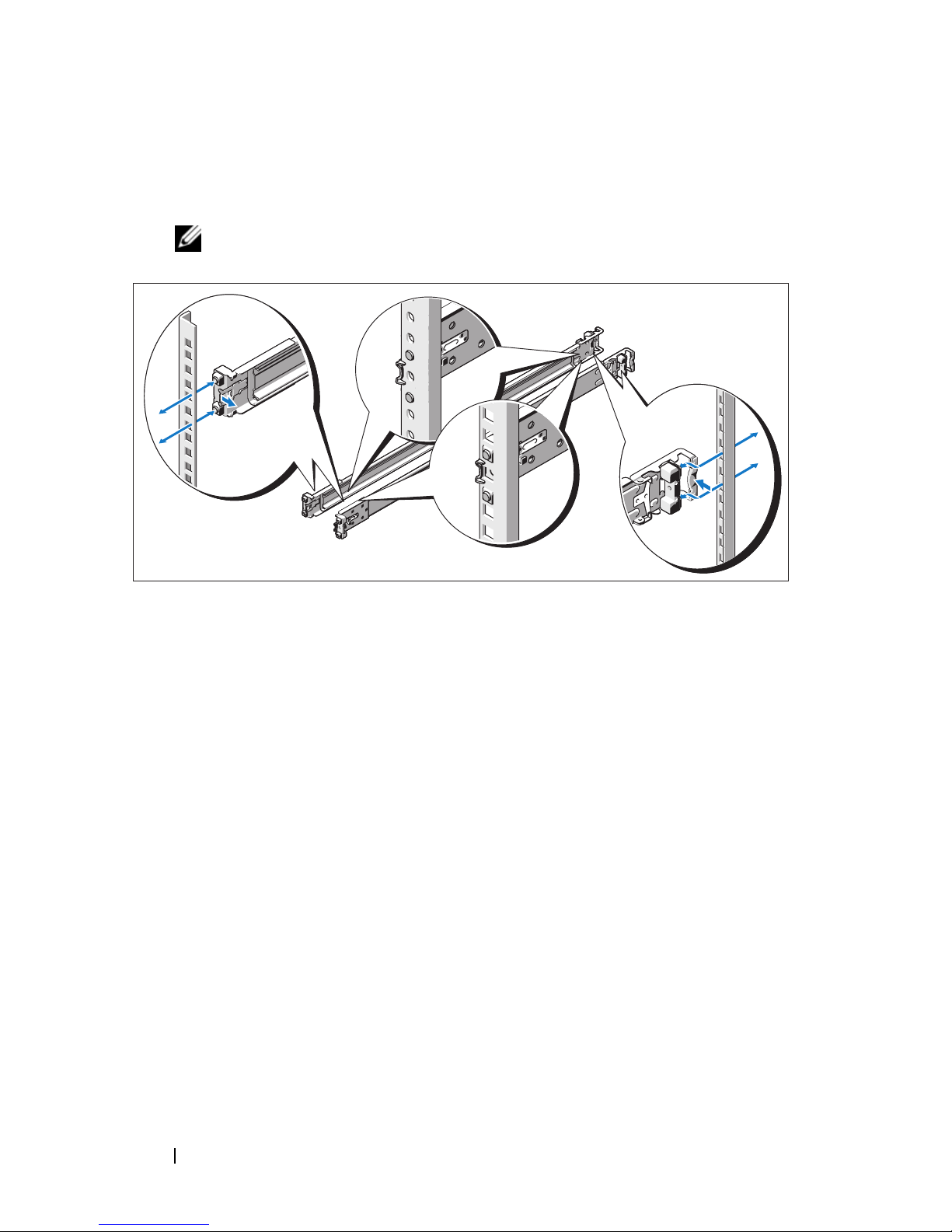

Align the end pieces of the rails on the vertical rack flanges to seat the

pegs in the bottom hole of the first U and the top hole of the second U,

and engage the back end of the rail until the latch locks in place.

NOTE: The rails can be used in both square- and round-hole racks.

Repeat these steps to position and seat the front end piece on

the vertical flange.

To remove the rails, pull on the latch release button on the end piece

midpoint and unseat each rail.

Getting Started With Your System 7

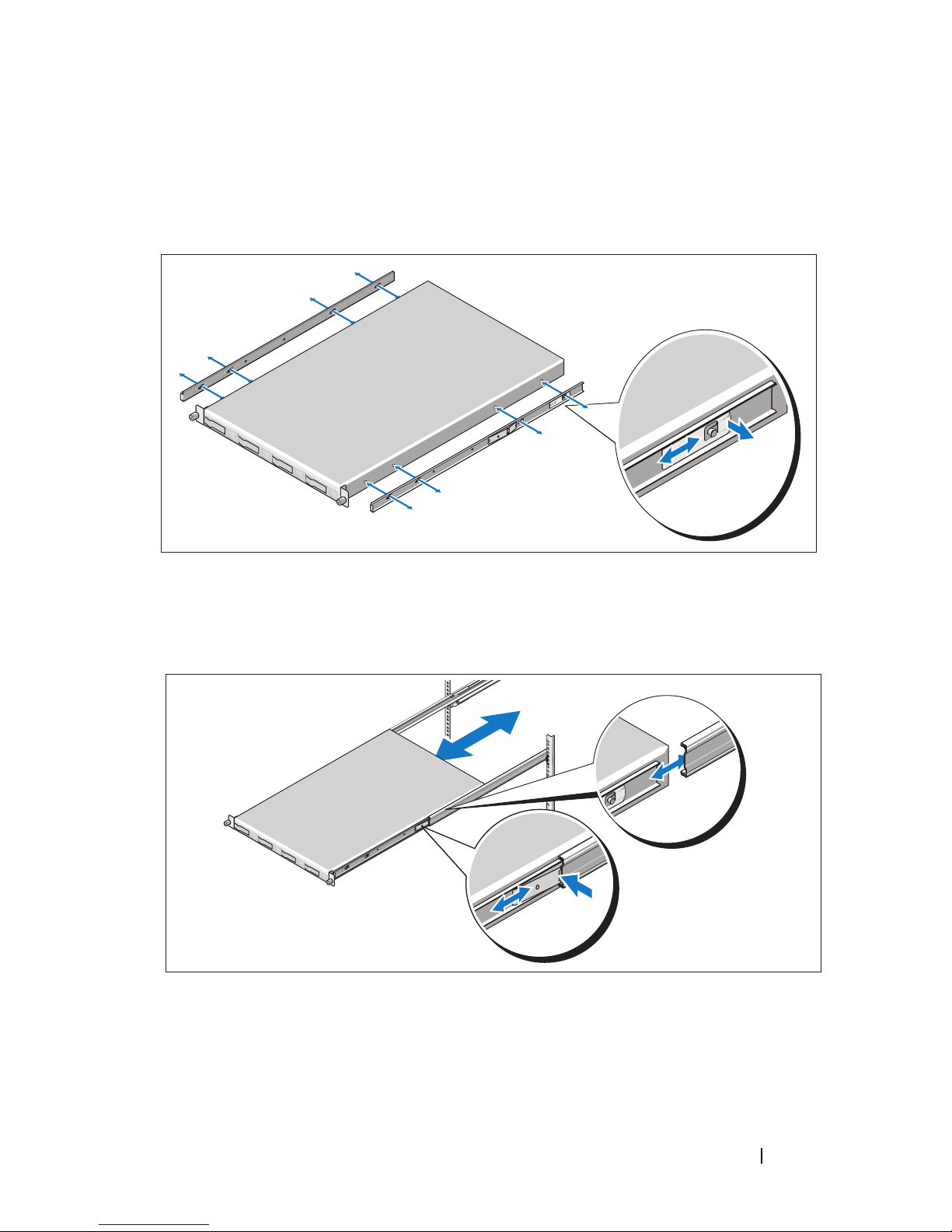

Align the four keyhole slots on the chassis rails with the corresponding pins

on the system and slide the chassis rails towards the back of the system

until it locks into place.

Align and insert the ends of the chassis rails into the ends of the rails and

push the system inward until the chassis rails lock into place.

8Getting Started With Your System

Push or pull the blue tab located near the front of the system and slide the

system into the rack. Tighten the thumbscrews to secure the ears of system

to the front of the rack.

Optional – Connecting the Keyboard, Mouse, and Monitor

Connect the keyboard, mouse, and monitor (optional).

The connectors on the back of your system have icons indicating which cable

to plug into each connector. Be sure to tighten the screws (if any) on the

monitor's cable connector.
