Dell Precision R5500

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

Front And Back View

Figure 1. Front And Back View

1. power button, power light

2. system identification button

3. system identification light

4. drive activity light

5. network link integrity lights (2)

6. diagnostic lights (4)

7. USB 2.0 connectors (2)

8. CD/DVD drive

9. hard drive bays (6)

10. expansion card slots

11. USB 2.0 connectors (4)

12. network adapter connector (2)

13. network link integrity light

14. network activity light

15. serial connector

16. line-out connector

17. line-in/microphone connector

18. system identification light

19. system identification button

Regulatory Model: E15S

Regulatory Type: E15S001

2011 – 04

20. remote system identification light

connector

21. second power supply bay (optional)

22. power connector

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance.

NOTE: Some devices may not be included if you did not order them.

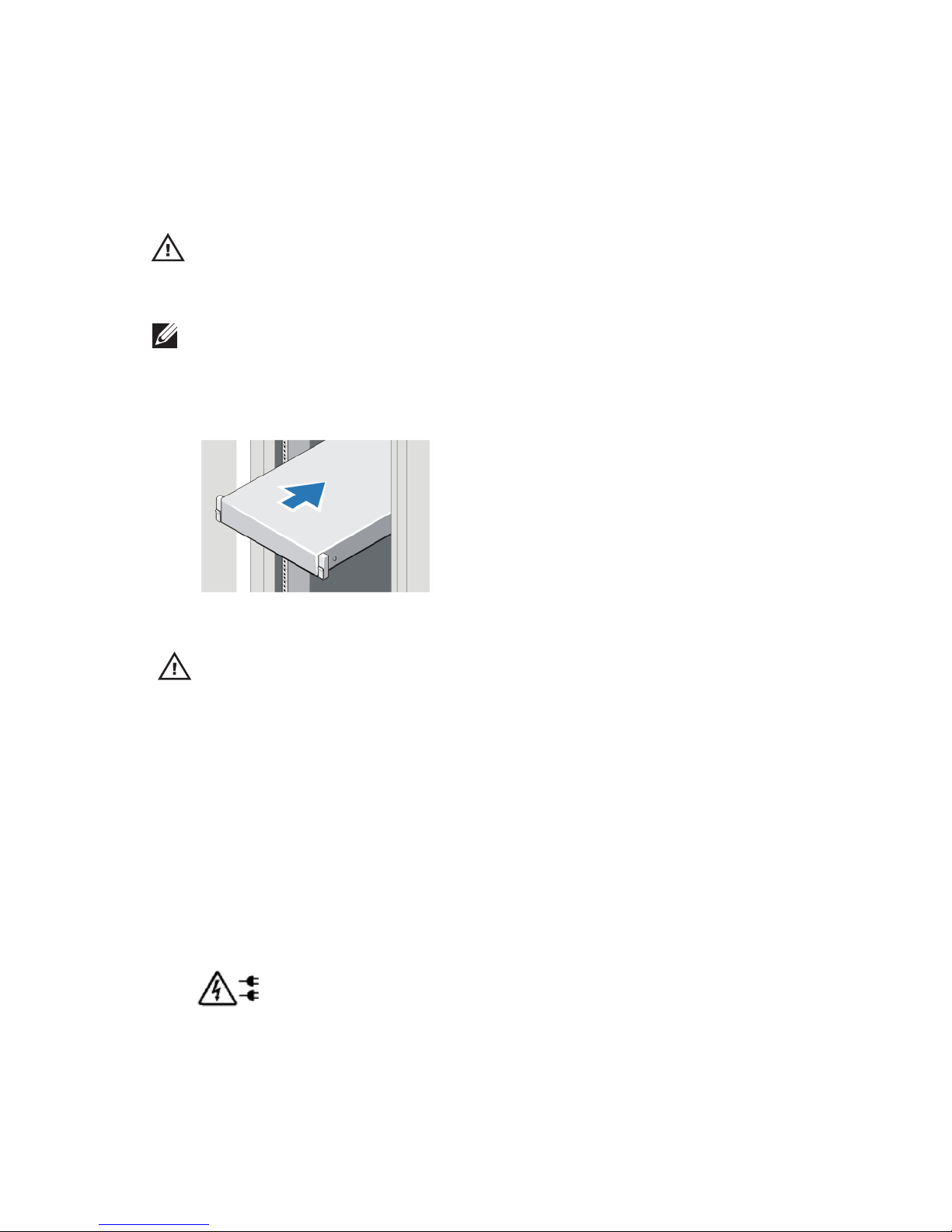

1. Install the rails and the computer in the rack. See your rack installation

documentation for safety instructions and instructions on installing

your computer in a rack.

Figure 2. Rack Installation

WARNING: Additional Instructions for Rack-Mounted Systems:

• Your rack kit has been approved only for the rack cabinet provided. It

is your responsibility to ensure that installation of the equipment

into any other rack complies with all applicable standards. Dell

disclaims all liability and warranties with respect to combinations of

equipment with any other rack.

• Before installing your equipment in a rack, install all front and side

stabilizers. Failure to install stabilizers can allow the rack to tip over.

• Always load from the bottom up, and load the heaviest items first.

• Do not overload the AC power supply branch circuit that provides

power to the rack.

• Do not stand or step on any components in the rack.

: The system may have more than one power supply cable. To

reduce the risk of electrical shock, a trained service technician may need

to disconnect all power supply cables before servicing the system.

2. Connect the network cable(s) (optional).

Figure 3. Network Connection

3. Connect the keyboard or mouse (optional).

Figure 4. Keyboard and Mouse Connection

4. Connect the monitor cable (optional).

Figure 5. Monitor Connection

5. Connect the power cable(s).

Figure 6. Power Connection

6. Bend the power cable into a loop and secure it to the power supply

handle using the strap.

Figure 7. Securing the Power Cable

7. Press the power buttons on the monitor (optional) and the computer.

Figure 8. Turning On Power

8. Install the bezel (optional).

Figure 9. Bezel Install

Specifications

NOTE: The following specifications are only those required by law to ship with your

computer. For a complete and current listing of the specifications for your

computer, go to support.dell.com.

System Information

Chipset Intel 5520 chipset

Processor

Processor Intel Xeon 5600 series

Video

Video type Discrete — PCI Express x16 graphics card;

Up to two PCI Express X16 graphics cards,

maximum of 450 W

Memory

Memory module connector twelve DIMM slots

Memory module capacity 1 GB, 2 GB, 4 GB, 8 GB, and 16 GB

Type 1066 Mhz or 1333 MHz DDR3, ECC only

Minimum memory 2 GB

Maximum memory 192 GB

Drives

Externally accessible:

Slimline SATA optical bays one

2.5 inch drive bays five SATA drives with onboard Intel

controller, or six SAS drives with SAS/

PERC 6iR cards

Internally accessible none

Control Lights And Diagnostic Lights

Power button light: off — system is off or unplugged.

solid blue light — computer is operating

normally.

blinking blue light — computer is in stand

by.

solid amber light — the computer does not

start, indicating a problem with the system

board or power supply.

blinking amber light — indicates a problem

has occurred with the system board.

Control Lights And Diagnostic Lights

System ID button and light blue light — flashes (front and back of

chassis) when the button is pressed. Press

the button again to turn it off.

Drive activity light blue light — blinking blue light indicates

that the computer is reading data from, or

writing data to the hard drive.

Network link integrity lights (front): blue light — A good connection exists

between the network and the computer.

off (no light) — The computer is not

detecting a physical connection to the

network.

Network link integrity lights (rear): green — A good connection at 10 Mbs

exists between the network and the

computer

orange — A good connection at 100 Mbs

exists between the network and the

computer.

amber — A good connection at 1000 Mbs

exists between the network and the

computer.

Network activity lights amber — flashes when there is network

activity on the connection.

Diagnostic lights: off — computer is off or has completed

POST.

amber/blinking — see the service manual

for specific diagnostic codes.

Power

Coin-cell battery 3 V CR2032 lithium coin cell

Voltage 100 V to 240 V, 12.00 A to 6.00 A, 50 Hz to 60

Wattage 1023 W on 100 VAC to 120 VAC, 1100 W on

200 VAC to 240 VAC

Power

Maximum heat dissipation 4774 BTU/hr

NOTE: Heat dissipation is calculated by using the power supply wattage rating.

Physical

Height 86.30 mm (3.40 inches)

Width 440.60 mm (17.35 inches)

Depth 792.70 mm (31.21 inches) with front bezel

753.60 mm (29.67 inches) without front bezel

Weight (minimum): 23.52 kg (51.85 lb) (without bezel)

23.91 kg (52.71 lb) (with bezel)

Environmental

Temperature:

Operating 10 °C to 35 °C (50 °F to 95 °F)

Storage –40 °C to 65 °C (–40 °F to 149 °F)

Relative humidity 20 % to 80 % (noncondensing)

Altitude:

Operating –15.2 m to 3048 m (–50 ft to 10,000 ft)

Storage –15.2 m to 10,668 m (–50 ft to 35,000 ft)

Airborne contaminant level G1 or lower as defined by ISA-S71.04–1985

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer

and the regulatory compliance website at www.dell.com/

regulatory_compliance for more information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement
