DT200-CS
MiniITX System with MXM
Quick Installation Guide
Package Contents
• 1 DT200-CS System Unit
• 3 M.2 Slot Screws
• 2 MXM Module Screws
• 1 ADDM UL Battery Addendum
• Thermal Grease(X-23-7783D) Injector 1g
Quick Reference | DT200-CS 1
Product Overview
Front View
1
2
3
4
5
Power Button
Power LED
HDD LED
COM1
COM2
12
7
36
45
6
7
USB 2.0
2.5" SSD Slot

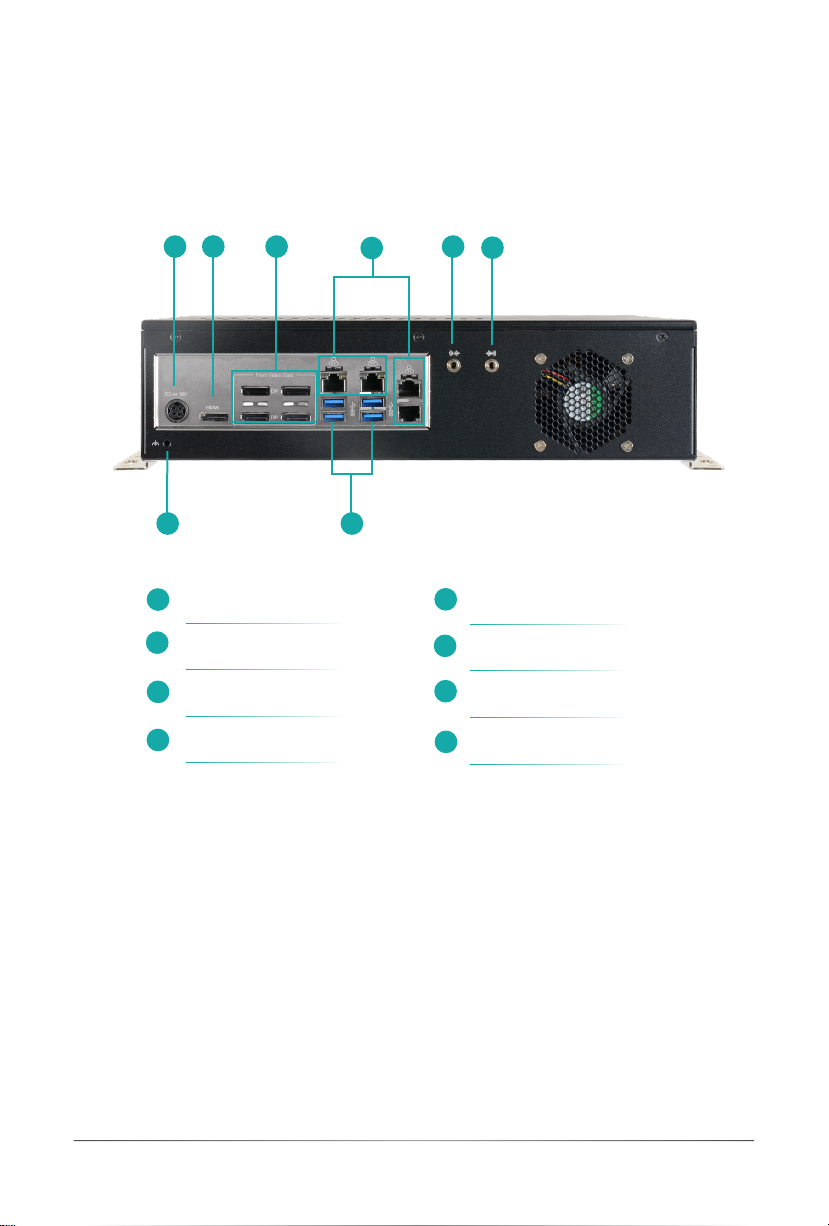

Rear View
10
11
DC-in
HDMI
DP (From MXM)
Giga LAN
8910 12 13
11
15
14
8
9
12
13
14
MIC-In
Line-Out
Grounding
USB 3.0
15
Quick Reference | DT200-CS 2
Removing the Chassis Cover
Please observe the following guidelines and follow the instructions to open the system.
1.
Make sure the system and all other peripheral devices connected to it have been
powered off.
2. Disconnect all power cords and cables.
Step 1:
The 6 screws on both front and rear sides of the system and the
8
screws
on the left and right
sides of the system are used to secure the
cover
to
the
chassis. Remove the screws and put
them in a safe place for later use.
Front View
Rear View
Left View
Right View
Quick Reference | DT200-CS 3
Step 2:
Lift the cover to open the system.
Step 3:
The boards can be easily accessed after the chassis cover is removed.
Quick Reference | DT200-CS 4
Installing an M.2 Card
Please observe the following guidelines and follow the instructions to open the system.
1.
Make sure the system and all other peripheral devices connected to it have been
powered off.
2. Disconnect all power cords and cables.
Step 1:
There are 4 screws on the bottom of the system
are used to secure the M.2
cover
to
the
chassis. Remove the screws and put them in a safe place for later use.
Quick Reference | DT200-CS 5
Step 2:
Lift the cover to open the system.
Quick Reference | DT200-CS 6
M.2 Module M.2 Socket
Key
Stand-off
Notch
Step 5:
Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap
between the card and the stand-off closes up. The card should be lying parallel to the board
when it’s correctly mounted.
Step 3:
Please follow the steps below to install the card into the socket.
Insert the card into the socket at an angle while making sure the notch and key are perfectly
aligned.
Step 4:
Press the end of the card far from the socket down until against the stand-off.
M.2 Module M.2 Socket
Key
Stand-off
Notch
M.2 Module M.2 Socket
Key
Stand-off
Notch
Quick Reference | DT200-CS 7
Installing an MXM Card
Before installing an MXM card, please make sure that the following safety cautions
are wellattended.
1. Make sure the PC and all other peripheral devices connected to it has been
powered down.
2. Disconnect all power cords and cables.
Step 1:
Lift the cover to open the system.
The board can be easily accessed and you will find the location of the MXM card socket.
Step 2:
Please follow the steps below to install an MXM card into the socket.
Insert an MXM card into the socket at an angle while making sure the notch and key are
perfectly aligned.
Quick Reference | DT200-CS 8
The List of Compactible MXM modules is as follows:
Model Assignment Assignment
P1000 512 47W
P2000 768 58W
T1000 896 50W
PTX3000 1920 80W
Step 3:
Screw tight the card through the holes with the motherboard to keep it steady until the gap
closes up. The card should be lying parallel to the board when it’s correctly mounted.
Quick Reference | DT200-CS 9
