DFI GM831-CSF Manuale utente

GM831-CSF Installation Guide

Package Contents

DFI reserves the right to change the specications at any time prior to the product's release. For the

latest revision and details of the installation process, please refer to the user's manual.

www.d.com

Note:

The software package that came with the system contains application and code samples

to implement gaming software for the system.

•

One GM831-CSF system unit

• Demonstration kit:

- Power Supply (PSU)

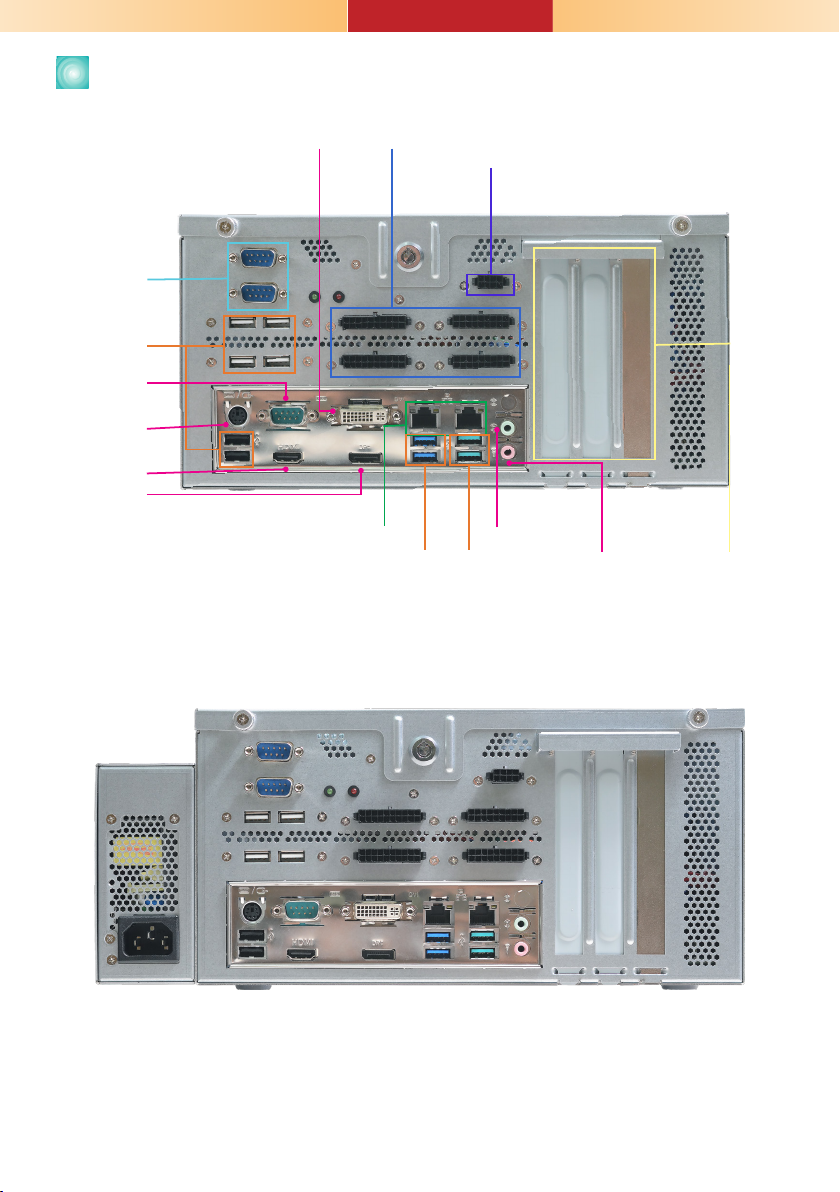

Ports and Connectors

COM 3~4

DIO

USB 2.0

HDMI

DVI-D

COM 1

LAN

DP++

PS/2, KB/

USB 3.1

Gen 1

Intrusion Switch

x 6

Mic-in

Line-out

Expension Slots

Front View

(with Power Supply)

Front View

USB 3.1

Gen 2

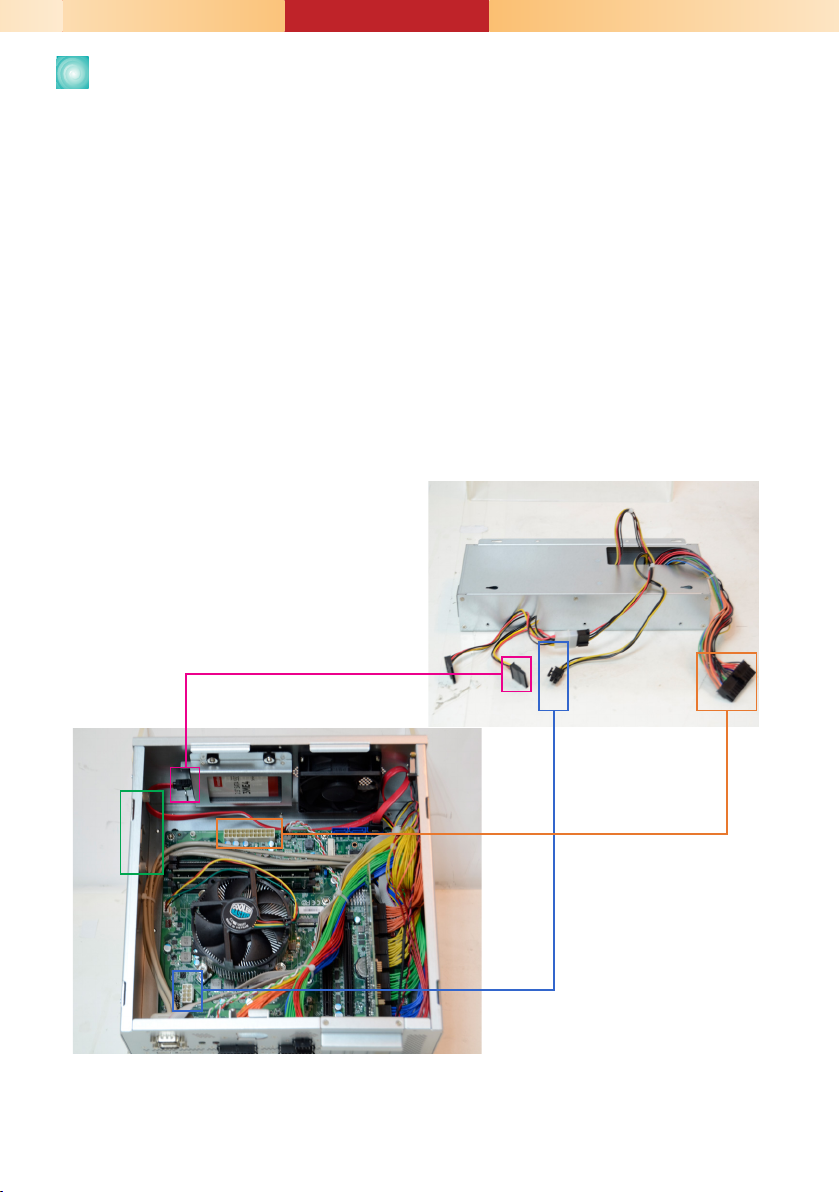

Connecting the Power Supply

The PSU is an optional item of GM831-CSF for the power supply solution. The instruction below is

to demonstrate the process to connect the PSU to GM831-CSF.

1. Make sure the system and all other peripherals connected to it have been powered o.

2. Disconnect all power cords and cables.

3. Remove the mounting screw on the side and take o the cover to unveil the hole. (Green

label)

4. Put all the cables from the PSU into GM831-CSF through the hole.

5. Connect the PSU to GM831-CSF's port using the multi-clolor cable. (Orange label)

6. Connect the PSU to GM831-CSF's port using the small cable. (Blue label)

7. Connect the PSU to GM831-CSF's port using the 1 at cable. (Pink label)

Mounting screws (step screws)

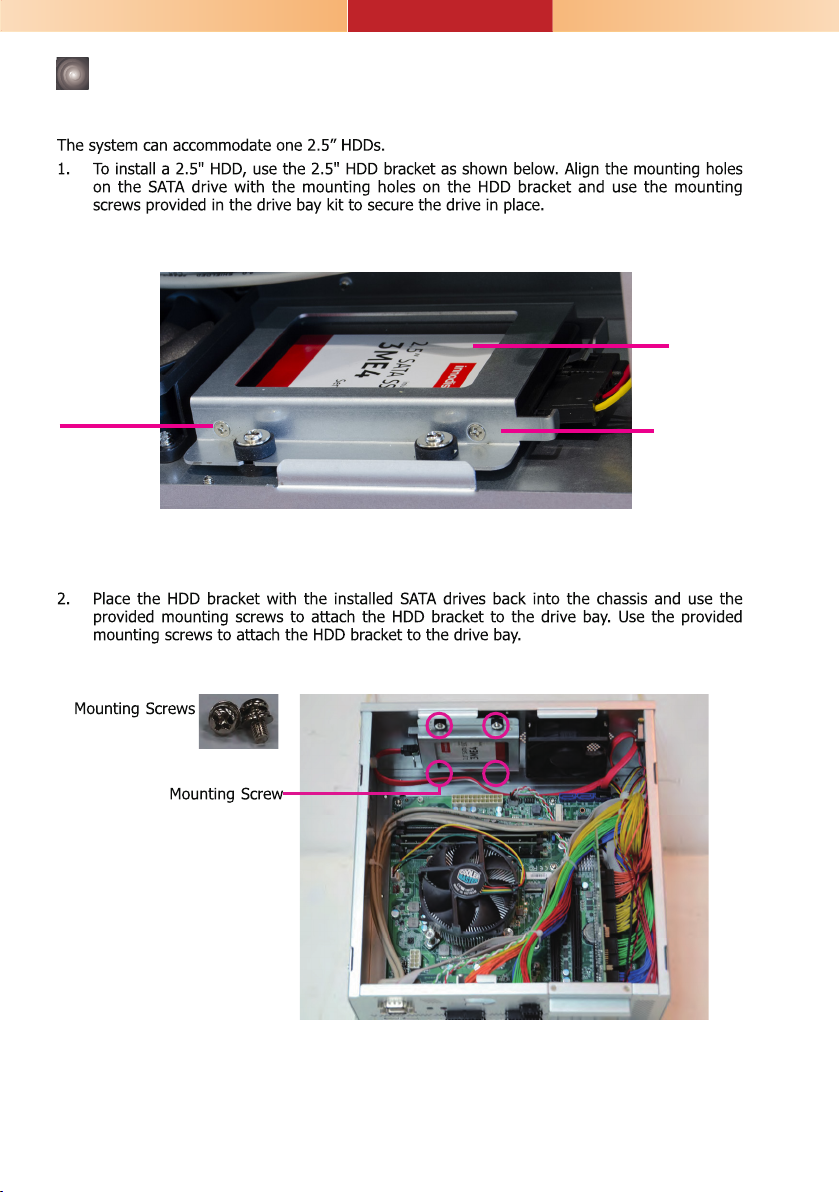

Installing a 2.5" SATA Drive

SATA Drive

Mounting

screw

HDD Bracket

SATA Drive

HDD Bracket

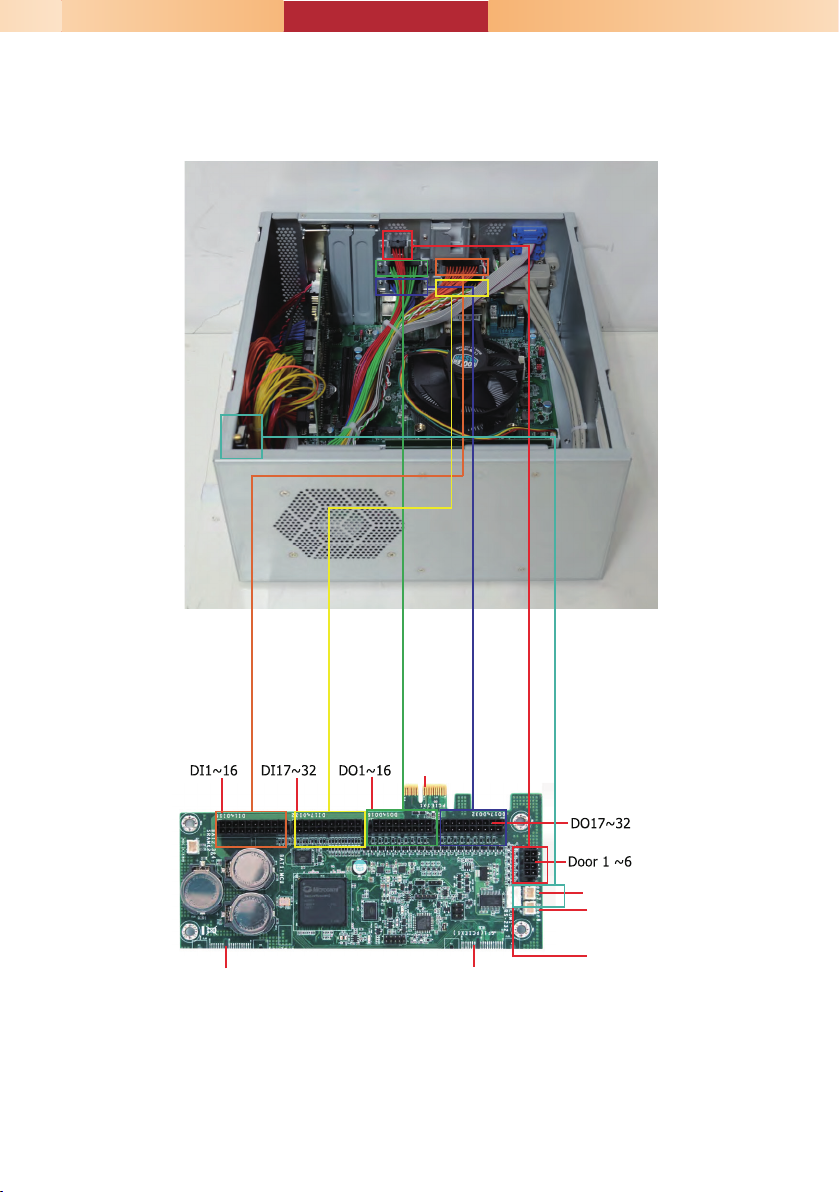

Installing GM901

GM901

PCIe x1

Door 7

Door 8

COM 1

PCIe x1

www.d.com

Board Layout and Jumper Settings

M.2 M Key

PCIe 4 (PCIe x4)

Standby

Power

LED

ATX Power

12 24

2 1

LPC

TPM

(optional)

Chassis

Intrusion

System Fan 1

1 2

Front Panel

1 2

LAN LED

SMBus

SPI

Flash

BIOS

PCIe 2 (PCIe x16)

Intel I211AT

Clear CMOS (JP5)

C246/Q370

Intel

PCIe 3 (PCIe x4)

DDR4_1 DDR4_3

DDR4_4DDR4_2

PCIe 1 (PCIe x16)

CPU Fan

+12V

Power

Mini PCIe

Nuvoton

NCT6116D

USB 2.0

DIO

S/PDIF

Realtek

ALC888S

Front

Audio

910

I C

PS/2 KB/MS

USB 5-6

USB 2.0

COM 1

HDMI

Line-in (opt.)

Line-out

Mic-in

LAN 1

USB 1-2

USB 3.1 Gen 1

USB 9-10

or Optional

Vertical USB 9

210

COM 2

COM 3

COM 4

SATA 2

SATA 1

SATA 0

SATA 3.0

COM 2

RS232/Power

Select (JP7)

SATA 6

(CS331-C246 only)

SATA 5

SATA 3.0

Battery

Intel I219LM

Buzzer

COM 1

RS232/422/485

Select (JP2)

COM 1 RS232/Power

Select (JP4)

COM 1 RS232/422/485

Select (JP3)

(JP10)(JP6)(JP8)

COM 2

RS232/422/485

Select

System

Fan 2

SATA 3

COM 1

RS232/422/485

Select (JP1)

USB 3.1 1-2

Power Select (JP15)

USB 3.1 3-4 Power Select (JP16)

Mini PCIe/mSATA Signal Select

(JP9)

USB 2.0 7-8

Power Select

(JP17)

USB 2.0 9-10 Power Select (JP18)

USB 2.0 5-6 Power Select (JP21)

(JP20)

(JP21)

PS/2 Power Select (JP20)

1 10

1120

USB 5-6

1USB 3.1 5-6

Power Select (JP19)

USB 3.1 Gen 2

10 2

System

Fan 3

62 62

51 51

USB 7-8

DVI-I

(DVI-D signal)

DP++

LAN 2

USB 3-4

USB 3.1 Gen 2

LGA 1151 Socket

Clear CMOS Data JP5

Normal (default) 1-2 On

Clear CMOS Data 2-3 On

Mini PCIe/mSATA Signal

Select

JP9

Mini PCIE (default) 1-2 On

mSATA 2-3 On

Selection for COM 1 JP1/JP2

RS232 1-3, 2-4 On

RS422 3-5, 4-6 On

RS485 3-5, 4-6 On

PS/2 Power Select JP20

+5VDU (default) 1-2 On

+5V 2-3 On

Selection for COM 2 JP6/JP8

RS232 1-3, 2-4 On

RS422 3-5, 4-6 On

RS485 3-5, 4-6 On

Selection for COM 1 JP3

RS232 1-3, 4-6 On

RS422 3-5, 4-6 On

RS485 3-5, 2-4 On

Selection for COM 1 JP4

RS232 1-3 (RI-), 2-4 (DCD-) On

RS232 with power 3-5 (+5V), 4-6 (+12V) On

Selection for COM 2 JP7

RS232 1-3 (RI-), 2-4 (DCD-) On

RS232 with power 3-5 (+5V), 4-6 (+12V) On

Selection for COM 2 JP10

RS232 1-3, 4-6 On

RS422 3-5, 4-6 On

RS485 3-5, 2-4 On

USB Power Select JP15 (USB 3.1

1-2)

+5VDU (default) 1-2 On

+5V 2-3 On

USB Power Select JP17 (USB 2.0

7-8)

+5VDU (default) 1-2 On

+5V 2-3 On

USB Power Select JP16 (USB 3.1

3-4)

+5VDU (default) 1-2 On

+5V 2-3 On

USB Power Select JP19 (USB 3.1

5-6)

+5VDU (default) 1-2 On

+5V 2-3 On

USB Power Select JP18 (USB 2.0

9-10)

+5VDU (default) 1-2 On

+5V 2-3 On

USB Power Select JP21 (USB 2.0

5-6)

+5VDU (default) 1-2 On

+5V 2-3 On

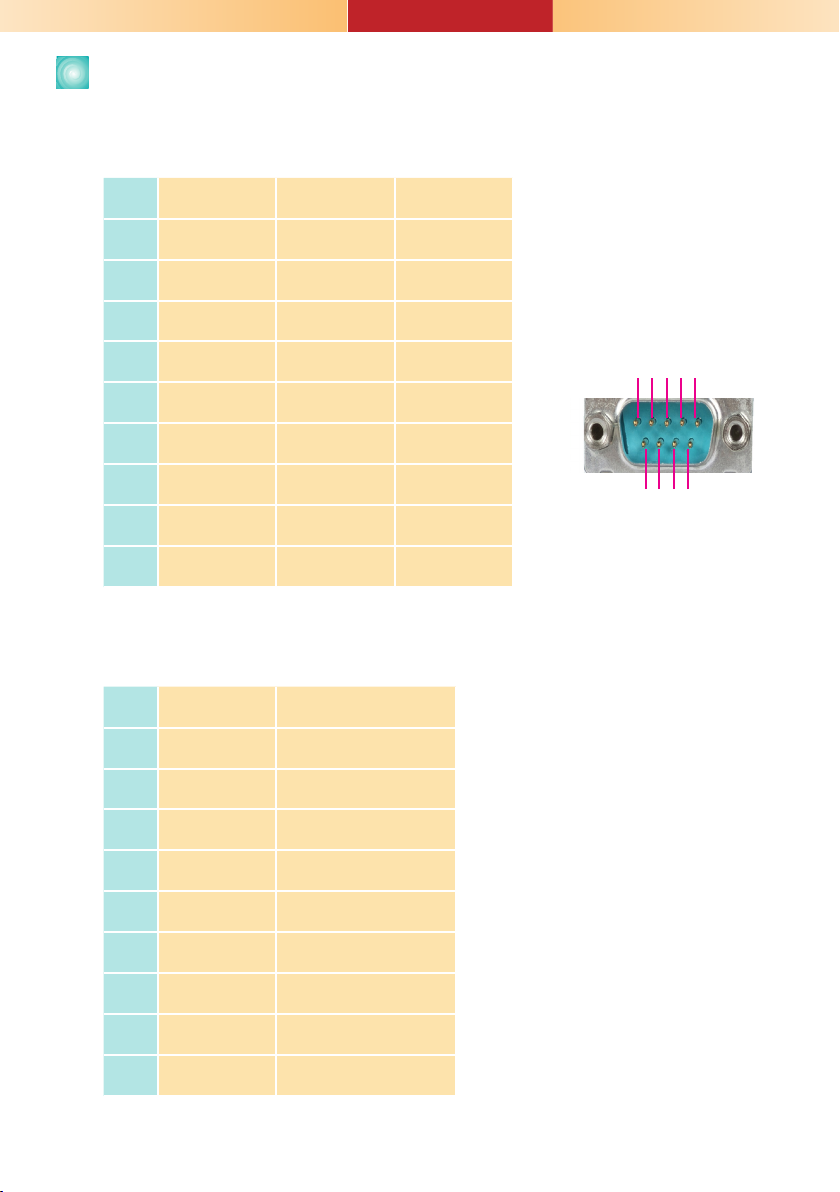

Connector Pin Assignment

COM1/COM2 RS232/422/485 Select

Pins RS232 RS422 RS485

1DCD- RX+ DATA+

2SIN- RX- DATA-

3SO- TX+ NC

4DTR- TX- NC

5GND GND GND

6DSR- NC NC

7RTS- NC NC

8CTS- NC NC

9RI- NC NC

COM1/COM2 RS232 Power Select

Pins RS232 RS232 with power

1DCD- +12V

2SIN- SIN-

3SO- SO-

4DTR- DTR-

5GND GND

6DSR- DSR-

7RTS- RTS-

8CTS- CTS-

9RI- +5V

12 3 4 5

6 7 8 9
