DFI EC510-KH Manuale utente

DFI reserves the right to change the specications at any time prior to the product's release. For the latest revision and details of the

installation process, please refer to the user's manual.

EC510/511-KH Installation Guide

Package Contents

www.d.com

•

EC510/511-KH system unit

• Quick Installation Guide

•

CD disk includes:

- Drivers / Manual

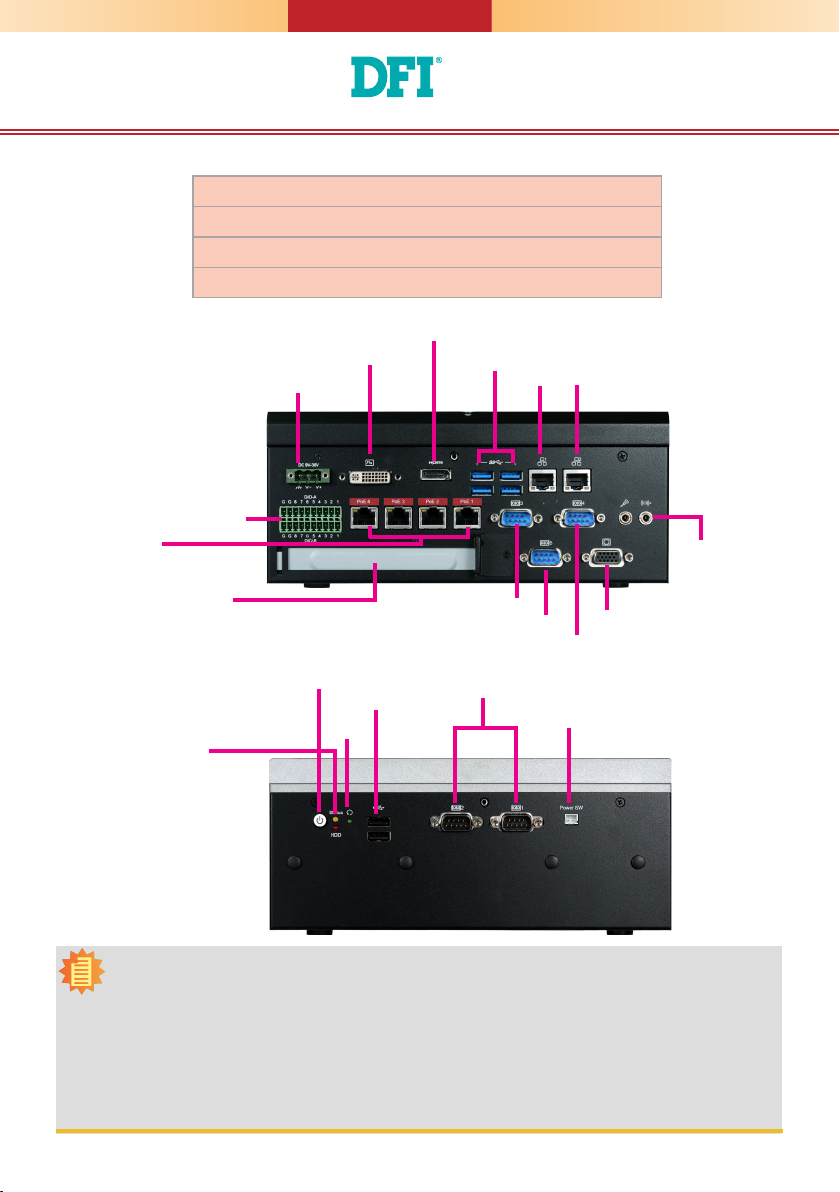

Rear Panel

COM 4

DC-in

DVI-I(2)

(DVI-D signal)

HDMI(3)

USB 3.0LAN 1 LAN 2

VGA

Digital IO

Expansion slot COM 3

PoE 1~4(1)

LAN 3~6

COM 5

Mic-in, Line-out

Notes:

1. The PoE ports support PoE devices that comply with 802.3af and each port delivers 15.4W of

power to connected devices. The system may be equipped with 4 Gigabit Ethernet ports without

PoE depending on the SKU; please refer to the Ordering Information for details.

2. This port can be in HDMI or DVI-D (HDMI available upon request).

3. This port is a DP/HDMI combo port but can only transmit either HDMI or DP signals (as indicated on

the panel). Please plug in a DP or an HDMI cable with the right orientation and alignment to avoid

damage to the connector. You should feel resistance (due to a pin on the right) if the cable is not

inserted correctly. For detailed instructions, see https://youtu.be/SUj07rfN5l8.

Front Panel

COM 2 COM 1

Remote Power Switch

USB 2.0

Power Button

Status LED

HDD LED

Reset Switch

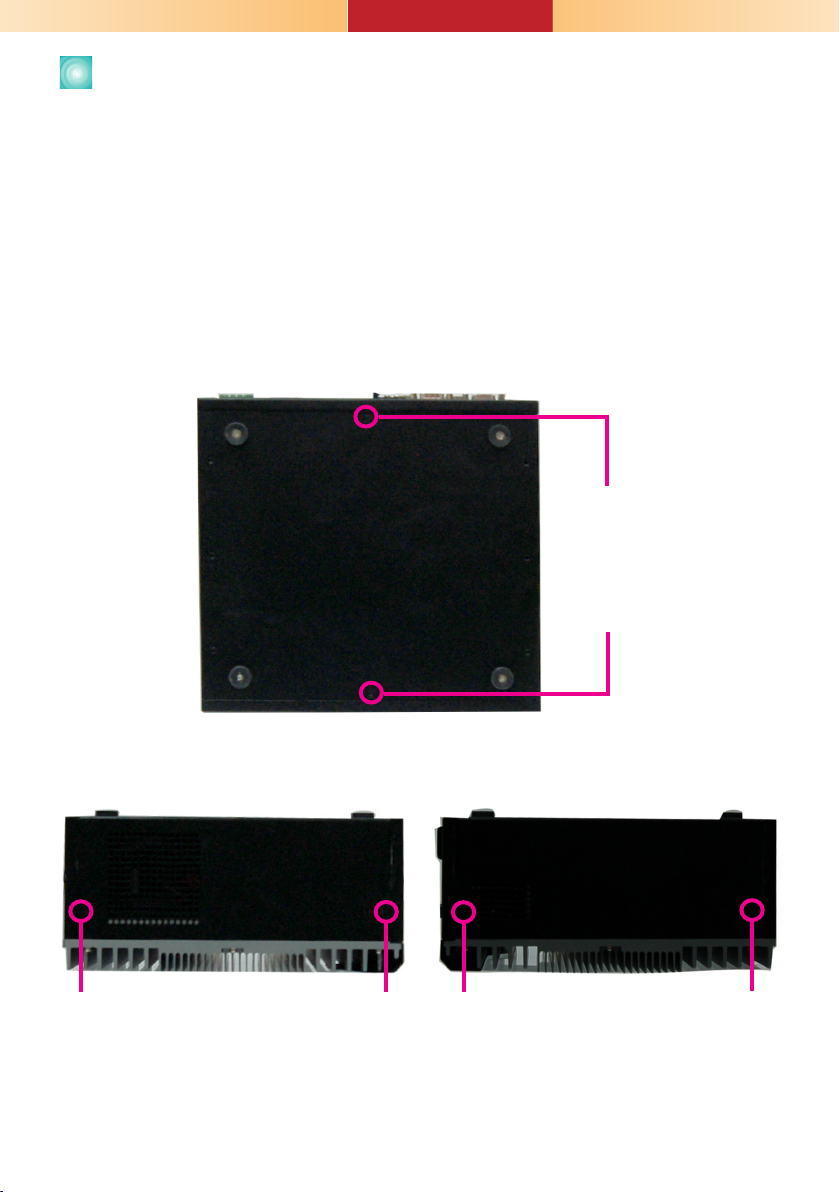

Removing the Chassis Cover

Please observe the following guidelines and follow the procedure to open the

system.

1. Make sure the system and all other peripheral devices connected to it have

been powered off.

2. Disconnect all power cords and cables.

3. The 6 mounting screws on the bottom and both sides of the system are used

to secure the cover to the chassis. Remove these screws and put them in a

safe place for later use.

Chassis screw

Chassis screw Chassis screw

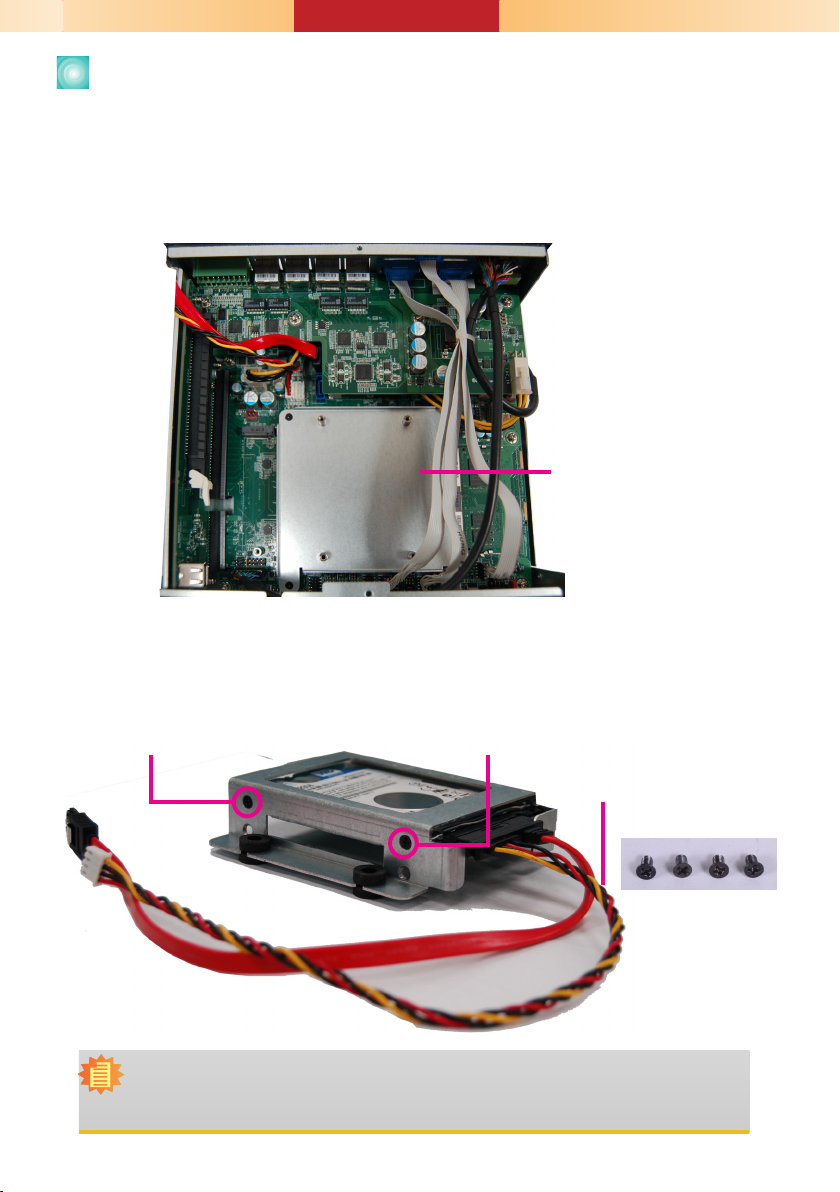

Installing a 2.5" SATA Drive

2. Insert the SATA drive into the HDD bracket and secure it in place with the

provided screws (black screws). The HDD bracket can accommodate two

SATA drives.

SATA power/data cable

Note:

Connect SATA cables before afxing the SATA drive on the HDD bracket as the HDD

bracket would prevent access to the SATA connectors of the drive.

SATA drive bay

1. The SATA HDD bracket is included in the product package. Locate the SATA

drive bay on which the SATA HDD bracket will be mounted.

Mounting screw

SATA cables

Mounting screw

Mounting screws

The system can accommodate two SATA drives. Please use the following procedure

to install a SATA drive in the system.

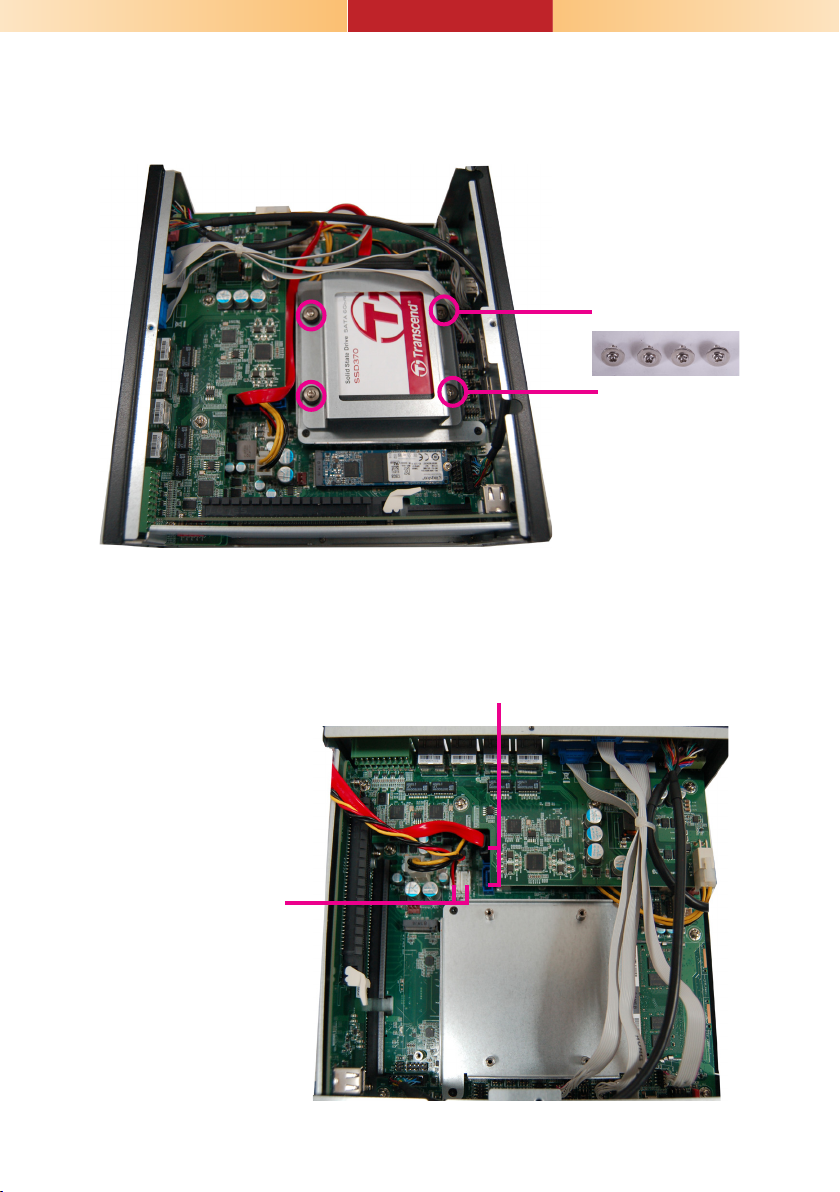

3. Place the SATA drive with the HDD bracket into the system. Align the

mounting holes on the HDD bracket with the mounting holes on the SATA

drive bay and use the provided screws to secure the drive in place.

4. Connect the other end of the SATA data cable and the SATA power cable to

the SATA data and SATA power connector on the mainboard respectively.

Mounting Screw

SATA data connector

SATA power connector

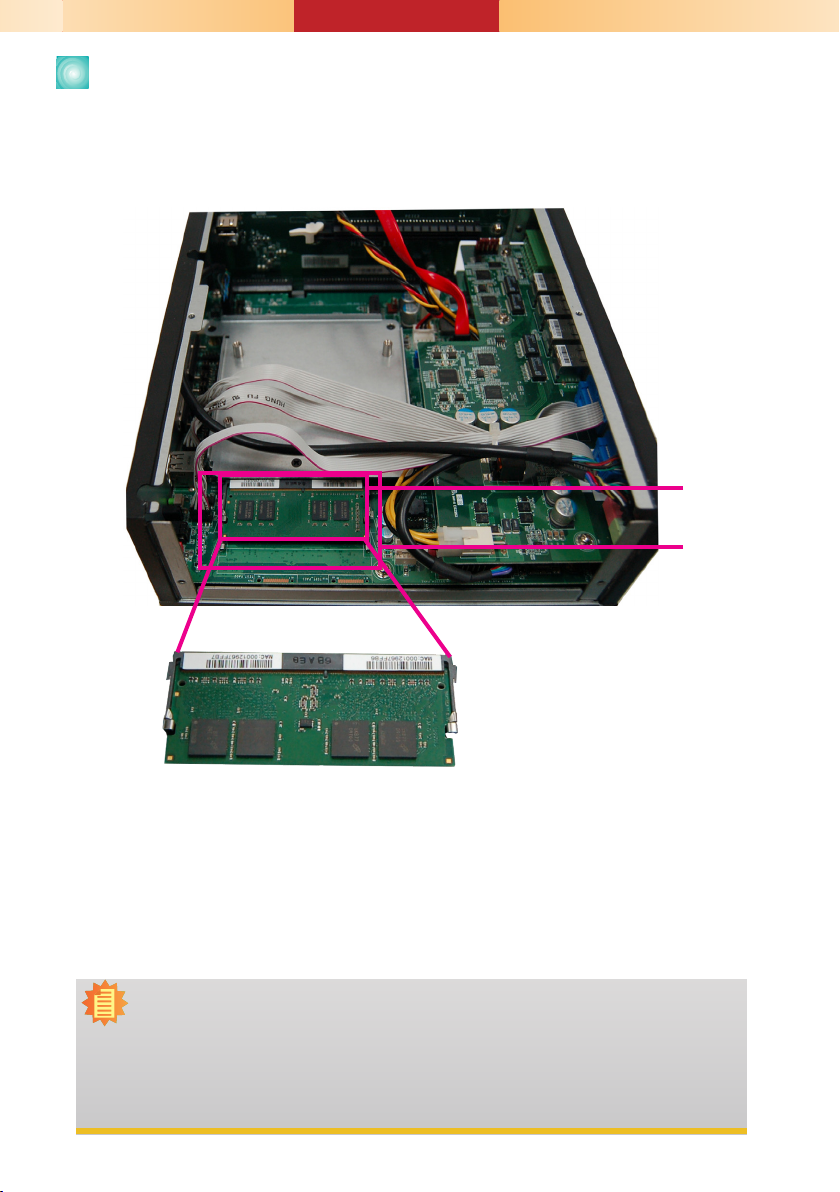

Installing a SODIMM

Grasp the module by its edges and align the SODIMM’s notch with the

socket’s key; then insert the SODIMM into the socket at an angle and push it

down until the retaining clips snap into place.

Notes:

1. The system supports dual-channel conguration. To enable dual-channel,

populate both SODIMM sockets.

2. If you plan to install only one SODIMM, install it in the DIMM1 socket (upper

one and closer the center of the mainboard).

3. The SODIMM sockets can only accept DDR4 memory modules. Please do not

install other types of memory modules.

To remove a SODIMM, gently spread the retaining clips at each end of the

SODIMM socket. The SODIMM should pop out of the socket. Lift the SODIMM

away from the socket on the mainboard.

DIMM1

The installed SODIMM

DIMM2

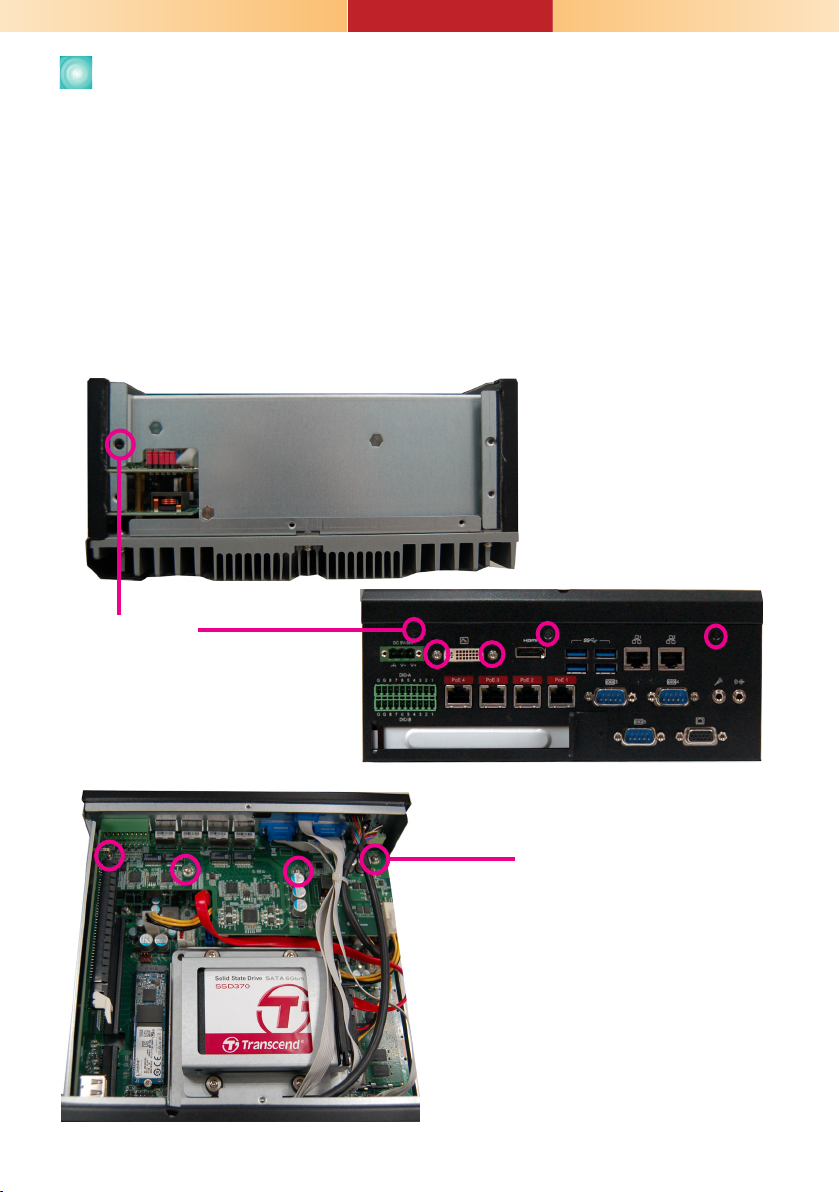

The Mini PCIe sockets are located on the mainboard. You need to revmove the

daughter board and the front bezel to access them.

The 4 mounting screws on the daughter board are used to secure the board

to the mainboard. Remove these screws and put them in a safe place for later

use. To disengage the daughter board from the mainboard, gently pull the card

out of the connector.

The 4 mounting screws (plus the two

fasteners used on DVI-D connector) af-

x the front bezel to the system as shown in the following pictures.

Remove

these screws and put them in a safe place for later use.

Installing a Mini PCIe Expansion Card

Front bezel

mounting screw

Daughter board

mounting screw

2. Secure the card on the mainboard with the provided mounting screw.

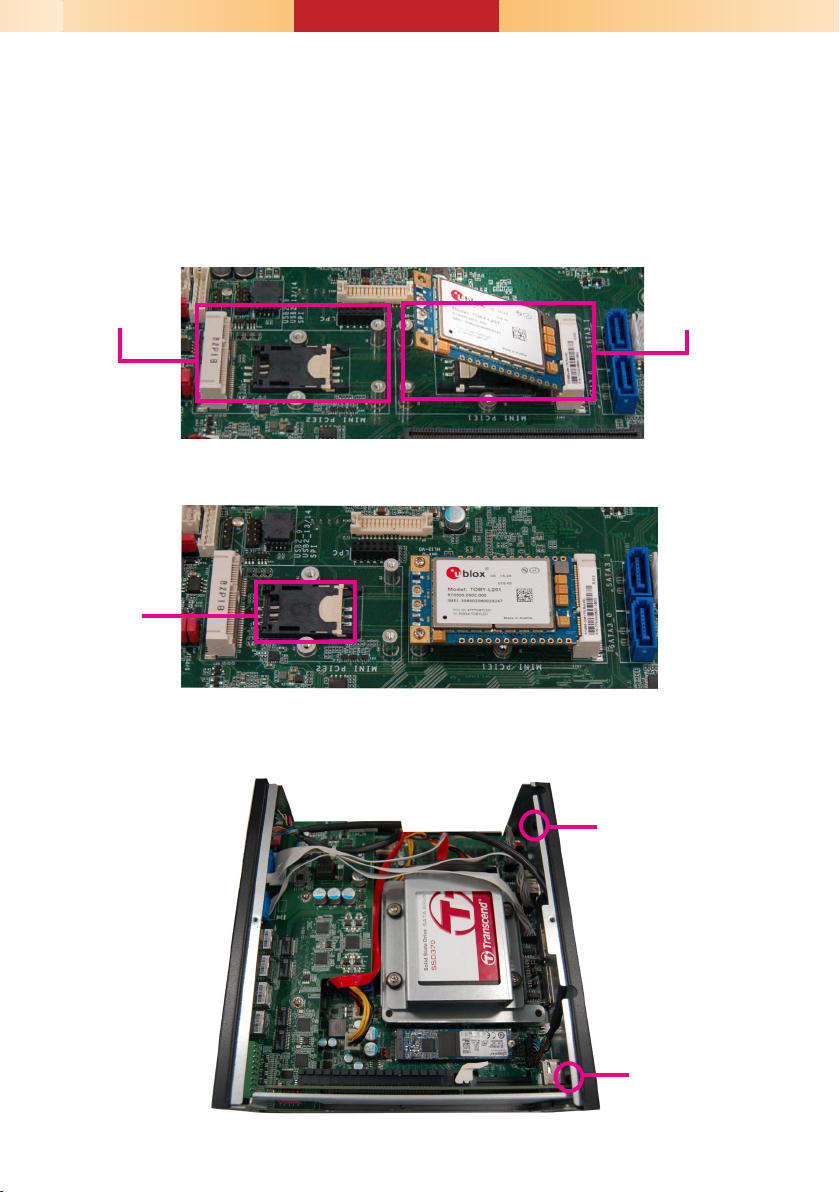

The system board is equipped with 2 Mini PCIe slots with Mini SIM card sockets to

support a variety of wireless LAN and mobile broadband communication modules.

Mini PCIe slot 1 provides both USB and PCIe interfaces whereas Mini PCIe slot 2

provides only USB interface.

1. Grasp the Mini PCIe card by its edges and align the notch in the connector of

the Mini PCIe card with the notch in the connector on the system board.

3. If the Mini PCIe card has antennas, route the antennas to the antenna holes

on the front chassis of the device.

Antenna holes

Mini PCIe 1

Mini PCIe 2

SIM 2

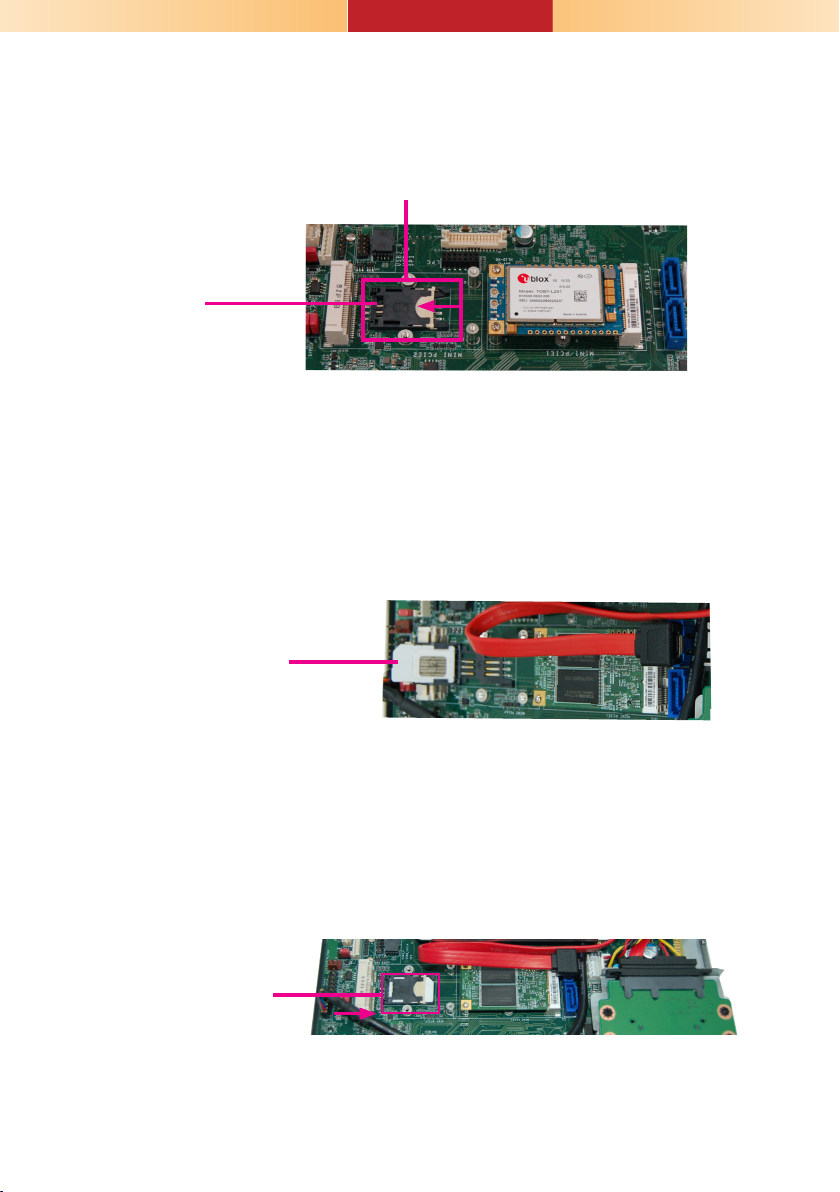

Installing a SIM Card

Open the SIM card socket by pushing the white latch inward.

Insert the SIM card into the slot. Please place the card with the IC facing down

and the angled corner aligning with the socket's angled corner so it will be cor-

rectly in contact with the system board.

Close the slot's cover and lock the slot by pushing the white latch outward.

Flip the cover up to open it

Push the latch

inward to open it

Close the cover and lock it

SIM 2

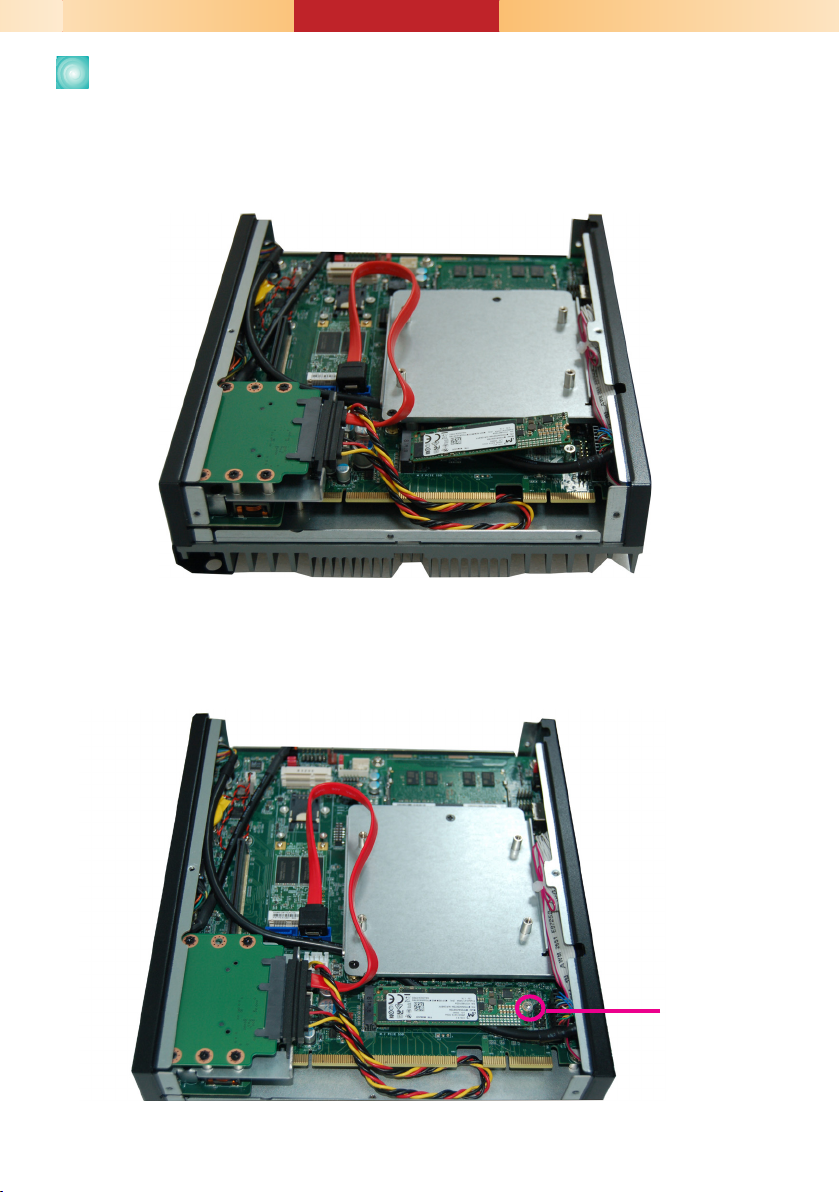

Installing an M.2 Card

To install an M.2 card, insert the bottom edge of the M.2 card into the

connector, and then secure the card to the standoff with the provided

mounting screw.

Mounting Screw

The onboard M.2 Type 2280 connector (M Key) supports PCIe NVMe modules

up to PCIe Gen 3.0 x4 bandwidth. Note that only SKUs with Intel® QM175

Chipset support M.2 socket.

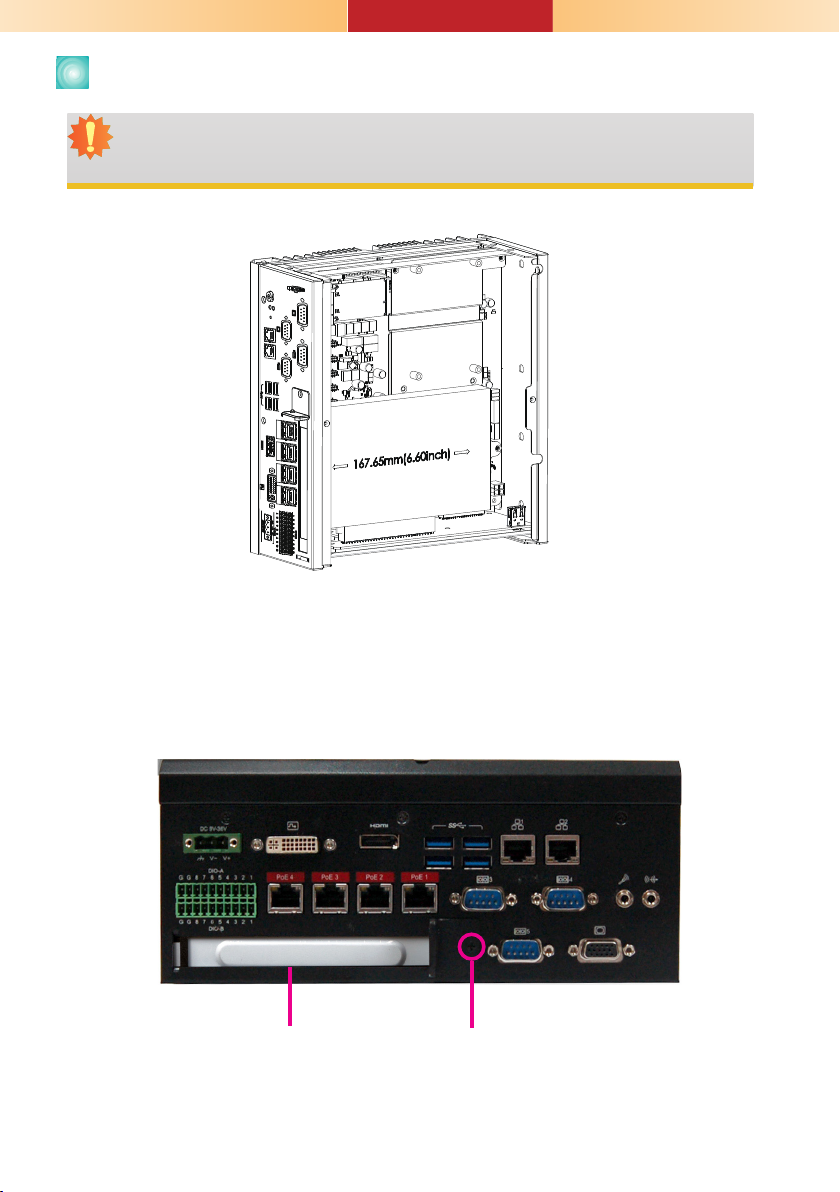

Installing a PCI or PCIe Expansion Card

Important:

When inserting expansion cards into the system, please select a standard card

within 167.65mm (as shown in the picture below) in order to t into the expansion slot.

The PCI and PCIe slots on the riser card inside the system are used to install

expansion cards. To install an expansion card you need to first remove the slot

plate and bracket by uninstalling the screw on the rear panel.

Slot plate

Mounting screw and bracket
