Dish Network Platinum PVR Remote Control Manuale utente

Platinum PVR

Remote Control

User Guide

outside_front_cover_dishpvr.fm Page 0 Monday, July 9, 2001 1:04 PM

FCC RULES

WIRELESS REMOTE CONTROL

This device complies with Part 15 of Federal Communications

Commission (FCC) Rules. Operation is subject to the following

conditions:

•This device may not cause harmful interference.

•This device must accept any interference that may cause

undesired operation.

•Unauthorized equipment changes may void FCC certification.

IMPORTANT SAFETY INSTRUCTIONS

You must keep safety in mind while using this device. Keep these

and any other instructions.

Installation

Heed Warnings: Carefully follow all warnings on the device

and in the operating instructions.

Heat: DON’T place the device near heat sources such as radiators,

stoves, heat registers, or other appliances that produce heat.

Care and Use

Cleaning: DON’T use liquid, abrasive, solvent, or aerosol cleaners.

Use a damp cloth for cleaning.

When Not in Use: Remove the batteries if you’re going to leave

this device alone or unused for a long time.

Get service from qualified persons when a solid

object or liquid has fallen onto or into the device.

Don’t try to service this device. Get service from

qualified persons. If you open any covers except

the battery cover you’ll void the warranty.

inside_front_cover_dishpvr.fm Page 0 Monday, July 9, 2001 1:03 PM

108933 1

CONTENTS OF THIS USER GUIDE

Remote Control Basics.......................................2

Remote Control Batteries.................................... 2

Remote Control Signals: UHF and IR ................. 2

Remote Control Modes....................................... 3

Remote Control Setup ........................................4

Set Up the Remote Control................................. 4

Scan for Device Codes.........................4

Try the Device Codes...........................5

Check the Device Codes......................6

Change the Address ........................................... 6

Attach the Remote Control Antenna ................... 7

Install an Attenuator............................................ 8

Switch Between TV and Device

Volume Control.............................................. 8

Remote Control Buttons...................................10

Control the Receiver ......................................... 10

Control a TV (or a Second TV).......................... 15

Control a VCR (or a Second VCR)....................17

Control a Cable TV Box .................................... 19

Control a Tuner or Amplifier.............................. 21

Device Codes ....................................................23

TV Codes..........................................................23

VCR Codes.......................................................24

DVD Player Codes ...............................26

Cable TV Box Codes.........................................26

Tuner/Amplifier Codes.......................................26

Trouble-Shoot the Remote Control..................27

Limited Warranty ...............................................29

If You Need Help................................................31

Index...................................................................32

text_dishpvr.fm Page 1 Thursday, July 12, 2001 10:02 AM

2 108933

REMOTE CONTROL BASICS

•This remote control gives you easy access to all the features

of a DISH Network satellite TV receiver. Maybe best of all,

this remote lets you control DishPVR features. These features

let you record audio and video with full digital quality,

without a VCR.

•Also, you can set up the remote to control as many as three

devices along with the receiver. These can be TVs, VCRs,

DVD players, cable TV boxes, tuners, or audio amplifiers.

REMOTE CONTROL BATTERIES

The remote control comeswithAAA batteries.

When you replace old batteries, you should

replace all of the batteries. Use batteries of the

same kind, for example, alkaline or carbon

zinc, and don’t mix batteries of differentkinds.

Alkaline batteries last longer.

1.Press down on the battery cover’s

top latch and lift the cover off.

2.Take out all of the old batteries.

3.Put the new batteries in. Make sure

you match the plus (“+”) ends with the

plus markings on the battery case.

4.Fit the battery cover’s bottom tab

back into the slot at the bottom of the

battery case, and snap the cover back

into place.

REMOTE CONTROL SIGNALS: UHF AND IR

Theremotecontrolusesboth Ultra-High Frequency (UHF) radio

signals and Infra-Red (IR) light signals to control the receiver

but uses only IR signals to control other devices.

•IR signals travel only short distances (40 feet or less),

and can’t go through walls or other solid objects.

You must point the remote control right at the device

you want to control, with no objects to block the signal path.

(for info about UHF signals, please go on to the next page)

text_dishpvr.fm Page 2 Thursday, July 12, 2001 10:02 AM

Remote Control Modes

108933 3

•UHF signals travel long distances (100 feet or more) and can

go through walls and other solid objects. Because UHF signals

travel so far, the receiver may respond to signals from other

nearby remote controls. To handle this problem, please see

Change the Address on page 6. If this doesn’t work,

please see Install an Attenuator on page 8.

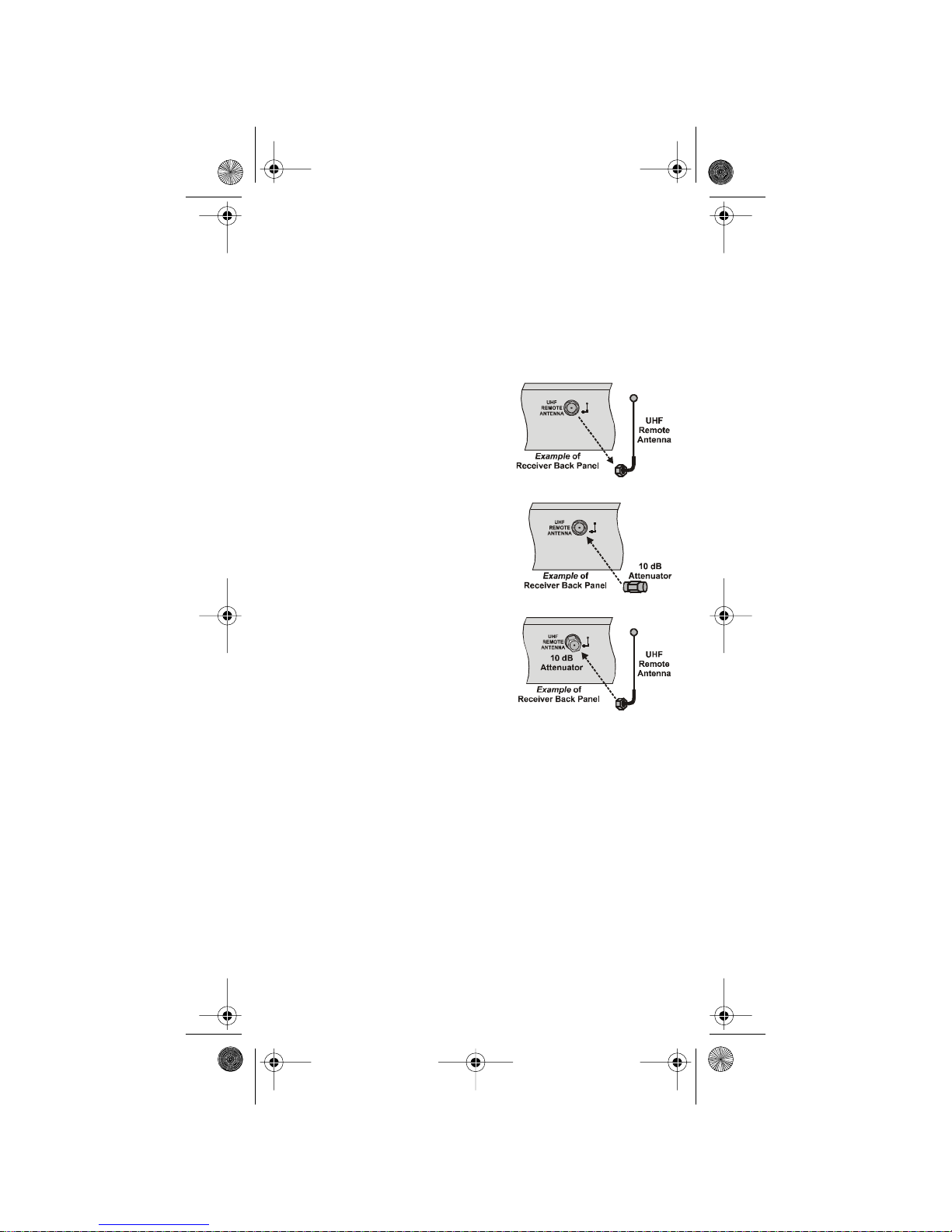

•You need to attach the UHF remote antenna to the receiver’s

back panel UHF Remote Antenna input so you can use the

remote from as far away as possible.

Note: Set the antenna straight up so you can use the remote

from as far away as possible. Don’t let the antenna touch

anything.

REMOTE CONTROL MODES

You can set the remote to four different modes to control the receiver

or other devices.

1.You must set up the remote to control a device like a TV

oraVCR. PleaseseeSet Up the Remote Control on page 4

for what to do.

Note: The remote comes already set up to control the receiver.

2.Use the remote control’s mode buttons,Sat (“satellite” receiver),

TV,VCR (for a VCR or a DVD player), and Aux (“auxiliary,”

for a cable TV box, a tuner, or an audio amplifier) to set the

remote to the right mode for the device. To change the mode,

press the button for the device you want the remote to control.

The mode button flashes once to show you’ve set the remote

to that mode.

text_dishpvr.fm Page 3 Thursday, July 12, 2001 10:02 AM

4 108933

REMOTE CONTROL SETUP

SET UPTHEREMOTE CONTROL

On the next few pages we tell you how to set up the remote to control

a TV, a VCR, or other devices.

When you get the remote it’s already setuptocontrolthe

receiver. But, you must set up the remote to control the

TV before you can use the Muteand Volume buttons.

To do this, you can either Scan for Device Codes here

or Try the Device Codes on page 5.

SCAN FOR DEVICE CODES

1.Use the device’s buttons or its remote control to turn it on.

2.Press and hold the mode button for the device, for about three

seconds. When all the other mode buttons light up, let go of the

button. For example, hold the TV button for a TV.

3.Only for the Aux mode, use the number buttons

toenter0forasecondTV,1forasecondVCR,

or 2 for a tuner or amplifier.

For any other mode, skip to step 5.

4.Only for the Aux mode, press the Star (*)button.

For any other mode, skip to step 5.

5.Press the blank Power button.

6.Press the up or down arrow button to set the

remote to the next code. The up arrow button

scans ahead and the down arrow button scans back.

Pressthebuttonagaintogoonwiththescan.

7.If the remote reaches the correct code, the device

turns off. When this happens, press the Pound (#)

button to store the code in the remote. If the code

works, the mode button flashes three times.

(pleasegoontothenextpage)

text_dishpvr.fm Page 4 Thursday, July 12, 2001 10:02 AM

Set Up the Remote Control

108933 5

8.Press the blank Power button to turn the device

back on.

9.Try some other buttons to make sure they work.

Sometimes, the blank Power button works

when other buttons don’t.

Note: Themode button for the device starts to flash if you’ve scanned

all the codes for that device.

TRY THE DEVICE CODES

Note: If you just did the Scan for Device Codes,youdon’t

need to do this.

1.Use the device’s buttons or its remote control to turn it on.

2.Find the brand name of the device in the tables on page 23.

If the brand isn’t listed, please see Scan for Device Codes

on page 4.

3.Press and hold the mode button for the device you want

the remote to control, for about three seconds. When all

the other mode buttons light up, let go of the mode button.

For example, hold the TV mode button for a TV.

4.Only for the Aux mode, use a number button to enter 0

for a second TV, or 1 for a second VCR, or 2 for a tuner

or amplifier.

For any other mode, skip to step 5.

5.Use the number buttons to enter a device code

from the table.

6.Press the Pound (#) button. If the code works,

the mode button flashes three times.

7.Press the blank Power button to test if the code

works for the device. If it does, the device

should turn off.

8.Turn the device back on and try some other

buttons to make sure they work. Sometimes,

the blank Power button works when other

buttons don’t. If the code works for other buttons, stop here.

9.Ifthecodeyouentereddoesn’t work, do steps 3

through 8 again with another code from the tables.

or:

text_dishpvr.fm Page 5 Thursday, July 12, 2001 10:02 AM

6 108933

CHECK THE DEVICE CODES

You can find out what device code you’ve set for each remote control

mode. Here’s what to do:

1.Press and hold the mode button for the device, for about three

seconds. When all the other mode buttons light up, let go of the

mode button.

2.Press the Pound (#)buttontwice.

The mode button flashes the number for each digit of the device

code, with a pause between the groups of flashes. A quick flash

is for zero. For example, the mode button flashes five times,

pauses, flashes seven times, pauses, and flashes once quickly

for the 570 code.

CHANGE THE ADDRESS

Because UHF signals travel long distances and go through walls,

a neighbor’s remote may control your receiver by mistake.

To handle this problem, you can change the remote address.

Note: Here we show you examples of the receiver’s front panel

buttons. Your receiver’s buttons may look a bit different.

1.Open the Important System Information menu.

To do this, first make sure you turn the TV on.

Next, press the receiver’s front panel Power button

to turn the receiver off. Then, press the receiver’s

front panelInfo button. (Please don’t use the remote

control’s buttons because they might control your

neighbor’s receiver.)

2.The Important System Information menu

shows a Remote Address.

Write down this number: _______.

3.Press and hold the Sat mode button about three

seconds, until all the mode buttons light up,

andthenletgooftheSat button.

(pleasegoontothenextpage)

text_dishpvr.fm Page 6 Thursday, July 12, 2001 10:02 AM

Attach the Remote Control Antenna

108933 7

4.Use the number buttons to enter any number

from 1 to 16, but not the one you found in step 2.

The Sat mode button goes out after you enter

each digit, and then lights up again.

Write down the number you enter _______.

5.Press the Pound (#) button.

If the address you enter works, the Sat mode button

flashes three times.

6.Press the Record button.

7.This is important: Make sure the Remote Address

on the Important System Information menu now

is the same as the one you entered in step 4. If it isn’t,

the remote can’t control the receiver.

8.To check the address, press and hold the Sat mode

button for three seconds. Then, let go of the Sat button,

and press the Pound (#) button twice.TheSat mode

button flashes the same number of times as the address

youenteredinstep4.

9.Press the Select button to close the

Important System Information menu.

ATTACH THE REMOTE CONTROL ANTENNA

To use the remote’s UHF signals to

control the receiver, you must attach the

UHF antenna to the receiver’s back

panel UHF Remote Antenna input.

Set the antenna straight up so you can

use the remote as far away as possible.

Note: If you don’t attach the antenna, you can still use the remote

to control the receiver at short distances. This is because

theremotesendsboth IR and UHF signals to the receiver.

text_dishpvr.fm Page 7 Thursday, July 12, 2001 10:02 AM

8 108933

INSTALL AN ATTENUATOR

Stray UHF signals can block signals from the remote control

to the receiver. To prevent blocks, you can install a 10 dB attenuator

(you can buy one from a consumer electronics parts store).

Note: This will help keep out stray UHF signals, but also cut down

how far away you can use the remote control.

1.Take the UHF antenna off

of the receiver’s back panel

UHF Remote Antenna input.

2.Put a 10 dB attenuator onto the

UHF Remote Antenna input.

3.Put the UHF antenna onto the

attenuator.

SWITCH BETWEEN TV AND DEVICE VOLUME CONTROL

If you set up the remote to control a television, the Mute and Volume

buttons control the TV volume, in most modes. But, if you use the Aux

mode to control a tuner or amplifier and the device has a volume

setting, you can set up the remote to control the device’s volume

instead of the TV volume.

For what to do, please see the next page.

text_dishpvr.fm Page 8 Thursday, July 12, 2001 10:02 AM

Altri manuali per Platinum PVR Remote Control

Indice

Altri manuali Dish Network Telecomando

Dish Network

Dish Network 40.0 Manuale utente

Dish Network

Dish Network DISHPlayer 500 7100/200 Manuale utente

Dish Network

Dish Network Digital PVR Manuale utente

Dish Network

Dish Network 40.0 Manuale utente

Dish Network

Dish Network Platinum 121716 Manuale utente

Dish Network

Dish Network EZ Manuale utente

Dish Network

Dish Network ViP 922 Slingloded DVR Manuale utente

Dish Network

Dish Network 20.0 Manuale utente

Dish Network

Dish Network BASIC REMOTE Manuale utente

Dish Network

Dish Network SoloDVR ViP 612 Manuale d'uso e manutenzione

Dish Network

Dish Network 20.0 Manuale utente

Dish Network

Dish Network 135331 Manuale utente

Dish Network

Dish Network 176842 Manuale utente

Dish Network

Dish Network 40.0 Manuale utente

Dish Network

Dish Network Platinum Plus 121150 Manuale utente

Dish Network

Dish Network 129418 Manuale utente

Dish Network

Dish Network Platinum Remote Control Manuale utente

Dish Network

Dish Network 159263 Manuale utente

Dish Network

Dish Network Duo ViP 222 Manuale d'uso e manutenzione

Dish Network

Dish Network Duo ViP 222 Manuale utente

Dish Network

Dish Network 54.0 Manuale utente

Dish Network

Dish Network 11 Scheda tecnica

Dish Network

Dish Network 52.0 Manuale utente

Dish Network

Dish Network ViP 211 Series Manuale utente

Manuali Telecomando popolari di altre marche

Panasonic

Panasonic EUR7622KB0 Manuale utente

Bang & Olufsen

Bang & Olufsen Beo4 Manuale utente

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuale utente

Multiplex

Multiplex PROFI TX 9 Manuale utente

One Remote

One Remote RMB4 Manuale utente

FUTABA

FUTABA 9ZAP - PART2 Manuale utente

HR Matic

HR Matic HR MULTI 3 Manuale utente

Yamaha

Yamaha ACC-GNRST-30-20 Manuale utente

EisSound

EisSound KBSOUND Manuale utente

Marantz

Marantz RC101 Manuale utente

Conrad

Conrad FS20 TC6 Manuale utente

Anritsu

Anritsu MP1777A Manuale utente

Niles

Niles WVC100 Guida alla risoluzione dei problemi

RCA

RCA RCU1300 Manuale utente

Bang & Olufsen

Bang & Olufsen BEO6 Manuale utente

GE 94901 Manuale utente

Onbon

Onbon YQ1-75 Manuale utente

FUTABA

FUTABA R7108SB Istruzioni per l'installazione
