DWYER INSTRUMENTS, INC.

P.O. BOX 373 •MICHIGAN CITY, INDIANA 46361 U.S.A.

Phone: 219/879-8000 www.dwyer-inst.com

Fax: 219/872-9057 e-mail: [email protected]

Series TAC3 Pocket Tachometer

Speciﬁcations - Installation and

Operating Instructions

Diode Laser

Max. output power: <1 milliwatt

Wavelength: 650 nanometers (visible light)

Min. divergence: 1.0 milliradian

Output: Continuous (CW)

Laser hazard classiﬁcation: Class 2

Contact info: www.dwyer-inst.com

Country of Origin: USA

SAFEGUARDS AND PRECAUTIONS

Laser hazards

• Eye injury from beam - Do not look into the direct or reﬂected beam; can cause eye injury

up to 25 ft (7.5 m) away.

• Visual interference (glare) with pilots and drivers - Interferes with vision up to 525 ft (160

m) away. Can be a distraction up to 1 mile (1.6 km) away. NEVER point any laser towards

aircraft or vehicles; it is unsafe and illegal.

Safe use guidance

Class 2 lasers are considered safe for

accidental eye exposure. Do not look or

stare into beam. Do not aim at aircraft.

This is not a toy. Always supervise children.

Read and follow all instructions in this manual carefully, and retain

this manual for future reference.

Do not use this instrument in any manner inconsistent with these operating

instructions or under any conditions that exceed the environmental

speciﬁcations stated.

This instrument is not user serviceable. For technical assistance, contact the

sales organization from which you purchased the product.

In order to comply with EU Directive 2012/19/EU on Waste Electrical and

Electronic Equipment (WEEE): This product may contain material which could

be hazardous to human health and the environment. DO NOT DISPOSE of this

product as unsorted municipal waste. This product needs to be RECYCLED in

accordance with local regulations, contact your local authorities for more information. This

product may be returnable to your distributor for recycling - contact the distributor for details.

TABLE OF CONTENTS

1.0 OVERVIEW..............................................................................1

2.0 FEATURE LOCATIONS ..........................................................1

3.0 LCD DISPLAY SYMBOLS.......................................................2

4.0 TAC3 SPECIFICATIONS.........................................................3

5.0 INPUT / OUTPUT ....................................................................7

6.0 PREPARATION FOR MEASUREMENT .................................8

6.1 Non-Contact Preparation..............................................8

6.2 Direct Contact Preparation...........................................8

6.3 Connecting External Sensors ......................................9

7.0 TAKING MEASUREMENTS..................................................10

7.1 Non-Contact Measurements ......................................10

7.2 Direct Contact Measurements ...................................10

8.0 TACHometer Mode...............................................................11

8.1 TACHometer Setup......................................................11

8.2 TACHometer Operation...............................................13

9.0 RATE Mode...........................................................................13

9.1 RATE Setup..................................................................14

9.2 RATE Operation...........................................................16

10.0 TOTALizer Mode...................................................................17

10.1 TOTALizer Setup .........................................................17

10.2 TOTALizer Operation ..................................................20

11.0 TIMER Mode .........................................................................21

11.1 TIMER Setup ................................................................21

11.2 TIMER Operation .........................................................22

12.0 BATTERIES...........................................................................23

13.0 CLEANING ............................................................................24

14.0 OPTIONS /ACCESSORIES...................................................24

1.0 OVERVIEW

The Model TAC3 is a 32 function tachometer/ratemeter, totalizer/counter, and

timer. It is programmable to read in English or Metric units. An input socket

accepts remote sensing devices and an output socket allows for pulse output

to external indicating devices. The Model TAC3 can be tripod mounted and

“Locked-On” for accurate and continuous operation. This tachometer also

stores minimum, maximum and last measurement in memory.

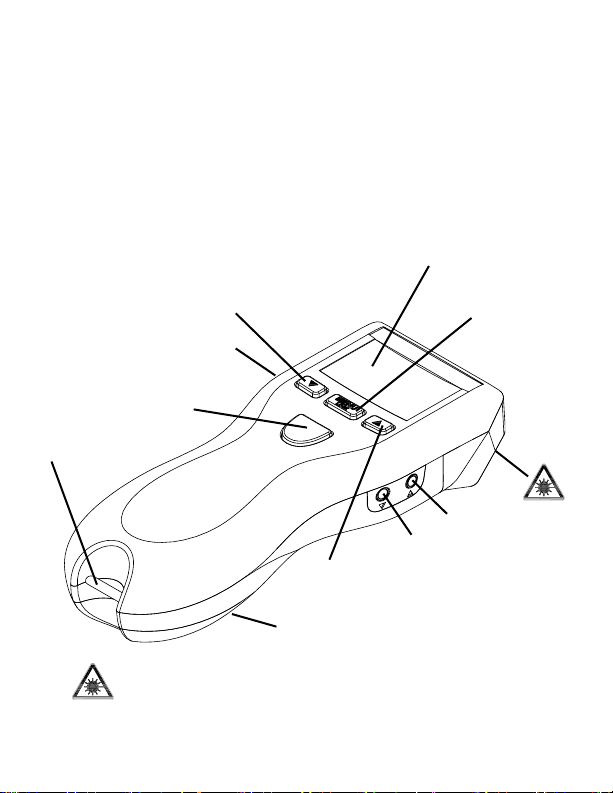

2.0 FEATURE LOCATIONS

Min / Scroll

Down arrow

Start / Reset button

Max / Scroll Up

arrow

LCD display

Menu / Select

and Lock-on

button

Battery compartment

AVOID EXPOSURE - LASER BEAM IS

EMITTED FROM THIS APERTURE

Output socket

Input socket

Belt clip

Tripod mounting bushing

(underside)

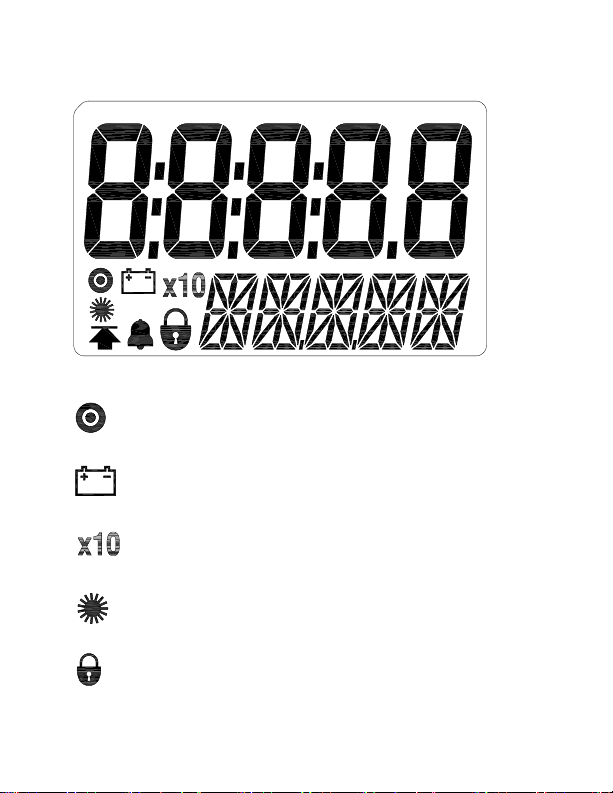

3.0 LCD DISPLAY SYMBOLS

On Target Indicator. Blinks on whenever there is an input

signal. Will appear to be solid on at higher frequencies.

Low Battery icon. Indicates that the batteries are low and need

to be replaced.

Times Ten icon. Indicates that the value shown is ten times

that which is displayed.

Laser Indicator. Red laser is on when this indicator is

illuminated.

Lock icon. Indicates that the unit is “Locked” on and making

continuous measurements (Lock mode).

4.0 TAC3 SPECIFICATIONS

Laser Speciﬁcations:

Classiﬁcation: Class 2 (per IEC 60825-1:2014)

This product complies with IEC 60825-1 Ed.3 and 21 CFR 1040.10

and 1040.11 except for deviations pursuant to Laser Notice No. 50 of

June 2007.

Maximum Laser Output: <1mW

Pulse Duration: Continuous

Laser Wavelength: 650 nm

Beam Divergence: > 1.0 mrad

Beam Diameter: 4 x 7 mm typical at 2 meters

Laser Diode Life: 8,000operatinghoursMTBF(1yearwarranty)

Non-Contact Speciﬁcations:

Ranges: RPM 5 – 200,000

RPS 0.084 – 3,333.3

RPH 300-999,990

Resolution: Fixed: 1 (10 above 99,999)

Auto-ranging: 0.001 to 1.0 (10 above 99,999)

Accuracy: ±0.01% of reading or resolution limit

Operating Range: up to 25 feet (7.62 m) or up to 70 degrees off

perpendicular to TAC-5 tape target

Contact Speciﬁcations using optional Remote Contact Assembly:

Range: Contact Tips: 0.5 to 20,000 RPM

10 cm / 12-inch Wheel: 0.5 to 12,000 RPM

Resolution: Fixed: 1 (10 above 99,999)

Auto-ranging: 0.001 to 1.0 (10 above 99,999)

Contact Speciﬁcations (continued):

Accuracy: Revs: ±0.05% of reading (RPM) or resolution limit

(with no slippage)

Linear: ±0.5% of reading or resolution limit (with no

slippage)

Contact Measurements Ranges:

TACHOMETER:

Revolutions per Minute (RPM) 0.5 to 20,000 RPM

Revolutions per Second (RPS) 0.0833 to 333.33 RPS

Revolution per Hour (RPH) 30 to 999,990 RPH

RATES: Wheel Circumference:

Inches per Second 10 cm: 0.033 to 1312.3 IPS

12 in: 0.100 to 2,400.0 IPS

Inches per Minute 10 cm: 1.969 to 78,740 IPM

12 in: 6.000 to 144,000 IPM

Inches per Hour 10 cm: 118.11 to 999,990 IPH

12 in: 360.00 to 999,990 IPH

Feet per Second 10 cm: 0.003 to 109.36 FT/S

12 in: 0.009 to 200.00 FT/S

Feet per Minute 10 cm: 0.164 to 6,561.7 FT/M

12 in: 0.500 to 12,000 FT/M

Feet per Hour 10 cm: 9.843 to 393,700 FT/H

12 in: 30.000 to 720,000 FT/H

Yards per Second 10 cm: 0.001 to 36.453 YPS

12 in: 0.003 to 66.667 YPS

Yards per Minute 10 cm: 0.055 to 2,187.2 YPM

12 in: 0.167 to 4,000.0 YPM

Contact Measurements Ranges (continued):

RATES: Wheel Circumference:

Yards per Hour 10cm: 3.281 to 131,233 YPH

12 in: 10.000 to 240,000 YPH

Miles per Hour 10 cm: 0.002 to 74.564 MPH

12 in: 0.006 to 136.36 MPH

Centimeters per Second 10 cm: 0.084 to 3,333.3 CM/S

12 in: 0.21 to 3,048.0 CM/S

Centimeters per Minute 10 cm: 5.000 to 200,000 CM/M

12 in: 15.240 to 365,760 CM/M

Centimeters per Hour 10 cm: 300.00 to 999,990 CM/H

12 in: 914.40 to 999,990 CM/H

Meters per Second 10 cm: 0.001 to 33.333 M/SEC

12 in: 0.003 to 60.960 M/SEC

Meters per Minute 10 cm: 0.050 to 2,000.0 M/MIN

12 in: 0.153 to 3,657.6 M/MIN

Meters per Hour 10 cm: 3.000 to 120,000 M/H

12 in: 9.144 to 219,460 M/H

TOTALIZER:

Counts: 0 to 999,999

Scale Totals in Inches, Feet, Yards, Centimeters or Meters

Input: Internal or External optics or linear contact wheel

Timer Speciﬁcations:

Minutes:Seconds.Tenths to 99:59.9

Accuracy: ±0.2 second

Resolution: 0.1 second

Display: Dual LCD Display (5-digit upper/scrolling, 5-digit

alphanumeric lower display)

Batteries: 2 “AA” 1.5 V (DC) alkaline included

(Note: Batteries are NOT rechargeable.)

Battery Life: 30 hours continuous typical with batteries provided

External Input:

Absolute max: -0.3 V to 5 V (DC)

Minimum: low below 1.2V and high above 2V (TTLcompatible)

Edge: Triggers on Positive edge

Power Out: 3.0 V nominal, approx. 2.8 V @ 20 mA max

Pulse Output: 0 V to 3.3 V (DC) pulse

Same shape as External Input signal or high when internal

optics sees a reﬂection

Dimensions: 6.92” (17.58 cm) H x 2.4” (6.10 cm) W x 1.6” (4.06 cm) D

Weight: Approx. 7 oz. (210 g)

This product is designed to be safe for indoor use under the following

conditions (per IEC61010-1).

Installation Category II per IEC 664

Pollution Degree Level II per IEC 664

Temperature: 40 °F to 105 °F (5 °C to 40 °C)

Humidity: Maximum relative humidity of 80% for temperatures up to

88 °F (31 °C) decreasing linearly to 50% relative humidity

at 100 °F (40 °C). Humidity non-condensing.

Speciﬁcations subject to change without notice. 6

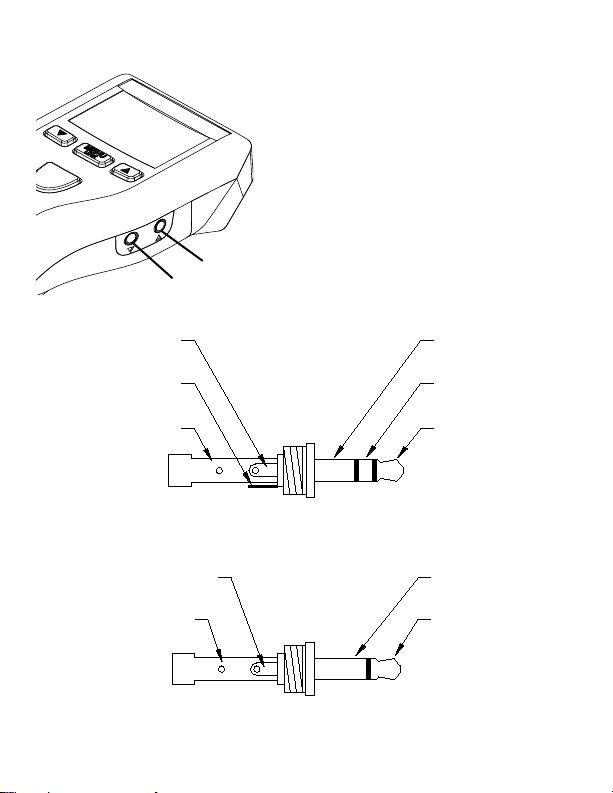

5.0 INPUT / OUTPUT

Output socket (q)

Input socket (p)

Input: Accepts remote sensor or

Remote Contact Assembly.

1/8” (3.5mm) stereo phone

plug.

Output: 1 pulse per revolution TTL

output on internal operation.

Pulse repeater with external

sensors. 1/8” (3.5mm) mono

phone plug.

Pulse Output

Common

(GND)

Common

(GND)

Pulse Output

Signal Input

+3V Out to

Sensor

Common

(GND)

Common

(GND)

+3V Out to

Sensor

Signal Input

Input Connector Detail (Stereo plug)

Output Connector Detail (Mono plug)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Dwyer Instruments Strumento di misura

Dwyer Instruments

Dwyer Instruments 45158 Istruzioni per l'installazione e il funzionamento

Dwyer Instruments

Dwyer Instruments DPGA Series Manuale utente

Dwyer Instruments

Dwyer Instruments StabiliSENSE RPMC Series Istruzioni per l'installazione e il funzionamento

Dwyer Instruments

Dwyer Instruments DDM-01 Manuale utente

Dwyer Instruments

Dwyer Instruments BPI Series Istruzioni per l'installazione e il funzionamento

Dwyer Instruments

Dwyer Instruments TUF series Istruzioni per l'installazione e il funzionamento

Dwyer Instruments

Dwyer Instruments EC2-10 Manuale utente

Dwyer Instruments

Dwyer Instruments 660 Manuale utente

Dwyer Instruments

Dwyer Instruments DPG-200 Series Istruzioni per l'installazione e il funzionamento

Dwyer Instruments

Dwyer Instruments 1430 Manuale utente

Dwyer Instruments

Dwyer Instruments 485-2 Istruzioni operative

Dwyer Instruments

Dwyer Instruments HFPC Series Istruzioni per l'installazione e il funzionamento

Dwyer Instruments

Dwyer Instruments SAH-22-IN Manuale utente

Dwyer Instruments

Dwyer Instruments Slack-Tube 1211-8 Manuale operativo e di manutenzione

Dwyer Instruments

Dwyer Instruments DPMA-5 Series Manuale utente

Dwyer Instruments

Dwyer Instruments 450 Series Manuale operativo e di manutenzione

Dwyer Instruments

Dwyer Instruments A3000 series Manuale utente

Dwyer Instruments

Dwyer Instruments RP2 Istruzioni per l'installazione e il funzionamento

Dwyer Instruments

Dwyer Instruments TM2 Series Manuale utente

Dwyer Instruments

Dwyer Instruments VP3 Manuale utente

Dwyer Instruments

Dwyer Instruments 89088 Manuale utente

Dwyer Instruments

Dwyer Instruments 477B-1 Manuale

Dwyer Instruments

Dwyer Instruments Love Controls LCT216 Series Istruzioni per l'installazione e il funzionamento

Dwyer Instruments

Dwyer Instruments 250-AF Series Manuale utente

Manuali Strumento di misura popolari di altre marche

Suaoki

Suaoki D40 Manuale utente

Elster

Elster BK-G1.6 Manuale utente

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuale

Duratool

Duratool D03128 Manuale utente

Vega

Vega VEGAPULS 65 Manuale utente

Tonghui

Tonghui TH2618B Manuale utente

Tenmars

Tenmars TM-801 Manuale utente

MSR

MSR 145 Manuale utente

TPS

TPS WP-82 Manuale utente

ELMETRON

ELMETRON CP-511 Manuale utente

PCB Piezotronics

PCB Piezotronics 003C30 Manuale utente

Tenma

Tenma 72-10465 Manuale utente

Endress+Hauser

Endress+Hauser Proline Promag 50 Specifiche tecniche

Siemens

Siemens SITRANS F Coriolis FCT030 Manuale elenco delle parti

KLINGER

KLINGER CMF V Series Manuale utente

EXFO

EXFO FTB-2 Manuale operativo e di manutenzione

Keysight

Keysight M8290A Manuale utente

ADTEK

ADTEK MW-5 Manuale utente
