Dynojet Power Commander III Manuale utente

i510-411EX 2004-2007 Triumph Rocket III - PCIII USB EX - 1

2004-2007 TRIUMPH

ROCKET III

NSTALLATION

NSTRUCTIONS

Dynojet Research • 2191 Mendenhall Drive • North Las Vegas, NV 89081 • (800) 992-4993

DOWNLOAD THE POWER COMMANDER SOFTWARE AND LATEST MAPS FROM OUR WEBSITE:

WWW.POWERCOMMANDER.COM

LEASE

EAD

IRECTIONS

EFORE

TARTING

NSTALLATION

ARTS

IST

quantity description

1 power commander EX

1 USB cable

1cd-rom

1 installation guide

1 power adapter

2 power commander decal

2 dynojet decal

2 velcro strip

1 alcohol swab USB port

expansion port

i510-411EX

2004-2007 Triumph Rocket III - PCIII USB EX - 2

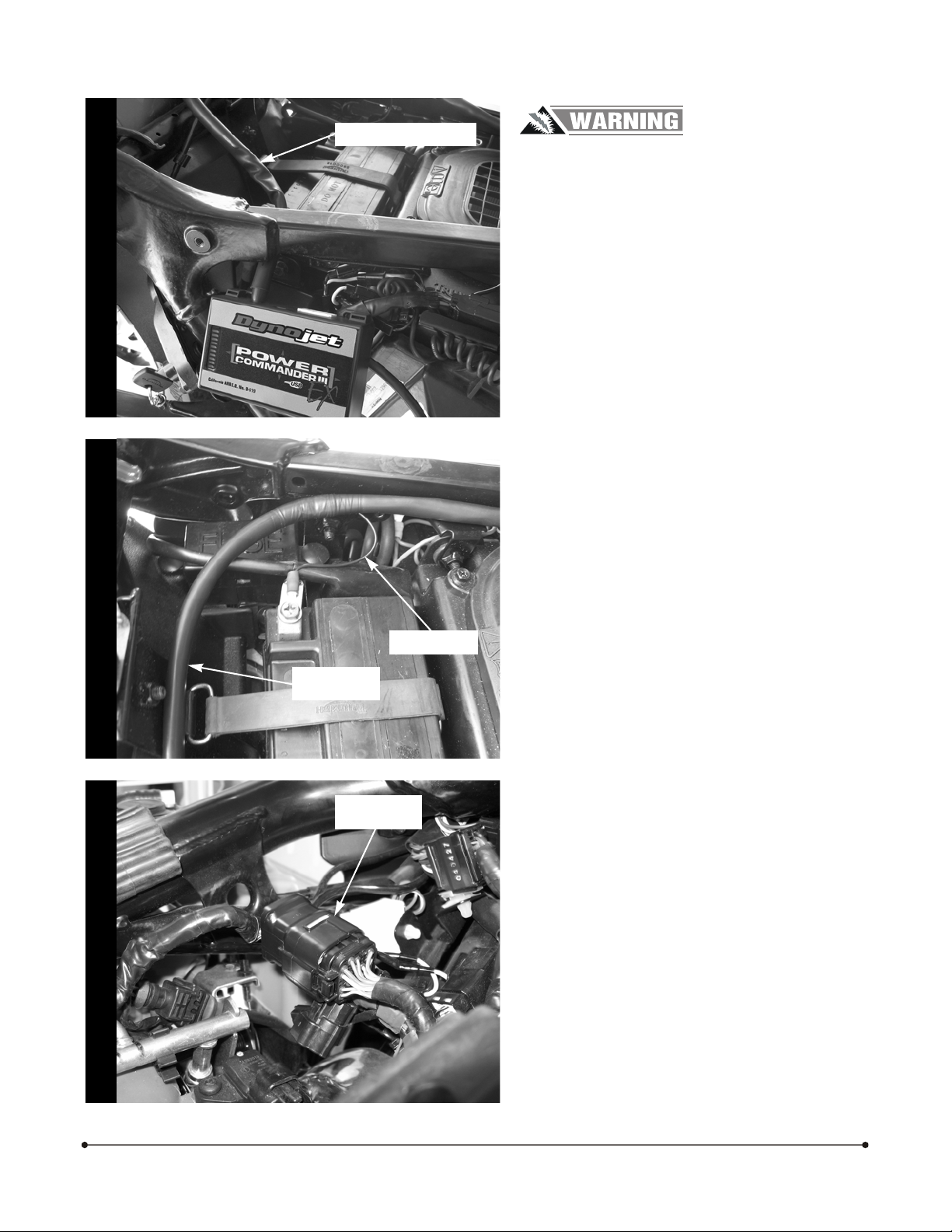

The ignition must be turned OFF before

installation.

1 Remove the seat.

2 Prop the fuel tank up using the stock prop rod.

3 Remove the right hand side cover.

4 Route the PCIII USB EX harness from the right

hand side of the bike under the frame rail and

towards the front of the bike as shown in

Figure A.

5 Attach the ground wire from the PCIII USB EX

to the negative side of the battery as shown in

Figure B.

6 Unplug the black connector from the throttle

bodies to the main wiring harness as shown in

Figure C.

This connector is located under the fuel tank

towards the front of the bike.

Figure AFigure BFigure C

PCIII USB EX harness

PCIII USB EX

harness

ground wire

unplug this

connector

i510-411EX

2004-2007 Triumph Rocket III - PCIII USB EX - 3

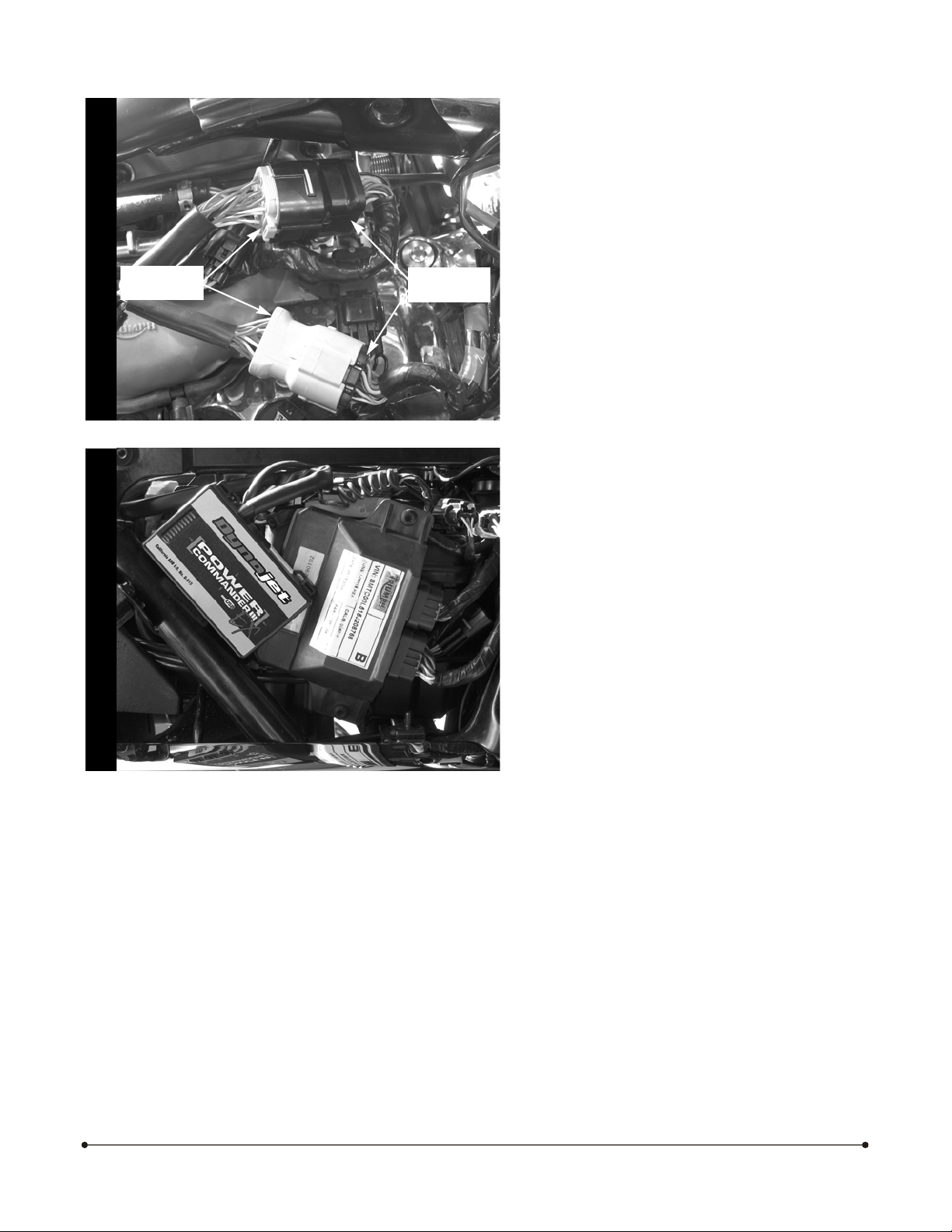

7 Attach the connectors from the PCIII USB EX

to the stock connectors and throttle bodies as

shown in Figure D.

Tuck the connectors towards the front of the

bike and down as far as possible to clear the

fuel tank.

8 Mount the PCIII USB EX to the side of the

relays and ECU using the supplied velcro. The

velcro may not be needed as the side cover will

hold the PCIII USB EX in place.

9 Bolt the fuel tank back into position.

10 Reinstall the side cover.

11 Insert the cd provided into your computer’s

cd-rom drive.

12 Follow the on-screen instructions to install the

PCIII USB EX software.

Visit www.powercommander.com to download

software tutorials and the latest maps.

Figure DFigure E

PCIII USB EX

connectors stock

connectors
