I22-039.01 2010-2011 Yamaha Vector - PCV - 1

2010-2011 Yamaha Vector

Snowmobile

Installation Instructions

PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION

The ignition MUST be turned

OFF before installation!

DOWNLOAD THE POWER COMMANDER SOFTWARE

AND LATEST MAPS FROM OUR WEBSITE:

WWW.POWERCOMMANDER.COM

2191 Mendenhall Drive • North Las Vegas, NV 89081 • (800) 992-4993 • www.powercommander.com

PARTS LIST

quantity description

1powercommander

1USBcable

1cd-rom

1 installation guide

2 power commander decals

2dynojetdecals

2velcrostrip

1 alcohol swab

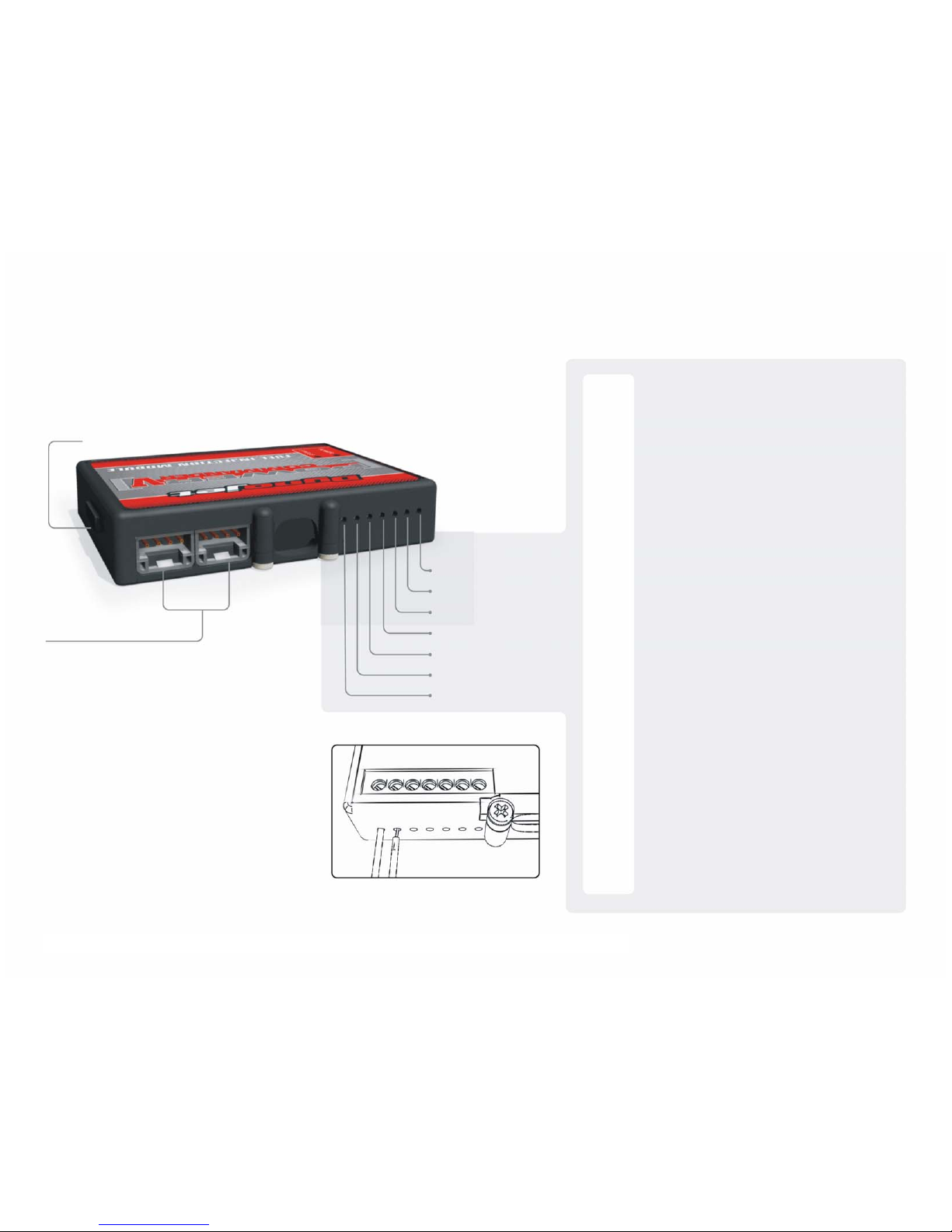

ACCESSORY INPUTS

POWER COMMANDER V

INPUT ACCESSORY GUIDE

USB CONNECTION

CRANK

ANALOG

SPEED

SHIFTER

MAP

EXPANSION PORTS 1 & 2

Optional Accessories such as

Color LCD unit or Autotune kit.

PCV Wire Connections

1. Remove the rubber plug on the backside of

the unit and loosen the screw for the

corresponding input.

2. Using a 22-24 gauge wire, strip about 10mm

from its end.

3. Push the wire into the hole of the PCV until it

stops and then tighten the screw.

4. Make sure to reinstall the rubber plug.

If you tin the wires with solder it will

make inserting them easier.

Note:

Map -

Shifter -

Speed -

Analog -

Crank -

The PCV has the ability to hold two different

base maps. You can switch on the fly between

these two base maps when you hook up a switch

to the MAP inputs. You can use any open/close

type switch. The polarity of the wires is not

important. When using the Autotune kit, one

position will hold a base map and the other

position will let you activate the learning mode.

When the switch is “closed” Autotune will be

activated.

Not used for snowmobiles.

If your application has a speed sensor, you can

tap into the signal side of the sensor and run a

wire into this input. This will allow you to

calculate gear position in the Control Center

Software. Once gear position is setup you can

alter your map based on gear position and setup

gear dependent kill times when using a

quickshifter.

Harley Davidson models have this feature

enabled internally—do use this input for

HD models.

Note:

NOT

This input is for a 0-5v signal such as engine

temp, boost, etc. Once this input is established

you can alter your fuel curve based on this input

in the Control Center Software.

Do connect anything to this port unless

instructed to do so by Dynojet. It is used to

transfer crank trigger data from one module to

another.

NOT

I22-039.01 2010-2011 Yamaha Vector - PCV - 2

I22-039.01 2010-2011 Yamaha Vector - PCV - 3

Figure AFigure BFigure C

cam screw

cam screws

allen screw allen screw

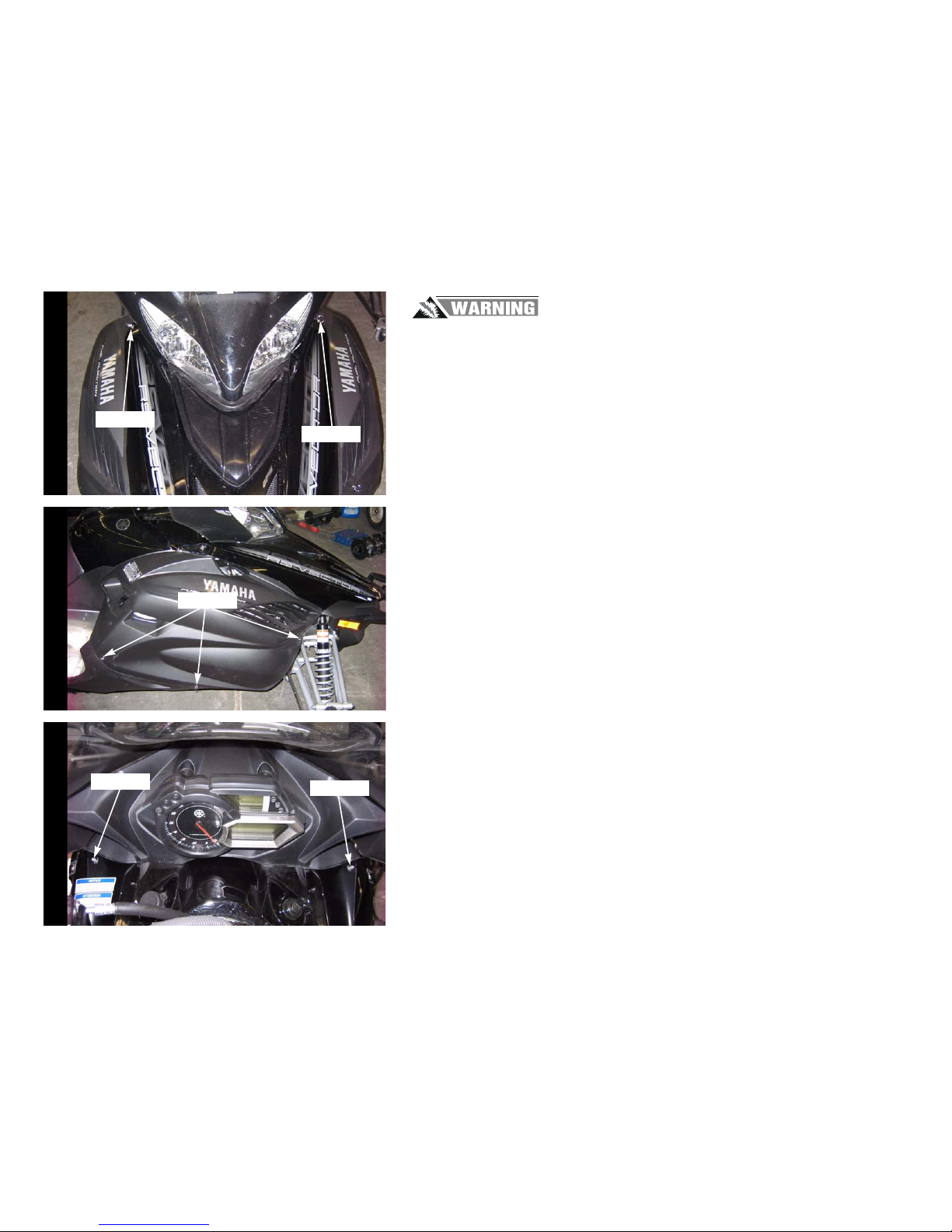

The ignition must be turned OFF before installation.

1 Loosen the cam screws located near the headlight/windshield assembly as shown in

Figure A.

2 Remove the front body panel.

3 Remove the right and left side body panels by loosening the cam screws as shown in

Figure B.

4 Loosen the two allen screws located below the gauge as shown in Figure C.

5 Slide the headlight/windshield assembly forward and off the upper body panel.

I22-039.01 2010-2011 Yamaha Vector - PCV - 4

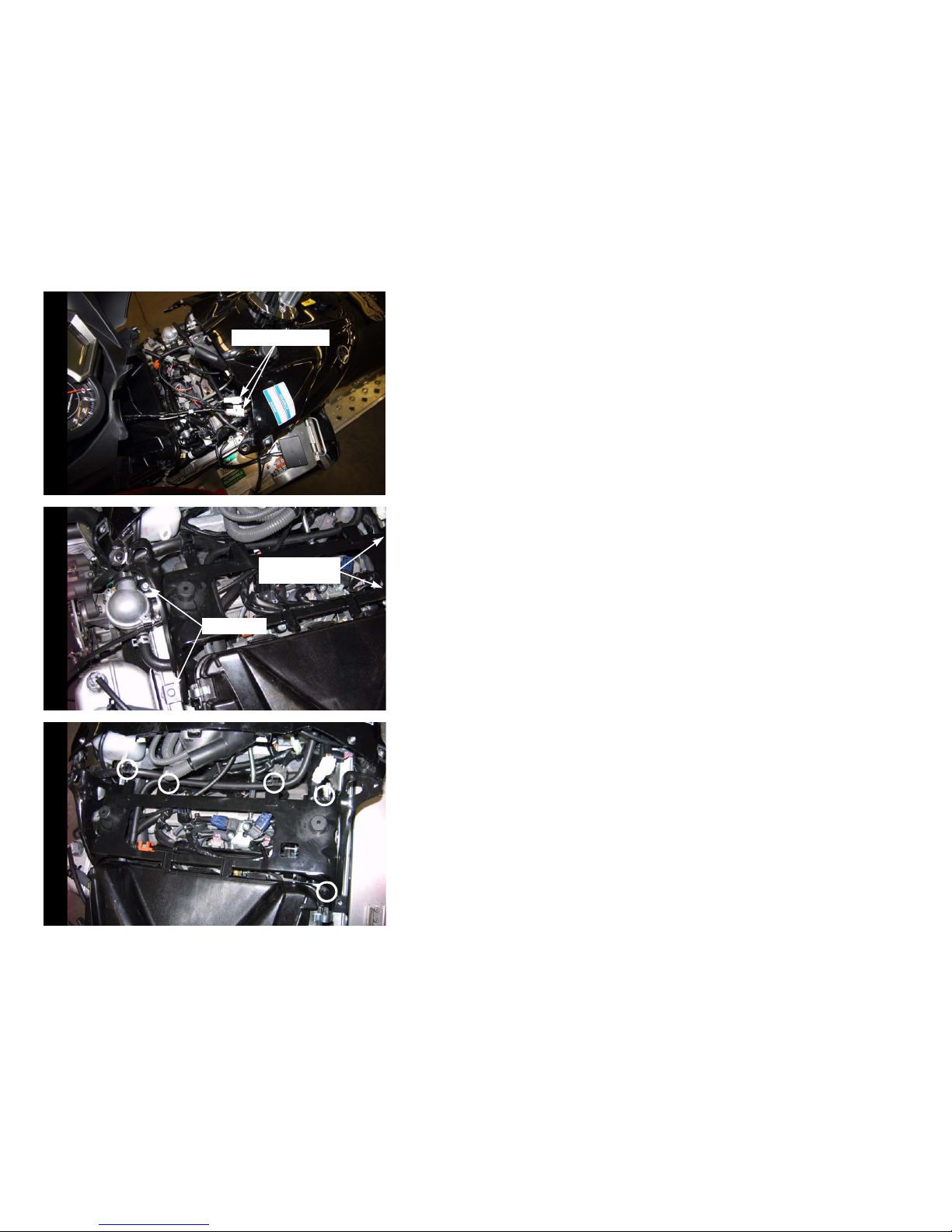

Figure DFigure EFigure F

unplug connectors

remove bolts

bolts not visible

on this side

6 With the headlight/windshield assembly moved forward, unplug the two connectors on

the gauge harness. This will allow you to completely remove the headlight/windshield

assembly.

7 Remove the headlight/windshield assembly.

8 Remove the four bolts securing the upper frame brace. Only two bolts are visible in

Figure E.

9 Using needle nose pliers, release the five holding tabs locking the wiring harness cable ties

to the upper frame brace.

10 Remove the upper frame brace.

I22-039.01 2010-2011 Yamaha Vector - PCV - 5

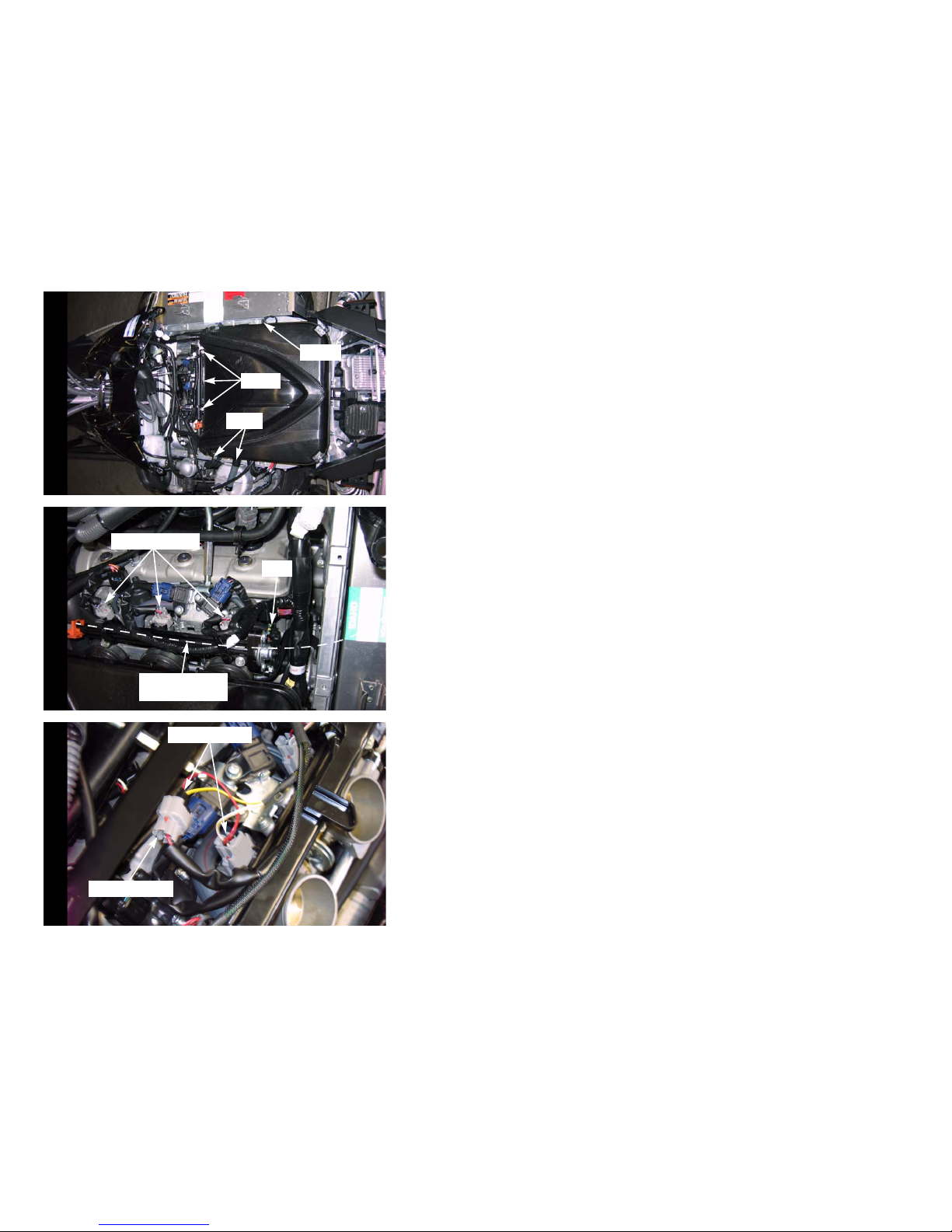

Figure GFigure HFigure I

hoses

clamps

sensor

unplug injectors

TPS

route PCV harness

along flue rail

stock connector

PCV connectors

11 Disconnect the two hoses on the MAG side of the airbox as shown in Figure G.

12 Disconnect the sensor connector on the PTO side of the airbox as shown in Figure G.

13 Using a ball head allen wrench, loosen the three clamps securing the airbox to the throttle

bodies.

14 Remove the airbox.

15 Route the PCV harness along the fuel rail as shown in Figure H.

16 Locate the injectors and Throttle Position Sensor (TPS) connector as shown in Figure H.

17 Unplug the injector connectors.

18 Unplug the TPS sensor connector.

19 Attach the connectors from the PCV to the stock wiring harness and the injectors as shown

in Figure I.

• green wire connects to the MAG side cylinder

• yellow wire connects to the center cylinder

• orange wire connects to the PTO cylinder

20 Attach the connectors from the PCV to the stock wiring harness and the TPS as shown in

Figure I.

I22-039.01 2010-2011 Yamaha Vector - PCV - 6

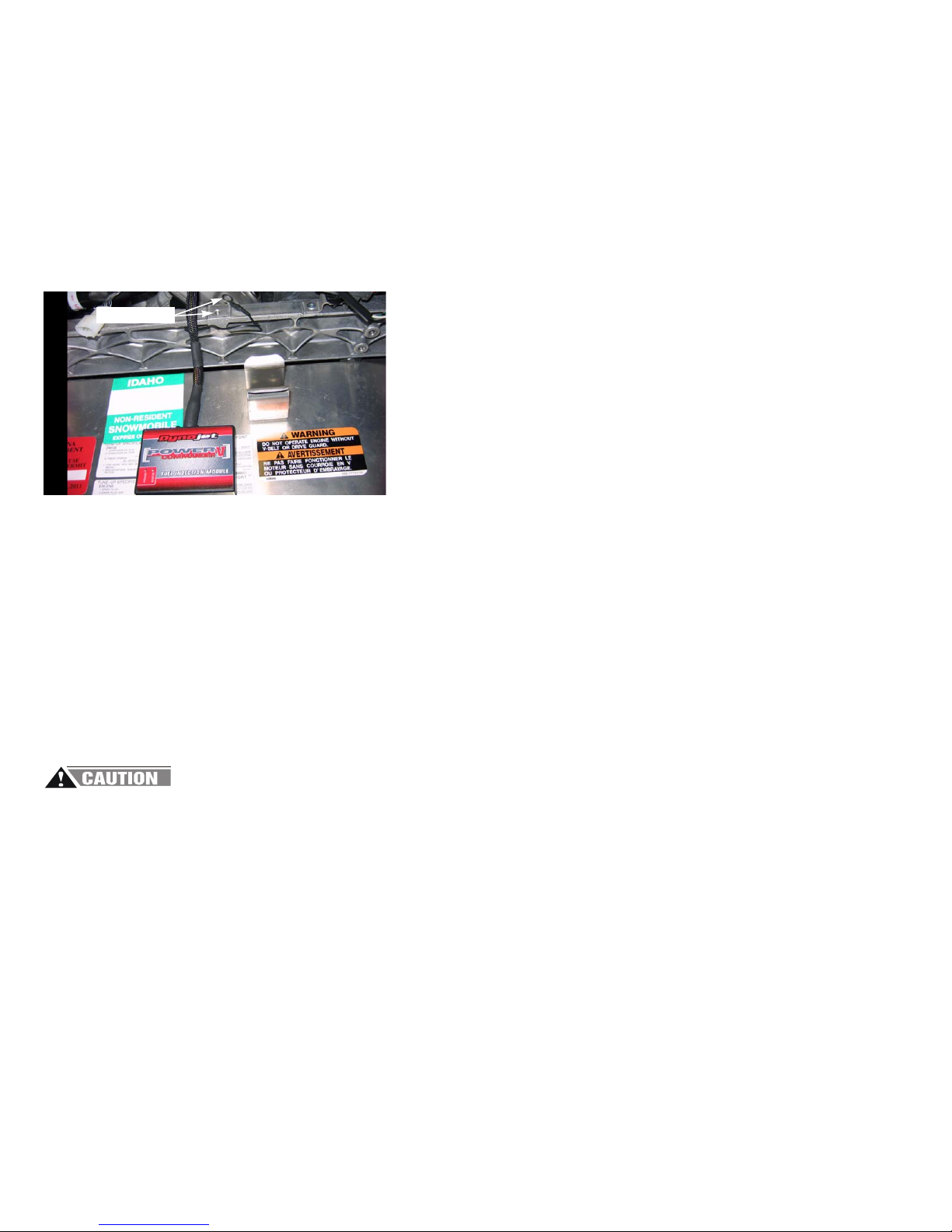

Figure J

attach ring lug

21 Using the supplied velcro, secure the PCV to the clutch cover as shown in Figure J.

Make sure to clean both surfaces with the alcohol swab before attaching.

22 Bolt the ring lug to the frame when the upper frame brace is replaced.

23 Replace the airbox.

24 Replace the upper frame brace.

Remember to secure the PCV ring lug using the upper frame brace bolts. Refer to Figure J

for ring lug location.

25 Replace the headlight/windshield assembly.

26 Replace the right and left side body panels.

27 Replace the front body panel.

28 Insert the cd provided into your computer’s cd-rom drive.

29 Follow the on-screen instructions to install the PCV software.

Visit www.powercommander.com to download software tutorials.

EFI TUNING WITH PCV

The Power Commander makes fueling changes off of the numbers in the map stored in the Power Commander. The snowmobile Power Commanders are shipped

with a Zero Map. With a Zero Map, the snowmobile will run the stock fueling programmed in the ECU. When a map is loaded into the Power Commander, the

snowmobile will be fueled according to the numbers in the map. The Power Commander does not make changes to the ECU programming.

The numbers in the Power Commander map add or subtract a percentage of the fuel the ECU is supplying for a particular load condition. For example, if the Power

Commander map shows a 10 in a given cell, the Power Commander increases the amount of fuel the ECU is supplying by 10%. If the Power Commander map shows

a -10 in a given cell, the Power Commander reduces the amount of fuel the ECU is supplying by 10%.

When tuning, always start with a setting where the motor runs rich. Slowly trim fuel out to find the desired exhaust gas temperature (EGT) or air-to-fuel ratio (A/F).

The PCV gives you the freedom to subtract up to 99% and add up to 250% of the fuel the ECU is supplying for a particular condition. When adding fuel with the

Power Commander, the injector duty cycle may reach 100% (always open) before the Power Commander value reaches 100%. For example, if the ECU is running

the injectors at 67% duty cycle (injectors open 67% of the time) then adding 50% fuel with the Power Commander will max out the injectors. In this case, the

amount of fuel that can be added will be limited by the injectors.

FUEL SUBTRACTION

The PCV gives you the ability to trim fuel out of the map to correct rich conditions.

Engine failure can result from running the engine in a lean state.

I22-039.01 2010-2011 Yamaha Vector - PCV - 7

Figure KFigure L

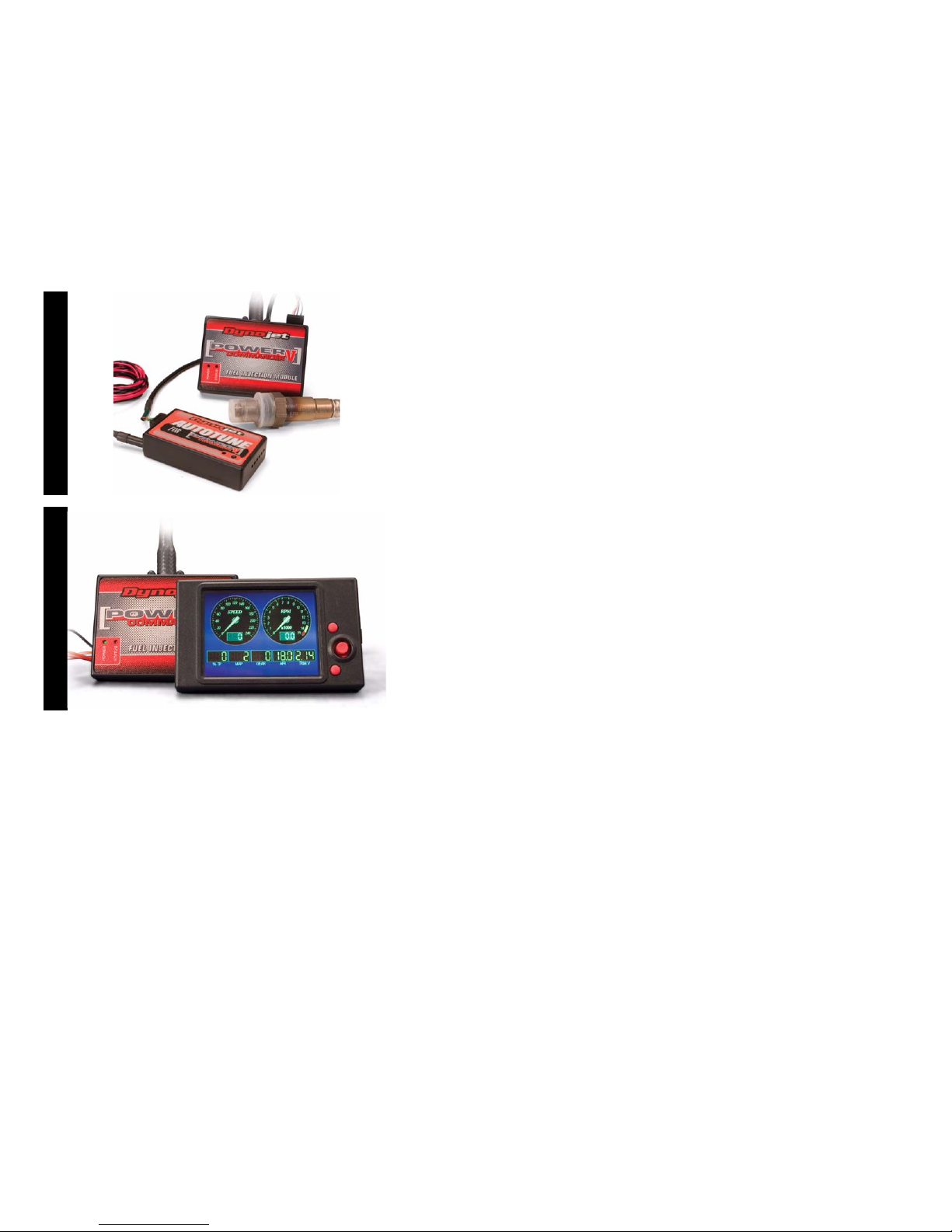

ADDITIONAL FEATURES AND ACCESSORIES FOR THE POWER COMMANDER V

The PCV can be combined with the Dynojet Autotune kit (P/N AT-200) allowing you to tune as

you ride. The Autotune feature uses a target AFR table where the user specifies a target AFR

based on TP and RPM. After enabling Autotune, the user rides as normal and the PCV

calculates a trim table as you ride. Once the system has calculated a trim table for the specified

conditions, the user can accept the trims as a base map and turn the Autotune feature off.

Autotune is a very powerful feature allowing the user to build custom maps for any

modifications made to the sled, including big bore kits, aftermarket pipes, and intakes. The

Autotune kit may also be used to smooth out a stock sleds fuel map eliminating midrange flat

spots and improving throttle response.

If you are looking for a display for your setup we have the answer. Dynojet’s LCD-200 is a

color touch screen display capable of displaying all PC data and AFR if you are using the

Wideband 2. The LCD-200 is capable of logging data including TP, RPM, Injector duty cycle,

fuel change, AFR, and two analog signals input into the PCV.

The LCD-200 uses a standard SD card (1GB or smaller) to store data. The data logged on the

LCD-200 can be played back in the field or downloaded to your computer and viewed in

Excel.
