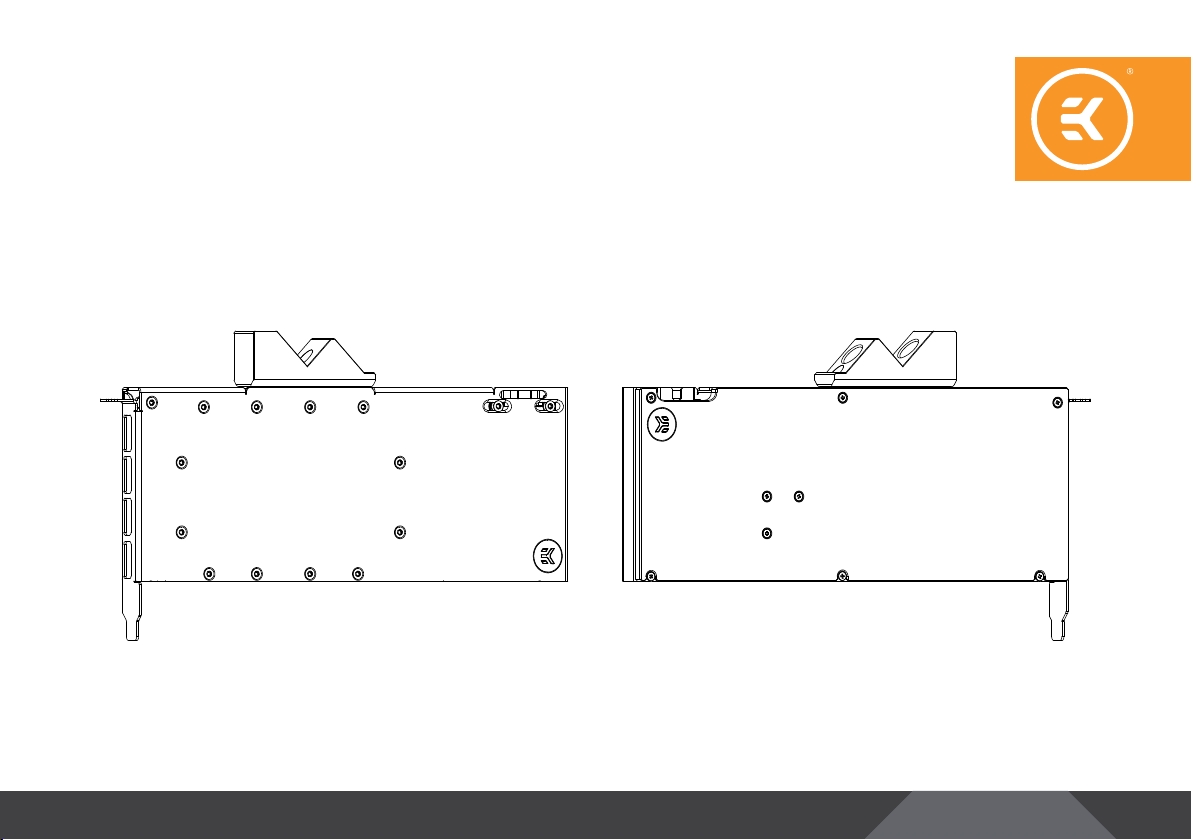

USER GUIDE

GPU WATER BLOCK

EK-PRO

GPU WB RTX 6000 ADA – Nickel Inox

Before you start using this product, please follow these basic guidelines:

Carefully read the manual before beginning with the

installation process.

Remove your graphics card from the computer for the safest

mounting process to prevent any possible damage to your

GPU or its circuit board (PCB).

EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured with the

rubber O-ring gaskets.

The use of quality market-proven corrosion-inhibiting

coolants is always strongly recommended for any liquid

cooling system.

Do not use pure distilled water as a cooling liquid! For best

results, EK recommends the use of EK-CryoFuel Coolants.

Make sure to bleed air out of your water block thoroughly in

order to reach optimal performance.

- 3 -

TABLE OF CONTENTS

BOX CONTENTS 4

WATER BLOCK DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS 6

PREPARING YOUR GRAPHICS CARD 7

REMOVING THE STOCK COOLER 7

CLEANING THE PCB 7

CUTTING AND PLACING THERMAL PADS 8

APPLYING THERMAL COMPOUND 8

INSTALLING THE WATER BLOCK 9

PLACING THE BLOCK ON THE GRAPHICS CARD 9

ATTACHING THE BACKPLATE 12

CHECKING THE CONTACT IN CASE OF HIGH TEMPERATURES 12

INSERTING THE GRAPHICS CARD INTO THE CHASSIS 13

TESTING THE LOOP 13

SUPPORT AND SERVICE 14

SOCIAL MEDIA 14

- 4 -

PLUG G1/4 CSQ-Bridge (2x)

3830046999153

EK-Pro GPU WB RTX 6000 ADA Rack – Full Al 3831109906682

Allen Key 2mm (1x) 8901

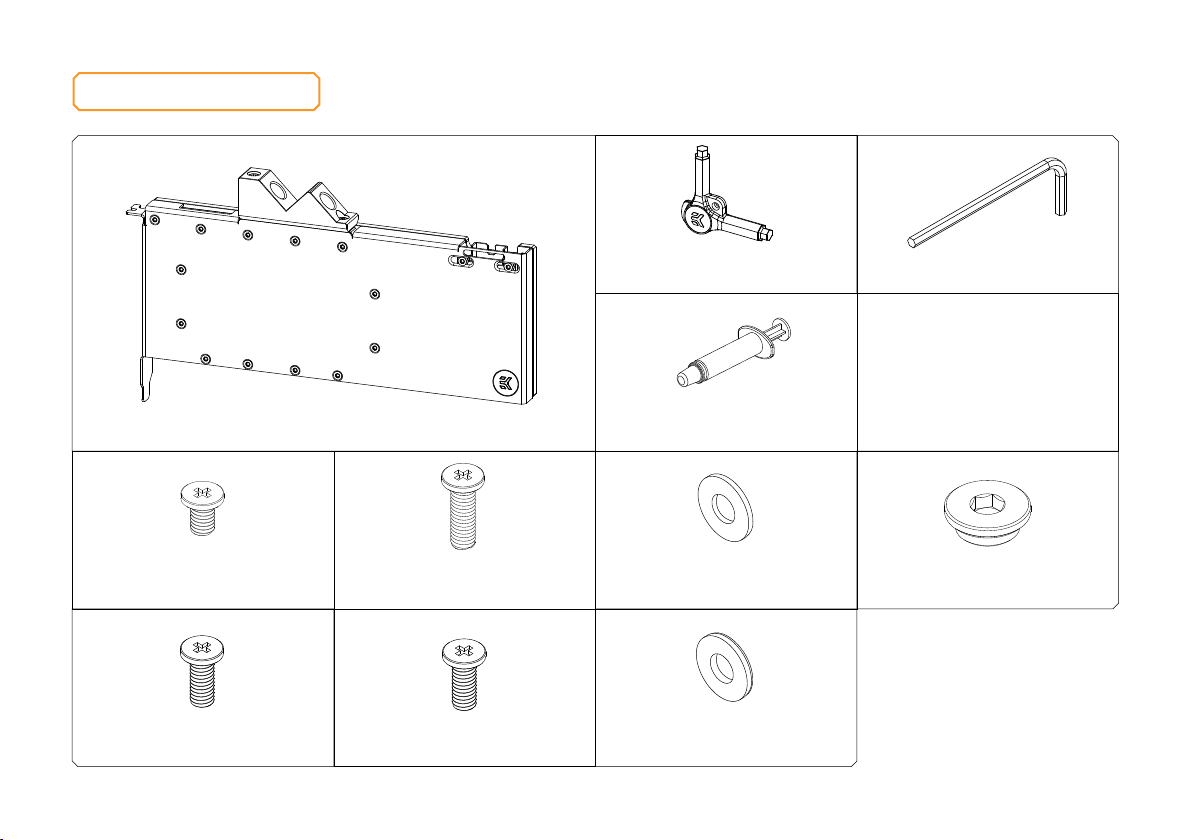

BOX CONTENTS

Screw M2.5x4 ax1 (4x)

9047

EK-Loop Multi Allen Key (1x)

3830046996213

Screw size guide (1x) 103012

EK-TIM Ectotherm (1g) (1x)

3830046998446

Washer POLYAMID M2.5 0.7mm

with self-adhesive tape (6x) 8627

Washer

POLYAMID M2.5 0.5mm

(20x) 8623

Screw M2.5x6 ax1 (4x)

9058

Screw M2.5 x 7 ax1 (8x)

9049

Screw M2.5x8 3825040ax1 -

Nickel (4x) 8104N

- 5 -

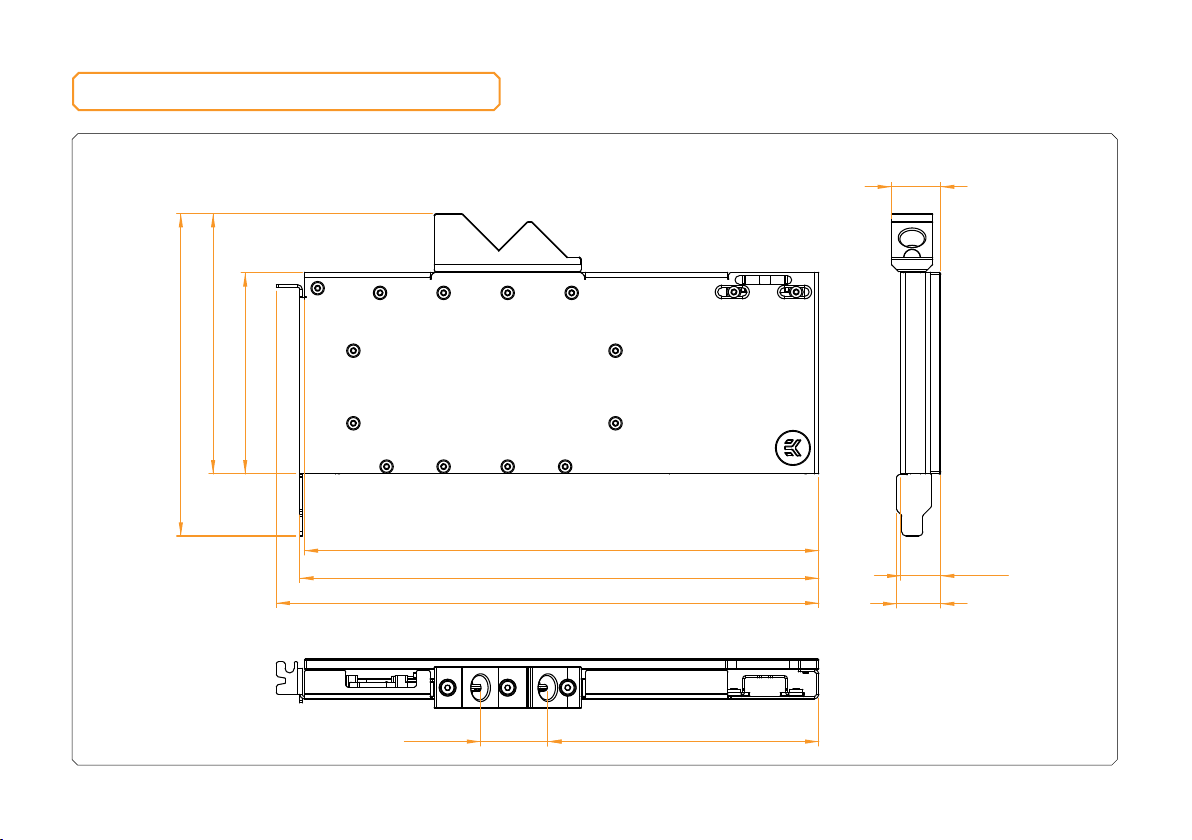

WATER BLOCK DIMENSIONS

262 mm

250.6 mm

248.4 mm

155.5 mm

96.9 mm

125.5 mm

19.3 mm

23.9 mm

21.2 mm

130.8 mm32.5 mm

- 6 -

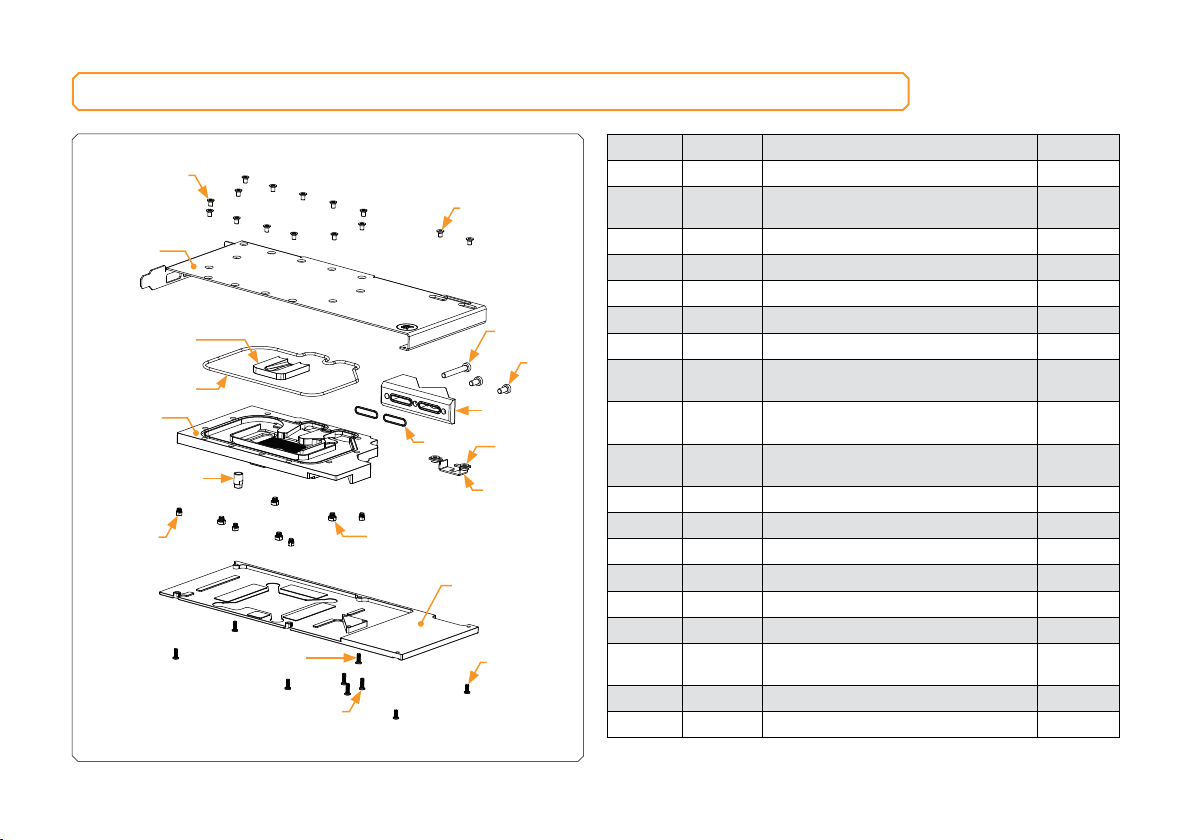

TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS

Position EAN Description Quantity

1106618 094 - baker - RTX 6000 ADA Coldplate 1

2106439 Top Acetal - Pro Terminal GPU 45 deg

G1- 4 v2 1

39013 Vijak M4 x 8 DIN7984 2

48323 Vijak M4 x 28 DIN7984 1

55155 OR 15 x 1 EPDM50 (FC Terminal) 2

6106133 TOP Plexi - Vector2Insert R5 1

7106623 094 - kovina - RTX 6000 ADA top 1

8094 - kovina - RTX 6000 ADA Power

Adapter 1

98625 Podložka POLYAMID M3 0.5 mm

samolepljiva 2

10 106640 Distancer M3 - M2.5 x 11.5 Pro

Medenina (female) 1

11 106624 094 - alu - RTX 6000 ADA Backplate 1

12 103089 vijak M3 x 5 ISO 14581 TX INOX 13

13 8104A Vijak M2.5 x 8 3825040ax1 3

14 9058 Vijak M2.5 x 6 3825040ax1 2

15 9049 Vijak M2.5 x 7 3825040ax1 4

16 103987 Distancer M3.5-M2.5 x 3 Medenina 4

17 103988 Distancer M4-M2.5 x 3 mm Vector2

(Nickel) 4

18 106638 094 - OR - RTX 6000 ADA 1

19 8211N Vijak M3 x 5 DIN7991 - Nickel 2

- 7 -

PREPARING YOUR GRAPHICS CARD

STEP 1

REMOVING THE STOCK COOLER

Place your graphics card on the ﬂat surface and carefully remove the

stock cooler. Do not forget to unplug all the LED and fan connectors.

Pay attention to the following steps in order to install the EK-Pro

GPU RTX 6000 ADA water block onto the graphics card.

STEP 2

CLEANING THE PCB

Wipe off the remains of the original thermal compound using a

nonabrasive cloth or Q-tip, as shown in the sample image, until the

components and circuit board are completely clean. EK recommends

the use of denatured alcohol for removing TIM leftovers. After that,

remove all remaining stock thermal pads from the PCB.

STEP 2

- 8 -

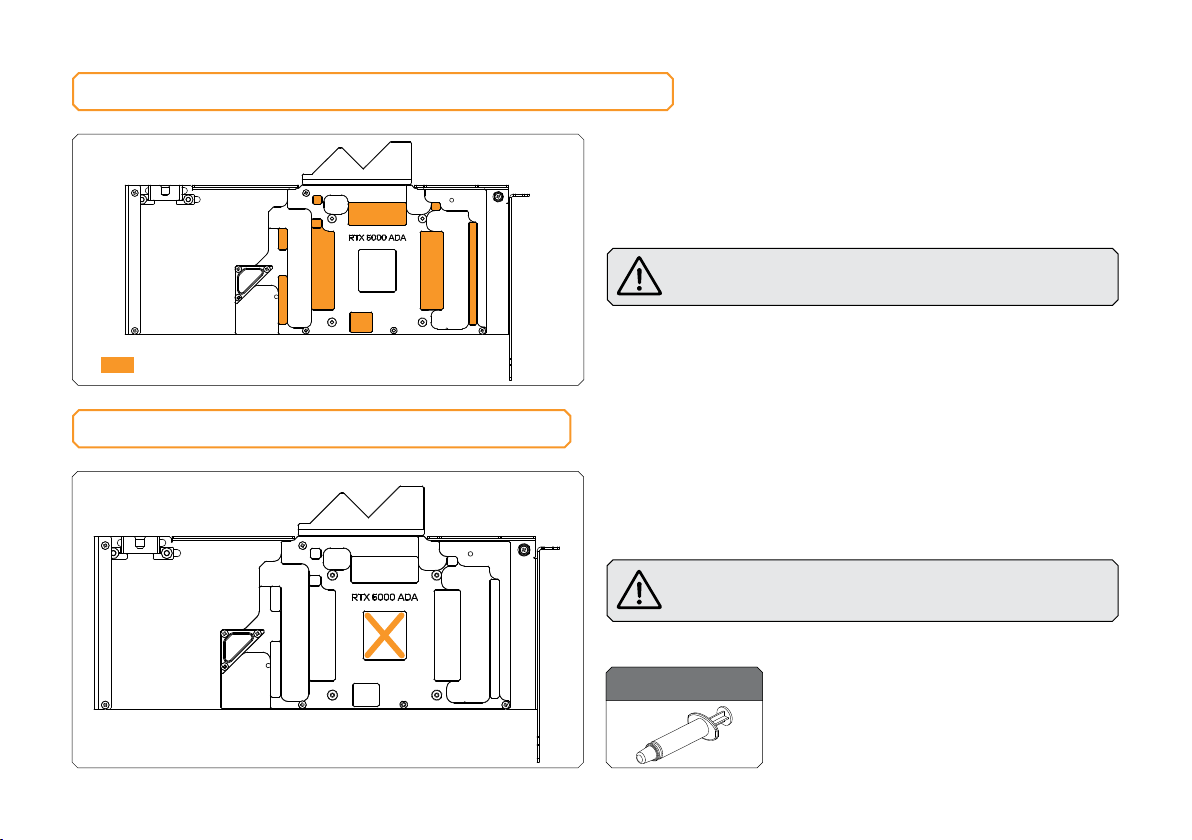

CUTTING AND PLACING THERMAL PADS

Your GPU water block comes with un-cuted thermal pads to cover

all the VRM components, such as COILs, MOSFETs , and drivers.

Please use 1.0 mm thick thermal pads which should be placed on

the PCB, as illustrated below. EK made sure to provide you with more

than an adequate quantity of thermal pads to complete this Step.

You must remove the protective foil from both sides of the

thermal pad before installation.

Thermal Grease

Apply the enclosed EK-TIM Ectotherm thermal grease (thermal

compound) on the GPU heat spreader – IHS – as shown in the

image. The layer of the thermal compound must be thin and even

over the entire surface of the IHS.

The excessive or uneven application of thermal grease

may lead to poor performance!

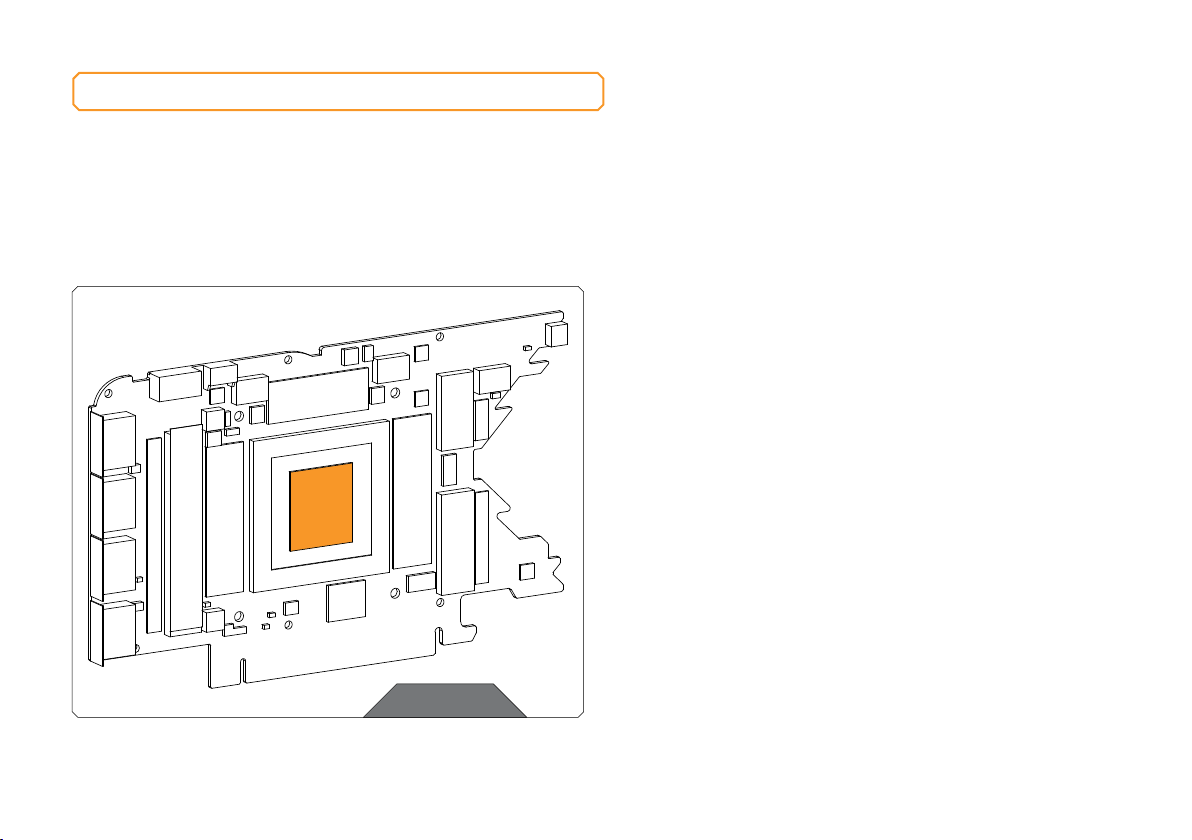

APPLYING THERMAL COMPOUND

For this Step, you will need:

Thermal Pad - 120 x 16 x 1.0 mm

- 9 -

INSTALLING THE WATER BLOCK

STEP 1

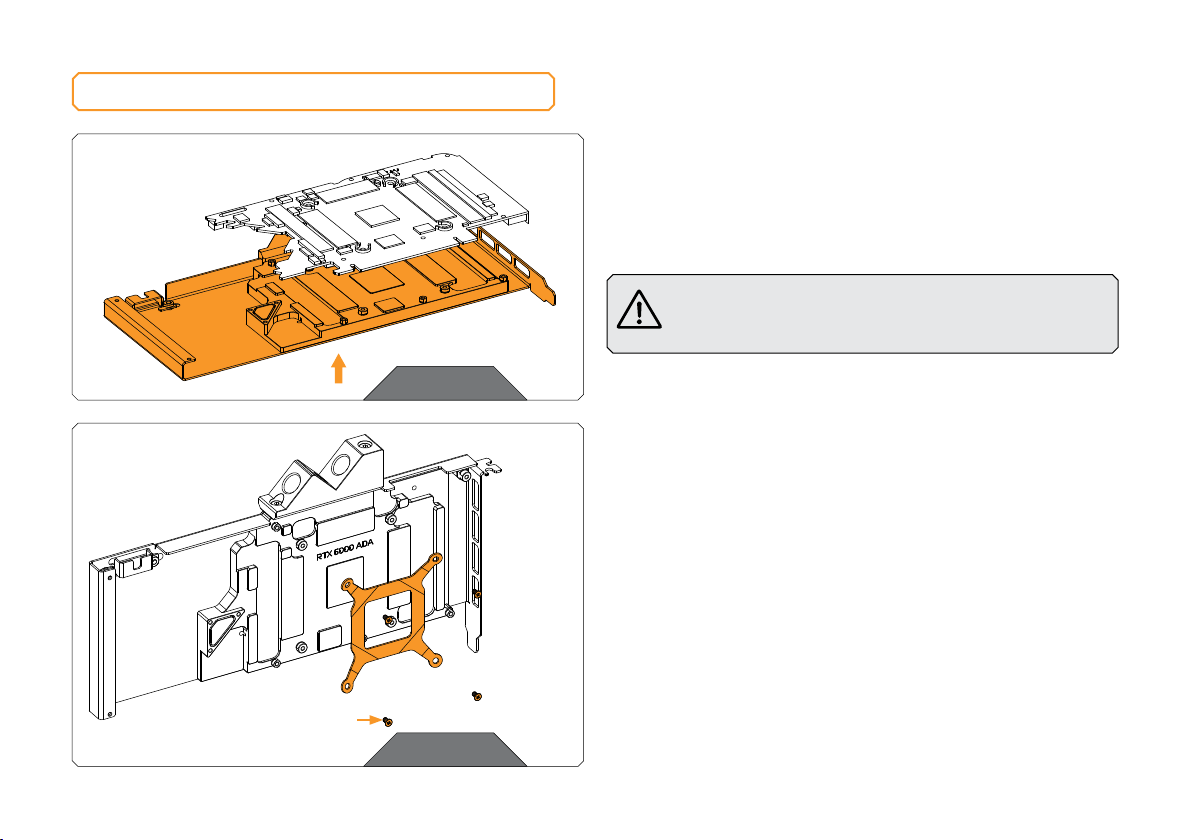

PLACING THE BLOCK ON THE GRAPHICS CARD

This procedure is the same for all full-cover water blocks. Carefully

position the water block with preinstalled standoffs on the graphics

card. During this process, make sure you have aligned mounting

holes of the PCB with holes of the water block.

Pay attention not to use too much force when pressing

the block down to the PCB since chip dies are prone

to cracking.

STEP 1

STEP 2

M2.5 x 4 AX1 SCREW

STEP 2

To attach graphich card to waterblock use stock cross backplate.

Mount it with polyamind M2.5 pads and stock M2.5 x 4 screws.

- 10 -

STEP 3bSTEP 3a

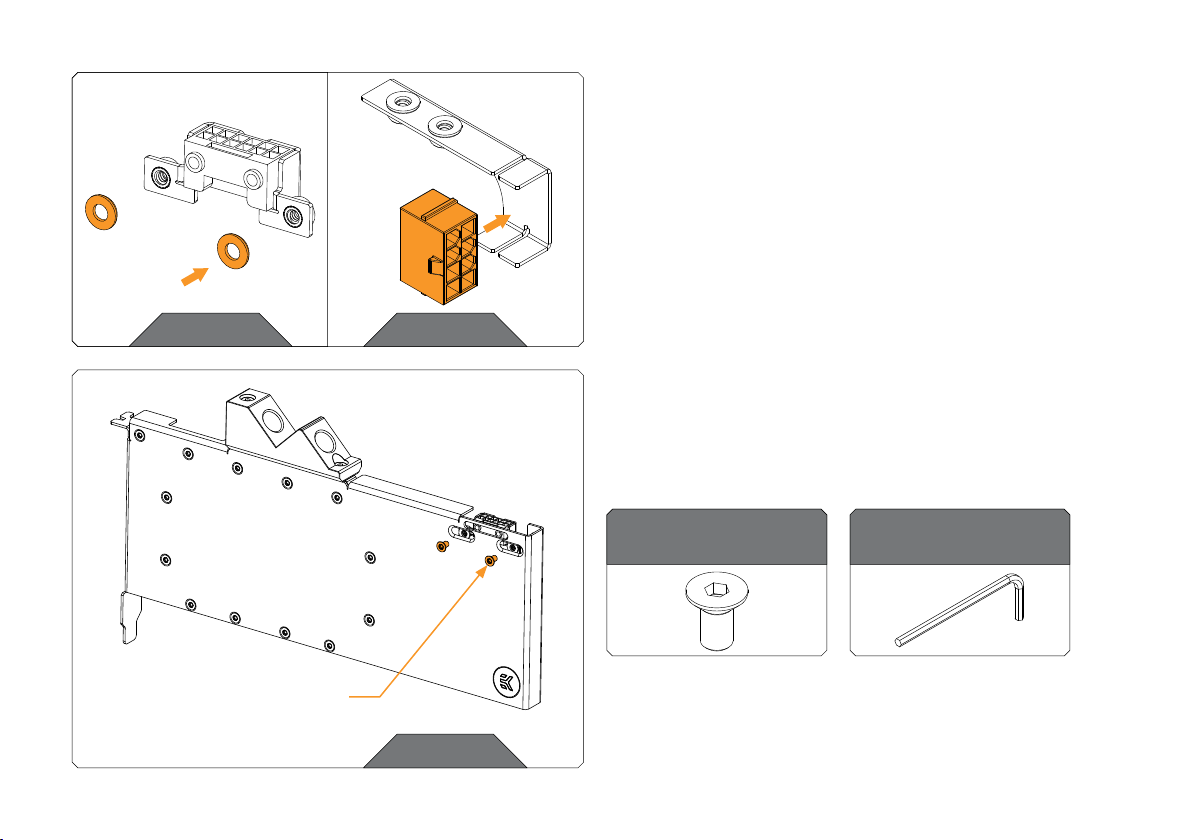

STEP 3

Secure power cable with mounting it into included inox power

adapter.

STEP 3a

Stick the two included plastics pads (M3) on to inox power addapter

as shown on picture.

STEP 3b

Insert 8-pin power connector in to the inox adapter. Pads on the

power adapter must be alligned with openings in inox power adapter.

Pay attention to the orietation of the latch on connector.

For this Step, you will need:

M3 x 5 SCREW

STEP 3c

Fasten a inox power adaptor to the water block with two (2) M3 x 5

screws. When power cables is installed there is needed a litlle bend

and twist of power cables in order to atteched power adaptor to

water block.

Allen Key 2mm

(1x) 8901

Screw M3 x 5 DIN 7991

(2x) 8211
