USER GUIDE

DISTRIBUTION PLATE

EKQuantum

Reﬂection PC-O11D D5 PWM D-RGB

Before you start using this product please follow these basic guidelines:

Please carefully read the manual before beginning with the

installation process!

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber O-ring gaskets.

The use of corrosion inhibiting coolants is always recommended

for any liquid cooling system. EKWB recommends any of the

EKCryofuel for worry-free usage.

- 3 -

TABLE OF CONTENT

BOX CONTENTS 4

PREPARING THE 011D CHASSIS 5

INSTALLING THE DISTRIBUTION PLATE IN THE 011D 6

RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS 7

CONNECTING THE D-RGB LED STRIP 9

CONNECTING THE PUMP 9

TESTING THE LOOP 10

SUPPORT AND SERVICE 11

SOCIAL MEDIA 11

- 4 -

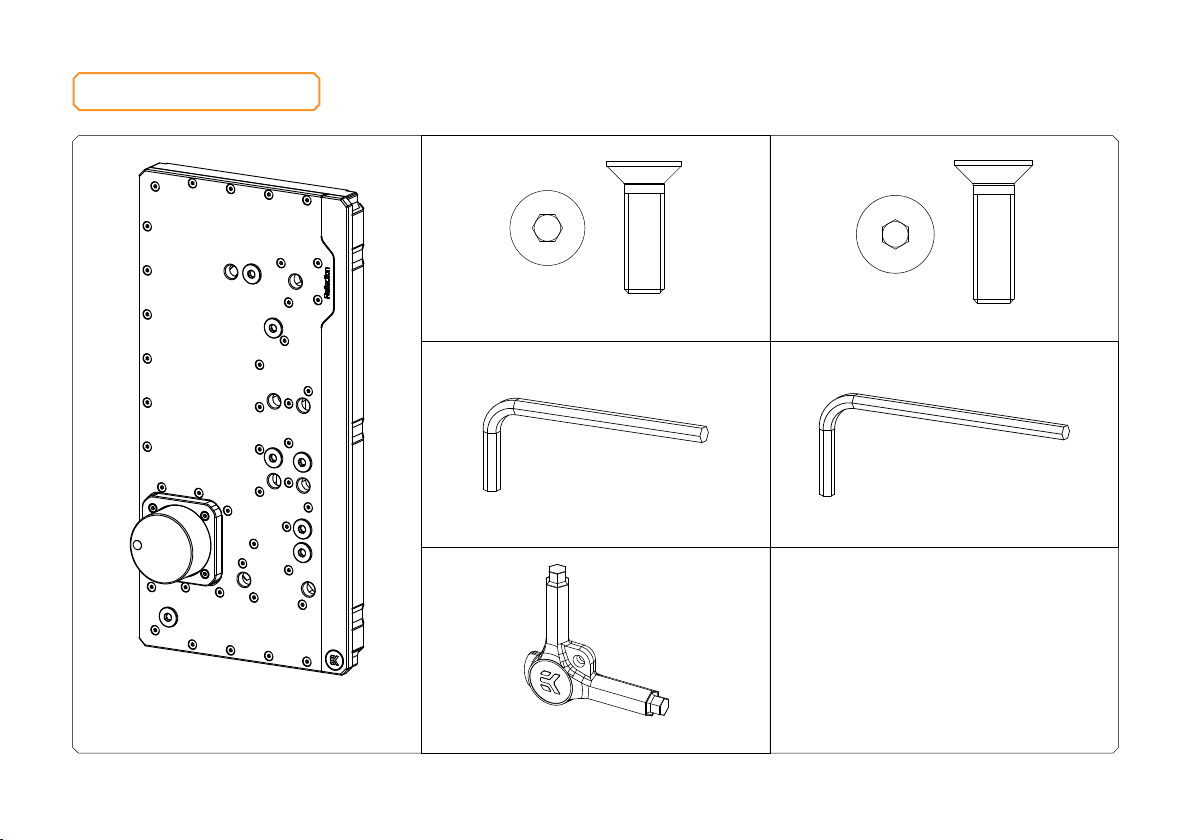

BOX CONTENTS

EK-Quantum Reﬂection PC-O11D

D5 PWM D-RGB

M3 x 11 7991DIN (2 pcs) M4 x 14 7991DIN (3 pcs)

Allen Key 2.5 mm (1 pc)

EK-Loop Multi Allen Key

Allen Key 2 mm (1 pc)

- 5 -

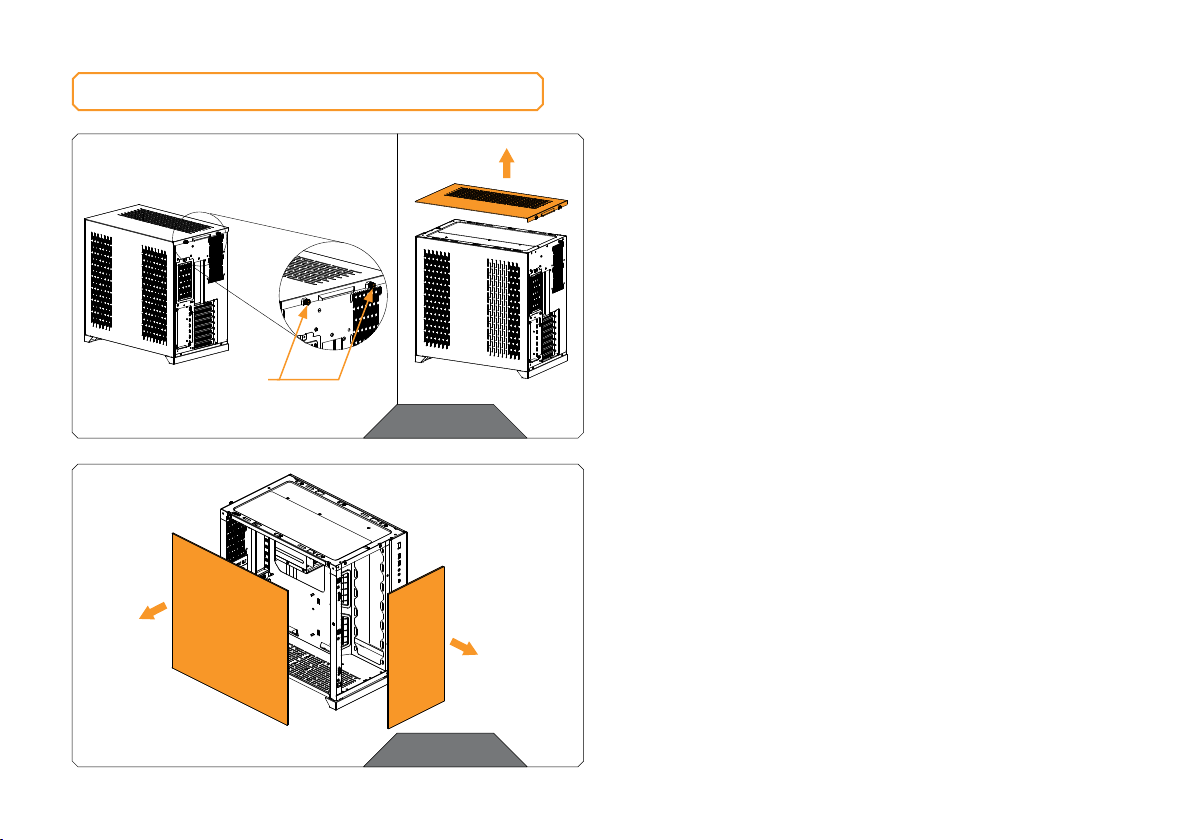

PREPARING THE 011D CHASSIS

Before installing the distribution plate, carefully read

the PC case manual.

STEP 1

Unscrew the factory provided screws and remove the top panel

from the case.

STEP 2

Remove side and the front panel from the case.

STEP 1

Factory provided Screws

- 6 -

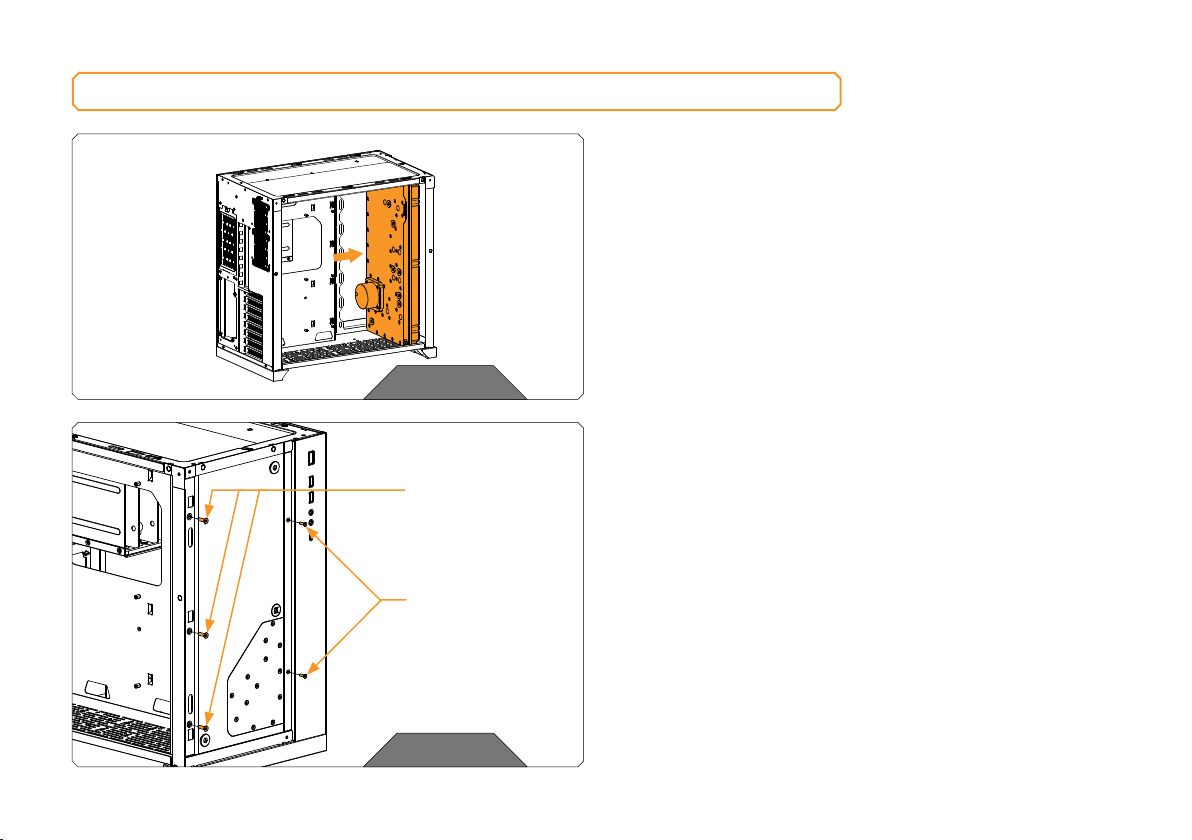

INSTALLING THE DISTRIBUTION PLATE IN THE 011D

STEP 1

Carefully place the EK-Quantum Reﬂection PC-O11D D5 PWM D-RGB

distribution plate into the PC case and align the mounting holes.

STEP 1

STEP 2

Secure the distribution plate to the chassis with three (3) M4 x

14 DIN7991 and two (2) M3 x 11 DIN7991 screws (as shown in

the diagram).

STEP 2

M3 x 11 DIN7991

M4 x 14 DIN7991

- 7 -

RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS

It is mandatory to use at least one of each type of port and all

remaining ports should be sealed using the supplied plugs. The

EK-Loop Multi Allen Key (6mm, 8mm, 9mm) may be used to install

all EK ﬁttings, do not use excessive force.

If one of the prescribed components will not be installed (ie.

bottom radiator or GPU block) then one IN and one OUT port

must still be joined together in order for this distribution plate

to function!

TOP

RADIATOR

OUTLET

GPU INLET

GPU OUTLET

DRAIN

TOP

RADIATOR

INLET

CPU INLET

CPU OUTLET

BOTTOM

RADIATOR

OUTLET

BOTTOM

RADIATOR

INLET

- 8 -

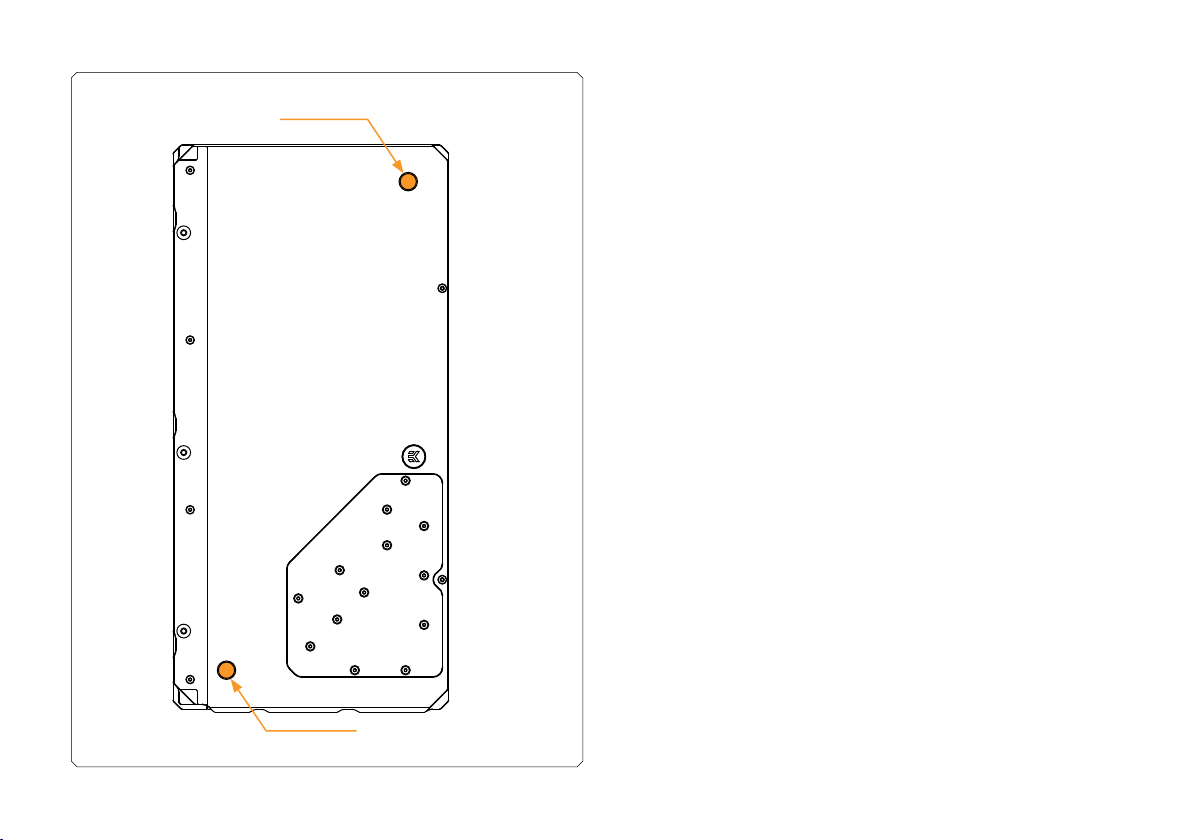

FILL (exterior)

DRAIN (exterior)

- 9 -

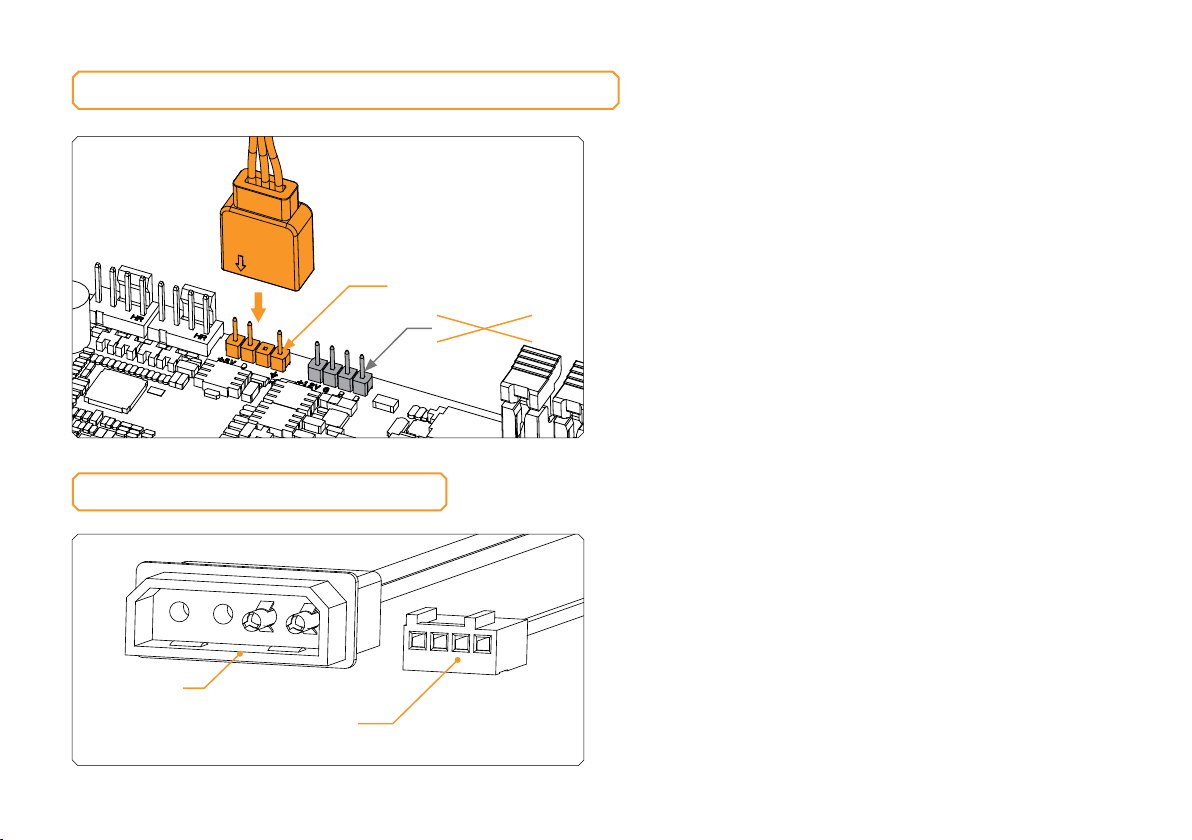

CONNECTING THE D-RGB LED STRIP

Plug the 3-pin connector of the distribution plate D-RGB LED light

to the D-RGB HEADER on the motherboard. The LED will work if the

pin layout on the header is as follows: +5V, Digital, Empty, Ground.

D-RGB Header

RGB Header

CONNECTING THE PUMP

The EK-D5 PWM pump has two connectors.

1. 4-pin Molex: It must be connected directly to your PSU at all

times as it is used to power the pump.

2. 4-pin PWM fan: It can be connected to your motherboard’s

CPU_ Fan or designated water pump header. It can also be

connected to a controller. This cable is used to control and report

the rotational speed of the pump. If it’s not connected, the pump

will run at maximum speed (100% PWM).

4-pin molex

connector

4-pin PWM fan

connector

- 10 -

To make sure the installation of EK components was successful, we

recommend you perform a leak test for 24 hours.

When your loop is complete and ﬁlled with coolant, connect the

pump to a PSU outside of your system. Do not connect power to

any of the other components. Turn on the PSU and let the pump

run continuously. It is normal for the coolant level to drop during this

process as air collects in the distribution plate.

Inspect all parts of the loop, and in the eventuality that coolant leaks,

ﬁx the issue and repeat the testing process. Ensure that all hardware is

dry before the system is powered on in order to prevent any damage.

TESTING THE LOOP
