Manual SRM Pro Series

Premium Quality Manual Pull-Down Projection Screen

User’s Guide

Pre-installation

1. Carefully unpack the screen.

2. Always handle the screen in a leveled position on a clean surface.

Installation

A. Flush Wall Mounting

1. Mark the location of where the screen is to be installed for the pre-drilled hole.

2. After marking the area and drilling the hole, insert the proper screw into the drilled hole and

leave about 1/8” of an inch from the wall to mount the screen.

3. Mount your screen from the keyhole located on back of screen’s left and right end cap.

Note: Do not remove the end caps to mount the screen to the wall.

Removing the end caps will release the tension of the internal spring mechanism.

B. Ceiling Mounting (additional hardware required)

Optional installation using a chain to hang the screen from the ceiling.

1. You can also hang the screen on a ceiling by using a chain (not included) and hang it by the

two d-rings loops located on each end of the case.

Keyhole located on

back of end cap

Front View

Side View

051117-DR www.elitescreens.com 2

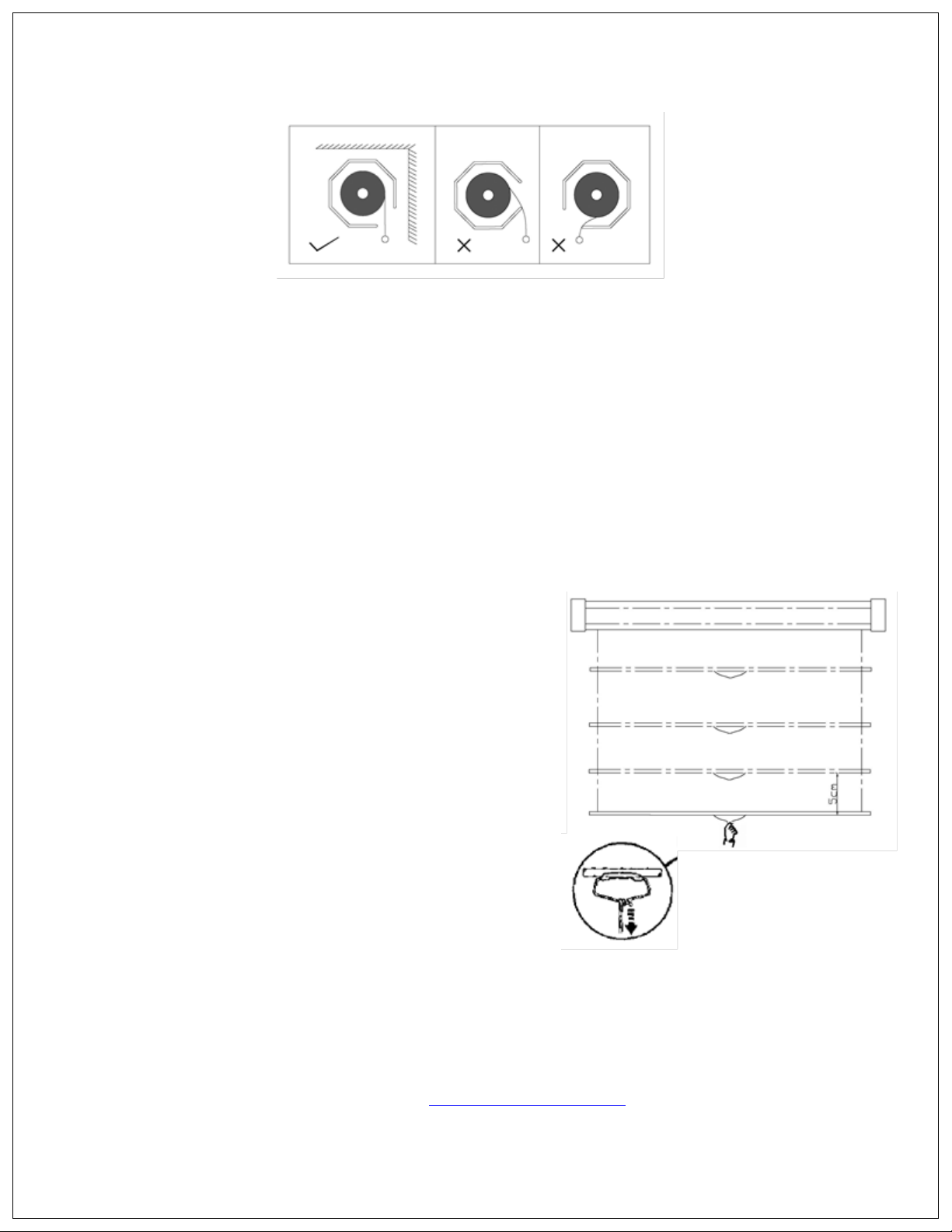

1. Pull the screen down from the lanyard or from the handle only in a 90-degree angle. Do not

attempt to pull the screen down by the surface or touch the screen, as it will damage the screen and

void the warranty.

Note: An internal auto-lock mechanism system will cause the screen to stop and lock on the position

at intervals.

2. If you want to the screen to retract back, simply pull the screen down more than 2 inches and

retract the screen back releasing it up gently. The screen is equipped with a SLOW RETRACT

MECHANISM which allows the screen to slowly retract without the need to hold on to the handle

or lanyard. Simply release the handle and the screen will retract by itself.

Note: Always release at a 90-degree angle. If ever the screen feels stuck, keep in mind that the

screen’s mechanism is new and needs to be brought up/down a few times to loosen up. If this

happens, carefully with a little force, yank the screen straight down to unlock the screen.

Maintenance

Clean matte white screen material with a soft cloth and mild

soap with water. When not in use, retract screen in its housing

to keep the screen material surface clean.

Note:

Regardless of mounting method, the screen should be securely supported so that vibration or even

abusive pulling on the viewing surface will not cause the case to work loose or fall. The installer

must insure that the fasteners used are of adequate strength and suitable for the mounting surface

chosen.

For more information, technical support or your local Elite Screens contact,

please visit www.elitescreens.com

Screen Operation

Note: Always pull the screen down or let it up in a 90-degree vertical angle. Do not allow the screen to

touch the screen case when the screen goes up or comes down to avoid damaging the screen material.

Note: Improperly bringing the screen up/down will damage the

screen material or rolling system.

RETRACTION TIP: If you are not able to pull the screen down

two inches when attempting to retract it, give the screen a quick

yank downwards with a little bit of force. Please be sure to not

stand directly under the housing of the unit when yanking down

on the screen.
