Event Lighting LM7X12W Manuale utente
1
WASH MOVING HEAD
LM7X12W
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to
change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions. Please consult Event Lighting
for any clarification or information regarding this item.
www.event-lighting.com.au
Ver.06
2
Safety Instructions
WARNING
• Do not open this device, there is no user-serviceable parts inside. Risk of electric shock.
• Do not look at the light source when the device is on.
• CAUTION: This unit's housing may be hot during and after operation.
• Install this device in a location with adequate ventilation, at least 20 inch (50 cm) from adjacent surfaces.
• Do not leave any flammable material within 50 cm of this unit while operating or connected to power.
• Use a safety chain when mounting this device overhead.
• Do not operate this device outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
• Do not operate this device if the housing, lenses, or cables appear damaged.
• Do not connect this device to a dimmer or rheostat.
• ONLY connect this device to a grounded and protected circuit.
• ONLY use the hanging bracket to carry this device.
• In case of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 104° F (40° C). Do not operate this device at higher temperatures.
Power Input & Power Linking
This device has an auto-switching power supply work with input voltage range of 100~240 VAC, 50/60 Hz.
Link up to the maximum 8A. DO NOT exceed this.
Fuse Replacement
If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.
Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Unscrew the fuse holder on the rear panel with a fitting screwdriver from the housing (anticlockwise).
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing and fix it.
Product Installation
This device can be mounted in many orientations provided each
individual device is secured by the use of correct mounting bracket.
Use a safety chain when mounting this device overhead.
3

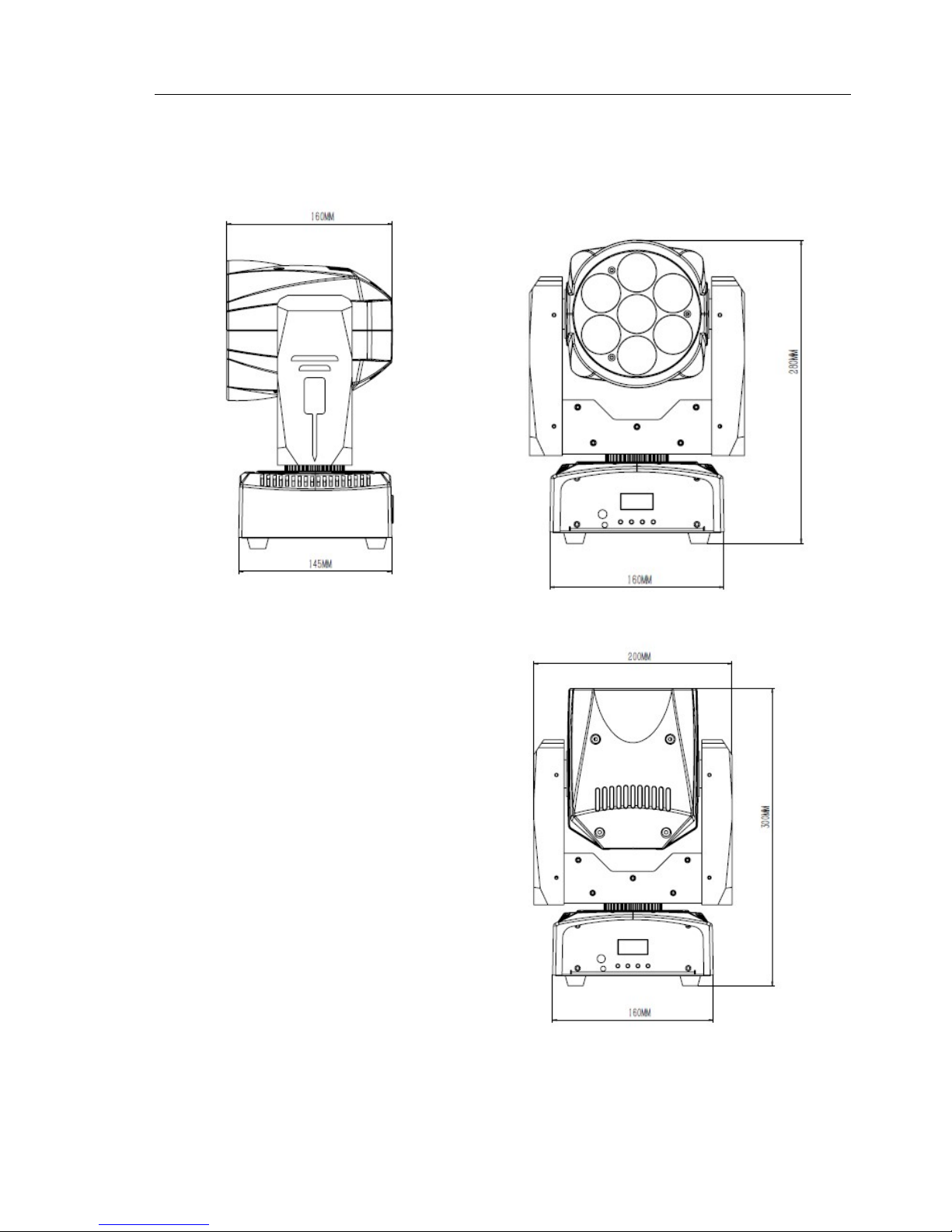

Product Dimensions
4
Menu Operation
Display Function
1.DMX Address 001- 512 Select DMX address from 001 to 512
2.Speed Mode Fade Speed / Fast Speed Set movement speed (Slow or Fast)
3.Master/Slave Master / Slave Select Master or Slave mode
4.Auto Mode Program1 - Program8 Select built-in program
5.Sound Mode OFF / ON Set sound active mode
6.Pan Rev OFF / ON Reverse Pan
7.Tilt Rev OFF / ON Reverse Tilt
8.Display Rev OFF / ON Reverse display
9.Sensitivity 000 - 100 Set sound sensitivity level
10.Factory Reset OFF / ON Restore settings to factory default
11.Calibration
All To Origin Clear PAN and TILT Home Position after 3s
Pan 000-120 Set calibration for Pan
Tilt 000-120 Set calibration for Tilt
Focus 000-120 Set calibration for Focus
13.Reset Reset
DMX Chart
15 channel Mode
Channel Value Function
1 000 - 255 Pan Coarse
2 000 - 255 Pan Fine
3 000 - 255 Tilt Coarse
4 000 - 255 Tilt Fine
5 000 - 255 XY SPEED
6 000 - 255 Dimmer(0-100%)
7
000 - 009 Shutter closed
010 - 245 Strobe effect slow to fast
246 - 255 Shutter open
8 000 - 255 Red
9 000 - 255 Green
10 000 - 255 Blue
11 000 - 255 White
12 000 - 255 Color Temp
13
000 - 010 closed
011 - 020 R
021 - 030 G
031 - 040 B
041 - 050 W
5
051 - 060 R+G
061 - 070 G+B
071 - 080 B+W
081 - 090 R+B
091 - 100 G+W
101 - 110 R+W
111 - 120 R+G+B
121 - 130 R+G+W
131 - 140 G+B+W
141 - 150 RGBW
151 - 255 Jump from slow to fast
14 000 - 010 Macro Color Line (Disable)
011 - 255 Slow from slow to fast
15
000 - 020 No Function
021 - 040 Internal program 1
041 - 060 Internal program 2
061 - 080 Internal program 3
081 - 100 Internal program 4
101 - 120 Internal program 5
121 - 140 Internal program 6
141 - 160 Internal program 7
161 - 180 Internal program 8
181 - 200 Empty
201 - 225 Motor Reset
226 - 255 Empty
16 0-255 Focus
6
Technical Specifications
Power
Input Voltage: 100~240V AC, 50/60 Hz
Power Consumption: 95W
Connection: IEC in
Fuse: T2A, 250V
Photometric
Light Source: 7 pcs 12W RGBW LED
Beam Angle: 6° - 40°
Output: 9500lux @ 3M
PWM: 3000Hz
LED Lifespan: 20,000 hours
Effects
Dimming: 0~100%
Strobe: 1~20 Hz
Zoom: 6° - 40°
Movement 8 / 16 – bit
Pan: 540° (1.4 sec)
Tilt: 190° (0.8 sec)
Control
Protocol: DMX512
DMX Channels: 16
Interface: 3-pin XLR in & out
Built-in Programming: Yes
Sound Active: Yes
Display: 4-button 1 inch OLED display control panel
Cooling: Fan
Housing
Materials: Metal & Flame retardant ABS
Finishing: Matte black
IP rating: IP20
Net Weight: 4 kg
Overall Size: 300 x 200 x 160 mm
WARRANTY
Please refer to your local dealer or please contact Event Lighting Pty Ltd
Website: www.event-lighting.com.au.
