Evolis Primacy Manuale utente

PRIMACY

USER GUIDE

Ref.: KU-PRM1-037-ENG Rev.C0

PRIMACY

Users must observe the copyright regulations applicable in their country. This manual must not be photocopied, translated, reproduced or transmitted,

in whole or in part, for any reason and by any electronic or mechanical means whatsoever without the express written consent of Evolis.

All the information contained in this document is subject to change without prior notice.

Evolis cannot be held liable for any errors that may be found in this manual, or for any loss or damage arising accidentally or as a result of dissemination

or use of this manual.

TRADEMARKS

, Evolis Premium Suite®and Evolis High Trust®are trademarks of Evolis. All other trademarks belong to their respective holders.

WARRANTY

Refer to the warranty notice supplied with your printer for warranty terms and conditions and limitations.

ENVIRONMENTAL INFORMATION

Evolis is committed to helping the environment by reducing the energy consumption of its products.

RECYCLING OF END-OF-LIFE PRODUCTS

The manufacture of the equipment that you have purchased required the extraction and use of natural resources. It may contain materials that are

hazardous to health and the environment.

To prevent the dispersal of such materials into our environment and reduce the pressure on our natural resources, we recommend that you use

existing collection systems. These systems will appropriately re-use or recycle most of the materials in your end-of-life equipment.

The crossed-out dustbin symbol on your device is a reminder to use these systems.

If you need further information on collection, re-use and recycling systems, contact your local or regional waste management body.

Do not hesitate to contact us to find out more by visiting our website at www.evolis.com or by emailing the following address: info@evolis.com.

PRIMACY

Information providing further details or depth about certain points in the main text.

Indicates that failing to take the recommended action is liable to damage your printer.

This symbol indicates that a video showing the procedure is available on the www.evolis.com website and clicking on it takes you

straight to online help.

This symbol links to Evolis Print Center, accessible from your computer, which you can use to administer and manage your printer

and change its settings.

NOTE

EPC

About YOUR NEW PRINTER

Thank you for choosing an Evolis printer. Using your new printer, you will be able to create a wide variety of high-quality cards and badges which

can be printed in various thicknesses, colours and styles. This printer uses consumables and accessories available from Evolis. For further details,

visit our website at www.evolis.com.

WARRANTY REGISTRATION

Please register online at www.evolis.com to receive our special offers and general information.

Once on the website, click on Drivers and Support then on Register your printer and fill in all the fields, giving in particular the model and serial

number found on your printer.

GETTING STARTED

The purpose of this user guide is to guide you, step by step, through your printer and how it works. Take some time to read it in order to better

understand your printer and its features, and to save time during installation and use.

As with all Evolis products, a great deal of care has been taken over this manual. Should you find an error, however, please let us know by emailing

us at info@evolis.com.

Carefully read this manual.

CONTENTS

The bookmarks found top left of your screen can be used to navigate between the various sections in this user guide.

ICONS

The following icons are used in this manual to highlight important information:

PRIMACY

You will be asked for the full original packaging (outer box, inner wedges and protective bags) in the event that the printer is

returned. If the printer is returned without its original packaging and components are damaged in transit, these components will

nolonger be covered by the warranty. You will be charged for new packaging for shipping the printer back to you.

If any of these components are missing, please contact your Evolis dealer.

Use only the power supply unit supplied with your Evolis printer.

SWITCHBOX type F10723-A, CWT type KPL-065M or CWT type KPL-065M-VI.

Use only the USB cable supplied with your Evolis printer.

The Evolis printer must be placed in a dry location, protected from dust and drafts but well-ventilated. Take care to keep your printer

on a flat, sturdy surface able to bear its weight.

1 – GETTING STARTED

UNPACKING

Your printer is supplied with several accessories that we ask you to look at closely.

This list may vary depending on your location.

The printer is shipped in special packaging designed to prevent any damage in transit. If you notice any visible damage, do not hesitate to contact

the shipper and immediately inform your Evolis dealer, who will tell you the procedure to follow.

Evolis takes great care over the quality of its packaging and we ask that you keep this packaging somewhere clean and dry.

Accessories supplied with your printer:

∙ Power supply unit – SWITCHBOX type F10723-A, CWT type KPL-065M or CWT type KPL-065M-VI

∙ Mains power cable.

∙ USB cable.

∙ Reject box.

∙ Installation, documentation and software CD-ROM.

∙ Starter cleaning kit.

∙ Quick installation guide.

∙ Warranty notice.

NOTE

PRIMACY

DEF

DESCRIPTION OF THE PRINTER AND ITS FUNCTIONS

A– Card input feeder

B– Output hopper

C– Control panel

D– USB socket (type A)

E– USB socket (type B)

F– Ethernet connector

G– Power cable socket

H– Place for Kensington lock

I– Place for reject box/rear hopper

Pushbutton

Cards and ribbon

Cleaning

Printer

Wi-Fi (option)

PRIMACY

Access to the side panels of the machine and the option module fitting/removal areas is restricted to your retailer/installer or

toexperienced users. The machine should always be disconnected from the power supply (unplugged) before carrying out any

workon it.

Look at the getting started video described in the following section.

J– Thermal print head

K– Side panel opening mechanism

L– Cleaning roller

M– Card thickness adjustment gauge

N– Dust filter

O– Location for double-sided printing activation key

P – Serial number label

Your machine may be supplied with an LCD screen instead of the control panel; please refer to LCD screen user guide to find out

how to operate it.

NOTE

PRIMACY

Under no circumstances should you connect the USB data cable before installation of the printer driver is complete.

To save energy, the printer will automatically switch itself to standby mode after 10 minutes of inactivity. The printer switches

tohibernation mode after 30 minutes in standby mode.

The standby times can be configured in the Evolis Print Center. In standard standby mode, sending a print request restarts

theprinter and quickly pressing (for 1 second) on the button exits the printer from hibernation mode.

Before attempting any maintenance, always ensure that the power cable is unplugged. For your personal safety, ensure that

thecable and power supply unit remain easy to access, especially in the event of an emergency.

INSTALLATION

Connecting the printer

Connection to the power supply

Refer to the section on printer driver installation for further details, and follow the instructions carefully.

∙Connect the power cable to the power supply unit, then plug the power supply unit connector into

theprinter.

∙Next, plug the end of the power cable into an earthed power socket.

∙The printer is powered on: the control panel lights up showing the printer is working properly. If the control

panel does not lightup, then either installation has not been carried out correctly or the printer is not

working properly. Check the installation.

The printer must be connected to a properly protected and earthed electrical installation.

FI: Laite on liitettävä suojamaadoitus koskettimilla varustettuun pistorasiaan.

NO: Apparatet må tilkoples jordet stikkontakt.

SE: Apparaten skall anslutas till jordat uttag.

DK: Printeren skal tilsluttes til en korrekt beskyttet og jordforbundet el-installtion.

Connecting the USB cable

NOTE

PRIMACY

The printer automatically recognises the ribbon inserted.

Insert the ribbon as shown.

Ribbons

Evolis original High Trust®ribbons optimise your printer’s operation and avoid causing damage to it. The use of ribbons from other suppliers is

liable to damage your printer and voids the manufacturer’s warranty for the printer.

For optimum print quality, Evolis recommends that the printer is fully cleaned every time the ribbon is changed. See the Servicing and Maintenance

section of this manual.

Fitting the ribbon

Open the cover. Close the cover and press until

aclick is heard.

NOTE

PRIMACY

100x

For optimum quality, the cards used must be ISO 7810 certified.

Use only the card types recommended by Evolis.

Do not touch the printable surface of the cards in order to preserve print quality.

Do not use cards that have been damaged, folded, embossed or dropped on the floor.

Keep your cards protected from dust.

Cards

Open the card feeder. Insert the cards, a maximum of 100 cards

ofthickness 0.76 mm. Ensure the cards are

positioned as illustrated in the diagram.

Close the feeder.

NOTE

Loading the cards

PRIMACY

Removing printed cards

Once the print cycle is complete, cards are delivered into the output hopper below the card feeder. This output hopper is designed to collect

theprinted and/or encoded cards. The printer is equipped with an output hopper with a maximum capacity of 100 x 0.76 mm cards.

Adjusting card thickness

The printer is equipped with a manual card thickness adjustment mechanism which can be reached through the card feeder when open.

Theprinteraccepts cards between 0.25 mm and 1.25 mm thick (10 to 50 mil). The factory setting is 0.76 mm.

Altri manuali per Primacy

Indice

Altri manuali Evolis Stampante

Evolis

Evolis Zenius Manuale per l'uso e la cura

Evolis

Evolis TattooRW Manuale utente

Evolis

Evolis Avansia Manuale di istruzioni

Evolis

Evolis Pebble Manuale utente

Evolis

Evolis PRIMACY 2 Manuale utente

Evolis

Evolis Avansia Manuale utente

Evolis

Evolis QUANTUM Manuale utente

Evolis

Evolis KC PRIME Manuale utente

Evolis

Evolis The Tattoo Rewrite Manuale utente

Evolis

Evolis BadgePass NXT5000 Manuale utente

Evolis

Evolis Securion Manuale utente

Evolis

Evolis KU10E Manuale utente

Evolis

Evolis Securion Manuale utente

Evolis

Evolis Elypso Manuale utente

Evolis

Evolis A5405 Manuale utente

Evolis

Evolis Elypso Manuale utente

Evolis

Evolis Pebble Manuale dell'operatore

Evolis

Evolis Unitech Securion Manuale utente

Evolis

Evolis EDIKIO ACCESS Manuale utente

Evolis

Evolis Zenius Manuale utente

Evolis

Evolis Pebble Manuale utente

Evolis

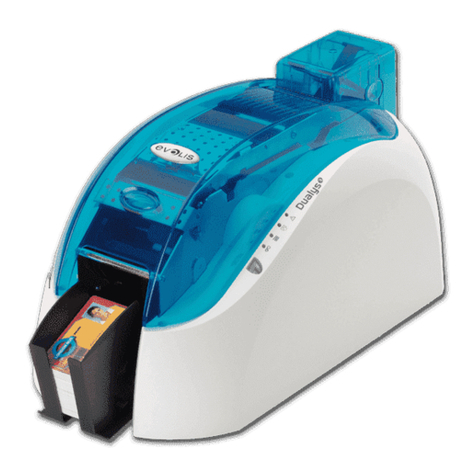

Evolis Dualys Manuale utente
