Edition 08/2020. All rights reserved. Further versions can be found at www.feinmetall.com
TOOLS / ACCESSORIES
With the removal tool, receptacles
can be removed from a bore
without damaging it. This is also
possible with broken receptacles or
if you do not have the possibility to
knock the receptacles out from the
back.
Below you will find step-by-step instructions for handling the tool.
FZWZ-SET-
Mounting tool for twist proof
receptacles
Important:
Always lock the tool
before mounting!
Assembly
01 - Handle (GSFZWZ)
02 - Thread insert (BZ)
03 - Guiding sleeve (HZ)
04 - Screw-nut
01
02
03
04
Available guiding sleeves (HZ) and thread inserts (BZ):
Combination: Receptacles:
• BZ--- & HZ--- H; H; H; H; H; H; H; H
• BZ--- & HZ--- H; H; H; H; H; H; H; H; H
• BZ--- &HZ--- H; H; H
• BZ--- & HZ--- H; H; H; H; H; H
• BZ--- & HZ--- H, HVF
• BZ--- & HZ--- H; H; H; H
• BZ--- & HZ--- H; H; H; H; H; H; H; H; H; H; H, HVF
Further variants are updated on the homepage under PRODUCT FINDER/ACCESSORIES-CP/FZWZ.
Basic Kit FZWZ-SET-
Contents:
• Handle and
screw nut
• Box for single parts
• pliers
• Each one BZ---
and HZ---
Edition 08/2020. All rights reserved. Further versions can be found at www.feinmetall.com
TOOLS / ACCESSORIES

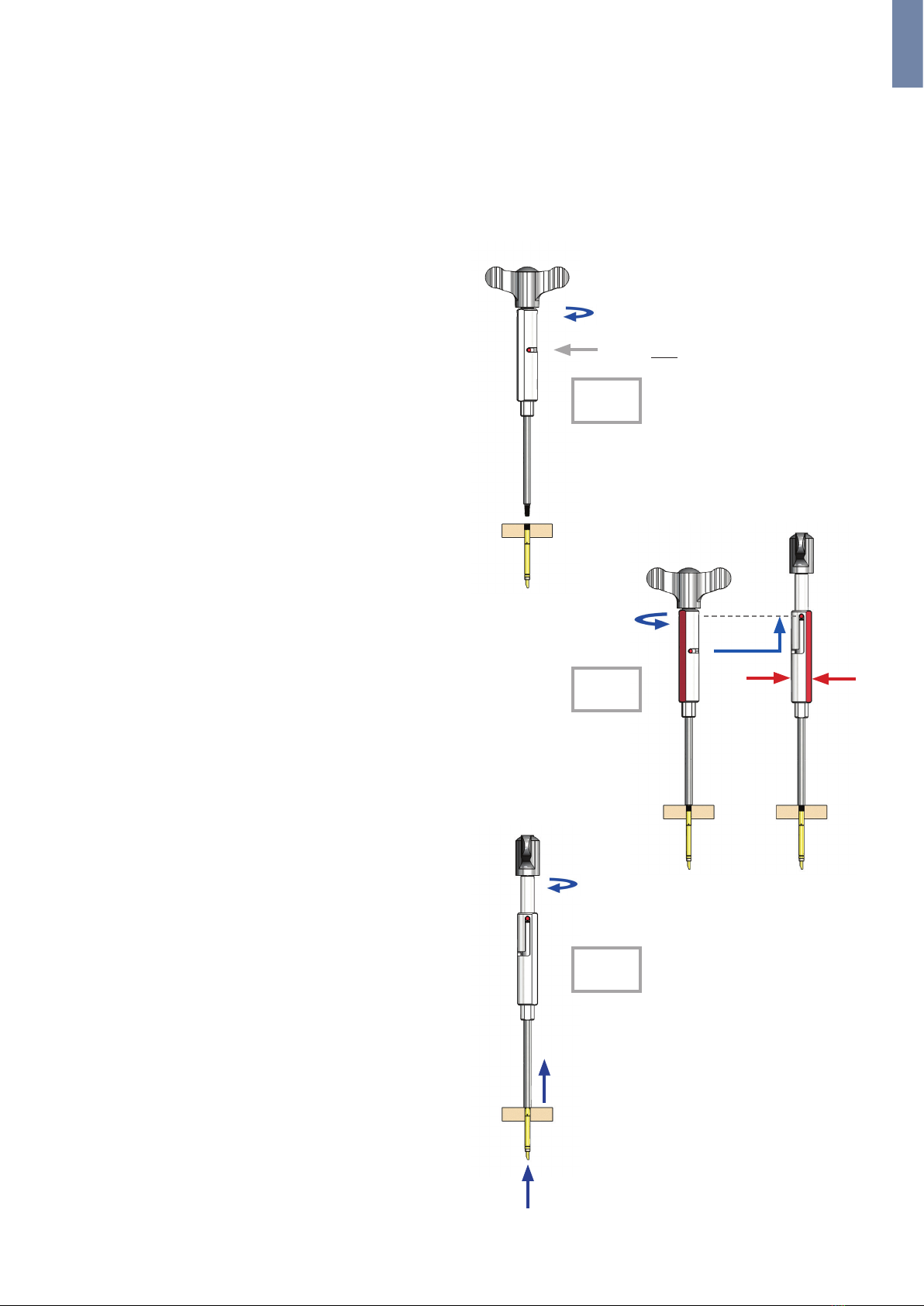

Step-by-step-Instruction
1. Make sure that the handle is locked!
Screw the tool clockwise into the mounted receptacle
until a few turns are cut. This is the case when the
screwing in becomes stiffer or the guiding sleeve (03)
touches the module.
2. Release the lock: Turn the entire tool back slightly
counterclockwise so that the lock can be released
more easily. Then hold the flattened surfaces (marked
red) and turn the handle counterclockwise.
3. Continue turning the tool clockwise. The receptacle
pulls upwards from the mounting plate, into the
guiding sleeve and can be removed.
4. Remove the receptacle from the tool with the nipper
by screwing it counterclockwise from the tool. The
sleeve can be bent by 30°- 90°.
5. For reuse, the thread insert must be screwed all the
way down so that the lock can be set.
Lock it first!
2.
1.
3.
