FIC FR33E Manuale utente
FR33E
MAINBOARD
MANUAL
DOC No.: M01503
Rev. :A0
Date : 9, 2001
Part No. : 25-11620-00
Handling Precautions
Warning:
1. Static electricity may cause damage to the integrated circuits on
the motherboard. Before handling any motherboard outside of its
protective packaging, ensure that there is no static electric charge
in your body.
2. There is a danger of explosion if the battery is incorrectly
replaced. Replace only with the same or an equivalent type
recommended by the manufacturer.
3. Discard used batteries according to the manufacturer’s
instructions.
4. Never run the processor without the heatsink properly and firmly
attached. PERMANENT DAMAGE WILL RESULT!
Observe the following basic precautions when handling the motherboard
or other computer components:
nWear a static wrist strap which fits around your wrist and is
connected to a natural earth ground.
nTouch a grounded or anti-static surface or a metal fixture such as a
water pipe.
nAvoid contacting the components on add-on cards, motherboards,
and modules with the golden fingers connectors plugged into the
expansion slot. It is best to handle system components by their
monting brackets.
The above methods prevent static build-up and cause it to be discharged
properly.
Trademark
All trademarks mentioned in this manual are registered properly of
the respective owners.
Handling Precautions
This manual may not, in whole or in part, be photocopied, reproduced,
transcribed, translated, or transmitted in whatever form without the
written consent of the manufacturer, except for copies retained by the
purchaser for personal archival purposes.
Notice
i
TableofContents
Table of Contents
Chapter 1 Overview
Package Checklist ...................................................................... 1-2
The FR33E Mainboard .............................................................. 1-3
Main Features ................................................................................ 1-4
ACPI Ready ................................................................................... 1-6
FIC Unique Innovation for Users (NOVUS) -
Enhanced Mainboard Features and System Support .................... 1-6
Chapter 2 Installation Procedures
Quick Reference (from Page 2-2 to 2-4) .......................................... 2-2
Mainboard Layout .................................................................... 2-2
1). Clear CMOS Enable ...................................................... 2-3
2). Front Panel Block Cable Connection ............................ 2-3
3). CPU Fan Installation .................................................... 2-4
1). Set System Jumpers .................................................................. 2-4
Clear CMOS: CLR_CMOS ................................................. 2-5
2). Install Memory Modules .......................................................... 2-5
3). Install the CPU .......................................................................... 2-6
4). Install Expansion Cards ............................................................. 2-7
5). Connect Devices ....................................................................... 2-9
Floppy Diskette Drive Connector: ..................................... 2-9
IDE Device Connectors ..................................................... 2-10
ATX Power Connector ...................................................... 2-10
Fan Connectors ................................................................. 2-11
Wake-On-LAN Connector ................................................. 2-11
Wake-On-Ring Connector ................................................. 2-12
CD Audio-In Connector .................................................... 2-12
Front Panel Block and Speaker Connector ........................ 2-13
PS/2 Keyboard and Mouse Connector ............................. 2-14
LAN Jack ........................................................................... 2-14
Quick Reference (German) G-1
Quick Reference (French) F-1
Quick Reference (Spanish) S-1
Quick Reference (Japanese) J-1
Quick Reference (Chinese) C-1
Quick Reference (Simplified Chinese) |||||||||||||SC-1
ii
FR33EMainboardManual
GAME/MIDI Connector .................................................... 2-17
SPDIF Connector .............................................................. 2-18
Universal Serial Bus Connectors ....................................... 2-15
Serial Port Connectors ....................................................... 2-15
Video Graphics Accelerator Connector .............................. 2-16
Printer Connector .............................................................. 2-16
Audio I/O Jacks ................................................................ 2-17
Chapter 3 BIOS Setup
CMOS Setup Utility ....................................................................... 3-1
Standard CMOS Setup ................................................................... 3-2
Advanced BIOS Features .............................................................. 3-4
Advanced Chipset Features .......................................................... 3-7
Integrated Peripherals .................................................................... 3-10
Power Management Setup ............................................................. 3-15
PnP/PCI Configurations ................................................................. 3-19
PC Health Status ............................................................................ 3-21
Frequency/Voltage Control ............................................................ 3-22
Load Fail-Safe Defaults .................................................................. 3-23
Load Optimized Defaults ................................................................ 3-23
Supervisor/User Password ............................................................ 3-23
Save and Exit Setup ........................................................................ 3-24
Exit without Saving ........................................................................ 3-24
1 - 1
Overview
Overview
Chapter 1
The new Micro ATX, Socket 370 mainboard is a low cost all-in-on Intel®solu-
tion that supports a full range of the latest generation Intel®and Cyrix®pro-
cessors. New lightening fast processors from Intel of up to 1.26GHz and up*
are supported with Front Side Bus speeds of 66/100/133 MHz.
(*: not tested yet)
The VIA VT8601T Apollo PLE133T®on this mainboard coworks with Intel
Celeron®, Cumine®, Tualatin®and Cyrix processors. With integrated AGP 2D/
3D graphics accelerator, features AC97 codec, and other onboard audio fea-
ture that embedded in VIA 686B®Super South, the mainboard offers an excel-
lent media environment.
Support for the Ultra DMA/100 protocol and its high-speed interface further
ensures that data transfer speeds are improved, especially for long sequential
transfers required by audio/visual applications. With 2 DIMM sockets, the
mainbard allows up to total 1GB PC-133 SDRAM.
The board comes with a versatile range of I/O features such as 2 serial ports, 1
parallel port, 1 front audio, 1 PS/2 mouse and keyboard connector, 2 USB rear
connectors, 2 USB ports for either front or rear panel connection, 1 VGA con-
nector, 1 media connector (MIDI /game port, Line-in, Line-out and Mic-in) and
moreover, with 1 RJ45 LAN jack. Addon card expansion is available through 2
PCI , 1 AMR and 1 ISA.
Other key features are Remote On/Off, Auto Power Failure Recovery, inte-
grated temperature monitoring and system fan control. Included also is CD Pro
with enhanced drivers.
1 - 2
FR33EMainboardManual
Package Checklist
If you discover any item below was damaged or lost, please contact your
vendor.
þThe mainboard þThis user manual
þOneFDDcable þ Softwaredrivers
þOneATA/100 cable
NOTE: CD Pro that contains patch files, onboard video/audio chip
drivers, related online help and other useful information can be
found in your mainboard package.
Please install it right after your Windows operating system installa-
tion is done.
Place your CD Pro in the drive, an operating menu will
appears in your monitor. Please select
Auto Installation
. It will auto-
matically detect which software tools (patch files, drivers) that the
mainboard needs. Press OK button to go through the whole instal-
lation procedure in a very straight forward and easy way. It also
provides you with a custom way to select wanted patch files and
software drivers that for onboard chips use.
1 - 3
Overview

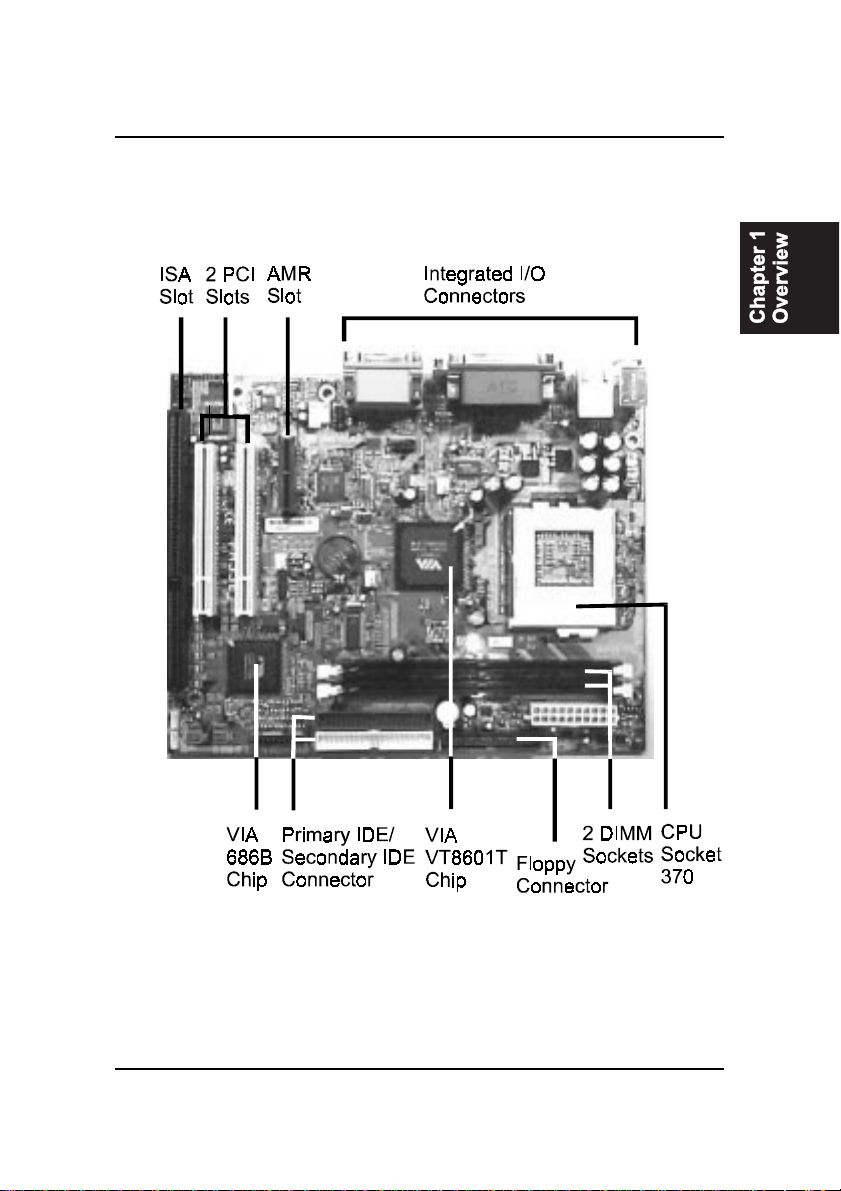

The FR33E Mainboard
1 - 4
FR33EMainboardManual
nEnhanced PCI Bus Master IDE Controller with Ultra DMA 33/66/100
Support
Integrated Enhanced PCI Bus Master IDE controller features two dual-
channel connectors that up to four Enhanced IDE devices, including CD-
ROM and Tape Backup Drives, as well as Hard Disk Drives supporting
the new Ultra DMA 100 protocol. Standard PIO Mode 3, PIO Mode 4,
DMA Mode 2, DMA Mode 4, UltraDMA-100 Mode 5 devices are also
supported.
Main Features
nEasy Installation
||BIOS with support for Plug and Play, auto detection of IDE hard drives,
||LS-120|drives, IDE ZIP drives, Windows 98SE, Windows ME, Windows
||NT, Windows 2000, Windows XP, and OS/2.
nLeading Edge Chipset
VIA Apollo PLE133T (VT 8601T) is a North Bridge with integrated 2D/3D
graphics accelerator. The chip is designed for offering a reliable,
effective,and excellent performance. It contains internal AGP controller,
concurrent PCI bus controller, advanced DRAM controller, and power
management support.
nVersatile Main Memory Support
Accepts up to total 1GB PC-133 SDRAM using two DIMMs of 64, 128,
256, 512MB with support for lightning-fast SDRAM (100/133MHz).
nFlexible Processor Support
Onboard CPU socket supports:
Intel Celeron 667 MHz -1.1 GHz and up*
Intel Pentium 533 MHz - 1 GHz
Intel Tualatin 1.13 - 1.26*GHz
Cyrix III 733A - 933* MHz
(*: not tested yet)
1 - 5
Overview
nIntegrated Audio Subsystem
Embedded audio features in the VIA 686B provide hardware Sound
BlasterProfor Windows DOS box and real mode DOS legacy compatibil-
ity, dual full-duplex Direct Sound channels between system memory and
AC97 link.
nSuper Multi Input/Output (I/O) Support
Integrated super I/O controller in the VIA 686B features two high-speed
UART serial ports, one multi-mode (standard/ECP/EPP) parallel port, one
IR port, and one FDD connector.
nConvenient Rear Panel USB Connection Support
Two USB ports integrated in the rear I/O panel with two extra USB pin-
heads for either front or rear panel connections to the growing number of
USB compliant peripheral devices on the market.
nAMR, ISA, and PCI Expansion Slots
One AMR, one ISA Bus expansion slot, and two PCI Bus expansion slots
provided the room to install a full range of add-on cards.
nLAN Support
One RJ45 LAN jack on the rear panel and onboard LAN controller allows
you to connect with network system in a very easy way.
nEasy Key
Instead of completing the multi-layered BIOS setup process these Easy
Key functions provide direct access to Sub-Menu when completing BIOS
settings adjustments.
Ctrl + p: To load Performance Default settings and restart.
Ctrl + f: To load Fail-Safe Default settings and restart.
FIC Unique Innovation for Users (NOVUS) -
Enhanced Mainboard Features and System Support
ACPI Ready
This mainboard fully implements the new ACPI (Advanced Configuration and
Power Interface) 1.0B Hardware and BIOS requirement. If you install ACPI
aware of operating system, such as Windows 98, you fully utilized the power
saving under ACPI. (Windows ME/2000 Professional/XP supports ACPI func-
tions.)
Easy-Keys are as follows:
Ctrl + c: To enter clock settings menu.
Indice
Altri manuali FIC Scheda madre
Manuali Scheda madre popolari di altre marche
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuale utente
Gigabyte
Gigabyte GA-9IVDT Manuale utente
Texas Instruments
Texas Instruments ADS8372EVM Manuale utente
Commell
Commell MS-C73 Manuale utente
IBT Technologies
IBT Technologies MB860 Manuale utente
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuale utente
