FLIR VS80A2-45-1RM Manuale utente

User Manual

Two-Way

Articulating Camera

Probe

Model VS80A2–45–1RM

Introduction

Thank you for selecting the FLIR two-way articulation probe. The

probe is intended for use with the VS80 High Performance Video-

scope system. Obtain the VS80 user manual and additional transla-

tions of this user manual on the support site:

https://support.flir.com

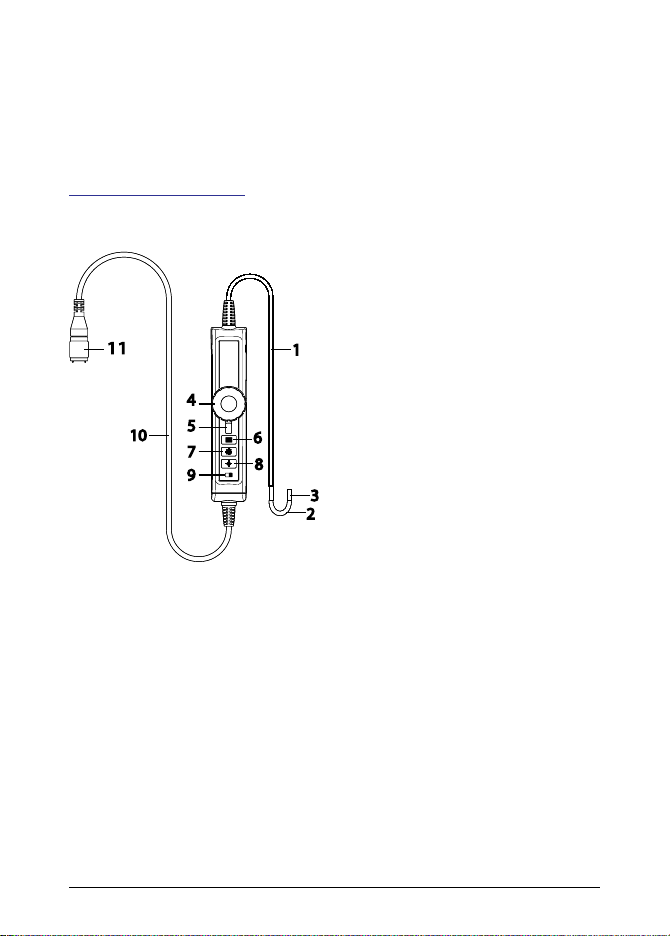

Description

1. Probe

2. Articulating neck

3. Camera head

4. Articulation control dial

5. Slider to lock articulation

6. Image and video recording button

7. Brightness increase button

8. Brightness decrease button

9. Control button lock switch

10. Connecting cable to VS80

11. VS80 connector

#NAS100102; r. AB/83682/84877; en-US 1

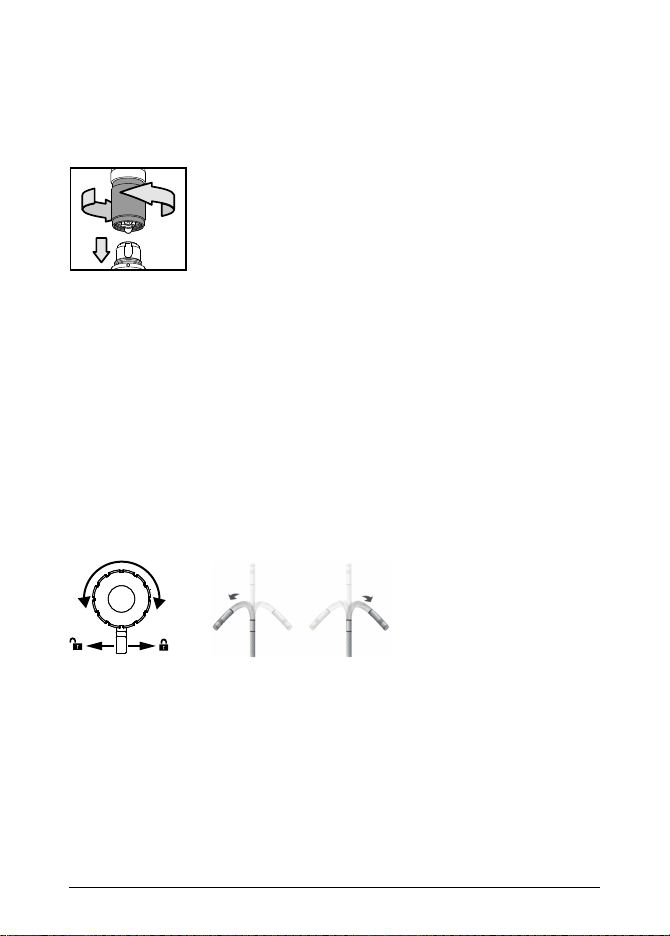

Connecting the Probe

The steps below explain how to safely connect the probe to the

VS80 monitor. Always turn the VS80 power off before replacing the

probe.

1. Align the white dot on the probe connector with the white dot on

the monitor connector.

2. Plug the probe into the monitor unit, ensuring proper alignment

and full insertion.

3. Tighten the collar nut to secure the connection. Do not

overtighten.

Operation

Controlling Articulation

Turn the control dial (4) clockwise to bend the probe neck to the

right; turn the dial counter-clockwise to bend the neck to the left, as

shown in the image below. The articulation range is 180° maximum,

do not attempt to force the control dial past the bend limit.

Articulation Lock

To lock the flexible neck in position, move the locking slider (5) to

the right as shown in the image above. Move the slider to the left to

release the lock.

Use caution when removing the probe from an inspection area; if

the neck is locked at an angle, it may bind and become difficult to

remove. Straighten the neck before removing the probe from the in-

spection area.

#NAS100102; r. AB/83682/84877; en-US 2

CAUTION

Do not use excessive force when turning the control dial, damage to the cam-

era probe can result. Do not attempt to force the flexible neck past its maxi-

mum angle. Stop turning the control dial when the maximum angle is reached.

Image and Video Capture Button

Short press the Image and Video Capture button (6) to capture a

still image. Long press to start or stop video recording. Images and

videos are stored on the VS80 micro SD card.

The VS80 user manual provides detailed information regarding me-

dia management. Obtain the user manual from the FLIR support

website (see Support section below).

Brightness Control Buttons

Use the brightness controls (7, 8) to increase and decrease

the brightness of the camera images.

Control Button Lock Switch

Use the locking switch (9) to disable the three control buttons (6, 7,

8). This is useful to avoid inadvertent activation of the buttons.

Safety

Please read and understand all safety cautions before use.

CAUTION

Do not insert the probe into flammable liquid or gas.

The probe contains small circuitry that controls the optics and electronics of

the camera. To ensure reliability, do not bend the probe more than 90°, and,

when storing, always coil the probe in a large arc.

This product is designed for industrial use only. It is not intended for use in hu-

man or other biological inspection.

#NAS100102; r. AB/83682/84877; en-US 3

CAUTION

Do not disassemble the product, damage to the product and electrical shock

may occur.

Use only recommended components and accessories; unapproved equip-

ment may cause damage to the product.

Avoid direct sun exposure. Store in a cool, dry, and well-ventilated area.

To protect the camera, keep the lens cap, and other supplied protective cover-

ings, attached when not in use. Store in the original case.

CAUTION

The neck, near tip of the probe, is particularly sensitive to excessive force.

Never bend the neck by hand; use only the control dial. Keep the insert neck

as straight as possible while in use. Never insert or bend the neck by force

and never over-bend any section of the probe.

CAUTION

To avoid camera damage, please straighten the neck before removing it from

the inspection area. Failure to do so may cause the camera to become stuck

in the inspection area.

CAUTION

Do not coil the probe < 15 cm (6 in) in diameter in use or when storing, dam-

age to the probe may result.

Straighten the neck angle before placing in storage.

#NAS100102; r. AB/83682/84877; en-US 4

CAUTION

Please keep the probe’s alignment as straight as possible while in use.

Do not force the control dial when resistance to movement is felt; Damage to

the camera can result.

Do not allow the probe to forcefully impact an object.

Do not put excessive weight on any area of the probe.

Never use the probe as a hammer, hook, or other tool.

Never use the probe tip to clear pathways or to unclog a pipe.

CAUTION

Do not allow the camera head to come in contact with acidic, corrosive or

heated material, serious damage to the equipment can occur.

Before inspecting a vehicle, shut off the engine. Allow the metal and liquids in

the vehicle to cool before inspection.

CAUTION

To clean the probe, wipe with a soft cloth dampened with a mild detergent and

clean water. Do not use abrasive detergents. Do not use corrosives or sol-

vents to clean the probe. Use a high quality lens cleaning fluid and a lint-free

swab to clean the camera and worklight lenses.

Specifications

Camera resolution 640 (H) * 480 (V) pixels

Frame rate 30 frames per second (fps)

Probe diameter 3.9 mm (0.15 in)

Probe head diameter 4.5 mm (0.2 in)

Probe head length 14 mm (0.5 in)

Probe length 1 m (3.3 ft)

Articulation angle 180° maximum (the angle may decrease if

the probe is looped)

#NAS100102; r. AB/83682/84877; en-US 5

Probe head material Stainless steel

Probe body material Braided mesh stainless steel

Worklights Five (5) LED lamps

Field of View (FOV) 90°

Depth of Field (DOF) 1 to 10 cm (0.4 to 4.0 in)

Operating temperature 0℃to 60℃(32℉to 140℉)

Storage temperature –10℃to 60℃(14℉to 140℉)

Liquids approved for probe

submersion

Brake and transmission fluid, diesel fuel, un-

leaded gasoline, engine oil, and CPC hy-

draulic oil (46AWS)

Ingress protection Probe tip and body: IP 67 (IEC 60529)

Protected from submersion in water up to 1

meter (3.3 ft) for 30 minutes maximum. In

use: rain, splashes, and accidental

submersion

Warranty and Support

Three-Year Limited Warranty

This product is protected by FLIR’s 3-Year Limited Warranty. Visit

www.flir.com/testwarranty to read the 3-Year Limited Warranty

document.

Customer Support

Customer Support Telephone List: https://support.flir.com/contact

Repair, Calibration, and Technical Support https://support.flir.com

#NAS100102; r. AB/83682/84877; en-US 6

#NAS100102; r. AB/83682/84877; en-US 7

last page

Publ. No.: NAS100102

Release: AB

Commit: 83682

Head: 84877

Language: en-US

Modified: 2022-03-05

Formatted: 2022-05-06

Website

http://www.flir.com

Customer support

http://support.flir.com

Disclaimer

Specifications subject to change without further notice. Models and accessories

subject to regional market considerations. License procedures may apply.

Products described herein may be subject to US Export Regulations. Please

refer to [email protected] with any questions.
