FLIR VS80A4-60-2RM Manuale utente

User Manual

Four-Way

Articulating Camera

Probe

Model VS80A4-60–2RM

Introduction

Thank you for selecting the FLIR four-way articulating probe. The

probe is intended for use with the VS80 High Performance Video-

scope. See the VS80 manual for complete instructions for image

and video management, image manipulation, Wi-Fi connectivity,

split-screen modes, and other features. Obtain the VS80 user man-

ual and additional translations of this user manual on the support

site:

https://support.flir.com

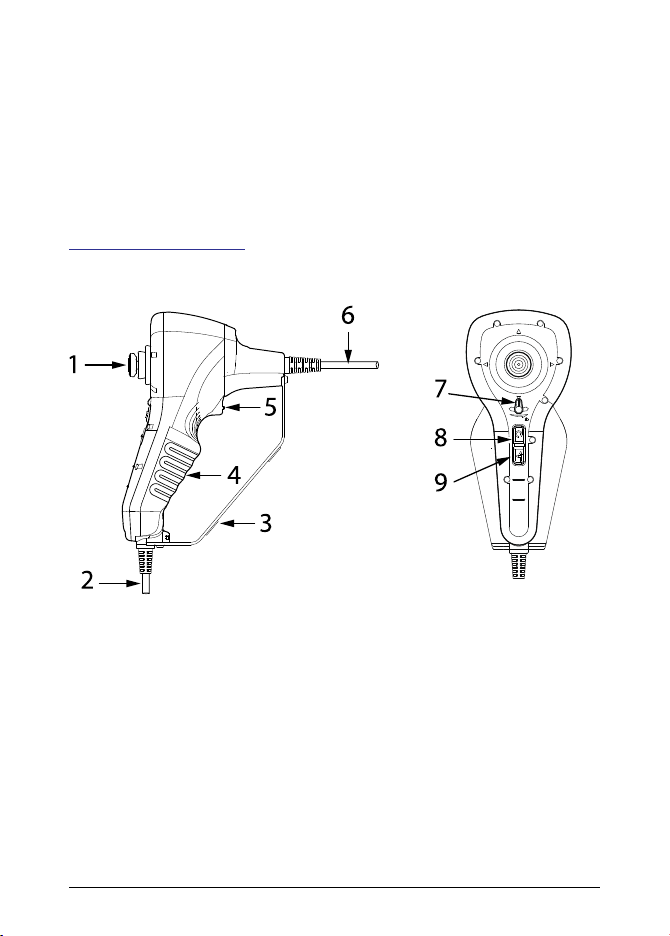

Product Description

1. Joystick articulation control

2. VS80 connecting cable

3. Control stabilizer

4. Hand grip

5. Lighting enhancement button

6. Probe

7. Articulation locking switch

8. Rotation 90° button

9. Anti-reflection button

#NAS100104; r. AB/83734/84877; en-US 1

Safety

Safety Note

Please read and understand all safety cautions before use.

CAUTION

Do not insert the probe into flammable liquid or gas.

This product is designed for industrial use only. It is not intended for use in hu-

man or other biological inspection.

CAUTION

To clean the probe, wipe with a soft cloth dampened with a mild detergent and

clean water. Do not use abrasive detergents, corrosives (alcohol), or solvents

to clean the probe. Use a high quality lens cleaning fluid and a lint-free swab

to clean the camera and worklight lenses.

Do not disassemble the product, damage to the product and electrical shock

may occur.

Avoid direct sun exposure. Store in a cool, dry, and well-ventilated area.

The probe contains sensitive circuitry that controls

the optics and electronics of the camera. Do not

strike the probe or allow it to impact objects

forcefully.

The following liquids have been approved for sub-

mersion of the camera probe: Brake and transmis-

sion fluid, diesel fuel, unleaded gasoline, engine

oil, and CPC hydraulic fluid (46AWS).

#NAS100104; r. AB/83734/84877; en-US 2

Connect the Probe to the VS80

Carefully connect the probe to the VS80 monitor as detailed below.

Always switch the VS80 power off before connecting the probe.

1. Align the white dot on the probe connector with the white dot on

the VS80 monitor connector.

2. Plug the probe into the monitor unit, ensuring proper alignment

and full insertion.

3. Tighten the collar nut to secure the connection. Do not

overtighten.

Probe Controls

Articulation Joystick

Use the joystick (1) to move the probe neck in four directions as

shown in the illustration below. The thumb is typically used to move

the joystick while the hand grips the control unit. Set the control

unit’s stabilizing base on a firm platform for convenience.

Move the probe slowly and carefully; stop moving in a specific di-

rection if resistance is detected. Keep the probe as straight as pos-

sible and keep the probe neck at 0° articulation when moving into

and out of an inspection area.

#NAS100104; r. AB/83734/84877; en-US 3

Articulation Lock

Move the locking switch (7) to the locked position (to the right), to

freeze the probe neck in place. Move the switch to the left to re-

lease the lock. Do not lock the probe neck at an angle when insert-

ing or removing the probe from the inspection area, this can bind

the probe in the inspection area.

Light Enhancement Button

Press the light enhancement button (5) to highlight the darker areas

of a camera image.

Rotation 90° Button

Short press the rotation button (8) to rotate the camera image 90°.

The VS80 allows you to rotate the image at a variety angles.

Anti-Reflection Button

Press the anti-reflection button (9) to improve image quality when

measuring on or near reflective surfaces, such as shiny metals or

mirrored objects.

VS80 Controls

The VS80 offers touch-screen and physical control buttons that add

more capabilities to your camera probe. Download the VS80 user

manual from the FLIR support site for complete details on recording

and managing still images and video, Wi-Fi connectivity, split-

screen views, additional rotation angles, and more. See the Support

section below for the support web address.

#NAS100104; r. AB/83734/84877; en-US 4

Mirror Accessories

The mirror adaptors optimize side view and forward view camera

images. Use the VS80 touch-screen to switch the views and work-

lights as detailed in the VS80 user manual.

Notes: Peel off the protective film from the mirror before use. Clean

the mirror with a lint-free swab and a high quality lens cleaner. If

necessary, remove dust and moisture with compressed air.

Dual View Mirror Description

1. Reflective mirror

2. Worklight lens opening

3. Worklight aligned with opening

4. Threaded probe connection

5. Probe’s forward view

6. Probe’s side view mirror reflection

Side View 70° Mirror Description

1. Reflective mirror provides side view

2. Worklight opening. Align the worklight with the opening

3. Threaded probe connection

#NAS100104; r. AB/83734/84877; en-US 5

Mirror Accessories Installation

Remove the camera protective cover by rotating it

counter-clockwise.

Turn the silver alignment sleeve clockwise to move to

the right, exposing the worklight.

Attach the accessory by rotating it clockwise onto the

probe. Align the hole on the accessory to expose the

worklight.

Rotate the silver alignment sleeve to move left or right,

as needed.

Measurement Considerations

• Ensure that the camera lens cap is removed before inserting the

probe into the inspection area.

• After connecting the probe to the VS80, verify that a clear cam-

era image is displayed. If not, remove the probe and reattach it

ensuring correct orientation and a tight seal. Contact FLIR sup-

port if necessary.

• Do not force the probe through an inspection area if resistance

is detected. Check the nature of the resistance and clear it as

necessary before continuing.

• Use the VS80 to capture and manipulate still images and video,

select forward and side camera views, control the worklights,

connect with smart devices, and other features.

• When the inspection is complete, remove the probe from the in-

spection area. To avoid probe binding in the inspection area,

keep the probe straight and a 0° probe neck articulation angle.

• Clean the probe with a damp cloth and mild detergent as

needed. Clean the camera, mirror, and worklight lenses using a

high quality cleaning fluid and lint-free swabs.

• Attach the protective lens cap when storing.

#NAS100104; r. AB/83734/84877; en-US 6

• Coil the probe carefully with as wide an arc as is possible when

fitting into its protective case.

Specifications

Camera Specifications

Camera image resolution 640 * 480 pixels

Frame rate 30 frames per second (fps)

Camera accessories Side view and dual view mirror attachments

Probe head and probe body

diameter

0.24 in (6 mm)

Probe head length 0.93 in (23.5 mm)

Probe length 6.6 ft (2 m)

Articulation Four–way articulation with 110° max. angle

Probe head material Stainless steel

Probe body material Stainless steel mesh

Worklights Front (3) and side (2) LED lamps

Field of View (FOV) 87.1°

Depth of Field (DOF) 0.4 to 4.0 in (1 cm to 10 cm)

Operating temperature 32℉to 120℉(0℃to 60℃)

Storage temperature 14℉to 120℉(-10℃to 60℃)

Approved liquids for probe

immersion

Brake and transmission fluid, diesel fuel, un-

leaded gasoline, engine oil, CPC hydraulic

fluid (46AWS), and water.

Ingress protection Probe tip and body: IP 67 (IEC 60529)

Protected from submersion in water up to 3.3

ft (1 m) for 30 minutes maximum. In use: rain,

splashes, and accidental submersion

#NAS100104; r. AB/83734/84877; en-US 7

Warranty and Support

Three-Year Limited Warranty

This product is protected by FLIR’s 3-Year Limited Warranty. Visit

www.flir.com/testwarranty to read the 3-Year Limited Warranty

document.

CUSTOMER SUPPORT

Customer Support Telephone List https://support.flir.com/contact

Repair, Calibration, and Technical Support https://support.flir.com

#NAS100104; r. AB/83734/84877; en-US 8
