Fluke 55XXA Manuale utente
1
Introduction
This document provides instructions for the 55XXA Portability Kit (the Kit).
Use the Kit to replace the original 5560A, 5550A, and 5540A Calibrator handles. The Kit
replacement handles provide greater product protection and add more hand holds to make
the Product easier to lift. The display cover/pouch protects the front panel and can hold
assorted test leads or other items.
Figure 1. 55XXA Portability Kit (Installed)
55XXA
Portability Kit
Instructions
PN 5310593
April 2022
© 2022 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.
55XXA
Instructions
2
Contact Fluke Calibration
Fluke Corporation operates worldwide. For local contact information, go to our website:
www.flukecal.com
To register your product, view, print, or download the latest Users Manual or manual supplement,
go to our website.
Fluke Corporation
P.O. Box 9090
Everett, WA 98206-9090
+1-425-446-5500
Kit Contents
Check to make sure that all of the listed parts are included:
Assemble the Handles
Attach the 2 side handles to the 4 corner handles. See Figure 2. For each pair of corner
handles, use a Phillips screwdriver to tighten 2 M5X10 screws (torque to 12.5 in-lbs) and 2
strap washers to screw a side handle to the center of each of the corner handles. Once
assembled, set the handles aside.

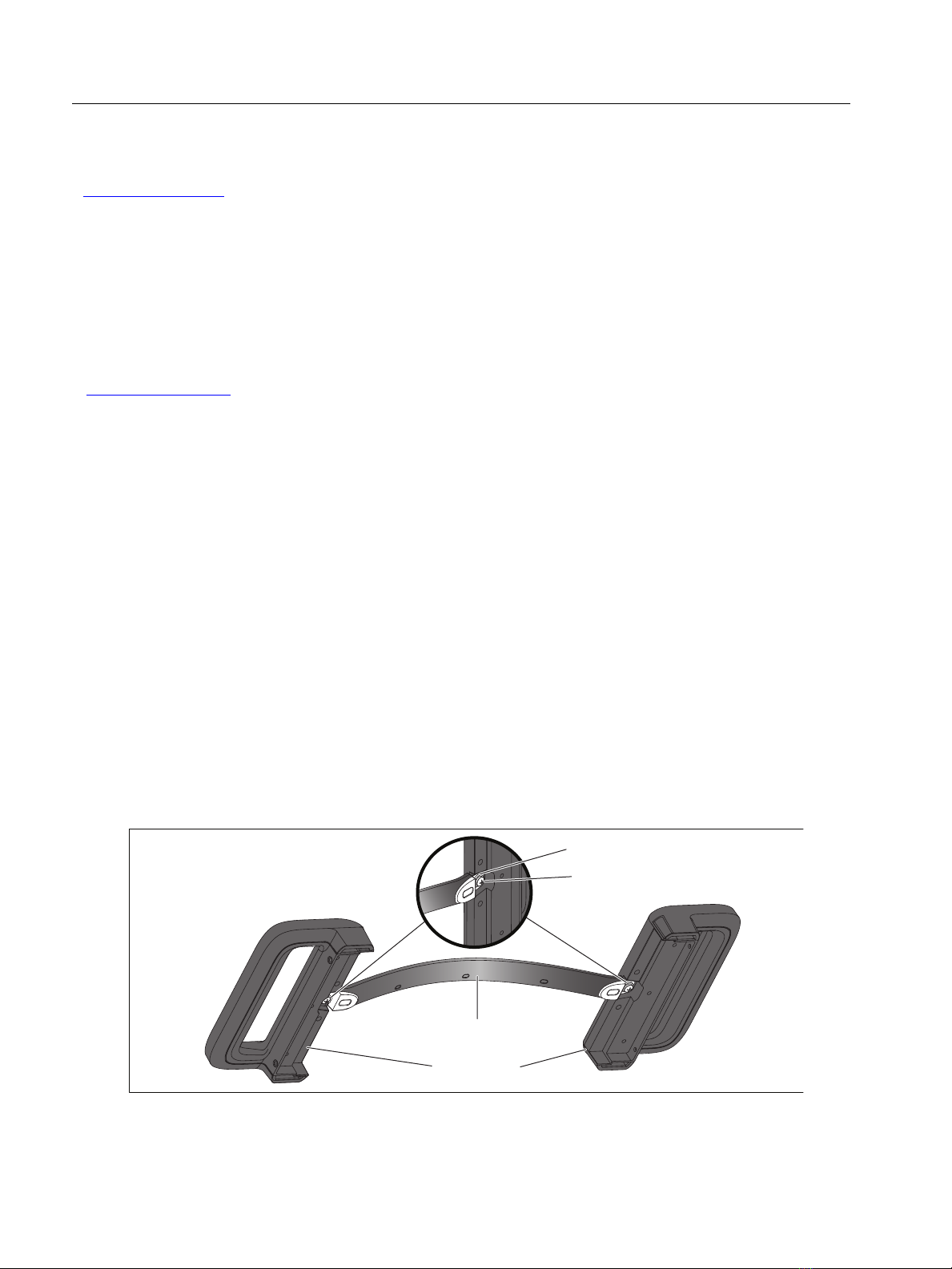

Figure 2. Side Handle and Handle Assembly
• (4) Corner Handles
•(2)SideHandles
•(4)CrossBars
• (16) M3x8 Cross Bar Screws
• (20) M4x10 Handle Screws
• (4) M5x10 Screws
•(4)StrapWashers
• (1) Display Cover/Pouch with Straps
•(4)TopandBottomDisplayCover/
Pouch Straps.
M5X10 Screw
Strap Washer
Corner Handle
Side Handle
Portability Kit
Installation
3
Installation
When you install the Kit on the Product, do not remove too many screws from the Product at
once. To do so can cause the Product covers to shift and make the Product come apart.
To install the Kit on the Product, See Figure 3:
1. Turn off the Product and remove the mains power cord.
2. Place the Product on a flat surface.
3. Start with one side (left or right). Use a 3 mm hex wrench to remove the side front and rear
handles (each handle has 5 screws).
4. With the M4x10 screws, attach one of the handle assemblies to the Product. Use screw
holes that held the standard handles. Use five screws for each handle. All 20 M4 handle
screws require a Torx T20 drive. Tighten to a torque of 12.5 in-lbs.
5. Attach the top-panel rear cross bar to the Product. See Figure 3:
a. On the rear of the Product top-panel, use a Phillips screwdriver to remove the four
screws. Do not remove the screws from the top-panel front side yet.
b. With the slots of the cross bar facing out, slide one end tab of the cross bar into the
hole on the corner handle.
c. Use four M3X8 screws to attach the cross bar to the top rear of the Product. The four
cross bar screws require a Phillips bit. Torque of 8 in-lbs.
Note
Start each of these screws but wait to tighten until all are started.
Figure 3. Attach the Cross Bar to the Handle and Top of the Product
Cross Bar
Cross Bar
(4) M3X8 Screws
55XXA
Instructions
4
6. The steps to attach the top-panel front cross bar are similar to attach the top-panel rear
cross bar. However, it is easier to attach the cover/pouch to the cross bar first. See
Figure 4.
a. With the Fluke logo on the display cover/pouch facing you and right-side up, thread the
ends of the two top straps through the top slots at of the cross bar.
b. Loop the ends around the cross bar and secure the ends to the top of the straps with
the hook and loop fasteners.
c. Once the straps are attached to the cross bar, attach the top-panel front cross bar to
the top of the Product. Remove the screws and replace the cross bar. Make sure the
pouch straps are at the front.
Figure 4. Loop Straps Through Cross Bars
7. Turn the Product upside down.
8. Attach the bottom-panel rear cross bar to the bottom of the Product. Remove the screws
and replace the cross bar.
9. The steps to attach the bottom-panel front cross bar are similar to the steps to attach the
top-panel front cross bar. Attach the last two display cover/pouch straps to the cross bar
first. See Figure 4.
10. Once the straps are attached to the cross bar, make sure the cross bar slots face towards
the front of the product and attach the bottom-panel front cross bar as you attached the
top-panel front cross bar.
11. With the M4x10 screws, attach the other corner handle assembly to the other side of the
Product using the screw holes from the standard handles. Use five screws for each handle.
Use a Torx T20 driver and torque to 12.5 in-lbs.
12. Make sure that all screws are tightened.
13. Place the Product right-side up, restore the power cable, and connect to power. The
Product is ready use.
Front Cross Bar
Display Cover/Pouch Straps
