Frigidaire FAH12EJ2T2 Manuale utente

PRODUCT NO. BASE MODEL NO. MARKET BTU-COOLING PRO DATE

FAH12EJ2T2 FAH12EJ2T USA 12000 BTU 06/20/01

Publication No.

5995356390

010720

-EN/SERVICE /DJH

345

ROOM AIR CONDITIONER

Model No.

FAH12EJ2T

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309104101

OWNER’S GUIDE - # 309000823

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O.BOX 212378, AUGUSTA, GA 30917

07/01 2

Publication No. FAH12EJ2T

5995356390

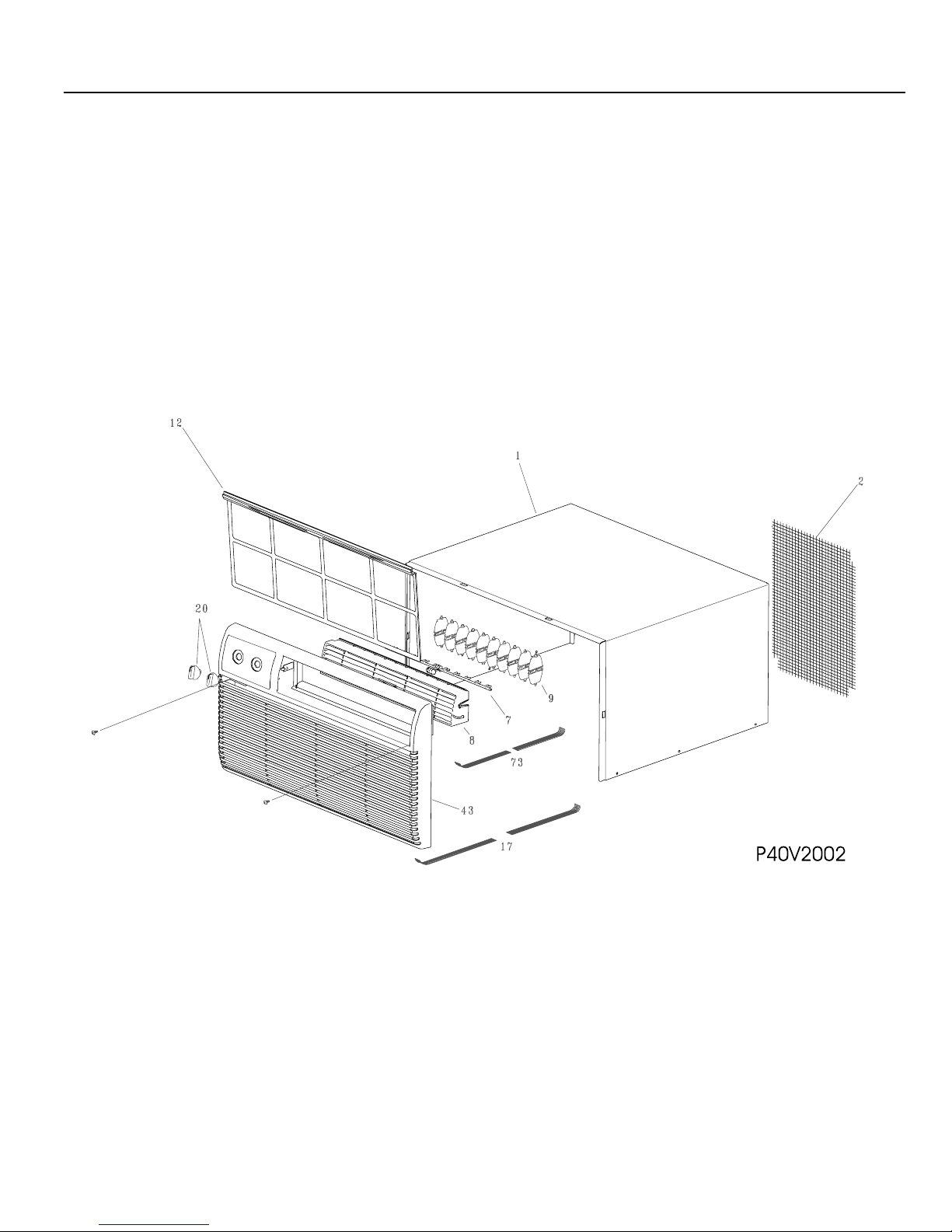

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 07/01

* = Non-Illustrated Parts

FAH12EJ2T Publication No.

5995356390

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309627504 Cabinet-,U-bend 18.5BLD

2 309636101 Screen-safety,18.5BLD

2* 5304408740 Panel-Rear plastic

7 309324004 Link-handle

8 309628004 Louver,horizontal

9 309628104 Louver-vertical

12 309628204 Filter,air ,molded plastic ,grey

17 309629406 Front assy,18.5BLD EL HT

20 309307013 Knob-control

43 309631806 Front/control,Label asmby

73 309629304 Louver Assy,grey

07/01 4

Publication No. FAH12EJ2T

5995356390

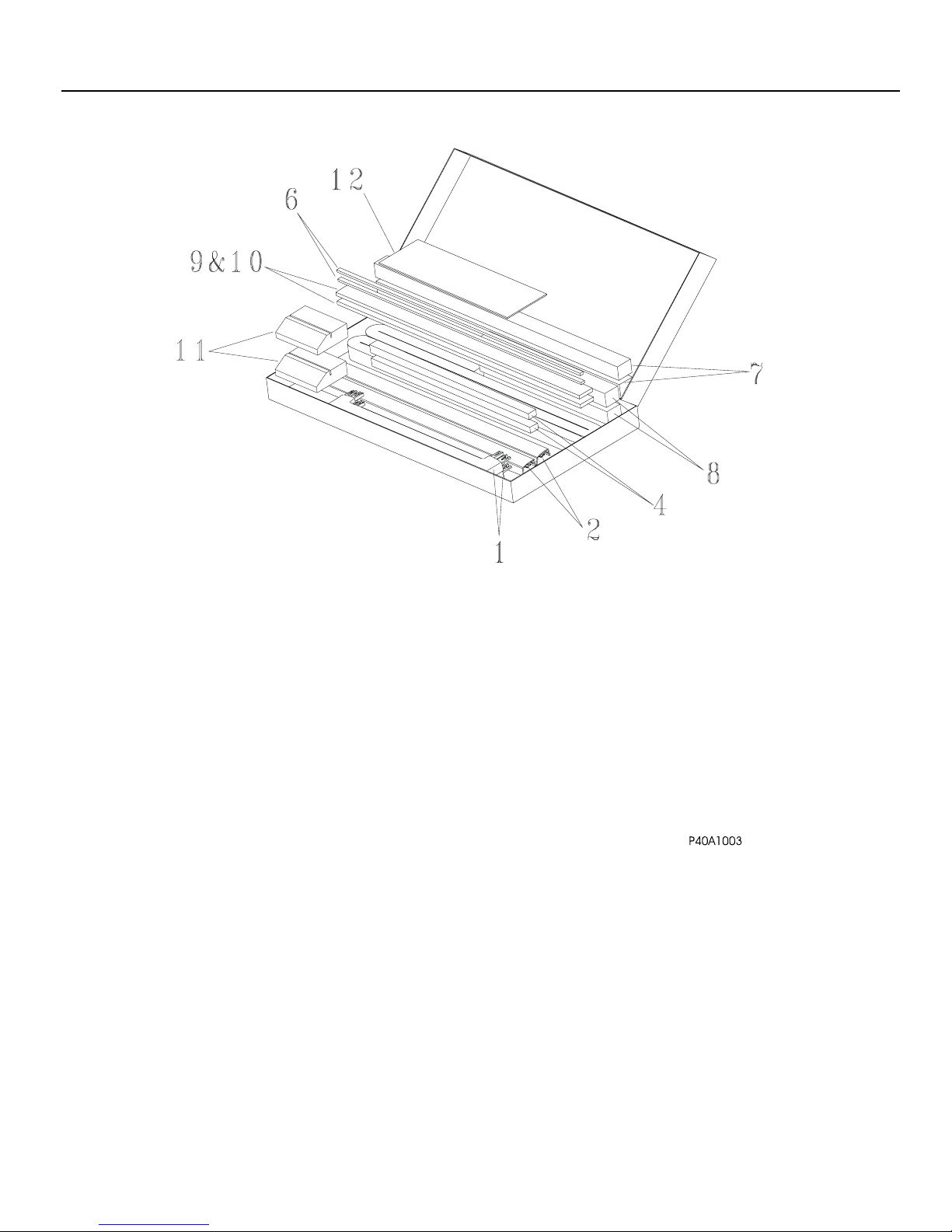

CONTROLS

# = Fast-moving Parts 5 07/01

* = Non-Illustrated Parts

FAH12EJ2T Publication No.

5995356390

CONTROLS

POS. NO PART NO DESCRIPTION

7 # 309628502 Box-control

8 # 309329301 Switch-elect HT,2sp .75"shaft

8* # 5304409509 Harness assy,SW/cntrl box ,12AWG

9 5304409496 Control-temp

9* 3200761 Spacer-control bulb

12 309329801 Clip-sensor bulb

13 # 5303317672 Capacitor,370 V ,25 + 7.5 mfd

14 3015312 Screw,8-18AB x 0.500

15 5303303077 Strap-capacitor

17 # 309343107 Cord-service,Type-D ,12AWG

18 5303007754 Screw,6-32 x 0.188

07/01 6

Publication No. FAH12EJ2T

5995356390

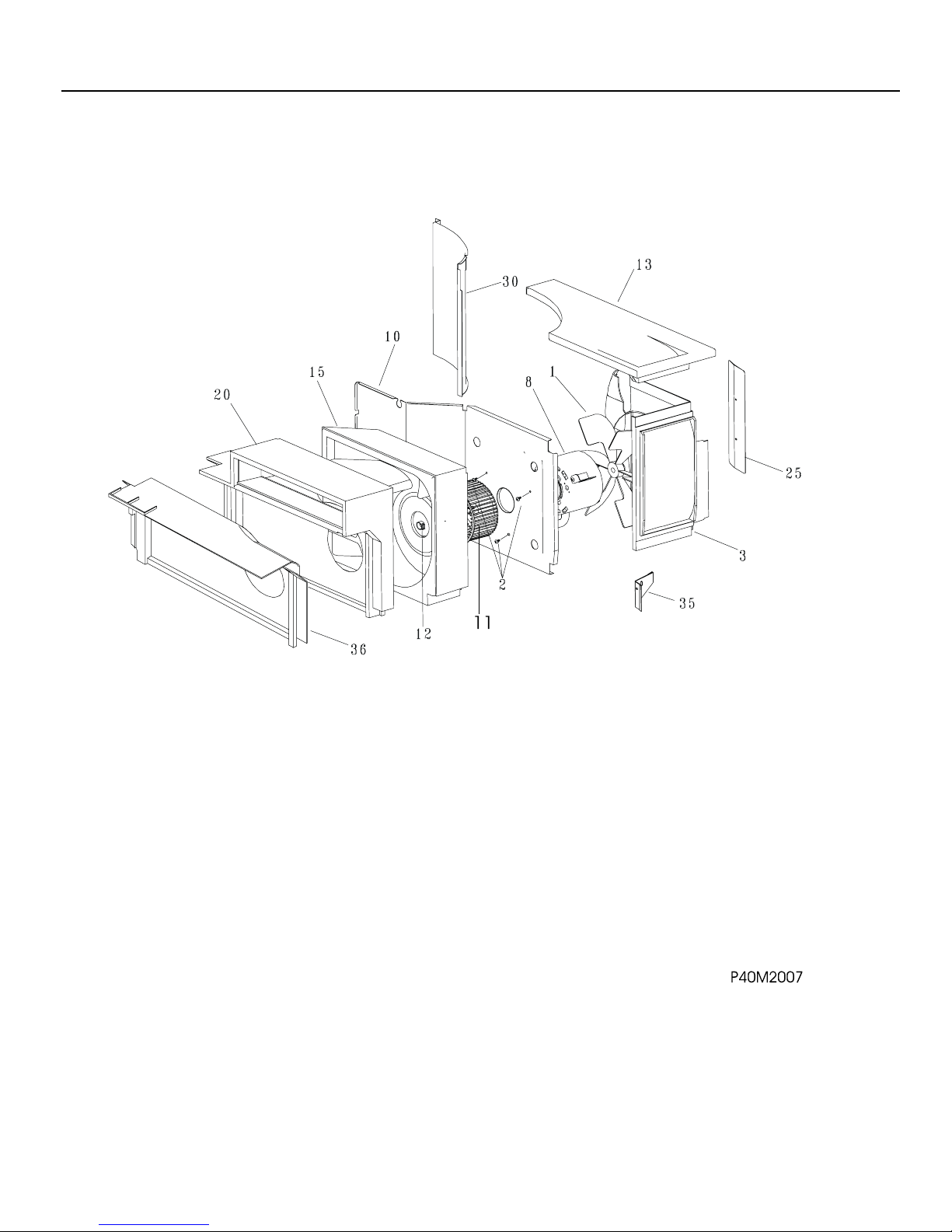

AIR HANDLING PARTS

# = Fast-moving Parts 7 07/01

* = Non-Illustrated Parts

FAH12EJ2T Publication No.

5995356390

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 # 309629102 Blade-fan ass’y

2 3202975 Screw,10-16 x 0.72 ,square drive

3 309628901 Shroud-condenser

3* 3202951 Seal-fan housing,bottom

8 # 5304409514 MOTOR-FAN GE 2SP W/LDS 48FR

10 309627401 Bulkhead

11 # 309631701 Blower Wheel

12 309112101 Clamp-blower

12* 5303012110 Clamp-blower

13 309628802 Top-cover

15 309622802 Scroll

15* 5303007754 Screw,6-32 x 0.188

20 309625501 Scroll plate

25 309335201 Baffle-air

30 309629001 Partition,shroud,galv-steel

35 309335001 Baffle-splash/motor

36 309633401 Shield-heat

07/01 8

Publication No. FAH12EJ2T

5995356390

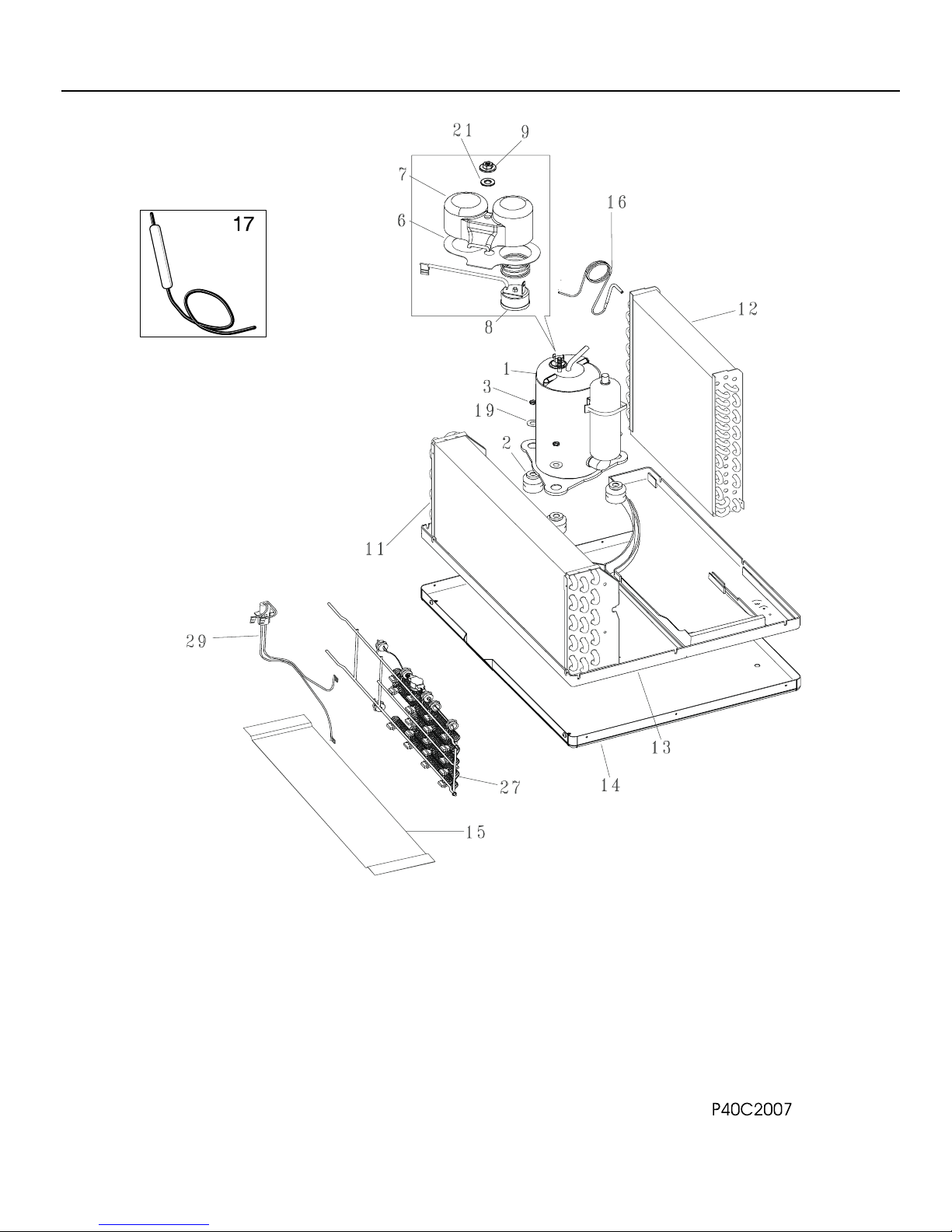

COMPRESSOR PARTS

# = Fast-moving Parts 9 07/01

* = Non-Illustrated Parts

FAH12EJ2T Publication No.

5995356390

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309603109 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5303291330 Gasket,terminal cover

7 5304416126 Cover-terminal,compressor

7* 5303293809 Washer

8 # 5304420992 Overload Protector,MRA 12070-386

9 5303294292 Nut-terminal cover

11 # 309632403 Evaporator

12 # 309632507 Condenser

13 309628704 Tray-base

14 309632003 Base/stud assy

14 # 3017804 Valve-drain

15 309629502 Heat sheild,20.94l

16 # 3203179 Capillary Tube,55 inch long cut-to-length

19 309112501 Washer,metallic

21 5303002664 Washer,compressor mtg

27 # 309627002 Heater Assy,230V/3450W

27* 3018695 Nut-heater

29 # 5304409501 Harness-wire heater

07/01 10

Publication No. FAH12EJ2T

5995356390

WINDOW MOUNTING PARTS
