Frigidaire FEB30S5GCD Manuale di istruzioni

FEB30S5GC.tif CFEB30S7DCA.eps BFEB30S5DSH.eps DCFEB30S5GC2.eps

318046254.eps

Product No. FEB30S5GCD

38254333E70S4

Series 30" single

Color stainless

Market North America

Wiring Diagram 318046254

Owner's Guide 318205119

Installation Instructions 318201514

Service Data Sheet 318047413

Timer Guide 318200189

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995534715

09/03/06

(EN/SERVICE/ECL)

377

30” SINGLE ELECTRIC

WALL OVEN

Model No.

FEB30S5G

Publication No: 5995534715 FEB30S5GCD

03/09 2

CONTROL PANEL

FEB30S5GCD Publication No: 5995534715

# Functional Parts 3 03/09

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

2A 318257300 Shield, oven top

2B 318260100 Cover, box

19 318271542 Control Panel Assembly, steel/glass, stainless/black, w/touch pad

20 # 316418527 Clock/Timer, electronic, ES350W1

* 5303211311 Screw, 8 x 0.500

* 5303311306 Screw, 8-18 x 0.375, (6)

Publication No: 5995534715 FEB30S5GCD

03/09 4

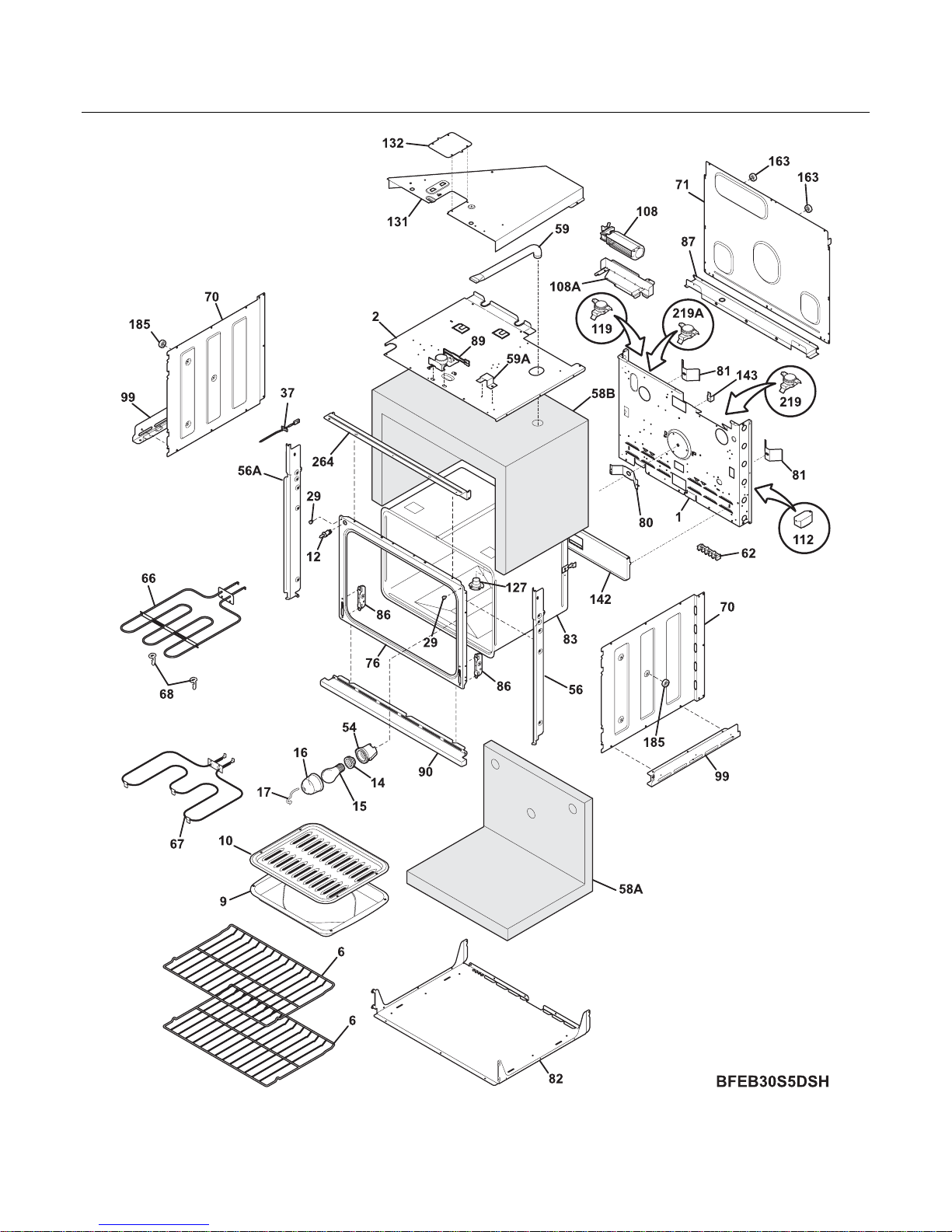

BODY

FEB30S5GCD Publication No: 5995534715

# Functional Parts 5 03/09

* Non-Illustrated Parts

BODY

POS. NO PART NO. DESCRIPTION

1 318259220 Back, main

2 318258902 Shield, insulation, upper

6 318345207 Rack, oven

9 5303317977 Pan, broilerOPTIONAL ACCESS0RY

10 5303317976 Insert, broiler panOPTIONAL ACCESS0RY

12 316445501 Switch, oven light, door frame

14 318224000 Receptacle, oven light

14* 318268099 Insulation, oven light

15 5303013071 Bulb/Lamp, light

16 08011086 Lens, oven light, glass

17 5304400195 Retainer, light cover

29 316517600 Spacer, oven door

37 # 316217002 Probe, oven temp

54 318222400 Housing, oven light

56 318903704 Trim, side, black, RH

56A 318903705 Trim, side, black, LH

58A 318386100 Insulation, oven wrapper

58B 318133791 Insulation, oven back, back/bottom

59 318072560 Duct, oven vent

59A 318261600 Bracket, vent tube

62 316056000 Terminal Block

62* 5303323144 Nut, 10-32

66 # 318255600 Element, broil, 2750W

67 # 318255401 Element, bake, 3400W

68 5304403015 Support, hanger, (4), broil element

70 318259100 Shield, insulation, sides, (2)

71 318260007 Panel, rear box

76 318056292 Front, oven

80 5303320846 Plate, oven mtg

81 318192400 Spring, oven

82 318258707 Shield, insulation, lower

83 318261403 Liner, oven assy

86 318561100 Receptacle, hinge, (2)

86* 5304461333 Screw, 10-32 x 17/32

87 318260600 Bracket, cable mtg.

89 # 318261205 Motor, latch assy

90 318259701 Trim, oven front, black, bottom

99 318256201 Bracket, side, bottom, (2)

* 08016432 Screw, truss head, 8-18 x 0.375

108# 318073028 Motor, blower

* 5303323136 Screw ground

108A 318251300 Bracket, fan support

112# 318112703 Relay

119# 318004900 Switch, thermal

127 318317100 Adapter Assembly, vent tube, w/converter

131 318272901 Box, vent

132 318003000 Plate, shield

142 318123910 Deflector

* 5303324184 Screw, 8-18 x 5/16, black, (4)

143 318172904 Support, wire

163 318531703 Spacer, (4)

185 318531800 Spacer, oven shield, (2)

219# 318003614 Thermostat, safety

219A 318003613 Thermostat, safety, 1.375" mtg, 105/120

264 318257701 Trim, oven, black, front

* # 318394441 Box & wires assy

* # 318231754 Harness, wiring, main

* # 318370375 Wiring Harness, power board, to triac, main

* 5303211311 Screw, 8 x 0.500

* 5303323139 Screw, 10-24 x 0.906

* 5303323277 Screw, 8-18 X 13/32

* 5304436875 Screw, 8-18 X 1/2, black

Publication No: 5995534715 FEB30S5GCD

03/09 6

DOOR

4142

DCFEB30S5GC2

FEB30S5GCD Publication No: 5995534715

# Functional Parts 7 03/09

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

3A 318260401 Trim, oven door, side, (2)

3B 318262101 Cover, rear door, black, (2)

6 318260522 Baffle, door

7 318372000 Insulation, door, (2)

7A 318372002 Insulation, door, (2)

8 316117500 Glass, oven door, heat barrier

9 318360108 Liner, oven door

10 5304452028 Screw, handle mtg, 10-14 x 1/2, (2)

12 318053121 Seal, oven door

13 318272183 Door Assy, glass, stainless steel, outer

16 318212210 Glass, oven door, heat barrier, lower door

17 318264710 Spacer, glass, lower, (2)

23 318567100 Hinge, oven door, (2)

24 318260301 Trim, door, black, lower

39 316270200 Handle, door, black

40 318242702 Bracket, glass holder, door, (2)

41 318370600 Bracket, glass retainer, (2)

42 318382301 Bracket, glass retainer, (4)

56 5304436875 Screw, 8-18 X 1/2, black

64 318165800 Spacer

* 08016432 Screw, truss head, 8-18 x 0.375

* 5303211311 Screw, 8 x 0.500

* 5303300265 Screw, 8-18 X 1/2, (4)

* 5303323277 Screw, 8-18 X 13/32

Publication No: 5995534715 FEB30S5GCD

03/09 8

WIRING DIAGRAM
