Frigidaire FGET2745KB - Gallery 27" Double Electric Wall... Istruzioni per l'installazione

frigidaire.com

Signature Features

Chicken Nugget Button

Easily bake perfect chicken nuggets

with the touch of a button.

Quick Preheat

Preheat in less than six minutes.1

True Convection

Multi-rack baking is faster and more

even with True Convection.

Express-Select® Controls

Easily set cooking temperature or

choose one-touch cooking options.

Product Dimensions

Height 50-7/16"

Width 27"

Depth 24-1/2"

More Easy-To-Use Features

One-Touch Keep Warm Setting

Just one touch of a button keeps food

warm until everything — and everyone —

is ready.

Real Stainless Steel2

Real stainless steel with a protective

coating that reduces fingerprints and

smudges so it’s easy to clean.

Eortless™ Convection

Takes the guesswork out of convection

cooking — our oven does the converting

for you.

Even Baking Technology

Our latest technology ensures even baking

every time.

Auto Oven Shut-O

As an extra safety measure, the oven will

automatically shut off after six hours.

Power Broil

Added power means you can broil food

more evenly.

One-Touch Self Clean

Start the self-cleaning cycle with just the

touch of a button.

Quick Clean

For a quick, light oven cleaning.

Delay Start

Set your oven to begin cooking on your

schedule. It can be programmed from

one to 24 hours.

Sabbath Mode (Star-K® Certiﬁed)

Available in:

1Based on single rack cooking performance, not set

temperature, using Quick Preheat.

2Select models only.

27" Electric

Double Wall Ovens

FGET2745K F/ W/ B

Stainless

(F)

White

(W)

Black

(B)

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

Features

Oven Control / Timing System

Windows

Exterior Door Finish

Handle Design

Oven Cleaning System

Oven Controls

Bake / Broil

Convection Conversion

Convection Bake / Broil / Roast

Oven Preheat

My Favorite

Chicken Nugget Button

Pizza Button

Keep Warm

Add-a-Minute

Delay Start

Self-Clean / Clean Option

Delay Clean

Kitchen Timer / Timed Cook Option

Control Lock

Auto Oven Shut-O

Oven Lock-Out

Upper Oven Features

Capacity (Cu. Ft.)

Convection System

Oven Light

Hidden Bake Element

Rack Conﬁguration

Baking System

Broiling System

Bake / Broil Element (Watts)

Lower Oven Features

Capacity (Cu. Ft.)

Convection System

Oven Light

Hidden Bake Element

Rack Conﬁguration

Baking System

Broiling System

Bake / Broil Element (Watts)

Certiﬁcations

A.D.A. Compliant

Sabbath Mode (Star-K® Certiﬁed)

Speciﬁcations

Oven Interior ( H x W x D )

Power Supply Connection Location

Voltage Rating

Connected Load

(kW Rating) @ 240 / 208 Volts

Amps @ 240 / 208 Volts

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Double Electric Wall Ovens

Frigidaire Baseline

Spacers

NOTE: For planning purposes only. Always consult local and national electric codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

Product Dimensions

A - Height

B - Width

C - Depth

D - Height (Wrapper)

E - Width (Wrapper)

Depth with Door Open 90˚

50-7/16"

27"

24-1/2"

48-5/8"

24-5/8"

44-1/2"

Cutout Dimensions

Height (Min.) / (Max.)

Width (Min.) / (Max.)

Depth (Min.)

48-7/8" / 49-7/8"

24-7/8" / 25-1/4"

23-1/2"

Express-Select®

Extra-Large

Real Stainless Steel (F),

Color-Coordinated (W/B)

Stainless Steel (F),

Color-Coordinated (W/B)

Self Clean

Yes / Variable (400 - 500 °F)

Eortless™ (Upper)

Yes (Upper) / No / No

Quick (Upper)

Yes (Upper)

Yes

Yes / Quick

2, 3, 4 Hours

Yes

3.5

True Convection

Yes

2 Heavy Duty,

1 Oset Rack

Even Baking Technology

Power Broil

2,700 / 3,400

3.5

Yes

2 Heavy Duty,

1 Oset Rack

Even Baking Technology

Power Broil

2,700 / 3,400

Yes

16-1/2" x 20-1/2" x 18-1/32"

Left Bottom Rear

240V / 208V / 60Hz

7.5 / 5.6

31.3 / 26.9

265 Lbs.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Double Wall Ovens

FGET2745K F / W / B 27" Electric

Accessories information available

on the web at frigidaire.com

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE •frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Specifications

subject to change.

Double Wall Ovens

FGET2745K F / W/B 27" Electric

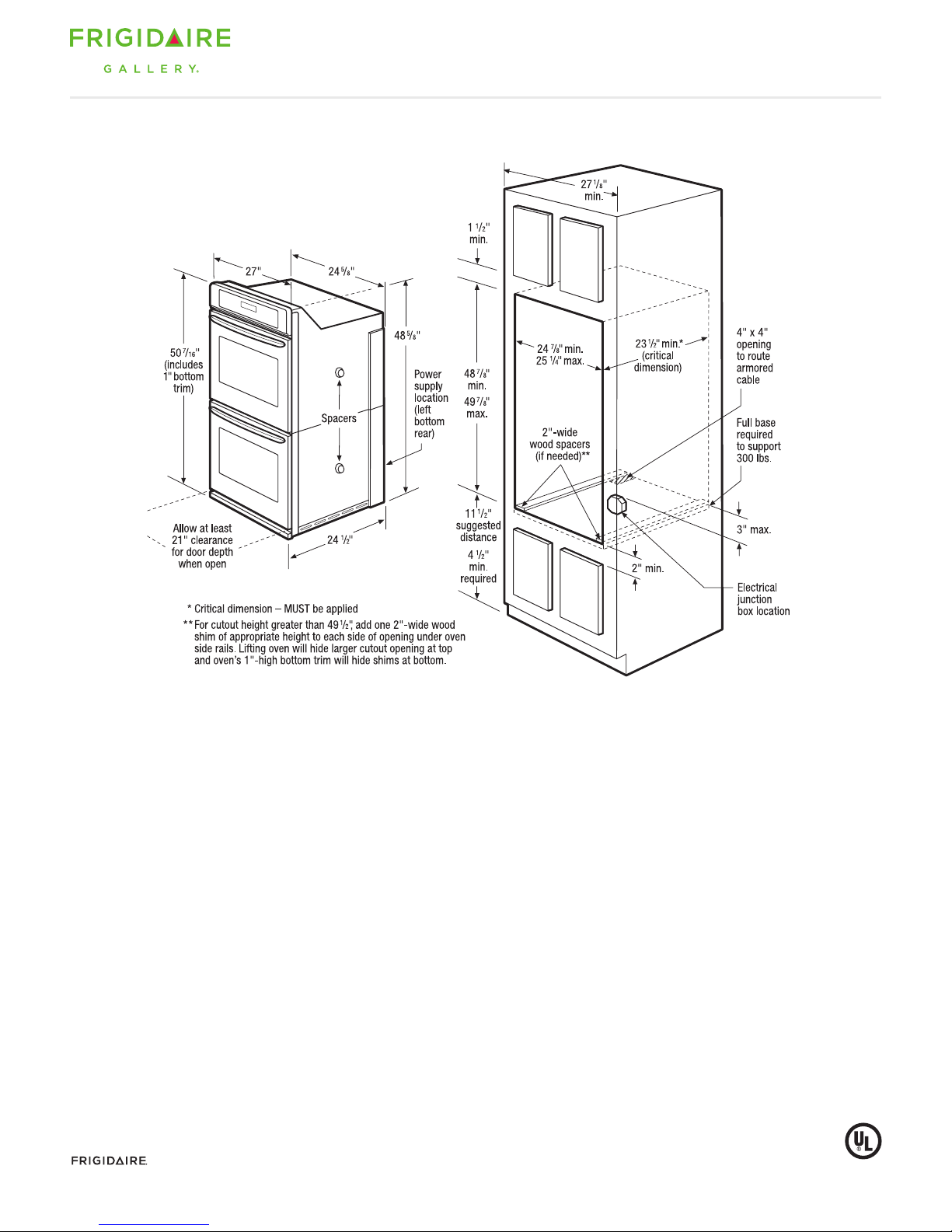

27" Double Electric Wall Oven

Gallery

Double Wall Oven Specifications

•Product Shipping Weight (approx.) – 265 Lbs.

•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz

AC only electrical supply with ground required on separate circuit

fused on both sides of line.

•Connected Load (kW Rating) @ 240 / 208 Volts = 7.5 /5.6 kW

•Amps @ 240 / 208 Volts = 31.3 / 26.9 Amps

•Recommended Circuit Breaker – 40 Amps

•Always consult local and national electric codes.

•Minimum 21" clearance for oven door depth when open.

•Suggested distance from floor is 11-1/2". Minimum required distance

is 4-1/2".

•Minimum 23-1/2" deep cutout dimension is critical for proper

installation, to ensure that oven’s faceplate will fit flush against

cabinet front.

•To adapt oven to fit cutout height greater than 49-1/2", add one

2"-wide wood shim of appropriate height to each side of opening

under oven side rails. Lifting oven will hide larger cutout opening

at top and oven’s 1"-high bottom trim will hide shims at bottom.

(Standard 1"-High Bottom Trim included.)

•Full oven base of solid plywood or similar material required,

capable of supporting 300 Lbs.

•Base must be level and cabinet front must be square.

•Double Wall Ovens are NOT approved to be used in stackable or

side-by-side installation.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

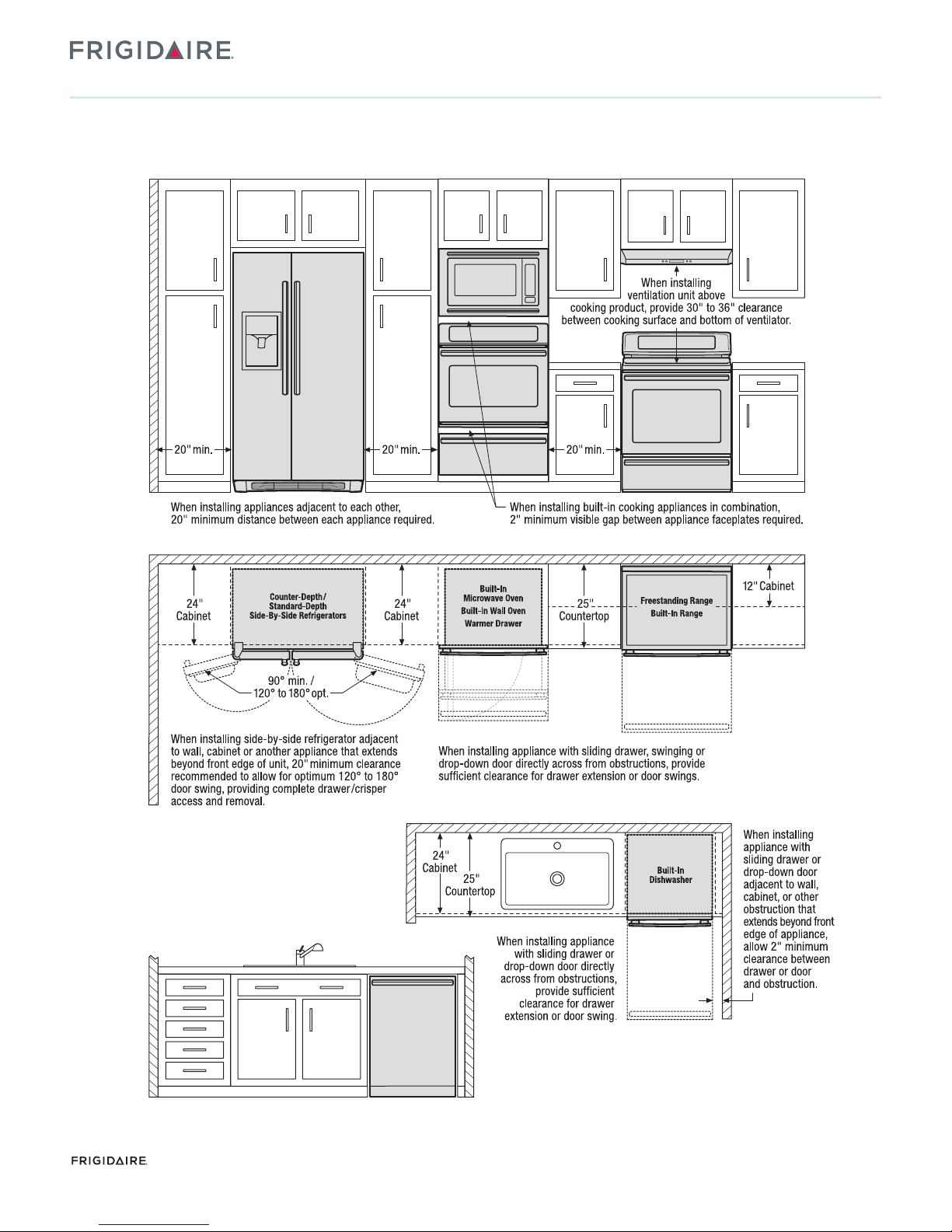

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

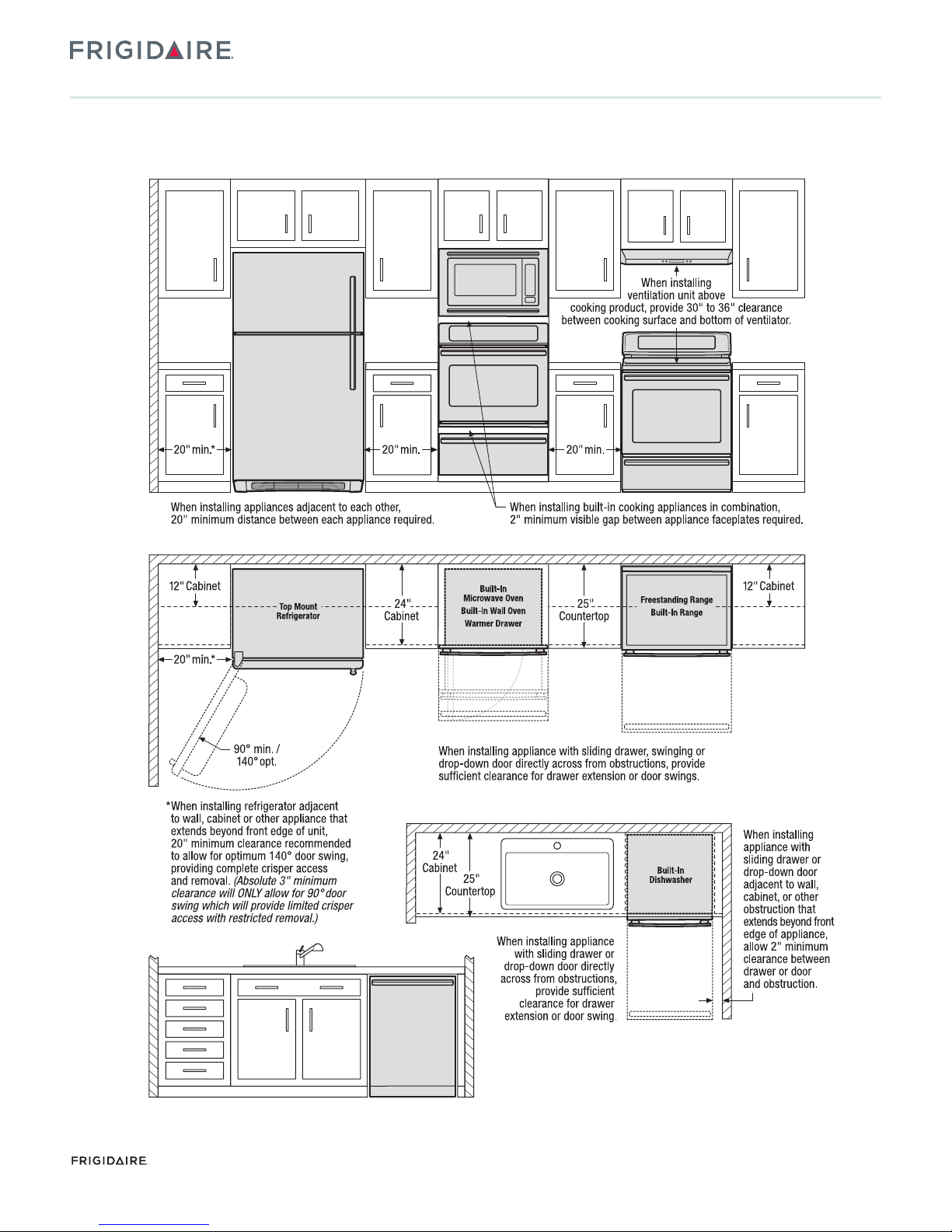

General Installation Guidelines

with Top Mount Refrigerator
