Frigidaire FRT18KC3B Manuale utente

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT18KC3BW4 FRT18KC3B R134a white 115

MARKET

North America

Publication No.

5995380168

021024

-EN/SERVICE /DCS

390

TOP MOUNT

REFRIGERATOR

Model No.

FRT18KC3B

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

ENERGY GUIDE - 218791461

OWNER’S GUIDE - 240400107

SERVICE DATA SHEET - # 240379010

10/02 2

Publication No. FRT18KC3BW4

5995380168

DOOR

# = Fast-moving Parts 3 10/02

* = Non-Illustrated Parts

FRT18KC3BW4 Publication No.

5995380168

POS. NO PART NO DESCRIPTION

1 # 240542103 Gasket-frzr door,white ,magnetic

2 # 240542106 Gasket-refr door,white ,magnetic

4 240534901 Rack-door

4B 240534701 Rack-door,4A

7 240337703 Door-dairy,w/o graphics ,clear

8 240534801 Rack-door

10 240381301 Plug-button,white ,hinge brg hole ,(2)

11 240412501 Door,frzr ,white ,complete assy

12 240415201 Label-nameplate,white

13 240312403 Door Stop,white ,ref

13A 240312404 Door Stop,white ,frzr

14 240494001 Plug-button,white

15 240412601 Door,refr ,white ,complete assy

18A 218428121 Handle-door,gray ,w/block & screw

21 240383401 Screw,truss hd quad ,#10-16 x .500

21A 240521301 Screw,#10-16 x 1/2

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 240527101 Bearing-hinge,natural color ,(8)

73 218396700 Block-handle mtg,dovetail

74 215503201 Screw,cr pan hd ,10-16 x 0.500

DOOR

10/02 4

Publication No. FRT18KC3BW4

5995380168

CABINET

# = Fast-moving Parts 5 10/02

* = Non-Illustrated Parts

FRT18KC3BW4 Publication No.

5995380168

POS. NO PART NO DESCRIPTION

1 240355401 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut,push-on

4 240367401 Damper-fan cover

5 # 5308000010 Fan Blade,red ,evaporator fan

8 5300157666 Bushing-motor mtg,(2)

9 5303292396 Bracket-motor mtg,front

10 240462008 Cover-evap coil

10* 240532102 Seal-coil cover

10*# 240524701 Wiring Harness,freezer section

11 5303208309 Plug-hole,factory test

12 240366801 Plug-ice maker harness,rectangular

12A 240374401 Plug-wtr inlet tube,round ,1"

13 # 240369701 Motor-evap fan

13* 215474201 Washer,"slinger" ,nylon ,evap fan shaft

13* 218931001 Clamp-motor wiring,nylon ,w/adhesive tape

14 5303292397 Bracket-motor mtg,rear

14* 240433201 Screw,hex washer head ,8-18 x 0.375

18 240411901 Support-evap cover,(2)

21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500

22 215774901 Plug-button,white ,upr hinge holes

28 240335501 Bolt-roller adj,hex washer head ,1/4-20 x 4.020,(2) ,special

30 240314002 Bracket-lower hinge,white

34 240311301 Washer,hinge ,nylon ,(2)

35 240313802 Bracket-ctr hinge,white

35A 240336801 Spacer-hinge,center

36 240516401 Pin-center hinge

37 240337601 Trim-cabinet corner,white ,(2)

38 240313701 Bracket-upper hinge

40 240354401 Cover-upper hinge,white

41 5303001609 Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 Grommet,shelf mtg ,1.25" ,LH

42 240423601 Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 Roller Assy,front ,(2)

56 240516501 Pin-lower hinge

58 5303001343 Screw,hex washer head ,8-15A x 0.500

59 240442702 Screw-#10-32 X 3/4,white

72 240368205 Grille/Kickplate,white

81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

82 5304418225 Roller,compressor base ,rear ,(2)

83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875

* 218843800 Screw,hex wshr hd ,8-15A x 0.500

* 240479601 Plug,button ,cab liner holes

* 5303305324 Paint,touch-up ,white

CABINET

10/02 6

Publication No. FRT18KC3BW4

5995380168

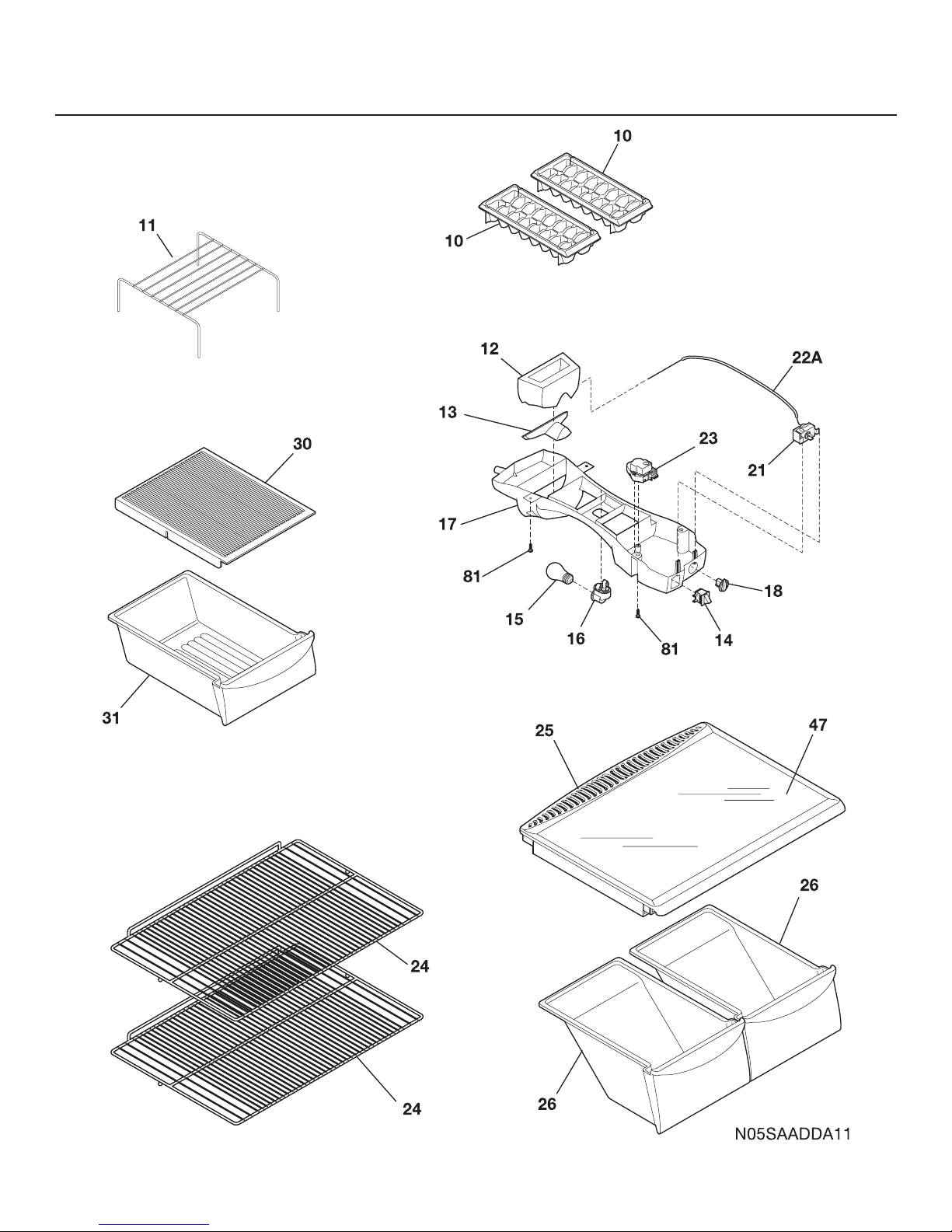

SHELVES

# = Fast-moving Parts 7 10/02

* = Non-Illustrated Parts

FRT18KC3BW4 Publication No.

5995380168

POS. NO PART NO DESCRIPTION

10 215667501 Tray,ice cube ,plastic

11 5303282284 Shelf-freezer,"table type"

12 240545001 Diffuser,air ,top

13 240362601 Diffuser,air ,bottom

14 240505801 Switch,light/lamp

15 240436702 Light Bulb/Lamp,A-15 ,clear ,40 W ,120 V,miniature

16 241500701 Socket-light/lamp

17 240352701 Control Box

17*# 240388701 Wiring Harness,control box

18 240360801 Knob,temp control

21 # 5304421256 Control,temperature

22A 240468201 Tube,sensor sleeve ,31 inch ,plastic ,white

23 # 215846606 Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 hour/30 min

23* 5303001259 Screw-timer mtg,pan hd ,6-20 x 0.438 ,(2)

24 240360905 Shelf,sliding ,wire

25 240364701 Cover-crisper pan,w/ beam ,less insert

26 240337101 Pan-crisper,white ,(2) ,no graphics

30 240361801 Cover,meat pan hanger ,drop through

31 240530801 Pan-meat,w/o graphics ,white

47 240350608 Insert-pan cover,23.82" x 15.50" ,glass

81 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

* 218791461 Label-energy

SHELVES

10/02 8

Publication No. FRT18KC3BW4

5995380168

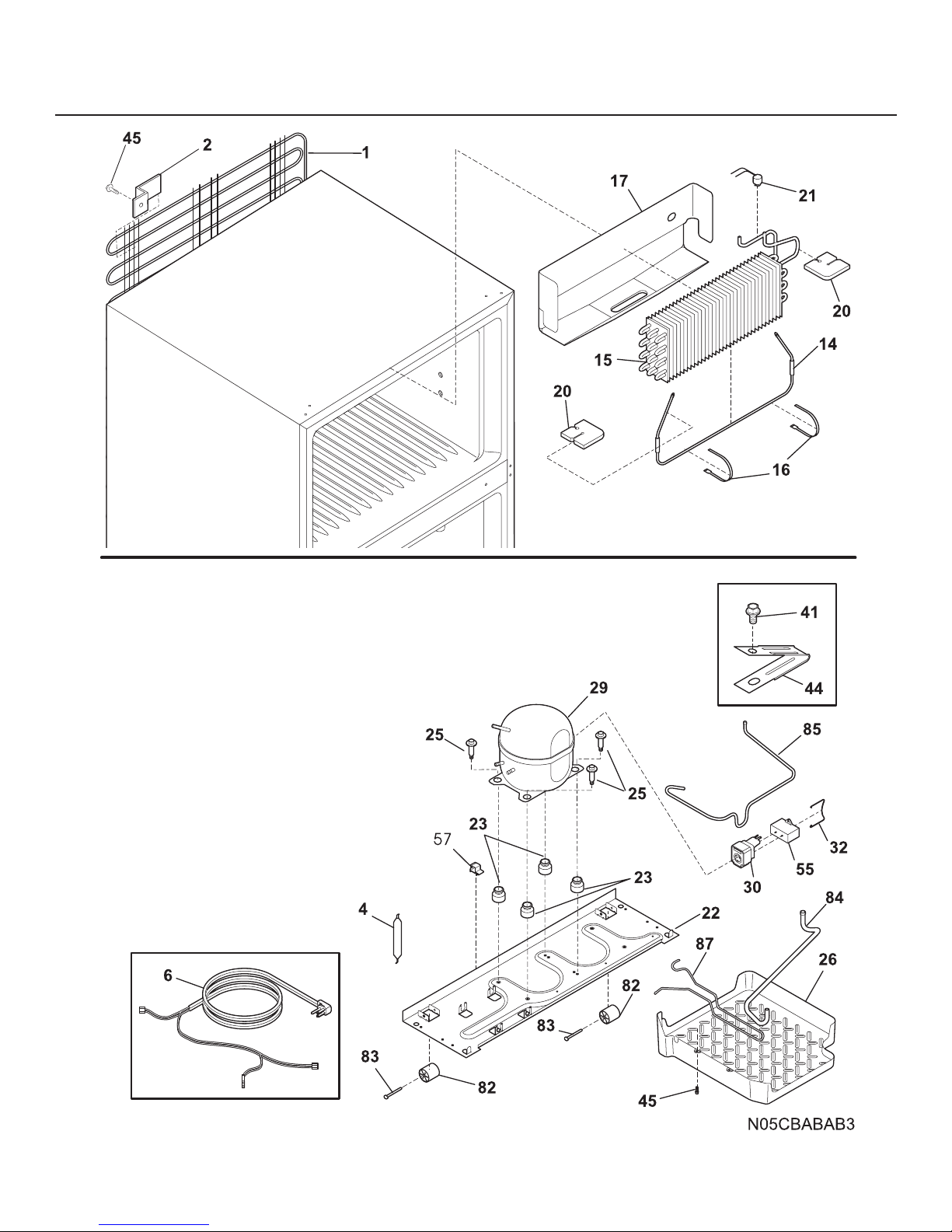

SYSTEM

# = Fast-moving Parts 9 10/02

* = Non-Illustrated Parts

FRT18KC3BW4 Publication No.

5995380168

POS. NO PART NO DESCRIPTION

1 # 240406404 Condenser,static

1* 5303208866 Spacer,condenser tube ,black

2 5308000296 Bracket,condenser mtg ,(4)

2* 5308009617 Washer,ext tooth lock ,#10 ,grounding

4 # 218944001 Drier-filter,R134a System

6 # 240388701 Wiring Harness,control box

6* # 240375401 Wiring Harness,machine compt ,w/service cord

6* # 240524701 Wiring Harness,freezer section

14 # 5303918208 Defrost Heater Kit

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater,aluminum ,(2)

17 240434002 Trough-drain

20 240518401 Insulation,evap block ,foam ,LH/RH

21 # 5303918202 Thermostat-defrost,kit

22 240330001 Plate-compr mtg

22* 218252200 Screw,#8 truss hd ,10-32CA x 0.500

23 218513300 Grommet-compr mtg,(4)

25 240491501 Screw-compressor mtg,1/4-28 x 1.16,shoulder,typ CF

26 240332605 Pan-defrost drain

29 # 5303918264 Compressor,w/electricals

30 # 218721120 Starter,PTC

32 240493301 Clamp,elec cont mtg ,compressor ,bale wire

41 5308016566 Screw,hex washer head ,8-15A x 0.625 ,low profile

44 5303001199 Clamp-wiring harness,strain relief ,galv steel

45 218897001 Screw,hex washer head ,8-32 x 1/4

55 # 218909901 Capacitor,run ,50/60 Hz ,220 VAC ,15 microfarad

57 240542601 Clip-wiring harness

82 5304418225 Roller,compressor base ,rear ,(2)

83 5303316859 Rivet,flat head ,1/4 OD x 1-3/4 ,roller pin

84 240500801 Tube-drain,rubber ,lower

85 240493101 Tube-connector,suction

87 240533001 Tube-Condensate,87

* 218843800 Screw,hex wshr hd ,8-15A x 0.500

* 240396801 Clamp,tube/wiring ,nylon ,black/natural

* 240405201 Grommet,rubber ,black ,cond tube/wire

* # 5303918234 Hot Tube Repair Kit,Service

* # 5303918263 Heat Exchanger Kit,suction line

SYSTEM

10/02 10

Publication No. FRT18KC3BW4

5995380168

WIRING SCHEMATIC
