Frigidaire FRT8B6E Manuale utente

N05L00006.eps N05DAACKA1.eps N05BBAABA21.eps N05SADDEA2.eps

N05CBBBAC2.eps 240398801.eps 240398601.eps

Product No. FRT8B6EB0

Series R134a

Color black

Volts 115

Wiring Diagram 240398801

Owner's Guide 240400112

Market North America

Energy Guide 241613708

Service Data Sheet 240379015

Installation Instructions 240568300

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378

Augusta, GA 30917

Publication No.

5995430500

05/03/01

(EN/SERVICE/DCS)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT8B6E

Publication No: 5995430500 FRT8B6EB0

03/05 2

DOOR

13A

21C

N05DAACKA1

FRT8B6EB0 Publication No: 5995430500

# Functional Parts 3 03/05

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 # 240542109 Gasket-frzr door, black, magnetic

2 # 240542112 Gasket-refr door, black, magnetic

4 240534901 Rack-door

4B 240534701 Rack-door, 4B

7 240337703 Door-dairy, w/o graphics, clear

8 240534801 Rack-door

10 240381303 Plug-button, black, hinge brg hole

11 240410203 Door-frzr, black, complete assy

12 240415204 Label-nameplate, black

13 240312405 Door Stop, black, refr

13A 240312406 Door Stop, black, frzr

14 240494003 Plug-button, black

15 240410305 Door-refr, black, complete assy

18 218668003 Handle-door, black

21 240383401 Screw, truss hd quad, #10-16 x .500

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240527102 Bearing-hinge, black

37 215870636 Trim-handle, 2.47", black, w/satin AL band

37* 218676004 Band-decorative, satin aluminum, handle trim

Publication No: 5995430500 FRT8B6EB0

03/05 4

CABINET

12A

35A 36

N05BBAABA21

21C

FRT8B6EB0 Publication No: 5995430500

# Functional Parts 5 03/05

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 240355401 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 241523701 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 240462010 Cover-evap coil

10* 240568601 Seal-coil cover

10* 241520701 Harness-wiring, freezer

11 5303208309 Plug-hole, factory test

12 241557601 Plug-ice maker harness, rectangular

12A 240374401 Plug-wtr inlet tube, round, 1"

12A* 241586701 Plug-foam-wtr-inlet, round

13 # 240369702 Motor-evap fan

13* 215474201 Washer, "slinger", nylon, evap fan shaft

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

14* 240433201 Screw, hex washer head, 8-18 x 0.375

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 215774918 Plug-button, black, upr hinge holes

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314003 Bracket-lower hinge, black

34 240311303 Washer, hinge, nylon, (2)

35 240313803 Bracket-ctr hinge, black

35A 240336802 Spacer-hinge, center

36 240516401 Pin-center hinge

37 241611303 Trim-cabinet corner, black, (2)

38 240313701 Bracket-upper hinge

40 240354404 Cover-upper hinge, black

41 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, front, (2)

56 240516501 Pin-lower hinge

58 5303001343 Screw, hex washer head, 8-15A x 0.500

59 240442703 Screw-#10-32 X 3/4, black

72 240368207 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

92 5303001479 Screw-hinge mtg, hex hd, 1/4-20 x 0.875

* 240479601 Plug, button, cab liner holes, (2)

* 5303321321 Paint, touch-up, black

Publication No: 5995430500 FRT8B6EB0

03/05 6

SHELVES

N05SADDEA2

22A

25B

25C

FRT8B6EB0 Publication No: 5995430500

# Functional Parts 7 03/05

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 5303282284 Shelf-freezer, "table type"

12 241542001 Diffuser, air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 241555401 Light Bulb

16 241559801 Socket-light

17 240352701 Control Box

17* 240568607 Seal

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 # 241621501 Timer-defrost

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360905 Shelf, sliding, wire

25 240364713 Cover-crisper pan, with beam, humid cont

25B 240361202 Knob, humidity cont.

25C 240361301 Damper, humidity cont.

26 240337107 Pan-crisper, clear, (2), no graphics

47 240350608 Insert-pan cover, 23.82" x 15.50", glass

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995430500 FRT8B6EB0

03/05 8

SYSTEM

N05CBBBAC2

30 56

FRT8B6EB0 Publication No: 5995430500

# Functional Parts 9 03/05

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 240406408 Condenser, static

1* 240405201 Grommet, rubber, black, cond tube/wire

1* 5303208866 Spacer, condenser tube, black

2 5308000296 Bracket, condenser mtg, (4)

4 # 218944001 Drier-filter, R134a System

6 # 240581601 Harness-wiring, machine compt

6* 241520701 Harness-wiring, freezer

6* # 240388701 Wiring Harness, control box

6* # 240581801 Harness-wiring, compressor

14 # 5303918208 Defrost Heater Kit

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551801 Trough-drain

20 241551901 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 241602001 Base-compressor

22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240598501 Pan-defrost drain

26* 5304434992 Thermal Mastic

29 # 5303918297 Compressor, w/electricals

30 # 5304433579 Relay

31 # 5304433578 Overload Protector

41 240433202 Screw, hex washer head, 8-18 x 5/16

44 5303001199 Clamp-wiring harness, strain relief, galv steel

45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

56 240582001 Cover-terminal

57 240542601 Clip-wiring harness

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 241505701 Tube-drain, lower

85 241544301 Tube-connector, suction

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 5303918263 Heat Exchanger Kit, suction line

* # 5303918234 Hot Tube Repair Kit, service

Publication No: 5995430500 FRT8B6EB0

03/05 10

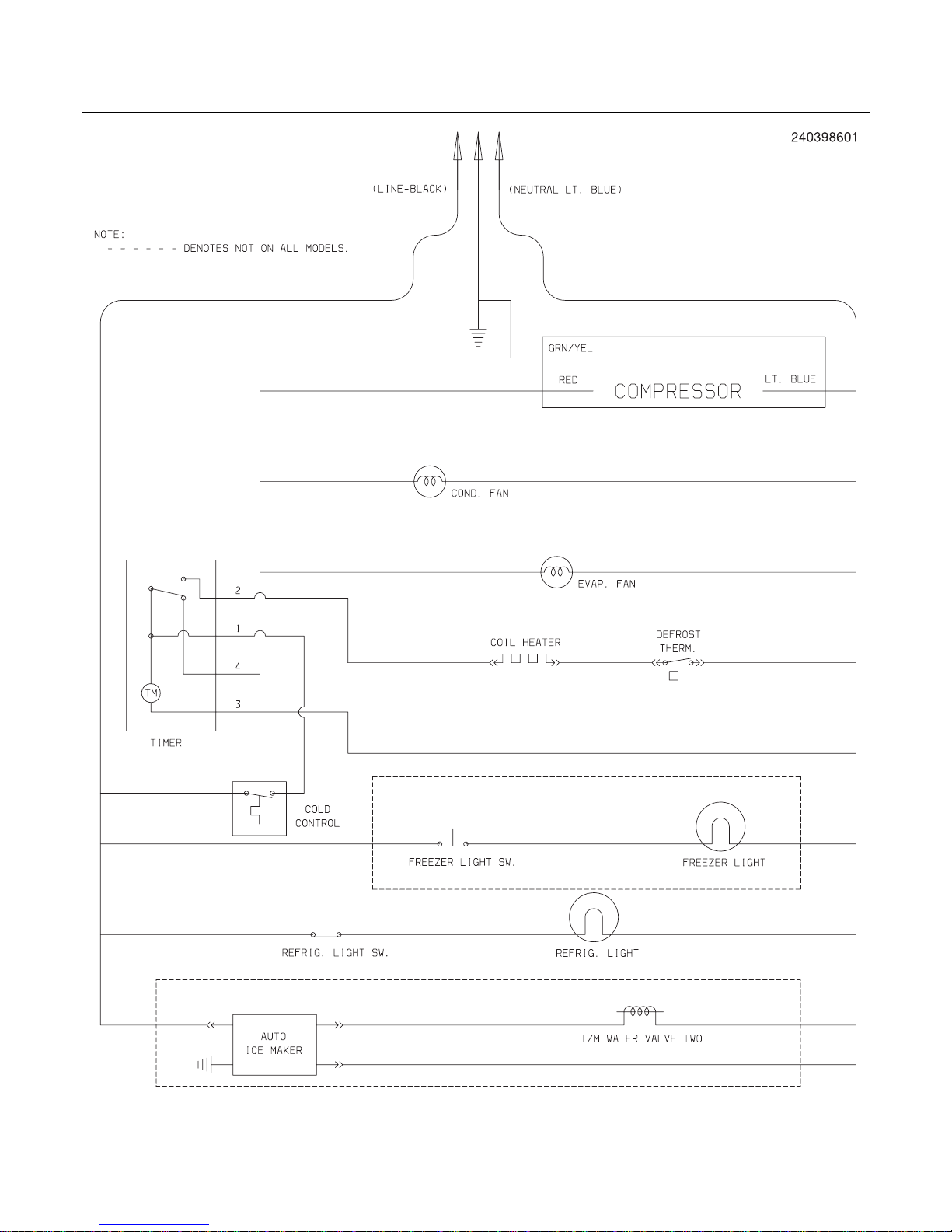

WIRING SCHEMATIC
