Handling Precautions

Warning:

1. Static electricity may cause damage to the integrated circuits on

the motherboard. Before handling any motherboard outside of its

protective packaging, ensure that there is no static electric charge

in your body.

2. There is a danger of explosion if the battery is incorrectly

replaced. Replace only with the same or an equivalent type

recommended by the manufacturer.

3. Discard used batteries according to the manufacturer’s

instructions.

4. Never run the processor without the heatsink properly and firmly

attached. PERMANENT DAMAGE WILL RESULT!

Observe the following basic precautions when handling the motherboard

or other computer components:

nWear a static wrist strap which fits around your wrist and is

connected to a natural earth ground.

nTouch a grounded or anti-static surface or a metal fixture such as a

water pipe.

nAvoid contacting the components on add-on cards, motherboards,

and modules with the golden fingers connectors plugged into the

expansion slot. It is best to handle system components by their

monting brackets.

The above methods prevent static build-up and cause it to be discharged

properly.

Trademark

All trademarks mentioned in this manual are registered properly of

the respective owners.

Handling Precautions

Thismanual maynot, inwhole orin part,be photocopied,reproduced,

transcribed, translated, or transmitted in whatever form without the

written consent of the manufacturer, except for copies retained by the

purchaser for personal archival purposes.

Notice

TableofContents

Table of Contents

Chapter 1 Overview

PackageChecklist ......................................................................... 1-2

TheAD11 Mainboard ............................................................... 1-3

Main Features ............................................................................... 1-4

ACPIReady .................................................................................. 1-6

Chapter 2 Installation Procedures

QuickReference (from Page2-2 to 2-6).......................................... 2-2

Mainboard Layout.................................................................... 2-2

1).Clear CMOS, ClearPassword, FSB SpeedSelect,

Auto Detect Freq. Ratio (ADD_EN, ADR),

Auto Detect CPU Core Voltage(ADV_EN, ADV) ............. 2-3

2). Front Panel Block Cable Connection............................ 2-6

3). CPU FanInstallation .................................................... 2-6

1). Set System Jumpers/Switches .................................................. 2-7

ClearCMOS:CLR_CMOS ................................................ 2-8

ClearPassword: CLR_PSWD............................................ 2-8

FSBSpeedSelect:100MHz/133MHz................................. 2-9

AutoDetect CPU CoreVoltage:ADV_EN ........................ 2-9

CPUCoreVoltageSetting:ADV ....................................... 2-10

AutoDetect CPU Clock:ADR_EN ................................... 2-10

Bus Ratio Setting: ADR .................................................... 2-11

2). Install Memory Modules .......................................................... 2-12

3). Install the CPU ......................................................................... 2-12

4).Install ExpansionCards ............................................................ 2-14

5). Connect Devices ...................................................................... 2-15

Floppy Diskette Drive Connector: FDD ............................ 2-15

IDEHDDDevice Connectors: PRIMARY, SECONDARY .. 2-16

ATX Power Connector:ATX_PWR1................................ 2-16

CPU Fan Connector: CPU_FAN ....................................... 2-17

System Case Fan Connector: CHS_FAN .......................... 2-17

Wake-On-Ring Connector: WOR...................................... 2-18

Wake-On-LANConnector: WOL...................................... 2-18

System Chassis Open Alarm Connector: CHASSIS.......... 2-19

AD11MainboardManual

Blue ToothAudio Port Connector: BT_AUDIO ............... 2-19

CDAudio-InConnectors:CD_IN1,AUX_IN.................... 2-20

Optional Audio Alert II Module Connector: NOVUS ....... 2-20

Infrared Connector: IR ...................................................... 2-21

Front Panel Block Connector: FPNL ................................. 2-22

PS/2 Keyboard and Mouse Connector: PS2_KB, PS2_MS 2-23

Universal Serial Bus Connectors: Rear USBs, Front USBs 2-23

Printer Connector: LPT ..................................................... 2-24

SerialPort Connectors: COM1,COM2.............................. 2-24

AudioI/OJacks:LINE_OUT, LINE_IN, MIC_IN,

FNT_AUDIO .................................................................... 2-25

Game/MIDIConnector:GAME......................................... 2-25

Chapter 3 BIOS Setup

CMOS Setup Utility ...................................................................... 3-1

Standard CMOS Setup .................................................................. 3-2

Advanced BIOS Features ............................................................. 3-4

Advanced Chipset Features.......................................................... 3-8

Integrated Peripherals ................................................................... 3-12

Power Management Setup ............................................................ 3-18

PnP/PCI Configurations ................................................................ 3-22

PC Health Status ........................................................................... 3-24

Frequency/Voltage Control ........................................................... 3-25

LoadFail-Safe Defaults ................................................................. 3-26

Load Optimized Defaults ............................................................... 3-26

Supervisor/User Password............................................................ 3-27

Save and Exit Setup ....................................................................... 3-28

Exit without Saving ....................................................................... 3-28

1 - 1

Overview

Chapter 1

The new SocketA 1stMainboardAD11 is anATX sized motherboard support-

ing the latest generation of AMD Athlon and Duron processors at industry

leadingspeeds. By utilizingDDR( Double DataRate) transfer ratethe 100/133

MHz AMD Athlon/Duron system bus effectively reaches speeds of 200/266

MHz.TheAMD Athlon processor offershigh-performancecachetechnology,

including 128KB of on-chip level one (L1) , while the Duron features full-

speed, on-chip L2 cache memory, and enhanced 3DNow!™ technology. The

1stMainboard AD11 has 2 memory module sockets for up to 1 GB of DDR

SDRAM (PC-200/266) is equipped with ECC memory support.

The 1stMainboard AD11 is based around the high performance that com-

prised of AMD 761 system controller for the North Bridge, and the VIA 686B

( Super South ). The chipset support for AGP 4x provides the end-user a

photo-realistic 3D experience suitable for the most robust 3D games and soft-

ware environments. Onboard AC97 sound ensures high quality audio, but

with the option of being disabled through the BIOS.

AD11has 5 PCI(32 bit/33 MHz)slots. User can plugmany kinds ofPCI add-on

cards. The mainboard also has one CNR (Communication Networking Riser)

slot. The CNR slot on AD11 allows modem and audio add-on cards.

1 - 2

AD11MainboardManual

IMPORTANT:AMDCPUHEATSINKINSTALLATION

Be ware finish heat hink install. Before you boot system, please

check the heat sink is complete contact with die of CPU.

The poor contact will bring about over heat, it may damage your

processor.

Itis stronglyrecommendedthat atleast a 200-wattATXpowerpupply

be used for this motherboard. Make sure that your ATX power sup-

ply can supply at least 20 amperes on teh +5-Volt lead and 10ma

on the +5-Volt standby lead (+5VSB). Your system may become

unstable / unreliable and may experience difficulty in powering up if

your power supply is inadequate.

In addition, the 1stMainboard AD11 is equipped with 2 dual channeled en-

hanced PCI bus master IDE connectors. Standard I/O connections include 2

serial ports, 1 parallel port, 1 PS/2 mouse and keyboard connector, 2 USB

connectors, 2 front USB pin-headers, and 1 media connector ( Line-In, Line-

Out, Mic-In, 1 Midi/game port).

1 - 3

Overview

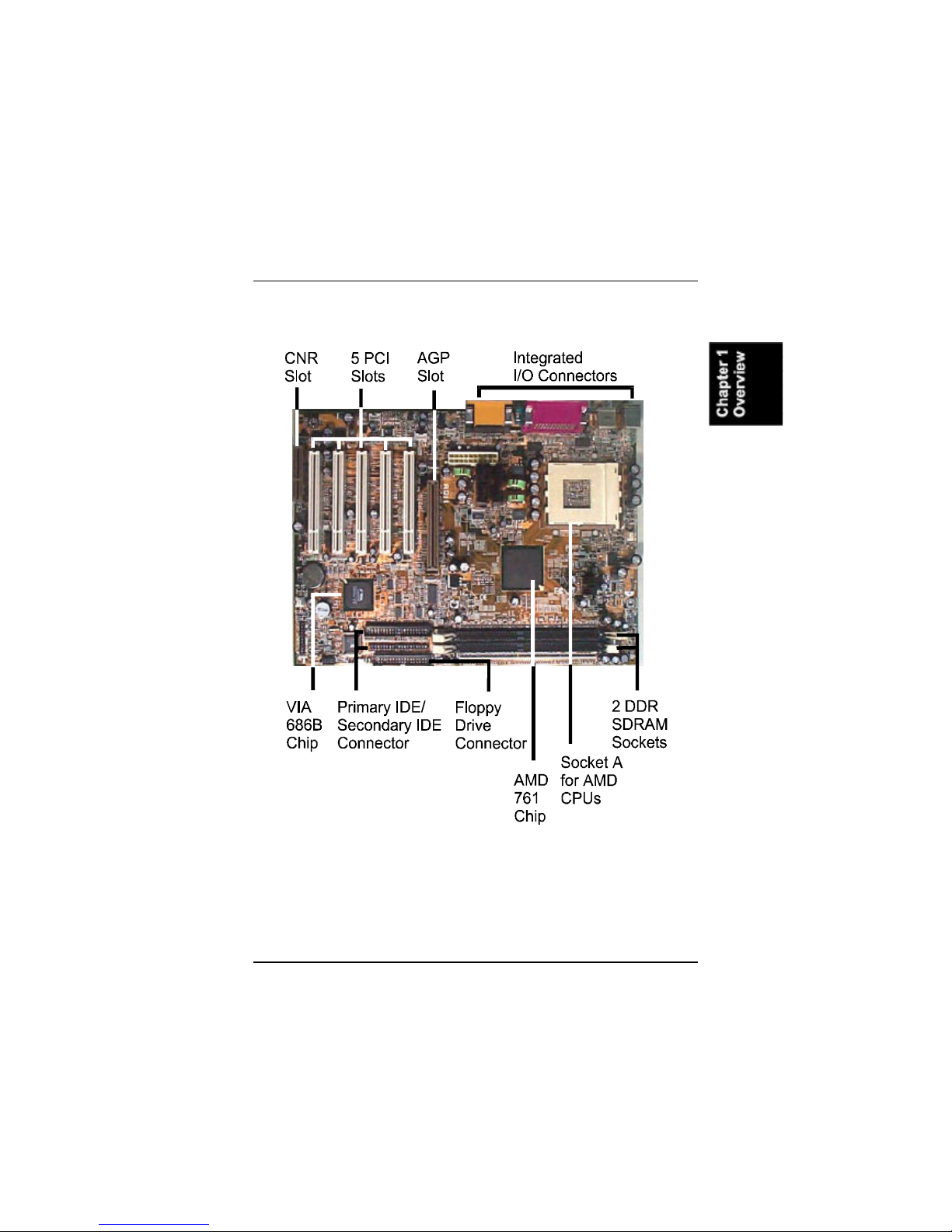

The AD11 Mainboard

1 - 4

AD11MainboardManual

Main Features

nEasy Installation

||BIOS with support for Plug and Play, auto detection of IDE hard drives,

||LS-120|drives,IDE ZIP drives,Windows 95, Windows98, Windows ME,

||WindowsNT, Windows 2000, |andOS/2.

nLeading Edge Chipset

AMD761 is a single-chip North Bridge for Socket A based Athlon/Duron

CPUs with 200 MHz Front Side Bus with AGP 4X and PCI plus advanced

memory controller that supports DDR SDRAM (PC-200/266).

VIA VT686B is a highly integrated I/O peripheral controller to achive a

PC99-compliant system. The 686B also supports theATA-100 standards.

nVersatile Main Memory Support

Acceptsup to 1GB DDR SDRAMusing two memorysockets for allowing

that from 64, 128, 256, 512MB with support for lightenning-fast DDR

SDRAM(PC-200/266).

nAMD® Athlon™ Processors Support

DuronSocketACPU 600/650/700/750/800/850MHz andhigherat100MHz

FSBwithAMDbus for double datatransfer rate at 100MHzfor an effective

200MHz transfer rate.

Athlon Socket A CPU 750/800/850/900/950MHz/1/1.1/1.2GHz at 100/

133MHz FSB with AMD Athlon bus for double data rate transfers at 100/

133MHzfor effective 200/266MHztransferrate.

nEnhancedPCI Bus MasterIDE Controller with Ultra DMA 33/66/100

Support

Integrated Enhanced PCI Bus Master IDE controller features two dual-

channel connectors that up to four Enhanced IDE devices, including CD-

ROM and Tape Backup Drives, as well as Hard Disk Drives supporting

the new Ultra DMA 100 protocol. Standard PIO Mode 3, PIO Mode 4,

DMA Mode 2, DMA Mode 4, UltraDMA-100 Mode 5 devices are also

supported.

1 - 5

Overview

nCNR,AGP, and PCI Expansion Slots

One CNR audio/modem slot, one AGP Bus expansion slot, and five PCI

Bus expansion slots provided the room to install a full range of add-on

cards.

nCompact Onboard Audio Subsystem

Embeded in VIA 686B, an integrated PCI-mastering dual full-duplex di-

rect-sound AC97-link-compatible audio subsystem. Hardware sound

blaster pro and FM blocks are combined for MS Windows DOS box and

real mode DOS compatiblity. Loopback capability is implemented for

guiding audio streams into USB and 1394 speakers for digital sound.

nSuper Multi Input/Output (I/O) Support

Integrated Plug and Play multi-I/O chipset features two high-speed UART

16550 compatible serial ports, one EPP/ECP capable parallel port, one

mediaconnector(Mic-in, Line-in, Line-out, Midi/gameport),andoneFDD

connector.

nConvenient Rear Panel USB Connection Support

Two USB ports integrated in the rear I/O panel with two USB front panel

connections allow convenient and high-speed Plug and Play connec-

tions to the growing number of USB compliant peripheral devices on the

market.

nOnboard Accelerated Graphics Port (AGP)

Themotherboard is installedone 32-bit AGPbus with adedicated 66MHz/

133MHz path from the graphics card to the system memory offering much

greater bandwidth than the 32-bit PCI bus does. AGP enabled 3D graph-

ics cards can directly access main memory across this fast path instead of

using local memory. To make use of the improved AGP performance, the

motherboard should be installed with SDRAM type memory and the VGA

card and drivers should also be fully AGP compliant. Using Microsoft’s

Windows 98 and Windows 2000/ME which implement DirectDraw will

allow the system to take full use of AGP’s benefits without the need to

install additional drivers.

1 - 6

AD11MainboardManual

ACPI Ready

This mainboard fully implements the new ACPI (Advanced Configuration and

Power Interface) 1.0B Hardware and BIOS requirement. If you install ACPI

aware of operating system, such as Windows 98, you fully utilized the power

saving under ACPI. (Windows ME/2000 Professional supports ACPI func-

tions.)

Indice

Altri manuali Fujitsu Scheda madre

Fujitsu

Fujitsu D3049 Manuale utente

Fujitsu

Fujitsu D2917 Manuale utente

Fujitsu

Fujitsu MB91470 SERIES Manuale utente

Fujitsu

Fujitsu F2MC-8FX Series Manuale utente

Fujitsu

Fujitsu D3488 Manuale elenco delle parti

Fujitsu

Fujitsu D2703 Manuale utente

Fujitsu

Fujitsu SK-MB9EF120-002 Manuale utente

Fujitsu

Fujitsu FLASH-CAN-100 Manuale utente

Fujitsu

Fujitsu MB9B500 Series Manuale utente

Fujitsu

Fujitsu MB2146-401 Manuale utente

Fujitsu

Fujitsu D2779 Manuale utente

Fujitsu

Fujitsu D2786 Manuale utente

Fujitsu

Fujitsu D2811 Manuale utente

Fujitsu

Fujitsu D3433 Manuale utente

Fujitsu

Fujitsu D3031 Manuale utente

Fujitsu

Fujitsu DVB-S Manuale utente

Fujitsu

Fujitsu D3118 Manuale utente

Fujitsu

Fujitsu D2799 Manuale utente

Fujitsu

Fujitsu MB39C026 Manuale utente

Fujitsu

Fujitsu FLASH-CAN-48P Manuale utente

Fujitsu

Fujitsu D3674 Manuale utente

Fujitsu

Fujitsu MB 91F467 Manuale utente

Fujitsu

Fujitsu MB91360 SERIES Manuale utente

Fujitsu

Fujitsu MB89PV930 Manuale dell'operatore

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
