AMPLIDECT 280/285™

AMPLIDE CT285™

Electrical connexion :

The apparatus is designed to operate from a 230V 50Hz supply only. (Classified as

«hazardous voltage» according to EN60950 standard).

The apparatus does not incorporate an integral power on/off switch. To disconnect

the power, either switch off supply at the mains power socket or unplug the AC

adaptor. When installing the apparatus, ensure that the mains power socket is

readily accessible.

Telephone connexion :

Voltages present on the telecommunication network

are classified TNV-3 (Telecommunication Network Voltage) according to the

En60950 standard.

For product support and help visit our website at

telephone + 44 01707 384438

or fax + 44 01707 372529

UGAMPLIDECT280/285 UK_ED03

www.geemarc.com

™

Contents

Prior To Use Basic Functions

Congratulations

Safety Precautions

Unpacking

Phone Layout and Key Function

Key Description

LCD Window Icons Description

Connecting Lines

Installing Batteries

Charging Handset

Using Handset Carrying Clip

Using Headset (optional)

Wall Mounting

Turning Handset On/Off

Making a call

Receiving a call

Muting the Microphone

Amplification function

Ringer Setting

Last Number Redial

CID Book

Torch

key lock

Auto Answer

Selecting a Language

HS Name

Range Alarm

Paging

Dial Mode

Handsfree

Flash Signal

116

117

318

719

10 20

11 22

11 24

12 24

13 25

GUARANTEE

From the moment your Geemarc product is purchased, Geemarc guarantee it for the period of

one year. During this time, all repairs or replacements (at our option) are free of charge. Should

you experience a problem then contact our helpline or visit our website

at www.geemarc.com.The guarantee does not cover accidents, the presence of liquid,

negligence or breakages to any parts. The product must not be tampered with or taken apart by

anyone who is not an authorised Geemarc representative.The Geemarc guarantee in no way

limits your legal rights.

IMPORTANT: YOUR RECEIPT IS PART OF YOUR GUARANTEE AND MUST BE RETAINED AND

PRODUCED IN THE EVENT OF A WARRANTY CLAIM

Please note: The guarantee applies to the Unite Kingdom only.

DECLARATION

Hereby Geemarc Telecom SA declares that this product is in compliance with the essential

requirements and other relevant provisions of the Radio and Telecommunications Terminal

Equipment Directive 1999/5/EEC and in particular article 3 section 1a, 1b and section 2. The

telephone does not operate if the line current is lower than 18 mA.

The declaration of conformity may be consulted at www.geemarc.com

General information

If you subscribe to a DSL service

Please attach a noise filter (contact your DSL provider) to the telephone line between the

base unit and the telephone line jack in the event of the following:

- Noise is heard during conversations.

- Caller ID features do not function properly.

To single-line

telephone jack

Noise filter

Contents

Advanced Functions

Menu Navigation

Menu Map

Phone Book

One-Touch Memories

BS Settings

HS Settings

Registration

Calling with more than one

Handset

Caller ID on call waiting

Feature List

Troubleshooting

Answering System Solutions

(AMPLIDECT285™only)

Technical Specifications

TAM Functions

(AMPLIDECT285 only)

™

Announcement

Message

TAM Setting

Remote Control

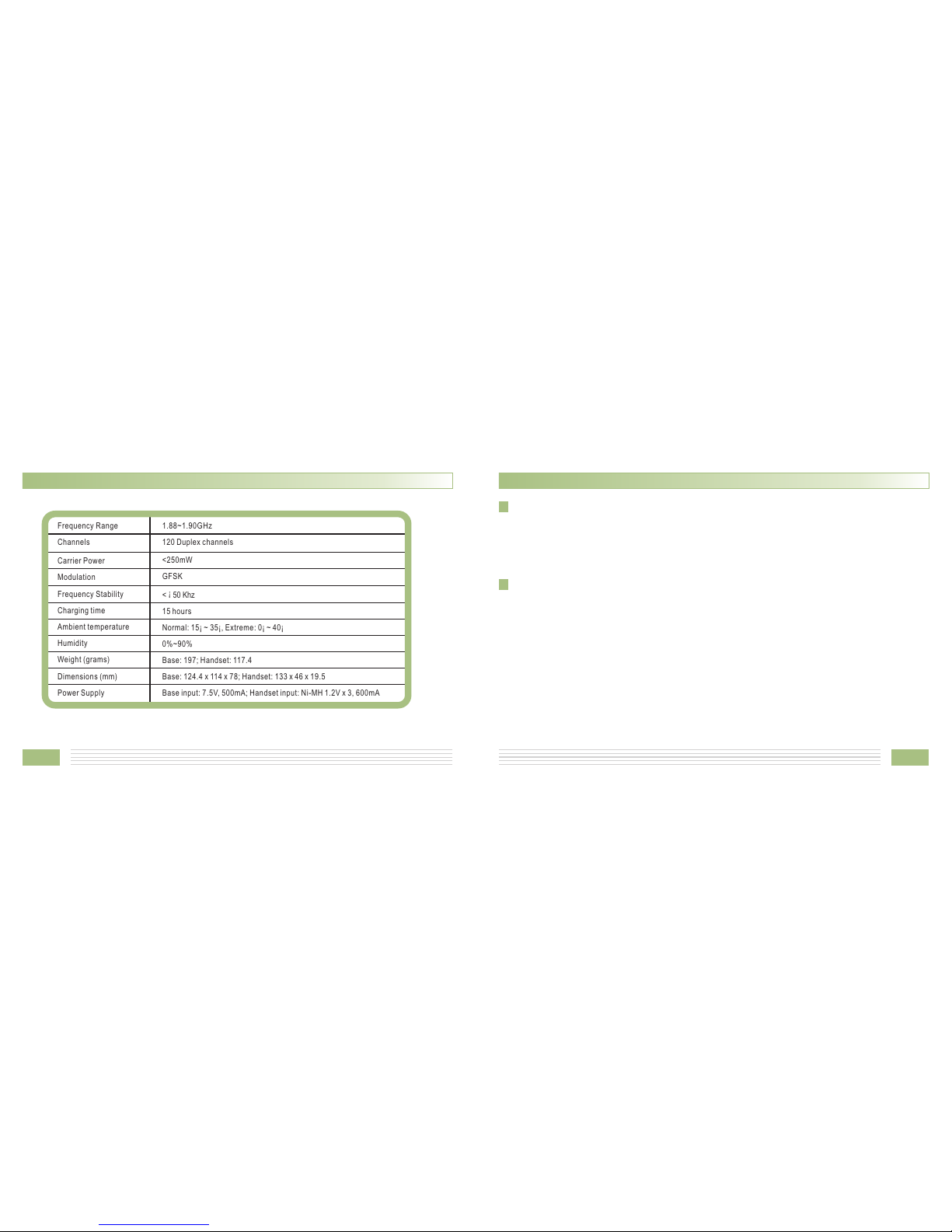

Technical Specifications

Frequency Range 1.88~1.90GHz

Channels 120 Duplex channels

Frequency Stability

Carrier Power

Modulation

<250mW

GFSK

< ¡ 50 Khz

Charging time 15 hours

Ambient temperature Normal: 15¡ ~ 35¡, Extreme: 0¡ ~ 40¡

Humidity 0%~90%

Weight (grams) Base: 197; Handset: 117.4

Dimensions (mm) Base: Handset: 124.4 x 114 x 78; 133 x 46 x 19.5

Power Supply Base input: 7.5V, 500mA; Handset input: Ni-MH 1.2V , 600mA x 3

Congratulations

on purchasing our high quality product.

Please read the manual carefully to find out about all features available and how your telephone

functions. In doing so you will get the best out of your new phone.

Safety Precautions

To reduce the risk of electrical shock and injury, please follow these basic safety precautions before

using the phone.

1. Carefully read and observe the instructions in this manual.

2. Follow all warnings marked on the unit.

3. When cleaning, unplug the phone first, then use a damp cloth to wipe. Do not use liquid or aerosol

cleaners.

4. Do not place objects on the line cord that may cause damage.

5. Do not use this phone in wet surroundings or environments where there is a risk of explosion.

6. Avoid spilling of any liquid on the phone.

Prior To Use

Design and specifications are subject to change without notice

Answering System Solutions (AMPLIDECT285™ only)

Cannot hear messages, beep, etc.

Adjust announce volume.

The system always plays Announce2.

Answering system memory may be full. Erase some messages.

Incoming messages are incomplete.

Answering system memory is full. Erase some messages.

7. Unplug this phone from the wall outlet and refer servicing to qualified service personnel only.

8. Pay attention to the polarity of the batteries, insert the rechargeable batteries in accordance with

polarity symbols (this instruction is found in the installing batteries section.)

9. Never use other ordinary batteries or conventional alkaline batteries. This may not only cause

personal injuries but damage to the unit.

10. Do not mix exhausted batteries with full batteries. Exhausted batteries should not be disposed of

with the usual household waste or in a fire.

11. If you are sure you will not be using the handset over a month, please remove the batteries from

the battery compartment.

12. Use only the power supply indicated in the User's Manual.

13. Keep the phone out of the reach of children.

14. Use the phone only in the described manner.

15. Stop using the phone if it becomes damaged.

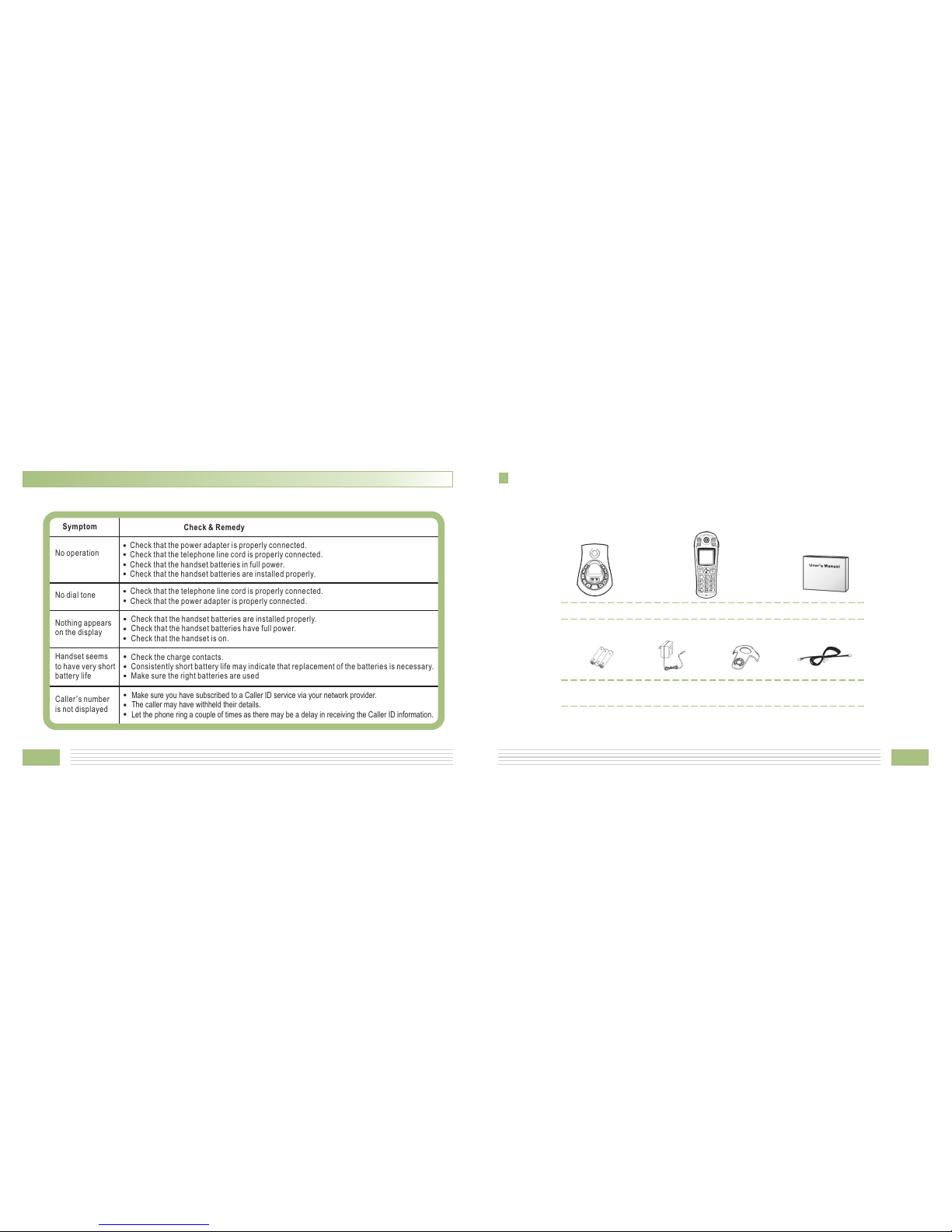

Troubleshooting

Symptom Check & Remedy

No operation Check that the power adapter is properly connected.

Check that the telephone line cord is properly connected.

Check that the handset batteries in full power.

Check that the handset batteries are installed properly.

No dial tone Check that the power adapter is properly connected.

Check that the telephone line cord is properly connected.

Nothing appears

on the display Check that the handset batteries have full power.

Check that the handset is on.

Check that the handset batteries are installed properly.

Handset seems

to have very short

battery life

Caller’s number

is not displayed

Consistently short battery life may indicate that replacement of the batteries is necessary.

Make sure the right batteries are used

Check the charge contacts.

The caller may have withheld their details.

Let the phone ring a couple of times as there may be a delay in receiving the Caller ID information.

Make sure you have subscribed to a Caller ID service via your network provider.

Unpacking

Once you have unpacked your phone, make sure that all the parts shown below are available. If any

pieces are missing or broken, please promptly call your dealer.

Line cord*

Adapter*

3 AAA Ni-MH

batteries

User's manual

Handset

Base

*The shape of the plugs can vary according to each country’s specification.

Carrying clip

1 3

4 6

7 9

457

TAM Functions (AMPLIDECT285™only)

Digital Answering System

Natural Sound Voice Prompting, for Week

/Time Stamp and Voice Instructions

Maximum 15 Minutes of Recording Time

which includes Incoming Messages

Digital Volume Control

Toll Saver Function

Multiple Languages

Remote control

Answer on/off selection and

announcement

New message alert

Week date setting

Feature List (continued)

Note:

The caller ID feature is only available if you

subscribe to a Caller Display service from

your network provider.

Phone Layout and Keys Function

Earpiece

Microphone

Left soft key

Dial key

Right soft key

Down key

End key

Left key

Up key

Alph numeric

keys

Display

Star key Hash key

Right key

One-touch

Memories

M1 to M4

Visual ringer

Charging contacts

Speaker

Battery

compartment

cover

Carrying clip

Handset

Feature List

1.8GHz DECT technology with GAP

Large 2.0" LCD (128 x 64 dots matrix

display)

Up to 5 handsets for optional for one base

Up to 4 bases for optional for one handset

LCD contrast adjustable

Phonebook with up to 50 groups

10 VIP numbers setting from phonebook

Redial book with up to 10 entries

10 ring tones and volume selectable

(5 levels+off)

Shaker and visual ringer

4 one-touch memory speed dial buttons

Key tone ON/OFF selectable

Full handsfree speakerphone

Internal call

Call transfer

3-way conference call

Receiver/Speaker volume adjustable

Mute

PIN protection

Predialing

Redial, Flash, Pause

DTMF/PULSE dialing mode selectable

FLASH time selectable

Call duration display

Real time clock (set time)

Keypad lock

Multiple languages selectable

Auto answer ON/OFF selectable

Alarm clock include snooze option

Handset Name setting

Backlight on LCD and keypad

Caller ID

FSK and DTMF dual system Caller ID

Caller ID / Call Waiting

Caller ID list with up to 40 entries

Incoming calls can be called back/added

to phonebook/deleted

New call indicator

Message waiting

Phone Layout and Keys Function (continued)

Volume Control

Headset Jack

Tone Control

Amplify (AMP)

Button

AMP :Ex tra amp lification on handset up to 15dB

Vol +/- : Adjustabl e volume con trol with the

headset or on handsfree mode

Tone : Ad justable tone control (Hi /Normal/Low)

Phone Layout and Keys Function (continued)

Base : AMPLIDECT285™

Rear View

Power Jack

Phone Line Jack

Charge pins

Base display

Microphone

Speaker

Remote Control (AMPLIDECT285™ only)

You can access many features of your answering

machine remotely from any touch tone telephone.

A four-digit security code (remote code) is

required to access the system and the factory

default one is 0000. To enter remote access:

1. Dial your telephone number from any touch

tone telephone.

2. When the Announce1/Announce2 starts to

play, you may enter the remote access mode

by inputting the remote code.

3. After you enter the remote code, the system

will play the menu of commands. You can then

follow the commands to operate.

Note:

If you enter the remote code incorrectly the

answering machine will ask you to enter the

code again. You are then given two more

attempts to enter the correct remote code

before the line is disconnected.

Remote access commands

Button Function

Play the main menu

Play the new messages

Play the saved messages

Delete all the messages

Switch the answering machine on/off

Record Announce1/2 (Depends on your

setting)

Note:

You had better stop playing message before

hanging up.

When you press or key to play back the

messages, press to replay current message,

press to stop, press to delete current

message.

After you record the Announce1/Announce2, press

the key or the key to finish. The system

will play the announcement you have recorded.

Announce 1/2

Play/Stop

Previous Message/

Next message

Erase message

Tam On/Off

Speakerphone

setting

Base : AMPLIDECT280™

Paging

Charge pins

Paging

Altri manuali per AMPLIDECT 280

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Geemarc Telefono

Geemarc

Geemarc SCREENPHONE Manuale utente

Geemarc

Geemarc TP38 clip Manuale utente

Geemarc

Geemarc Ampli100VM Manuale utente

Geemarc

Geemarc Ampli100VM Manuale utente

Geemarc

Geemarc DALLAS 100 VM Manuale utente

Geemarc

Geemarc CL555 Manuale utente

Geemarc

Geemarc MARBELLA Manuale utente

Geemarc

Geemarc CL8350 Manuale utente

Geemarc

Geemarc CL1100 Manuale utente

Geemarc

Geemarc AMPLIPOWER60+ Manuale utente

Geemarc

Geemarc Madrid Manuale utente

Geemarc

Geemarc DALLAS20 Manuale utente

Geemarc

Geemarc Serenities Manuale utente

Geemarc

Geemarc Ampli550 Manuale utente

Geemarc

Geemarc Ampli500 Manuale utente

Geemarc

Geemarc Petite Trac Manuale utente

Geemarc

Geemarc ClearSound CL64 Manuale utente

Geemarc

Geemarc Amplidect Combi-Photo 295 Manuale di istruzioni

Geemarc

Geemarc CL100 Manuale utente

Geemarc

Geemarc CL8350 Istruzioni per il montaggio

Geemarc

Geemarc AMPLIDECT COMBI 595 Manuale utente

Geemarc

Geemarc Marbella Manuale utente

Geemarc

Geemarc Ampli DECT150 Manuale utente

Geemarc

Geemarc CL200+ Manuale utente

Manuali Telefono popolari di altre marche

GE 2-9480 Manuale utente

D-Link

D-Link DWR-720/PW Manuale utente

Interquartz

Interquartz Gemini IQ333 Manuale utente

SSS Siedle

SSS Siedle HT 840-0 Manuale utente

Motorola

Motorola TITANIUM Manuale utente

Panasonic

Panasonic ICX Manuale utente

LG H870DS Manuale utente

Samsung

Samsung GT-I9500 Manuale utente

AT&T

AT&T Trimline 205 Manuale utente

Selta

Selta zenyth 600 Manuale utente

Doro

Doro AFTI 20 Manuale utente

UNIQCELL

UNIQCELL A1 Manuale utente

Panasonic

Panasonic KX Series Manuale utente

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manuale utente

BT Decor 425 Manuale utente

NEC

NEC SV8500 Manuale utente

Teledex

Teledex PEARL Manuale utente

Ericsson

Ericsson Dialog 3213 Manuale utente
