Goldmedal 2552 Manuale utente

Part No. 49749

Revised April 2002

Pop Maxx

Instruction Manual

Model #2552, #2552C, #2552EX, #2552XJ

Pop Maxx 12/14 Oz. Popcorn Machine

All Models #2552, #2552C,

#2552EX, #2552JX

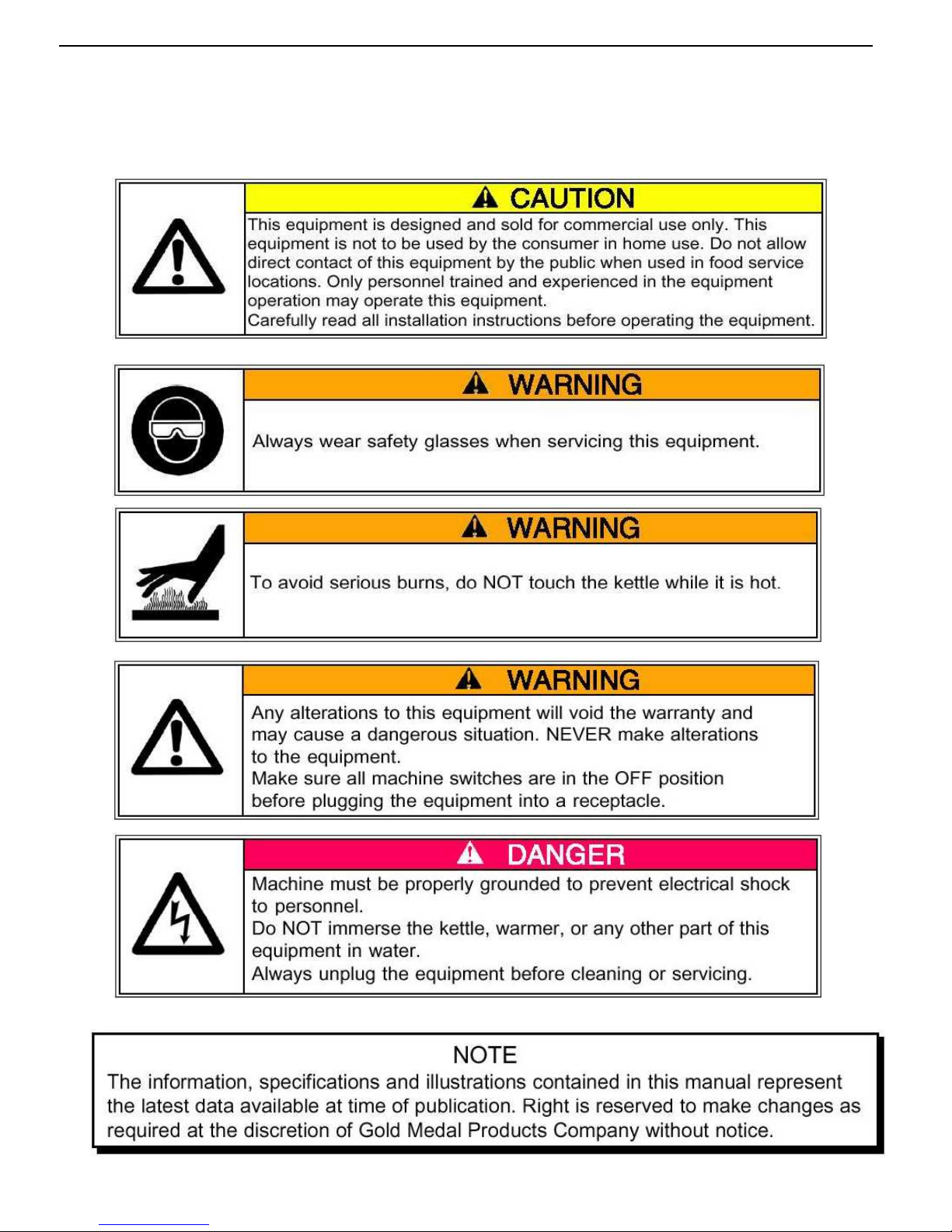

Safety Precautions

Pop Maxx 12/14 Oz. Popcorn Machine

All Models #2552, #2552C,

#2552EX, #2552JX

Forward

This manual covers 12/14 Oz. Pop Maxx Popcorn Machine model numbers 2552, 2552C, 2552EX, and

2552XJ. The only difference between the three models and 2552C is the size of the power supply cord

plug. The 2552C has a 20 Amp NEMA 5-20P plug on the power supply cord. The 2552C is intended for

use in Canada. The 2552, 2552 EX, and 2552XJ have a 15 Amp NEMA 5-15P plug on the power supply

cord.

Installation Instructions

Inspection of Shipment:

Unpack the shipping container and thoroughly inspect the machine for any damage that may have occurred

during transit. Notify the freight carrier immediately in order to file a damage claim.

Setup:

Your new Pop Maxx Popcorn Machine is completely assembled and tested at the factory.

Remove all packing material and tape before starting operation.

Electrical Requirements:

The following power supply must be provided:

Model No. 2552: 120 VAC, 60 Hz.

Model No. 2552C: 120 VAC, 60 Hz.

Model No. 2552EX: 240 VAC, 50 Hz.

Model No. 2552 XJ: 100 VAC, 50/60 Hz.

All Models have 1800 Watts.

Your electrician must furnish sufficient current for proper machine operation. It is Gold Medal Products

Company’s recommendation that this machine be fused on a line by itself. Failure to wire properly will void

the warranty and can result in damage to the heat elements, light, motor and etc.

It is Gold Medal Products Company’s recommendation that this machine be plugged directly into a wall

outlet. The use of extension cords is not recommended due to safety reasons and the popper’s

performance will be sacrificed/reduced.

Before You Plug In Machine:

1. Make sure that the wall outlet can accept the three (3) prong grounded plug on the power supply cord.

2. The wall outlet must have the proper polarity. If in doubt, have a competent electrician inspect the outlet

and correct if necessary.

3. DO NOT use a three (3) prong to two (2) prong adapter.

Pop Maxx 12/14 Oz. Popcorn Machine

All Models #2552, #2552C,

#2552EX, #2552JX

Operating Instructions

Controls and Their Functions:

A. Light & Warmer Switch: This switch operates the overhead light and corn deck freshener heat element.

B. Kettle Stir Motor Switch: This switch operates the popcorn agitator shaft. This switch must be ON at all

times when popcorn (popped and un-popped) exist in the kettle.

C. Kettle Heat Switch: This switch turns on the heat element located in the popcorn kettle.

Amount of Popcorn and Oil:

The Pop Maxx is equipped with a twelve ounce (355 ml) corn measure cup. Gold Medal Products

Company recommends the use of flavored and colored coconut oil. Coconut oil does not leave black

deposits in the kettle like other oils.

Corn Charge: 12 Oz. (355 ml) or 14 Oz. (414 ml)

Oil Charge: 3.0 Oz. (89 ml) (Use w/ 12 Oz. Popcorn Charge)

4.0 Oz. (118 ml) (Use w/ 14 Oz. Popcorn Charge)

Flavacol (Salt): 1 ½ Tablespoon (12 ml)

For easy operation, use authentic Gold Medal Products Company portion pack oil and corn/salt kits. This

machine was designed for use with the following portion packs:

Corn/Salt Kit: Model No. 2037 MegaPop Corn & Salt Kit

Oil Portion Pack: Model No. 2639 Naks Pop 4 Coconut Oil, 3.8 Oz. (112 ml)

Popping Instructions:

1. Turn both the KETTLE HEAT and KETTLE STIR MOTOR switches ON.

2. Test pop three (3) kernels of corn and one ounce (1 Oz.) of popping oil. When the kernels pop, the kettle

is ready for use.

3. Load both a full corn/oil charge and Flavacol Seasoning Salt into the kettle. Close the lids.

4. When the corn has finished popping, gently dump the kettle.

5. Repeat the cycle with step number 3. Always pop 3 to 5 batches for the best popcorn.

On the final kettle of corn, it is a good idea to turn the KETTLE HEAT switch OFF just as the lids are forced

open by the popping corn. This procedure saves electricity since the kettle has plenty of heat and

eliminates smoke/odor from any oil residue that remains after you have stopped popping.

Pop Maxx 12/14 Oz. Popcorn Machine

All Models #2552, #2552C,

#2552EX, #2552JX

Care And Cleaning

After completion of a series of poppings, wipe the outside of the kettle with a soft cloth to remove any oil

drippings/residue. DO NOT let this residue burn on! After completion of popping for the day, let the kettle

cool until it is warm to the touch. Unplug the kettle and remove from machine. Use a soft cloth to wipe out

the inside of the kettle, kettle lids, kettle crossbar, agitator and all outside surfaces of the kettle.

DO NOT immerse the kettle in water or any other cleaning solution, this will void the warranty.

It is recommended as a routine maintenance procedure to use authentic Gold Medal Products Company

2095 Heat’n Kleen inside kettle cooking surface cleaner. Heat’n Kleen will remove any oily build-up and

helps maintain a clean cooking surface if used on a routine basis. Heat’n Kleen will not damage the kettle’s

cook surfaces. Contact your local Gold Medal Products Company dealer if additional cleaning strength is

required for extremely dirty kettles.

For fresh corn tomorrow, remove all popped popcorn and place in a clean sealed food container. The

container must be suitable for direct food contact.

Clean the glass and all interior/exterior cabinet surfaces. A regularly cleaned machine is easier to keep

clean. In addition, a clean machine is more appealing to both customers and increases sales. Your local

food service inspectors appreciate a clean machine.

NOTE: DO NOT use any cleaners that contain ammonia. Ammonia based cleaners may crack and/or fog

the plastic parts on the machine.

Pop Maxx 12/14 Oz. Popcorn Machine

All Models #2552, #2552C,

#2552EX, #2552JX

Cabinet Parts List

For Models #2552 and #2552C.

Item No. Part No. Description Special Notes

1 40557 Corn Deck Freshener Heat Element *20 Watt Foil

2 41349 Hinge, Male, Short Left (2)

3 41350 Hinge, Male, Short Right (2)

4 41351 Hinge, Female, Long Right (2)

5 41352 Hinge, Female, Long Left (2)

6 42532 Kettle Stir Motor Switch

7 42532 Light & Warmer Switch

8 42798 Kettle Heat Switch

9 42947 50 W Coated Light Bulb It is recommended to purchase light bulbs

locally.

10 47038 Kettle Drive Motor

11 47047 Lamp Holder

12 47120 Door & Old Maid Pan Knob (3) One (1) #8-32 x 5/16" Screw Per Knob Req.

13 47208 Terminal Block, 8 Point

14 47328 Glide (4) One (1) P/N 42044 Screw Per Foot

15 47561 Magnetic Catch

16 49100 Old Maid Pan

17 49123 Crutch Tip (4) Slips Over Plastic Foot P/N 47236

18 49330 Kettle Receptacle

19 49715 Dome

20 49815 Drop Panel

21 49816 Door, Front (2) 16 3/4" x 8 13/16"

22 49826 Glass (3) 16 7/8" x 21 1/4" It is recommended to purchase glass locally

Call for dimensions.

23 67060 Strain Relief

24 67194NM Gear Block Assembly

25 87085 Power Supply Cord 15 Amp 14 AWG, 3 Conductor

87148 Power Supply Cord (Canada) 20 Amp

26 42222 Tinnerman Clip 8-32

27 75267 Tee Bolt

28 40589 Light Shield Conical

29 41314 Screw 10-24 x 3/4" (4)

30 49777 Popcorn Decal *

* Not Shown

Pop Maxx 12/14 Oz. Popcorn Machine

All Models #2552, #2552C,

#2552EX, #2552JX

Cabinet Parts List

For Models #2552EX and #2552XJ.

2552EX 2552JX

Item No. Part No. Part No. Description Special Notes

1 40557EX 40557 Corn Deck Freshener Heat Element *20 Watt Foil

2 41349 41349 Hinge, Male, Short Left (2)

3 41350 41350 Hinge, Male, Short Right (2)

4 41351 41351 Hinge, Female, Long Right (2)

5 41352 41352 Hinge, Female, Long Left (2)

6 42532 42532 Kettle Stir Motor Switch

7 42532 42532 Light & Warmer Switch

8 42798 42798 Kettle Heat Switch

9 13122 40 W Coated Light Bulb It is recommended to purchase

42947 50 W Coated Light Bulb light bulbs locally.

10 47067 47121 Kettle Drive Motor

11 47047 47047 Lamp Holder

12 47120 47120 Door & Old Maid Pan Knob (3) One (1) #8-32 x 5/16" Screw Per

Knob Required

13 47208 47208 Terminal Block, 8 Point

14 47328 47328 Glide (4) One P/N 42044 Screw Per Foot

15 47561 47561 Magnetic Catch

16 49100 49100 Old Maid Pan

17 49123 49123 Crutch Tip (4) Slips Over Plastic Foot P/N 87079

18 49330 49330 Kettle Receptacle

19 49715 49715 Dome

20 49815 49815 Drop Panel

21 49816 49816 Door, Front (2) 16 3/4" x 8 13/16"

22 49826 49826 Glass (3) 16 7/8" x 21 1/4" It is recommended to purchase

glass locally

2 49740 67060 Strain Relief 14 AWG, 3 Conductor

24 67194NM 67194NM Gear Block Assembly

25 42369 87085 Power Supply Cord 15 Amp

26 42222 42222 Tinnerman Clip 8-32

27 75267 75267 Tee Bolt

28 40589 40589 Light Shield Conical

29 41314 41314 Screw 10-24 x 3/4" (4)

30 49777 49777 Popcorn Decal *

* Not Shown

Pop Maxx 12/14 Oz. Popcorn Machine

All Models #2552, #2552C,

#2552EX, #2552JX

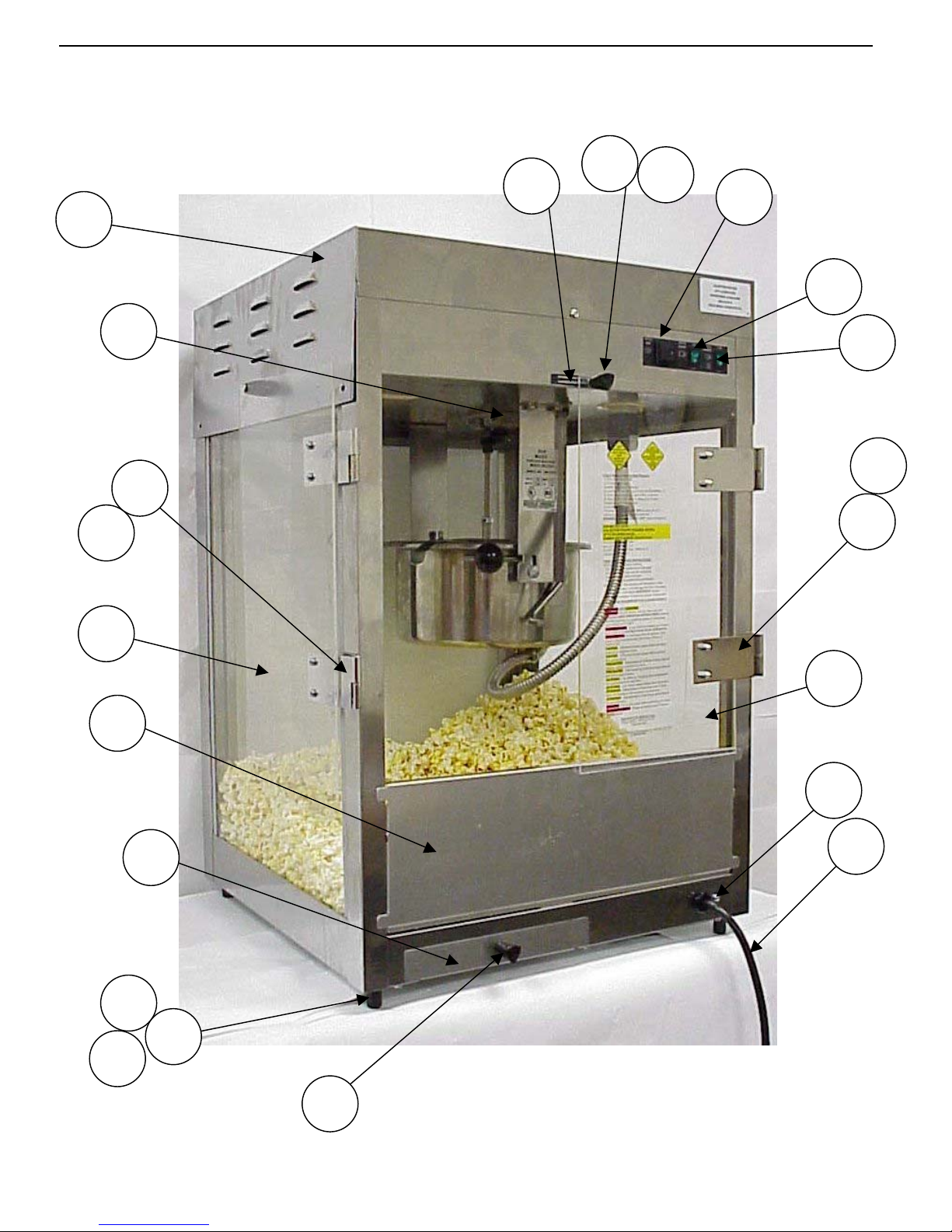

Cabinet Assembly

Pop Maxx 12/14 Oz. Popcorn Machine

All Models #2552, #2552C,

#2552EX, #2552JX

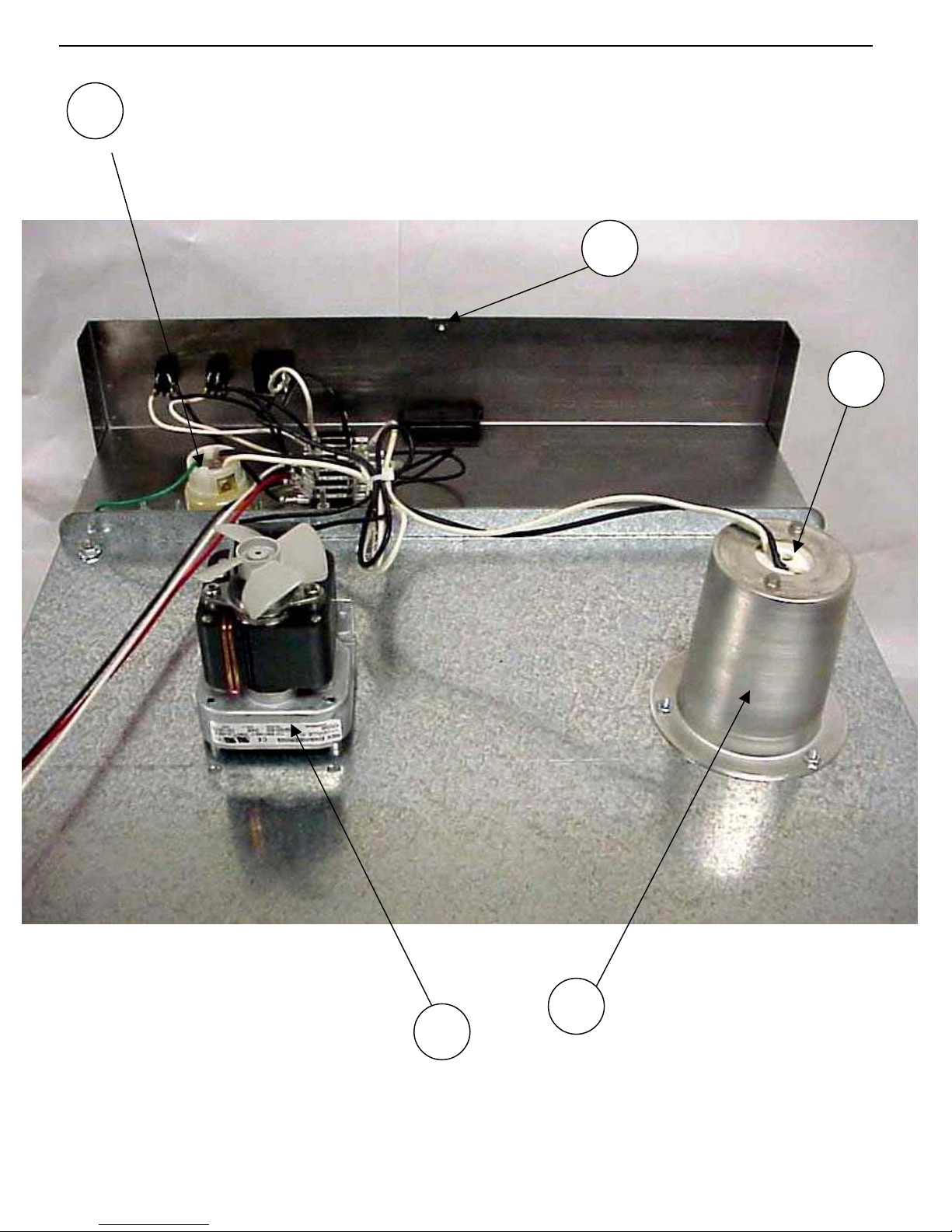

Dome

Pop Maxx 12/14 Oz. Popcorn Machine

All Models #2552, #2552C,

#2552EX, #2552JX

Kettle Parts List

For Models #2552 and #2552C.

Item No. Part No. Description Special Notes

49739 Lid and Agitator Assembly (Item 1-15)

1 47110 Knob Dump Handle

2 49701 Retaining Ring

3 47060 Spur Gear

4 47106 Neddle Bearing

5 61059 1/4"-20 Thumb Screw (2 Req.) Use W/ Lid/Agitator Assembly

6 49577 Agitator Shaft Assembly 9 1/2" long

7 46649 Set Collar (2)

8 47119 Rear Lid

9 47247 Front Lid Assembly

10 49736 Crossbar Assembly

11 41742 Set Screw 10-32 x 3/16 (3) *

12 76079 Washer 1/4 Lock (2)

13 49571 Dump Handle

14 49011 Stir Rod *

15 49013 Agitator Weight *

49738 Kettle Bottom Only (Item 16-31)

16 61053 Kettle Lead In Cord Complete

17 61012 8 oz. Kettle Gasket

18 49763 Wire Assembly 2 1/4" long Solid Nickle with Terminals

19 49719 Element Clamp (2)

20 49721 Kettle Weldment

21 49317 5/16-18 Serrated Lock Nut (2)

22 49759 High Limit Spacer 5/8" Dia. 3/8" Thick

23 49758 6-32 x 1 1/8 PH Pan MS ZP Mount Screw

24 40133 6-32 x 3/4 Phil Pan M/S Mount Screw

25 49136 6-32 x 3/16" T-Stat Screw (4)

26 61056 Block, Shell & Kettle (Handle Side) Center Hole Threaded

27 61013 Block, Shell & Kettle All Holes Threaded

28 42569 Wire Assembly 5 1/4" long

29 67888 1600 Watt 120 V Tubular Element Solid Nickle with Terminals

30 76702 Thermostat L525 F (2)

31 61017 Kettle Shell

32 20066 8-32 x 1/2" Countersunk Screw *Threaded Block

33 20068 8-32 x 1" Countersunk Screw *Dump Handle/Threaded Block

* Not Shown
