Goldmedal Citation Manuale utente

Part No. 67861EX

Citation

Models #2001EX, 2001STX, 2001BNX

Instruction Manual

Cincinnati, OH 45241-4807 USA

Export Citation UniMaxx

Models 2001EX, 2001BNX, 2001STX

SAFETY PRECAUTIONS

DANGER

Machine must be properly grounded to prevent electrical shock to personnel.

Failure to do so could result in serious injury, or death.

DO NOT immerse any part of this equipment in water.

DO NOT use excessive water when cleaning.

Keep cord and plug off the ground and away from moisture.

Always unplug the equipment before cleaning or servicing.

Make sure all machine switches are in the OFF position before plugging the

equipment into the receptacle.

008_051514

DANGER

Improper installation, adjustment, alteration, service, or maintenance can

cause property damage, injury, or death. Any alterations to this equipment

will void the warranty and may cause a dangerous condition. This appliance

is not intended to be operated by means of an external timer or separate

remote-control system. NEVER make alterations to this equipment. Read the

Installation, Operating, and Maintenance Instructions thoroughly before

installing, servicing, or operating this equipment.

014_020416

WARNING

To avoid burns, DO NOT touch the kettle or any heated surface.

DO NOT place or leave objects in contact with heated surfaces.

013_092414

WARNING

ALWAYS wear safety glasses when servicing this equipment.

010_010914

WARNING

No user serviceable parts inside. Refer servicing to qualified service

personnel.

011_051514

WARNING

Read and understand operator’s manual and all other safety instructions

before using this equipment. To order copies of the operator’s manual go to

gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,

Cincinnati, OH 45241 USA 1-(800)-543-0862

022_060215

Export Citation UniMaxx

Models 2001EX, 2001BNX, 2001STX

SAFETY PRECAUTIONS (CONTINUED)

WARNING

DO NOT allow direct contact of this equipment by the public when used in

food service locations. Only personnel trained and experienced in the

equipment operation may operate this equipment.

Carefully read all instructions before operation.

012_010914

WARNING

This machine is NOT to be operated by minors.

007_010914

Note: Improvements are always being made to Gold Medal’s equipment. This information may

not be the latest available for your purposes. It is critical that

you call Gold Medal’s Technical Service Department at -800-543-0862 for any

questions about your machine operations, replacement parts, or any service questions.

(Gold Medal Products Co. does not assume any liability for injury due

to careless handling and/or reckless operation of this equipment.)

Export Citation UniMaxx

Models 2001EX, 2001BNX, 2001STX

Forward

This manual covers the 16oz. Citation Popcorn Machine, model number 2001EX, 2001BNX, and 2001STX.

Installation Instructions

Inspection of Shipment:

Unpack all cartons and check thoroughly for any damage that may have occurred during transit.

Damage claims should be filed immediately with the transportation company. Gold Medal is not

responsible for damage that occurs in transit.

Setup:

Your new Citation Popcorn Machine is completely assembled and tested at the factory.

Remove all packing material and tape before starting operation.

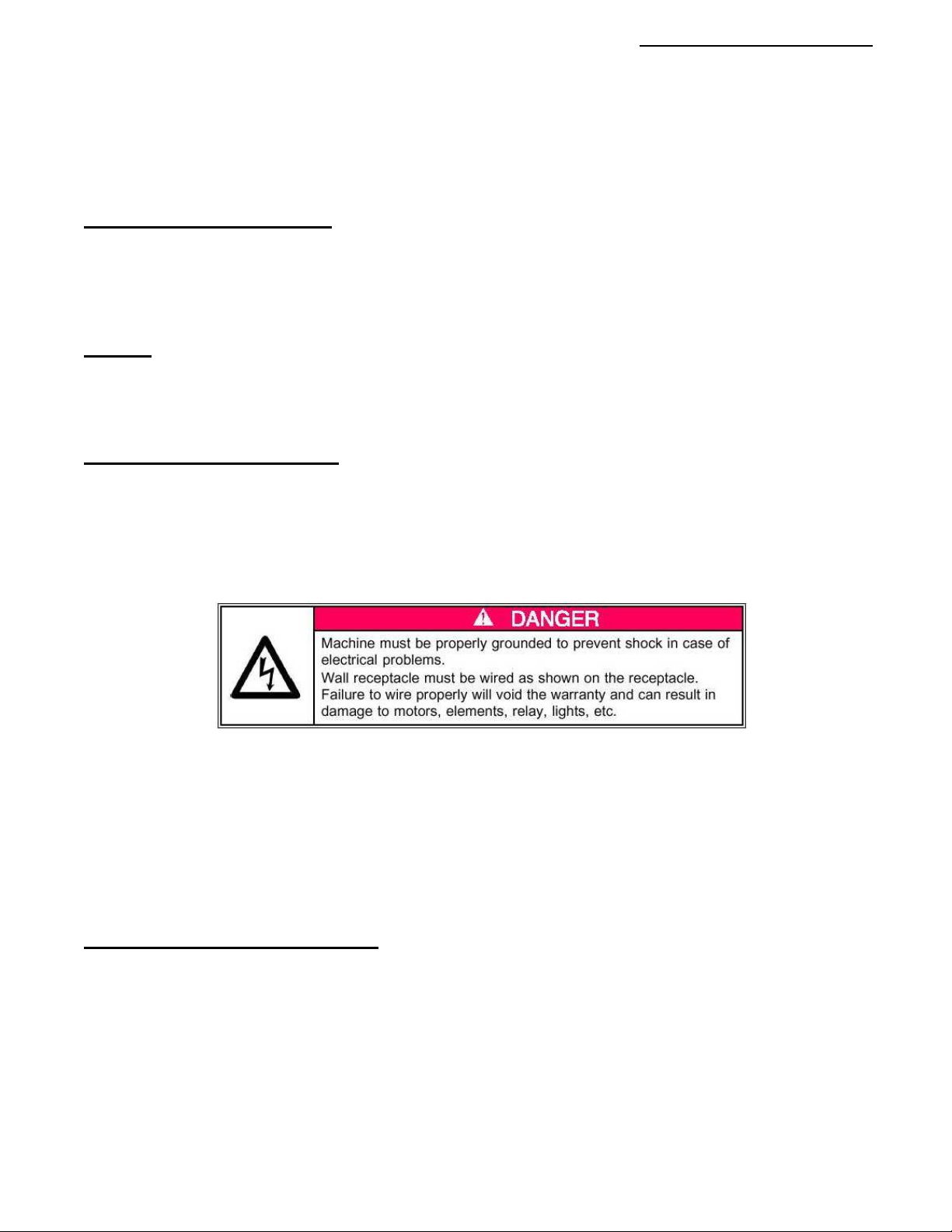

Electrical Requirements:

The following power supply must be provided:

Model No. 2001EX : 1920 Watts, 230 VAC, 8.4 Amps, 50 Hz.

Model No. 2001BNX: 1920 Watts, 230 VAC, 11 Amps, 50 Hz.

Model No. 2001STX: 1920 Watts, 230 VAC, 11 Amps, 50 Hz.

Your electrician must furnish sufficient current for proper machine operation. We recommend this

popper be connected to a dedicated 15 amp circuit protected line. Failure to wire properly will void

the warranty and can result in damage to the heat elements, light, motor and etc.

It is Gold Medal Products Company’s recommendation that this machine be plugged directly into a

wall outlet. The use of extension cords is not recommended due to safety reasons and the popper’s

performance will be sacrificed/reduced.

Before You Plug In Machine:

1. Make sure that the wall outlet can accept the grounded plug on the power supply cord.

2. The wall outlet must have the proper polarity. If in doubt, have a competent electrician inspect the

outlet and correct if necessary.

3. DO NOT use a grounded to un-grounded plug adapter.

Export Citation UniMaxx

Models 2001EX, 2001BNX, 2001STX

FINAL PREPARATIONS

The popcorn machine was adjusted, inspected, and

tested before it left the factory. After removing machine

from shipping box, remove all tape and packing material

in or on the machine before beginning operation.

OPERATING INSTRUCTIONS

Controls and their functions

LIGHT SWITCH

Turns on all of the lights, interior, and dome on your popcorn machine.

WARMER SWITCH

Operates the forced air popcorn crisping system.

KETTLE HEAT SWITCH

Operates the heating elements in the popping kettle.

KETTLE MOTOR SWITCH

Operates the kettle agitator motor, as well as the exhaust blower in the roof of the machine.

Light

Swi

tch

p/n 42798

Kettle Motor Switch

p/n 42798

Kettle Heat Switch

p/n 42798

Warmer

Switch

p/n 42798

Export Citation UniMaxx

Models 2001EX, 2001BNX, 2001STX

Amount of Popcorn and Oil:

The Citation popper is equipped with a sixteen ounce corn measure cup. Gold Medal Products

Company recommends the use of flavored and colored coconut oil. Coconut oil does not leave

black deposits in the kettle like other oils.

Corn Charge: 16 Oz. (473 ml)

Oil Charge: 4-5 ounces

Flavacol (Salt): 1 ½ Tablespoon (20 cc) (Use the supplied Salt Scoop)

Popping Instructions:

1. Turn both the KETTLE HEAT and KETTLE MOTOR switches ON.

2. Test pop three (3) kernels of corn and one ounce (1 Oz.) of popping oil. When the kernels pop,

the kettle is ready for use.

3. Load both a full corn/oil charge and Flavacol Seasoning Salt into the kettle. Close the lids.

4. When the corn has finished popping, gently dump the kettle.

5. Repeat the cycle, starting with step number 3, until the desired amount of popcorn has been

achieved. Always pop 3 to 5 consecutive batches for the best popcorn.

On the final kettle of corn, it is a good idea to turn the KETTLE HEAT switch OFF just as the lids are

forced open by the popping corn. This procedure saves electricity, and reduces smoke/odor from

any oil residue that remains after you have finished popping.

Export Citation UniMaxx

Models 2001EX, 2001BNX, 2001STX

CLEANING INSTRUCTIONS

Clean the Kettle

1. CAUTION: The hot kettle will cause burns if you touch it with your hand. Allow the kettle

to cool for at least 1 hour before attempting to clean. Wipe the kettle with a clean cloth.

2. After ending extended use, mix a gallon of Heat’n Kleen solution (2 tablespoons per

gallon of water). Add 16 oz. of this solution into the kettle. Turn on the kettle heat. When

the water starts to boil, turn off the kettle heat and allow the solution to settle over-

night.

3. Before next use, dump the solution into a bucket and wipe the inside of the kettle with a

clean cloth. Make sure all of the solution goes into the bucket, and that you do not spill

any into the interior cabinet of the machine.

Cleaning the Exhaust Filter (Shown on Page 12 of this manual)

Clean the Exhaust Filter at least once a week by following these simple instructions:

1. Pull the filter out.

2. Wash in warm soap and water.

3. Allow filter to air dry, then re-install.

Clean the Popcorn Machine

1. Wipe the stainless steel parts with a clean cloth and cleaner designed for stainless steel. Do not

use oven cleaners, as they will damage parts of the machine.

2. Ammonia cleaners will damage the plastic doors. Use only non-ammonia cleaners, such as

Gold Medal’s – Watchdog Glass Cleaner – item number 2588.

Export Citation UniMaxx

Models 2001EX, 2001BNX, 2001STX

TROUBLESHOOTING

Below are some common issues you may encounter, along with basic trouble shooting

steps to resolve them.

EXPERIENCING LONG POPPING CYCLES

If your pop cycle is longer than 4 minutes, it can be the result of several things:

A. LOW VOLTAGE - If the machine is operated on low voltage, this could cause the kettle

not to reach the proper operating temperature. Voltage must be at least 110v.

B. INADEQUATE SUPPLY LINES - Inadequately sized electrical supply lines, in addition to

being a fire hazard, would also prevent the kettle from reaching the proper operating

temperature. Check with a qualified electrician.

C. INFERIOR CORN - Inferior quality corn would result in longer popping cycles. Use only

top quality fresh hybrid popcorn from reputable suppliers. Even then, if you let your corn

pick up moisture or dry out, your popping cycles will be slow.

THE KETTLE DOES NOT HEAT

Before you go any further, make sure the kettle lead-in cord is plugged in.

A. KETTLE HEAT SWITCH - Check the voltage to and from the “KETTLE HEAT” switch,

and if the switch is defective, replace it. (Repair should only be performed by qualified

service personnel.)

THE MOTOR WILL NOT TURN AGITATOR

WARNING! If the kettle agitator shaft is not rotating, DO NOT pop corn. Adjust the clearance

between the kettle bottom and the stir blade to 1/32” (use a dime). Loosen the set screw in the

collars above and below the crossbar and adjust the agitator shaft as necessary. Then re-tighten the

set screws in the collars.

Export Citation UniMaxx

Models 2001EX, 2001BNX, 2001STX

MAINTENANCE INSTRUCTIONS

DANGER

Machine must be properly grounded to prevent electrical shock to personnel.

Failure to do so could result in serious injury, or death.

DO NOT immerse any part of this equipment in water.

DO NOT use excessive water when cleaning.

Keep cord and plug off the ground and away from moisture.

Always unplug the equipment before cleaning or servicing.

Make sure all machine switches are in the OFF position before plugging the

equipment into the receptacle.

008_051514

DANGER

Improper installation, adjustment, alteration, service, or maintenance can

cause property damage, injury, or death. Any alterations to this equipment

will void the warranty and may cause a dangerous condition. This appliance

is not intended to be operated by means of an external timer or separate

remote-control system. NEVER make alterations to this equipment. Read the

Installation, Operating, and Maintenance Instructions thoroughly before

installing, servicing, or operating this equipment.

014_020416

WARNING

No user serviceable parts inside. Refer servicing to qualified service

personnel.

011_051514

CAUTION

THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY

FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH

ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE

OPERATOR.

027_010914

Export Citation UniMaxx

Models 2001EX, 2001BNX, 2001STX

ORDERING SPARE PARTS

1. Identify the needed part by checking it against the photos, illustrations, and/or the parts list.

2. When ordering, please include part number, part name, and quantity needed.

3. Please include the machine’s model name, serial number, and date of manufacture (located on the

machine nameplate) with your order.

4. Address all parts orders to:

Parts Department

Gold Medal Products Co.

10700 Medallion Drive

Cincinnati, Ohio 45241-4807

(800) 543-0862

(513) 769-7676

Fax: (513) 769-8500

or, place orders at:

E-mail: info@gmpopcorn.com

Web Page: www.gmpopcorn.com

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Goldmedal Elettrodomestico da cucina

Goldmedal

Goldmedal Pop-O-Gold Manuale utente

Goldmedal

Goldmedal 2016 Manuale utente

Goldmedal

Goldmedal Master Pop 2451 Manuale utente

Goldmedal

Goldmedal Econo 8 Manuale utente

Goldmedal

Goldmedal Cheddar Easy Deluxe Tumbler Manuale utente

Goldmedal

Goldmedal 1871EX Manuale utente

Goldmedal

Goldmedal 4008 Manuale utente

Goldmedal

Goldmedal UNIFLOSS Manuale utente

Goldmedal

Goldmedal 8150 Manuale utente

Goldmedal

Goldmedal Econo 8 Manuale utente

Goldmedal

Goldmedal PopMaxx Manuale utente

Goldmedal

Goldmedal The Breeze 3030-00-000 Manuale utente

Goldmedal

Goldmedal Pop Maxx 2552EX Manuale utente

Goldmedal

Goldmedal Antique Deluxe 60 Special Manuale utente

Goldmedal

Goldmedal 2656KC Manuale utente

Goldmedal

Goldmedal Tornado SHO 3007 Manuale utente

Goldmedal

Goldmedal 2552 Manuale utente

Goldmedal

Goldmedal Unifloss 3034 Manuale utente

Goldmedal

Goldmedal SunnyPop 2552-00-012 Manuale utente

Goldmedal

Goldmedal 4008 Manuale utente

Goldmedal

Goldmedal 2404SC Guida alla configurazione

Goldmedal

Goldmedal Econo-Pop 14 Popper Manuale utente

Goldmedal

Goldmedal Deluxe Citation Series Manuale utente

Goldmedal

Goldmedal 2552-00-001 Manuale utente

Manuali Elettrodomestico da cucina popolari di altre marche

Tayama

Tayama TYG-35AF Manuale utente

AEG

AEG 43172V-MN Manuale utente

REBER

REBER Professional 40 Guida utente

North American

North American BB12482G / TR-F-04-B-NCT-1 Manuale utente

Presto

Presto fountain popper Manuale utente

Westmark

Westmark 1035 2260 Manuale utente

Zanussi

Zanussi ZCG64396XA Manuale utente

HOFFEN

HOFFEN SM-9302M Manuale utente

Philips

Philips HD3133 Manuale utente

Ronco

Ronco Beef Jerky Manuale utente

Hendi

Hendi 470411 Manuale utente

Livoo

Livoo MEN386 Manuale utente

Vogue

Vogue D446 Manuale utente

croydon

croydon WR-10313-700 Manuale utente

ADE

ADE AUTOMATIC-L Manuale utente

Chefman

Chefman RJ43-SQ Series Manuale utente

Vacmaster

Vacmaster VP680 Manuale utente

Jetmaster

Jetmaster 900HG Manuale utente
