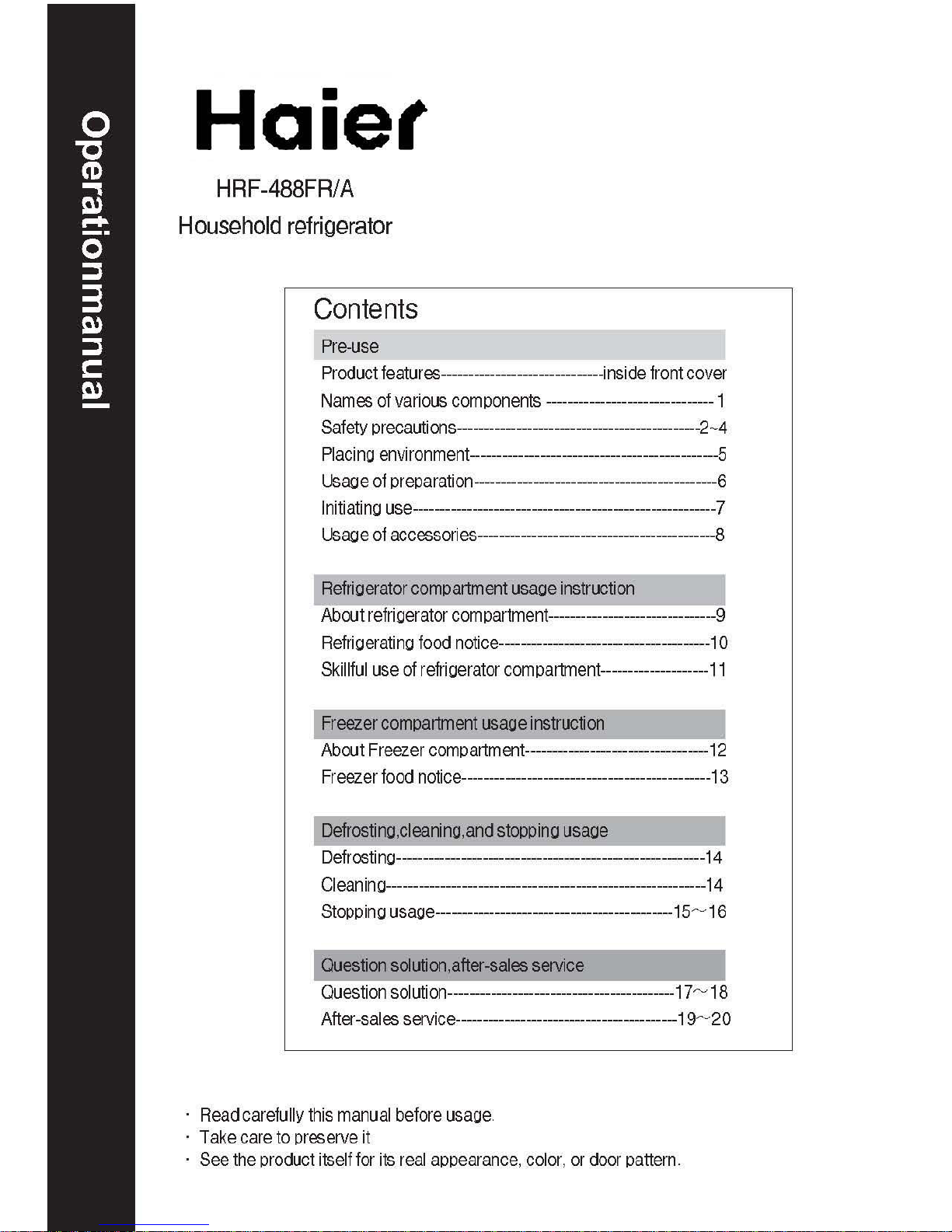

Haier HRF-488FR Manuale utente

Product features

Product features：

① Supper energy saving

② Gallon bottle rack

③ Humidity adjustable system

④ Automatic defrosting

⑤ Quick cooling system

⑥Flush back

Names of the various components

Dear customers,

Thank you for your choice of using HEC products.

HEC products have excellent quality, and good performance. But in order to facilitate your usage,

be sure to read carefully the manual, and operate it as described by the manual.

HEC's "international star grade service" shall always be accompanying you, and contact us with

the telephone and address of the guarantee certificate whenever you meet any problem during

usage, we are constantly ready to offer service to you. Thank you again for your selection of our

HEC products.

HEC-sincere forever.

Freezer

compartment

Ice-making box

Ice-storage box

Wire shelf

Refrigerator

compartment

Thermostat

housing

Wire shelf

Humidity adjusting slide

Door rack

Daily compartment

Bottle rack

Gallon bottle rack

Humidity maintaining

box

Due to product modification, your purchased HEC refrigerator may not be identical with the

one shown in the manual. We hereby express our apologies to you for this possible difference.

Safety precautions

This appliance uses 127 or 220-240V,50Hz

AC for power supply.

Do not damage power cable

* Be sure not to pull out the plug of the

appliance by drawing the power cable. Be

sure to directly pull out it of the outlet by

firmly grasping the plug.

* Do not cause the appliance body press the

power cable, nor should any people tread

on it.

* When moving the appliance from wall, be

careful not to roll or damage power cable.

127-220V~

60Hz

It is required to use separate, dedicated outlet

with securely grounding.

The power cable of this appliance is fitted with three-

core (grounding) plug complying with three-core

(grounding) outlet. In no case, should the third plug

pin (grounding) of the power cable be cut or

removed.

In case of damaged power cable

When the power cable or plug has been worn, it is

prohibited to continue to use it. In this case, it is

required to replace it by factory authorized service

shop.

When there is leakage of inflammable gas:

* Close the valve of leaking gas

* Open doors and windows

* Neither try to drag nor insert any power plug

for any electrical unit such as refrigerator

Please pull out power plug under the following

situations:

* Pull out power plug prior to cleaning or

repairing.

* When replacing damaged lamp, it is required

to pull out power plug to prevent electrical

shock.

Safety precautions

It is absolutely prohibited to put inside the

appliance hazardous inflammable or

explosive articles, strong corrosive acid,

alkali, etc.

Mousse

Spray

Gas

Strong acid

Strong alkali

Do not keep medicine, vaccine, or chemical

reagent in the appliance. This refrigerator is

for household use, which cannot store item

with strict requirement for temperature.

Do not store or use gasoline or other

flammable article in the vicinity of the

refrigerator to avoid fire.

Do not place any unstable article on the top

of the appliance (heavy item, or container

with water), to avoid possible hurting people

when falling, or leaking current by spilled

water. It is also not permitted to put such

appliance as regulated power supply,

microwave oven on the top of the refrigerator

to prevent electromagnetic interference, or

other accident.

Chemical agent

Medcine

Blood product

When the refrigerator has started running, take

care not to touch the cold surface of the freezer

compartment with hand, especially with wet

hand. Otherwise, your skin is liable to be stuck

on the cold surface.

Do not play by hanging on its door, to prevent

tilting the door or toppling the refrigerator to

hurt person.The appliance is not intended for

use by young children or infirm persons

without supervision;Young children should

be supervised to ensure that they do not play

with the appliance.

Safety precautions

Do not spray water onto the refrigerator, or

place it in wet area susceptible to be splashed

with water, so as to avoid influencing the

electric insulation performance of the

appliance.

It is strictly prohibited to privately dismantle

or change the appliance. For the repair of

refrigerator, it can be carried out by

professional only.

Do not put the bottled beer or beverage in the

freezer compartment to prevent frost crack.

At no power supply or when carrying out

cleaning, it is required to pull out the power

plug, and to wait at least 5 minutes for

switching on it again to prevent damaging

its compressor by continuous starting.

When the appliance is to be discarded,

dismantle its door, as well as its door gasket

to avoid accident occurred when a child goes

inside for playing.

The gap between door and door, and the

gap between door and cabinet are very

small. Take care not to put your fingers in

these areas to prevent hurting your fingers

by squeezing.

Placing surrounding

It should be located in a well-ventilated place,

and there should be at least 10cm of free

space surrounding the refrigerator including

its back. If you want to build the appliance in a

wall, there must be at least 25cm of free space

above the appliance, and it must be at least

5cm away from the wall.

Do not place it in area damp or susceptible

to be splashed with water. Any splashed

water or dirt should be wiped by soft cloth in

time.

Refrigerator should be kept far from heat

source and avoid direct sunshine, so as not

to affect the refrigerator working

performance.

Be sure not to put it in such a cold environment

as to freeze water

The refrigerator should be placed on even, solid ground. When it is necessary to make it

level by insert something to raise it, the insert chosen should be steady, hard, and

incombustible. It is absolutely prohibited to use package foam block of the appliance as the

insert. If it is just slightly uneven, you can make it level by turning the adjusting roller. You

can raise the appliance by turning clockwise the adjusting threads of two front rollers, and,

similarly, by turning anticlockwise, the appliance can be lowered.

Space

At least

10cm from

above At least

10cm from

back

At least

10cm from

left/right

Usage preparation

Remove all package parts

Including foam base and the adhesive tape fixing accessories,

they all must be removed. Take care to take away the adhesive

tape on the back for fixing cover plate of compressor.

Check accompanying accessories and document

Check the items inside the package box with the packaging list,

and inquire selling shop, if any discrepancy.

Place the refrigerator on proper position

(See the above section "place surrounding")

①

②

③

In order to facilitate inquiry, copy the refrigerator model and package number located

on the back nameplate in the guarantee certificate.

Idle standing

After the appliance has been adjusted level, and cleaned, let it

remain idle for at least 30 minutes before switching it on so as to

ensure its normal running.

⑤

It is advisable to carry out cleaning prior to usage

(See latter section "cleaning" for its detailed description)

④

Begin to use

Putting food in the refrigerator

After some time of switching on, the

interior of the refrigerator shall be

completely cooled. Then foodstuff can

be put inside to start regularly usage

of the appliance.

Switching on

For the first time use of the appliance,

it is required to let it stay idle for 6

hours before switching it on. If there

is power failure, or power interruption,

wait for about 5 minutes to start the

appliance.

①

③

Temperature position

setting

The temperature inside the appliance

is adjusted through the thermostat dial

located in the refrigerator

compartment. Taper end of the

thermostat is the indicating direction of

the thermostat. When turning

clockwise the thermostat dial, the

temperature inside the refrigerator

shall change from high to low; Position

"OFF" indicates the appliance do not

carrying out cooling, but without

switching it off.

For usage, generally set the

thermostat on the middle but weaker

position. In Summer, with high ambient

temperature, turn the thermostat dial

to the position "weak".

②

When changing the temperature setting position, it shall take some time for the

internal temperature to reach balance. And the length of this balancing time varies

with degree of the change in the temperature setting, the degree of ambient

temperature, door-opening frequency, and the amount of food stored.

Recommended

position

Ambient temperature≥32℃

Ambient temperature25~32℃

Ambient temperature16~25℃

Ambient temperature10~16℃

Ambient temperature〈10℃

Using occasion

COLD COLDER

COLD

COLDER

COLD

COLDER

COLD

COLDER

COLD

COLDER

COLD

COLDER

Usage of accessories

Shelf height can be adjusted

You can adjust the shelf height according to your storage necessity.

Tift front of shelf up take shelf out, then place it where desired.

Humidity adjustable vegetable tray

When storing fruits and vegetables, do your best to remove completely any water cumulated on

the bottom of vegetable tray, and wipe dry the vegetable tray.

This vegetable tray is able to adjust its humidity degree according to its storage necessity. When

storing vegetable, you can push the slide to the "high" side to provide a high degree of humidity

for vegetable. When storing fruits, push the slide to the "low" side to provide a low degree of

humidity for fruits.

Slide

High Low
