Installation Guide

GSF3 & GSF6 Landscape Speakers

CAUTION: Installation must be done by qualified persons using safe

installation standards.

The installer is responsible for proper selection and use of mounting hardware

and processes to install the speakers in a safe manner.

Wire Connection

•CABLE-- The GSF speakers have a captive 1-meter long cable for bare-wire connection via an external installer-provided

weather-proof junction box.

oPolarity -- The red wire is + (positive) and the black wire is – (negative).

oWire Gauge –The wire gauge is 18 AWG (1 mm2).

oWire Jacket –The wire jacket is 5 mm (+0/-05.mm) in diameter.

oConnecting -- Use proper professional wire nuts or other safe connectors that are appropriate for the installation

conditions and that are sized properly for wire gauge(s) and number of wires to be connected together in the

connector.

oRouting –When using the ground-stake or L-bracket base, the cable can be routed through the base.

Black = - (negative)

Red = + (positive)

CABLE

Bare-Wire End of Cable

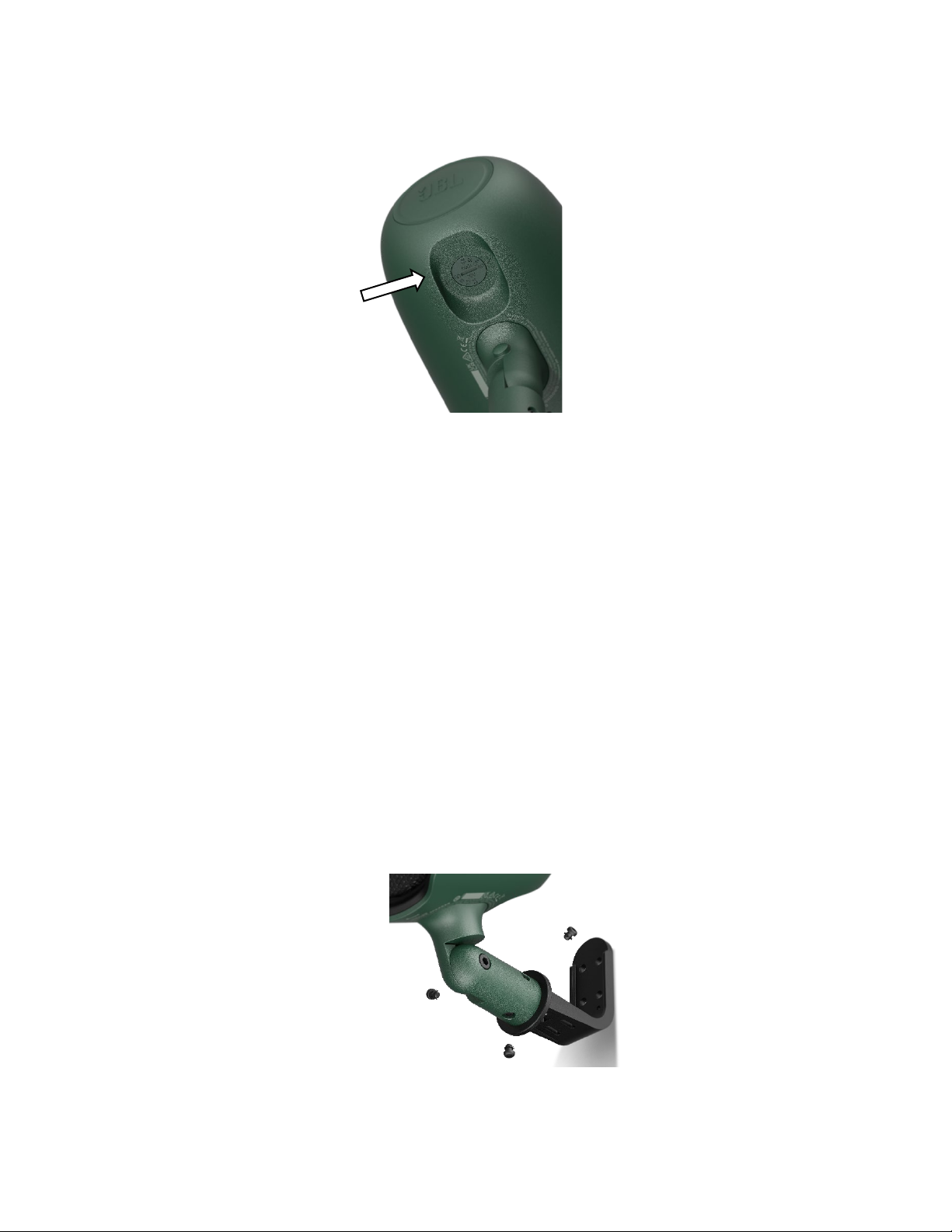

Setting TAP SELECTOR SWITCH

(TAP SELECTOR SWITCH is located on the bottom of the speaker enclosure)

•Rotate bottom-panel TAP SELECTOR SWITCH to select between:

oGSF3:

8Ω(ie, low-impedance / direct)

15W or 7.5W for either 70V or 100V distributed speaker system

3.75W for 70V distributed speaker system only

oGSF6:

8Ω(ie, low-impedance / direct)

30W or 15W for either 70V or 100V distributed speaker system

7.5W for 70V distributed speaker system only

Installing GROUND-STAKE BASE or L-BRACKET BASE to LOUDSPEAKER

•The speaker comes with both a GROUND-STAKE BASE and an L-BRACKET BASE. Use whichever one applies to the installation

requirements of the project.

•At the bottom of the LOUDSPEAKER there is a SOCKET. Three-head set screws come with the speaker (packaged in a separate

pouch) for attaching the chosen base into the SOCKET.

oScrew Dimensions -- GSF3: M4 x 0.7 – 5mm, with 3 mm hex drive

GSF6: M4 x 0.7 – 9mm, with 3 mm hex drive

(GSF SPEAKER shown with L-BRACKET BASE)

(continued ↓)

ROTARY TAP SELECTOR SWITCH

•Use the included 3 mm hex wrench to tighten the 3 set screws to hold the chosen base securely.

•For GROUND-STAKE BASE, press base into the ground.

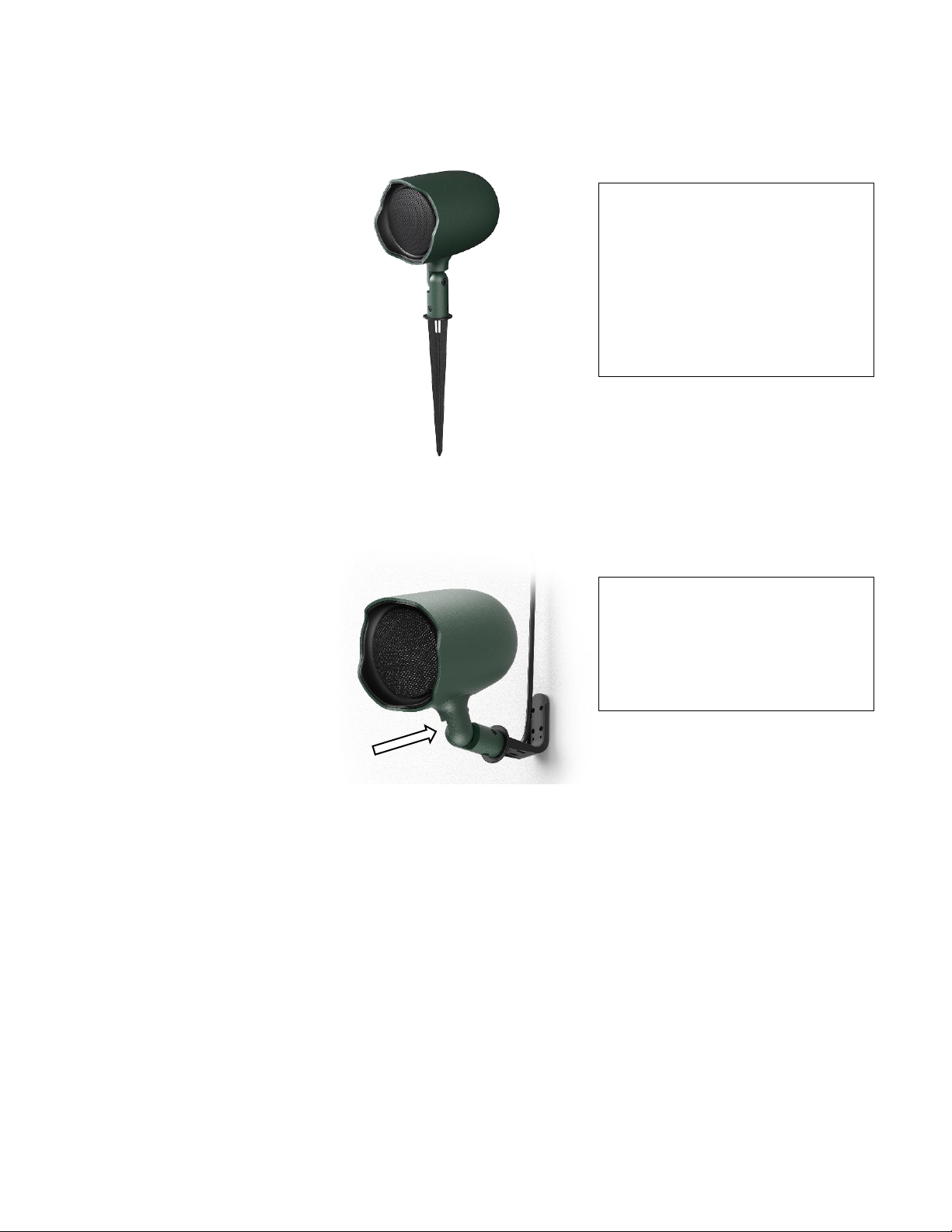

(GSF SPEAKER shown with included GROUND-STAKE base)

•For L-BRACKET BASE, securely attached base to either horizontal surface (such as decking or railing) or vertical surface (such as the

side of a building or post). Use the proper attachment hardware for the material and characteristics of what it’s being attached to.

Aiming LOUDSPEAKER

•Loosen HINGE BOLT by using included 4 mm hex key. Aim loudspeaker, and then retighten.

•Aiming Speaker at Downward Angle Provides Best Drainage – The greatest water drainage and reliability can be achieved by

aiming the speaker at a slight downward aiming angle.

•Maximum Upward Aiming Angle of 30° -- For when aimed slightly upward, there is a drain hole at the bottom of the speaker

that helps to drain water from the front of the speaker’s driver at aiming angles up to a maximum 30°. At upward aiming

angles greater than 30°, water can pool on the driver, potentially causing damage.

Ingress Protection Rating

•IP66 -- The GSF speakers are rated IP66 per IEC529 (highly protected against ingress from dust and water). However, the

speaker is not rated for submersion in water, so steps must be taken to ensure that no immersion situation occurs.

HINGE BOLT

(use included 4 mm hex key)

(Shown with included L-BRACKET base)

CAUTION WHEN RE-AIMING SPEAKER:

When ground-stake is utilized, re-aiming speaker

horizontally requires either: a) completely pulling

stake from ground and re-pressing back into

ground at new aiming angle, or b) loosening 3 set

screws, re-aiming speaker, and re-tightening set

screws. Trying to rotate speaker with stake in

ground and set screws tightened could result in

damage or breakage.

CAUTION WHEN ROTATING ON L-BRACKET:

When L-bracket is utilized, rotating speaker on L-

bracket requires loosening 3 set screws, rotating

speaker, and re-tightening set screws. Trying to

rotate speaker with set screws tightened could

result in damage or breakage.

SAFETY-CABLE ATTACHMENT POINT

•Attach installer-supplied secondary safety cable (ring lug end recommended) to M6 SAFETY CABLE ATTACHMENT INSERT POINT

using installer-supplied M6 x 12 mm or shorter (12 mm is max depth of the threaded insert – ensure a minimum of 4 threads of

engagement) bolt through the ring lug at end of safety cable. Attach other end of cable (with appropriate end-type and

attachment hardware for the building structure) to a separate attachment location on building structure (not the same spot as

used for attaching the WALL BRACKET).

CONTACT INFORMATION

Harman Professional Headquarters

8500 Balboa Blvd.

Northridge, CA 91329 USA

+1 (800) 852-5776

www.jblpro.com

Worldwide Customer Service

Monday - Friday 8:00am - 5:00pm PCT

+1 (800) 8JBLPRO (800-852-5776)

support@jblpro.com

www.JBLservice.com

HARMAN USA Technical Support

Monday - Friday 8:00am - 5:00pm

+1 [844] 776-4899

hprotechsupportusa@harman.com

www.harman.com

Harman Professional London

Harman Westside

Hemel Hempstead, HP3 9TD

London, UK

+44 (0)1707 668034

www.harman.com

Harman Professional Singapore

108 Pasir Panjang Road

#02-08 Golden Agri Plaza

Singapore 118535

+65 6870-5000

www.harman.com

Harman Professional Shenzhen

20F, China Merchants Port Plaza, #1

Gongye 3rd Road, Shekou, Nanshan Dist.

Shenzhen, 518067, China

+86 755 8634 3702

www.harman.com

Harman Professional India

Prestige Technology Park Jupiter 2A Block, 4th Floor

Marathahalli Ring Road

Bangalore 560103, India

+918049365905

www.harman.com

Professional Contacts, Outside the USA:

Contact the JBL Professional Distributor in your area. A complete list of JBL Professional international distributors is provided at our U.S.A. website:

www.jblpro.com

JBL Professional ǀ8500 Balboa Blvd. ǀNorthridge, CA 91329

GSF Guide, Rev A3

12/2022

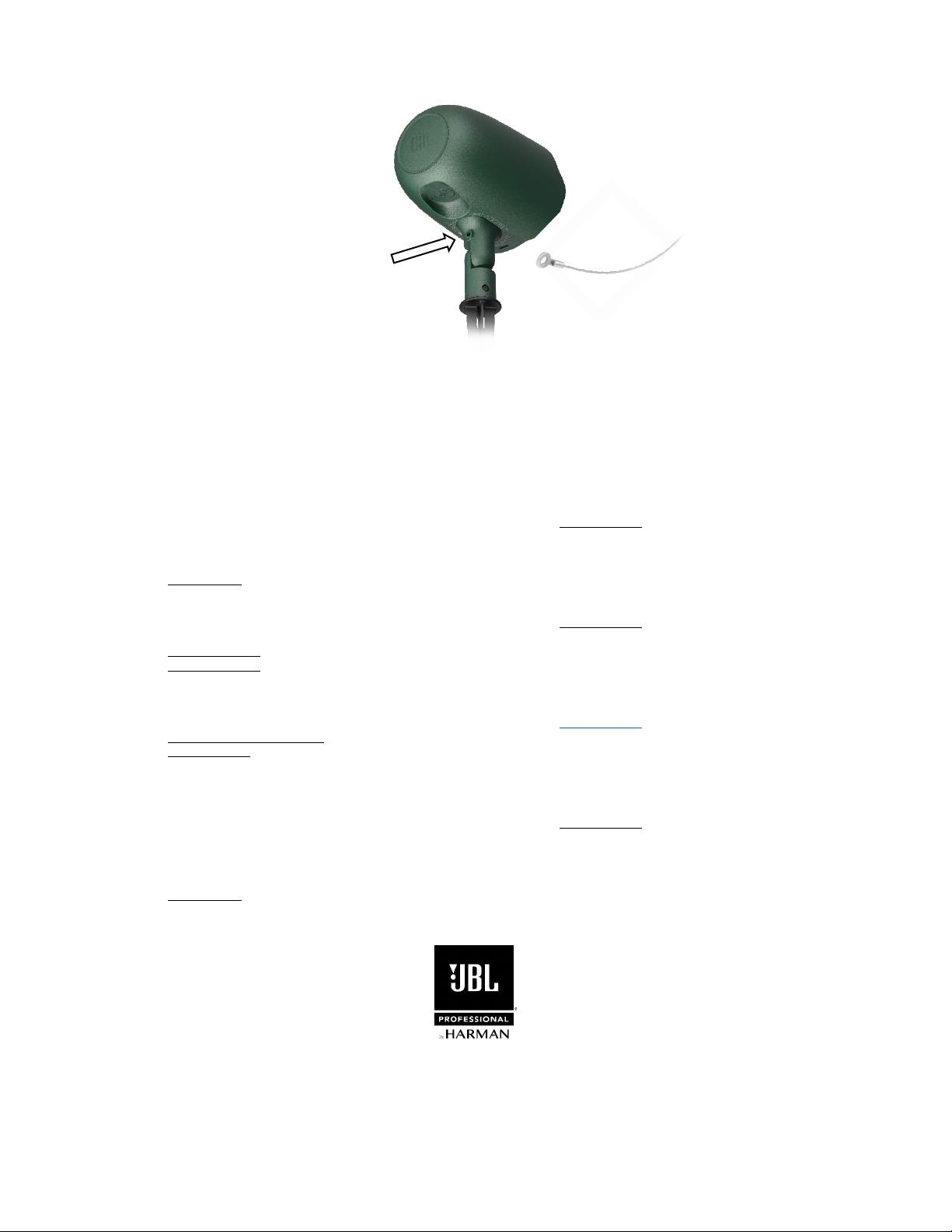

M6 SAFETY-CABLE ATTACHMENT POINT

Threaded 6 mm x 12 mm

(shown with rubber cover removed)

RING-LUG-SAFETY CABLE
