HBM FS22 SI Manuale utente
User Manual
English

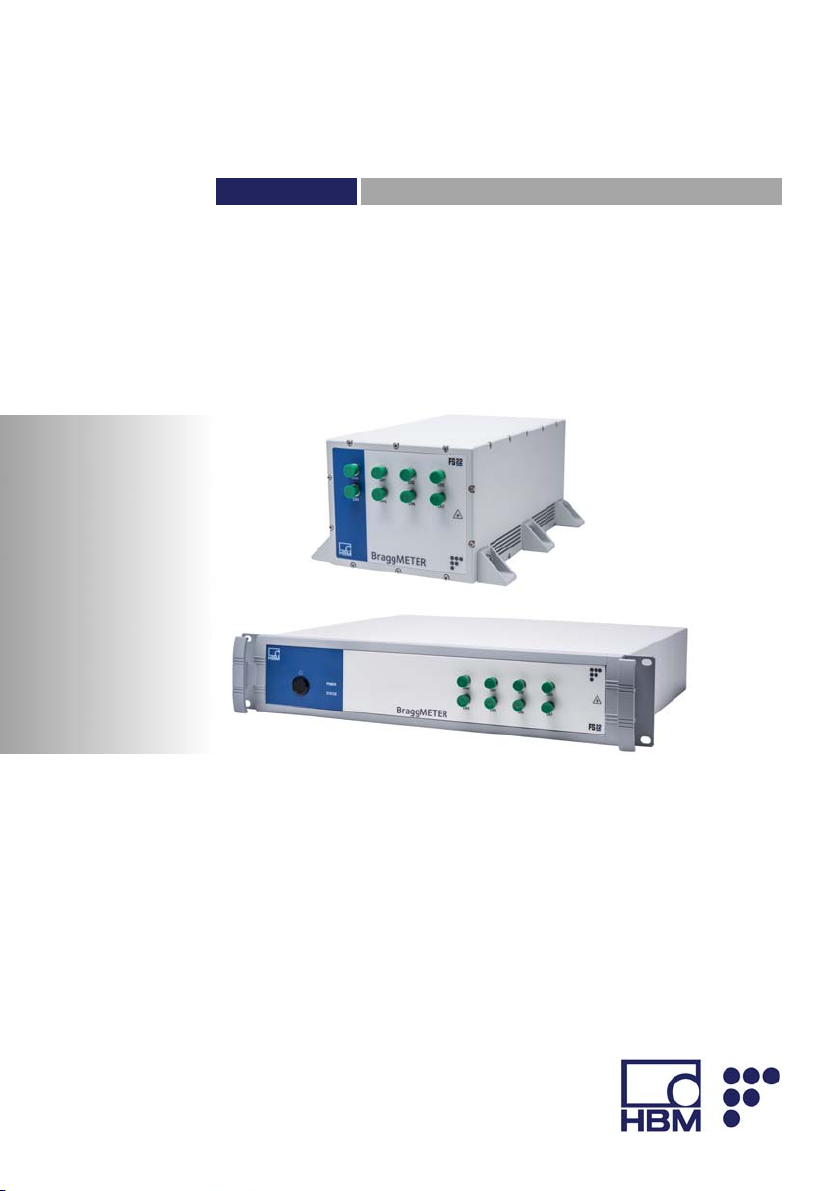

FS22 SI
Industrial BraggMETER SI
Hottinger Baldwin Messtechnik GmbH
Im Tiefen See 45
D-64239 Darmstadt
Tel. +49 6151 803-0
Fax +49 6151 803-9100
www.hbm.com
HBM FiberSensing, S.A.
Optical Business
Rua Vasconcelos Costa, 277
4470-640 Maia
Portugal
Tel. +351 229 613 010
Fax +351 229 613 020
www.hbm.com/fs
Mat.: 7-2002.4249
DVS: A4249-8.0 HBM: public
10.2017
Interrogator version: v3.0
SW version: v2.4
EHottinger Baldwin Messtechnik GmbH.
Subject to modifications.
All product descriptions are for general information only.
They are not to be understood as a guarantee of quality or
durability.
FS22 SI A4249-8.0 HBM: public 3
English
1 Technical Details 6.........................................
1.1 General Information 6........................................
1.2 System Components 7.......................................
1.3 Technical Data 8............................................
2 Regulatory and Certification Considerations 11................
2.1 Environment Considerations 11.................................
2.1.1 Disposal of your Old Appliance 11...............................
2.2 Laser Safety 12..............................................
2.2.1 Symbols 12..................................................
2.2.2 Class 1 Laser 12..............................................
2.2.3 General Precautions Considerations 13..........................
2.2.4 Certification 14...............................................
3 Operation 15................................................
3.1 Connectors 15................................................
3.1.1 Standard 15..................................................
3.1.2 Rack-Mountable 16...........................................
3.2 Setting Up 17................................................
3.2.1 Power Supply 17.............................................
3.2.2 Optical Connectors 17.........................................
3.2.3 Ethernet Connection 17........................................
3.3 Switching On 18..............................................
3.4 Switching OFF 19.............................................
3.5 Operating the Interrogator 20...................................
3.5.1 Network Properties 20.........................................
3.5.2 Resetting the IP Address of the Interrogator 24...................
3.5.3 Synchronization 25............................................
3.5.4 Operation 28.................................................
4 Measuring 36................................................
4.1 Typical Configuration 36.......................................
4A4249-8.0 HBM: public FS22 SI
4.1.1 HBM FS Wavelengths 37......................................
4.2 Definitions 38................................................
4.2.1 Wavelength 38...............................................
4.2.2 Power 39....................................................
4.3 Measurement Methods 39.....................................
4.3.1 Conventional 40..............................................
4.3.2 Smart Peak Detection (SPD) 41................................
4.4 Common Measuring Difficulties 43..............................
4.4.1 Dirty Connector 43............................................
4.4.2 Broken Connector 46..........................................
4.4.3 Reflective Fiber Ending 46.....................................
4.4.4 Cut Fiber 47.................................................
4.4.5 Fuse Failure 49...............................................
5 Remote Communications 51..................................
5.1 Communication Protocol Syntax 51.............................
5.1.1 Command Syntax 51..........................................
5.1.2 Common Commands 54.......................................
5.1.3 System Commands 55........................................
5.1.4 Status Commands 57.........................................
5.1.5 Acquisition Commands 57.....................................
5.1.6 Memory Commands 73........................................
6 BraggMONITOR SI Software Details 75........................
6.1 Software Version 75...........................................
6.2 Install and Uninstall Software 76................................
6.2.1 System Requirements 76......................................
6.2.2 Software Installation 77........................................
6.2.3 Software Uninstall 78..........................................
6.3 Running the Software 79.......................................
6.3.1 Network Properties 79.........................................
6.3.2 Regional Settings 79..........................................
FS22 SI A4249-8.0 HBM: public 5
6.3.3 Run as Administrator 80.......................................
7 BraggMONITOR SI User Interface 82..........................
7.1 General Bar 82...............................................
7.1.1 Date and Time 83.............................................
7.1.2 Connecting to the Interrogator 86...............................
7.1.3 Acquisition 88................................................
7.1.4 Software and Interrogator Information 94.........................
7.1.5 Exit Application 94............................................
7.2 Graphical Area 94............................................
7.2.1 Graphical View 95............................................
7.2.2 Numerical View 97............................................
7.2.3 Spectral View 98..............................................
7.2.4 Configuration 107..............................................
7.2.5 SCPI Interface 114.............................................
Technical Details
6A4249-8.0 HBM: public FS22 SI
1 Technical Details
1.1 General Information
The FS22 - Industrial BraggMETER SI with real time
embedded Smart Peak Detection (SPD) is a continuous
swept laser scanning interrogator specifically designed to
interrogate Fiber Bragg Grating (FBG) based sensors in
industrial environments.
BraggMETER interrogators include a NIST traceable
wavelength reference that provides continuous calibra
tion to ensure system accuracy over long term operation.
The high dynamic range and high output power com
bined with the Smart Peak Detection (SPD) allow high
resolution to be attained even for long fiber leads and
lossy connections.
Multiple sensors can be connected in series in each opti
cal fiber, in combination with one, four or eight optical
channels with parallel acquisition. The FS22 - Industrial
BraggMETER SI is particularly suitable for large scale
sensing networks acquiring a large number of sensors
simultaneously and providing 1 S/s acquisition rates with
sub picometer resolution.
The BraggMETER is available either in Standard and
Rack-mountable formats. This Manual applies to the fol
lowing equipment:
Standard
K-FS22-01-010-120 FS22 – Industrial BraggMETER SI Single channel
K-FS22-03-010-120 FS22 – Industrial BraggMETER SI Single channel
K-FS22-01-010-420 FS22 – Industrial BraggMETER SI Quad channel
K-FS22-03-010-420 FS22 – Industrial BraggMETER SI Quad channel
Technical Details
FS22 SI A4249-8.0 HBM: public 7
K-FS22-01-010-820 FS22 – Industrial BraggMETER SI Octo channel
K-FS22-03-010-820 FS22 – Industrial BraggMETER SI Octo channel
Rack-Mountable
K-FS22-11-010-120 FS22 – Industrial BraggMETER SI Single channel
K-FS22-13-010-120 FS22 – Industrial BraggMETER SI Single channel
K-FS22-11-010-420 FS22 – Industrial BraggMETER SI Quad channel
K-FS22-13-010-420 FS22 – Industrial BraggMETER SI Quad channel
K-FS22-11-010-820 FS22 – Industrial BraggMETER SI Octo channel
K-FS22-13-010-820 FS22 – Industrial BraggMETER SI Octo channel
HBM FiberSensing interrogators are compatible with
catman software, a powerful tool for data acquisition and
processing.
1.2 System Components
The FS22 - Industrial BraggMETER SI set includes:
Standard format Rack-mountable format
- Interrogator
- Power cord
- Power adapter
- Ethernet cable (L ~2 m)
- Mounting blocks with M6
screws
- Connector protection caps
- Quick guide
- Digital support material
- Calibration certificate
- Interrogator
- Power cord
- Ethernet cable (L ~2 m)
- Connector protection caps
- Quick guide
- Digital support material
- Calibration certificate
Technical Details
8A4249-8.0 HBM: public FS22 SI
1.3 Technical Data
Wavelength Measurement
Range 100 nm (1500 to 1600 nm)
Resolution/Repeatability1) <0.5 pm
Stability/Reproducibility1) 1 pm
Optical channels2) 1, 4 or 8
Maximum sensors Operation mode Conventional With SPD
Per OC 125 125
Total 500 1000
Sample rate 1 S/s
Optical detection Logarithmic
Dynamic range3) > 50 dB
Laser Source
Optical output power4)
Single 0 dBm
Quad -3 dBm
Octo -6 dBm
Linewidth < 500 MHz
Connectors
Optical FC/APC and SC/APC
Electrical Standard: Weidmüller Terminal Block
SLDF 5.08 2-way supplied with 100-230 V power
adapter and Type F plug cable5)
Rack-Mountable: C14 (IEC/EN 60320-1) supplied
with Type F plug cable5)
Communication RJ45 Ethernet
Control
Interface Ethernet (TCP/IP)
Commands SCPI (ASCII textual strings)6)
Synchronization NTP
Technical Details
FS22 SI A4249-8.0 HBM: public 9
Features
OSA trace Continuous (wavelength, absolute power)7)
Sleep mode Yes
Local data logging Yes
Storage capacity8) 2 GB
Environmental
Operation temperature 10 to 40 ºC
Operation humidity < 90% at 40 ºC
Storage temperature -20 to 70 ºC
Storage humidity <95% (non-condensing)
Shock Resistance 20 g; 11 ms (EN60068-2-27)
Vibration Resistance9) 2.5 g (EN60068-2-6)
Mechanical
Dimensions (w x h x d) Standard: 155 x 125 x 275 mm
Rack-Mountable: 483 x 88 x 400 mm
Mounting Standard: 6 screws M6
Rack-Mountable: 19" rack mountable (2U)
Enclosure Aluminum
Weight Standard: 4.5 kg (without mounting brackets)
Rack-Mountable: 7 kg
Power
Voltage Standard: 11-36 VDC
Rack-Mountable: 100-240 VAC 50-60 Hz
Consumption4)
Nominal10) 17.5 W
Technical Details
10 A4249-8.0 HBM: public FS22 SI
Stand by 0.4 W
Sleep mode 0.4 W
1) As per NIST Technical Note 1297: Repeatability [§D.1.1.2], σ of measurements carried out under
the same conditions; Reproducibility [§D.1.1.3], σ of measurements carried out under the full
operation conditions (temperature and power cycles). Above mentioned measurements accuracy
[§D.1.1.1] carried out using calibrated instrument against a NIST traceable gas cell. Further details
on HBM FiberSensing technical notes
2) With simultaneous acquisition
3) Considered as the ratio between the optical power emitted at an optical channel and the minimum
detectable optical power reflected by a fiber Bragg grating
4) Typical values
5) Different plug formats can be added upon request
6) Standard Commands for Programmable Instruments
7) Full spectrum trace with 20001 points acquired over the 100 nm range (sampled every 5 pm)
8) Up to 6000 hours of data storage, considering 100 sensors
9) Sinusoidal vibration
10) Peak consumption may reach 38 W (during startup)
