Hardware Reference Guide

HP Compaq t5720/t5725 Thin Client

Document Part Number: 405356-002

July 2006

This book provides basic hardware information for this series of thin

clients.

The information contained herein is subject to change without notice.

Microsoft, MS-DOS, Windows, and Windows NT are trademarks of Microsoft

Corporation in the U.S. and other countries.

The only warranties for HP products and services are set forth in the express

warranty statements accompanying such products and services. Nothing herein

should be construed as constituting an additional warranty. HP shall not be liable

for technical or editorial errors or omissions contained herein.

This document contains proprietary information that is protected by copyright.

No part of this document may be photocopied, reproduced, or translated to

another language without the prior written consent of Hewlett-Packard

Company.

ÅWARNING: Text set off in this manner indicates that failure to follow

directions could result in bodily harm or loss of life.

ÄCAUTION: Text set off in this manner indicates that failure to follow

directions could result in damage to equipment or loss of information.

Hardware Reference Guide

HP Compaq t5720/t5725 Thin Client

Second Edition (July 2006)

Document Part Number: 405356-002

Hardware Reference Guide www.hp.com iii

Contents

1 Product features

Standard features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

Front panel components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Rear panel components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3

System board components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4

Using the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–5

Windows Logo Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6

Additional function keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7

Special mouse functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7

Serial number location. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–7

2 Hardware upgrades

General hardware installation sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

Removing and replacing the chassis cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–3

Installing thin client options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

Flash memory upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

SODIMM upgrade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–6

PCI Expansion Module. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7

Internal battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–10

MultiBay hard drive and diskette drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–10

A Specifications

B Security provisions

Securing the thin client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–1

iv www.hp.com Hardware Reference Guide

Contents

C Mounting the thin client

HP Quick Release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–1

Supported mounting options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–5

Non-supported mounting option. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–8

D Electrostatic discharge

Preventing electrostatic damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D–1

Grounding methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D–2

E Thin client operation

Routine thin client care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E–1

Supported orientations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E–2

Non-supported orientations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E–4

F Shipping information

Shipping preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F–1

Important service repair information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . F–2

Index

Hardware Reference Guide www.hp.com 1-1

Product features

Standard features

HP Compaq t5720/t5725 thin clients are terminals that connect to a

Microsoft server with Citrix MetaFrame software running atop the

server operating system.

HP has partnered with Altiris to manage HP Compaq thin clients.

Altiris Deployment Solution is a leading-edge tool to help with quick

deployment and for on-going management of the thin clients in your

organization. Each HP Compaq thin client is recognized by the Altiris

Deployment Solution as a supported device. As a result, you need not

track license compliancy for each device. For additional information

about the Altiris Deployment Solution tool, refer to the Altiris

Deployment Solution insert that shipped with the thin client and the

Deployment Solution User Guide that is available at:

www.altiris.com/documentation.

The next sections describe the features of the t5720/t5725. For a

complete list of the hardware and software installed on a specific

model, visit

http://h18004.www1.hp.com/products/thinclients/index.html.

The t5720/t5725 includes the following features:

■no moving parts.

■no hard drives or diskette drives (optional MultiBay hard drive

and diskette drive available).

■15-minute setup time.

■while software support is limited to 90 days from date of

purchase, free periodic firmware upgrades during the product's

warranty period help to protect your IT investment.

■central deployment and management using the Altiris

Deployment Solution.

1-2 www.hp.com Hardware Reference Guide

Product features

Front panel components

1Power button 3Flash activity LED

2Power LED 4USB ports (2)

* For more information, refer to the model-specific QuickSpecs at

http://h18004.www1.hp.com/products/quickspecs/QuickSpecs_A

rchives/QuickSpecs_Archives.html.

Hardware Reference Guide www.hp.com 1-3

Product features

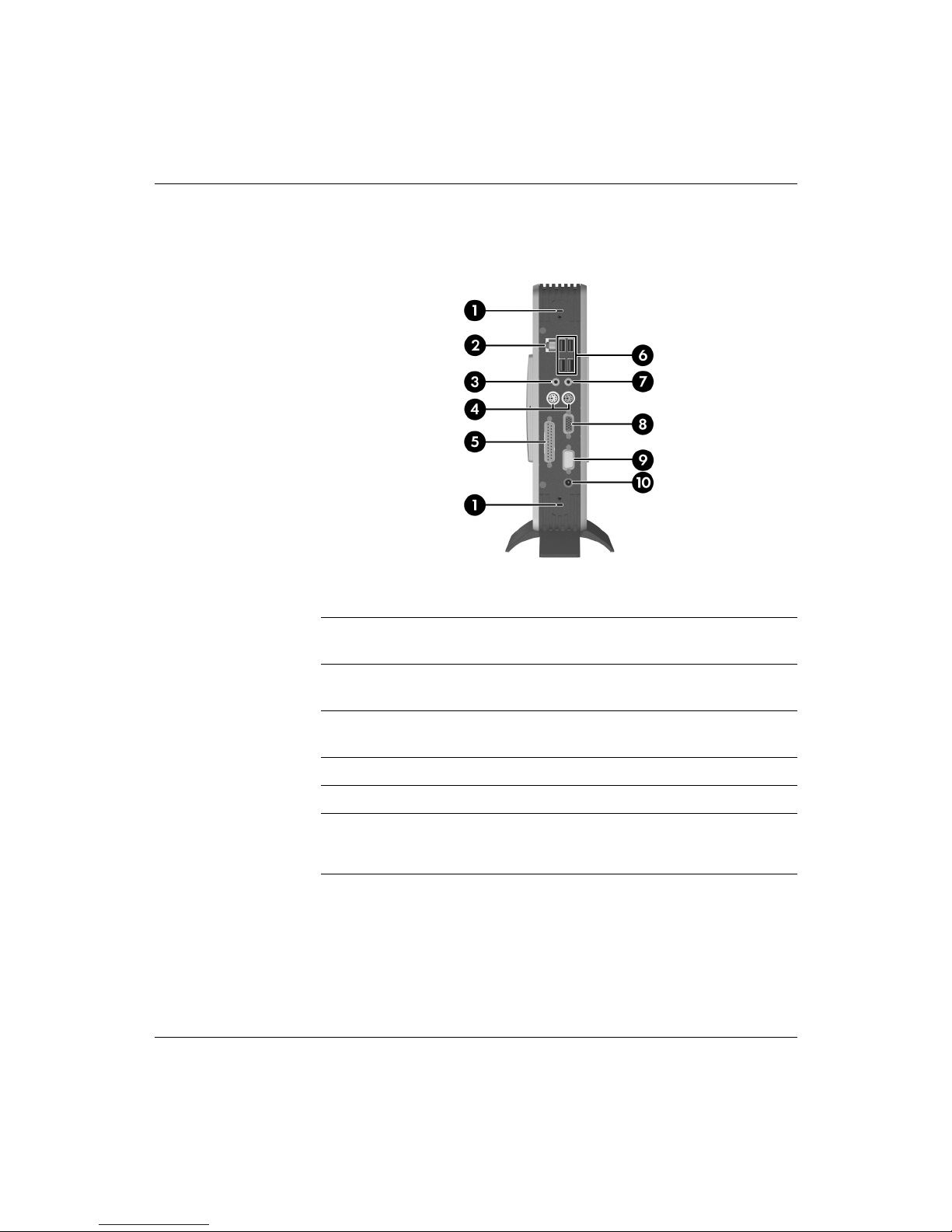

Rear panel components

1Cable lock slots 6Universal Serial Bus (USB)

connectors (4)

2Ethernet RJ-45 connector 7Line-in audio connector

(microphone)

3Line-out audio (headphone)

connector

8Monitor connector

4PS/2 connectors (2) 9Serial connector

5Parallel connector :Power connector

* For more information, refer to the model-specific QuickSpecs at

http://h18004.www1.hp.com/products/quickspecs/QuickSpecs_A

rchives/QuickSpecs_Archives.html.

1-4 www.hp.com Hardware Reference Guide

Product features

System board components

1PCI riser slot 4SODIMM memory

2PCI riser card (optional) 5Flash memory

3Speaker connector

* For more information, refer to the model-specific QuickSpecs at

http://h18004.www1.hp.com/products/quickspecs/QuickSpecs_

Archives/QuickSpecs_Archives.html.

Hardware Reference Guide www.hp.com 1-5

Product features

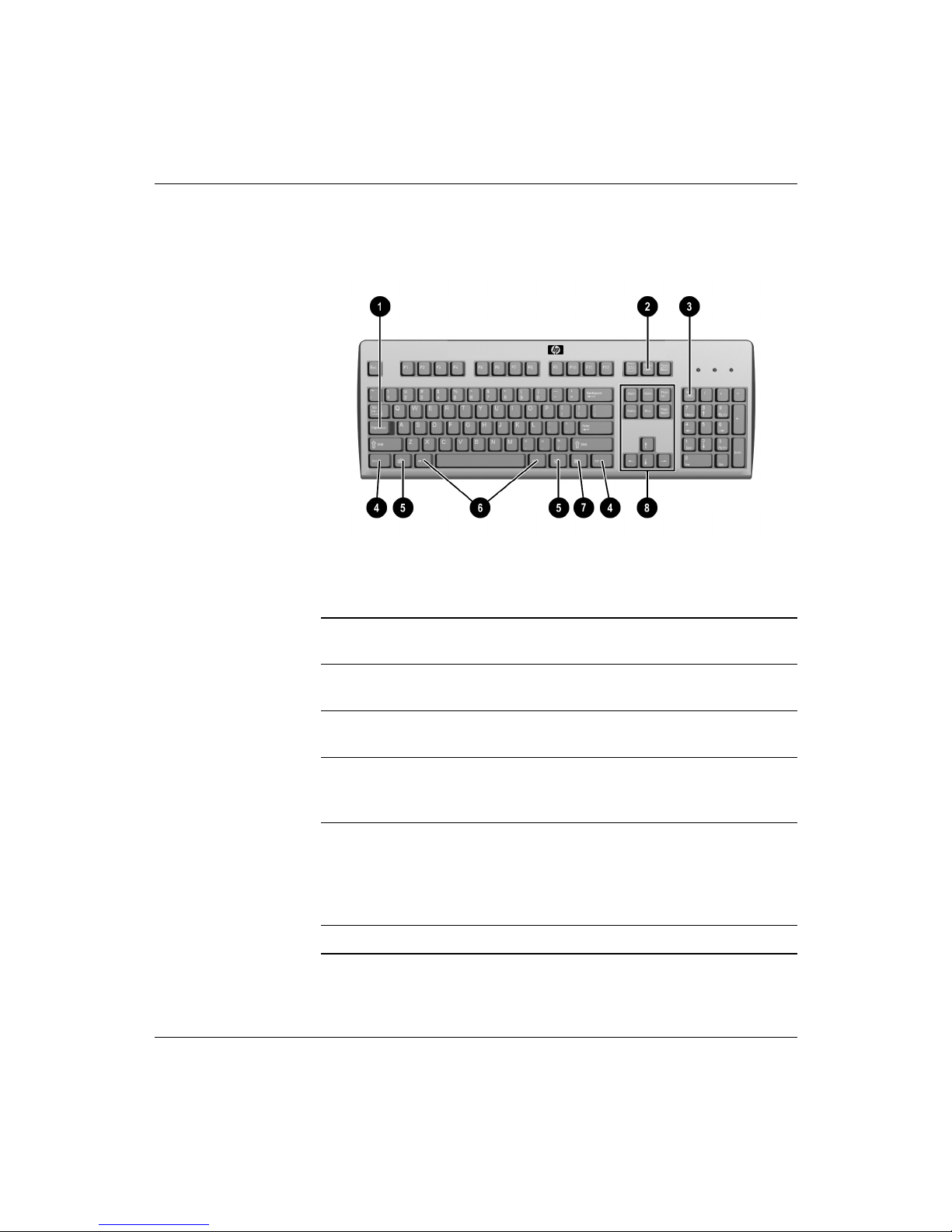

Using the keyboard

Keyboard features

Enhanced keyboard components

1Caps Lock key Activates/deactivates the Caps Lock

feature.

2Scroll Lock key Activates/deactivates the Scroll Lock

feature.

3Num Lock key Activates/deactivates the Num Lock

feature.

4Ctrl key Use in combination with another key; its

function depends on the application

software you are using.

5Windows Logo

Key

Opens the Start menu in Microsoft

Windows. Use in combination with other

keys to perform other functions. For more

information, see “Windows Logo Key”

on page 6.

Available in select geographic regions.

1-6 www.hp.com Hardware Reference Guide

Product features

Windows Logo Key

Use the Windows Logo Key in combination with other keys to

perform certain functions available in Windows operating systems.

6Alt key Use in combination with another key; its

function depends on the application

software you are using.

7Application key

Opens (like the right mouse button)

pop-up menus in a Microsoft Office

application. May perform other functions

in other software applications.

8Editing keys Includes the following: Insert, Home,

Page Up, Delete, End, and Page Down.

Hold down Ctrl and Alt while pressing

Delete to restart the thin client.

Available in select geographic regions.

Enhanced keyboard components (Continued)

Windows Logo Key + Tab Switch between open items.

Windows Logo Key + eOpen My Computer.

Windows Logo Key + fSearch for a file or folder.

Windows Logo Key + Ctrl + fSearch for computers.

Windows Logo Key + mMinimize all windows.

Windows Logo Key + Shift + mUndo minimize all.

Windows Logo Key + Break Display the System Properties

dialog box.

Windows Logo Key + rOpen the Run dialog box.
