Processor Upgrade

Instructions

HP Integrity rx2600 server

HP workstation zx6000

This document explains how to:

■Add a second processor

■Upgrade processor(s) from 900Mhz or 1GHz to 1.3 MHz or

1.5 Mhz

To remove or replace the processor, you must:

1. Check the contents of the Processor Upgrade Kit

2. Upgrade the system firmware (if necessary)

3. Follow electrostatic discharge (ESD) precautions

4. Read the safety warnings

5. Remove the old processor (if necessary)

6. Install the new processor

7. Upgrade the operating system (if necessary)

This document explains these tasks.

Check Package Contents

NOTE: On systems with two processors, you must upgrade both

at the same time. This requires two processor upgrade kits.

Check to verify that you have all of the components:

■Processor

■Special processor tool

■Firmware upgrade CD, which contains the System and

Management Processor (MP) card firmware

■ESD materials:

❏Static-free mat

❏Static strap

Upgrade System Firmware (if necessary)

If you are upgrading from 900 Mhz or 1 GHz to 1.3 GHZ or 1.5

GHz, you may need to upgrade the system firmware.

If you are adding a second processor, you should not need to

upgrade the firmware.

The following firmware versions are required:

■System firmware version 2.01 or higher

■BMC firmware version 1.50 or higher

To check the system and BMC firmware versions, execute the

Extensible Firmware Interface (EFI) info fw command. The

first line of the output lists the firmware versions.

For instructions on using the EFI, see “Extensible Firmware

Interface (EFI)” in Chapter 3 of the hp rx2600/zx6000

Operation and Maintenance Guide.

■MP card firmware version 2.10 or higher

Connect to the MP through the console. Execute the help

command. The firmware version is listed on the first line of

the output.

For instructions on connecting to the MP or using the MP

card, see “Management Processor (MP)” in Chapter 3 of the

hp rx2600/zx6000 Operation and Maintenance Guide.

ÄCAUTION: DO NOT ATTEMPT TO DOWNGRADE FIRMWARE

AFTER UPDATING TO REVISION 2.01. DOWNGRADING

FIRMWARE COULD POTENTIALLY RENDER THE SYSTEM

INOPERABLE.

Follow these steps to upgrade the system and BMC firmware or

the MP card firmware if necessary:

1. Use the CD included in the upgrade kit, or download the

firmware update from the web:

a. Go to www.hp.com/go/bizsupport. Navigate to the

support page.

b. Select download drivers/software.

c. Enter the product name in the search field (Integrity

rx2600 server or zx6000 workstation).

d. Select the search result.

e. Choose the firmware release you need to download

(system and BMC or MP card).

f. Click the i information icon for instructions on how to

download, unpack, and install the firmware upgrade.

2. Install the firmware upgrade following the CD or download

instructions.

3. Execute the info fw EFI command to confirm that the

upgrade was successful.

Read Safety Warnings

ÅWARNING: To remove or replace a processor, you must:

1. Power off the system.

2. Unplug the system power cord from the AC power outlet.

ÅWARNING: Avoiding Electrical Shocks. To avoid electrical shock,

do not open the power supplies. There are no user-serviceable parts

inside. To avoid electrical shock and harm to your eyes by laser light,

do not open the DVD laser module. The laser module should be

serviced by service personnel only. Do not attempt to make any

adjustment to the laser unit. Refer to the label on the DVD for power

requirements and wavelength. This product is a class I laser product.

ÅWARNING: Removing and Replacing the Cover. For your safety,

never remove the system side cover without first disconnecting the

power cord from the power outlet and removing any connection to a

telecommunications network. If a Power Protection Device is fitted to

your system, you must shut down your computer using its on/off

switch, then remove the power cord before removing the system's side

cover. Remove the Power Protection Device cables before any

servicing operation. Always replace the side cover before switching

the system on again.

ÅWARNING: Avoiding Burn Injuries. Some parts inside the computer

will be hot. Wait approximately three to five minutes for them to cool

down before touching them.

ÄCAUTION: Avoiding Static Electricity. Static electricity can damage

electronic components. Turn OFF all equipment before installing an

accessory card. Don't let your clothes touch any accessory card. To

equalize the static electricity when replacing an accessory card, rest

the accessory card bag on top of the system unit while you are

removing the card from the bag. Handle the card as little as possible

and with care.

ÄCAUTION: To maintain FCC Electromagnetic Interference (EMI)

compliance, verify that all covers are replaced and that all

screws are properly seated.

ÄCAUTION: DO NOT ATTEMPT TO DOWNGRADE FIRMWARE

AFTER UPDATING TO REVISION 2.01. DOWNGRADING

FIRMWARE COULD POTENTIALLY RENDER THE SYSTEM

INOPERABLE.

Follow Electrostatic Discharge (ESD)

Precautions

To prevent damage to this system, observe all of the following

ESD precautions while performing the system parts removal/

replacement procedures:

■Work on a static-free mat.

■Wear a static strap to ensure that any accumulated

electrostatic charge is discharged from your body to ground.

■Create a common ground for the equipment you are working

on by connecting the static-free mat, static strap, and

peripheral units to that piece of equipment.

■Keep uninstalled printed circuit boards in their protective

antistatic bags.

■Handle printed circuit boards by their edges once you have

removed them from their protective antistatic bags.

Add or Upgrade the Processor

If there are two processors on your system board, you must

upgrade both. This requires two Processor Upgrade Kits.

If you are upgrading a processor, you must first remove the old

one. See “Remove the Old Processor” on page 6.

If you are adding a second processor, skip to “Install the New

Processor” on page 10.

ÄCAUTION: You must disconnect all power and follow the correct

sequence of steps for your system to avoid serious damage to the

system.

Remove the Old Processor

1. Turn off the system, disconnect all power and external

cables and remove the system cover(s).

2. Remove the processor airflow guide and cables.

3. Unscrew the processor power pod mounting screws (1) and

disconnect the module from its processor by sliding it toward

the back of the system chassis (2).

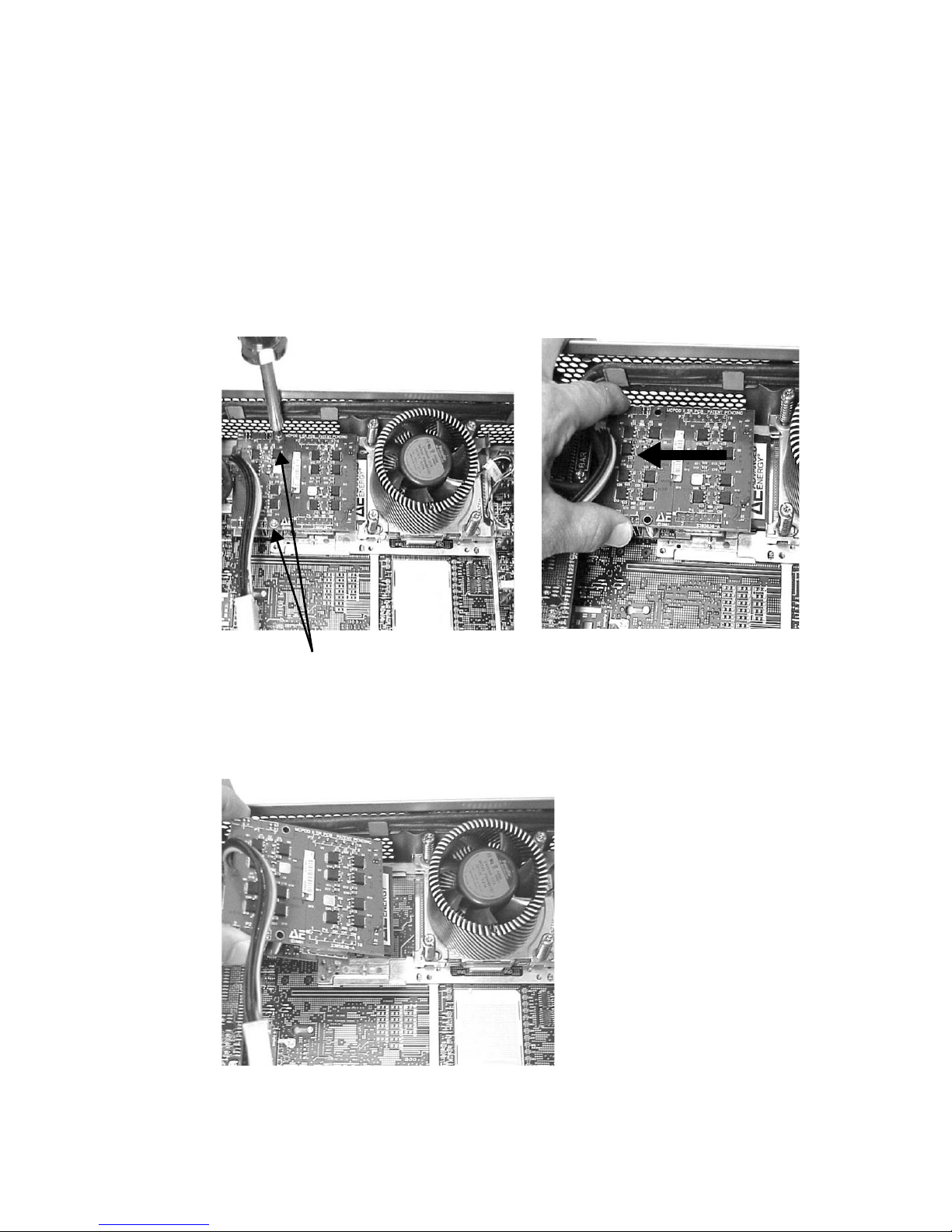

Disconnect the Processor Power Pod

4. Remove the processor power pod from the system.

Remove the Processor Power Pod

5. Disconnect the power cable for the processor turbo fan.

Disconnect the Power Cable for the Processor Turbo Fan

6. Unscrew the four heatsink captive screws using the special

processor tool (provided with the processor upgrade kit).

7. Slide the sequencing retainer plate toward the back of the

system to open the hole in the edge of the turbo fan heatsink.

Unscrew the Turbo Fan Heatsink Captive Screws

8. Insert the special processor tool into the processor locking

mechanism, and unlock the mechanism.

The hole runs down through the edge of the turbo fan

heatsink. Rotate the special processor tool 180 degrees

counterclockwise.

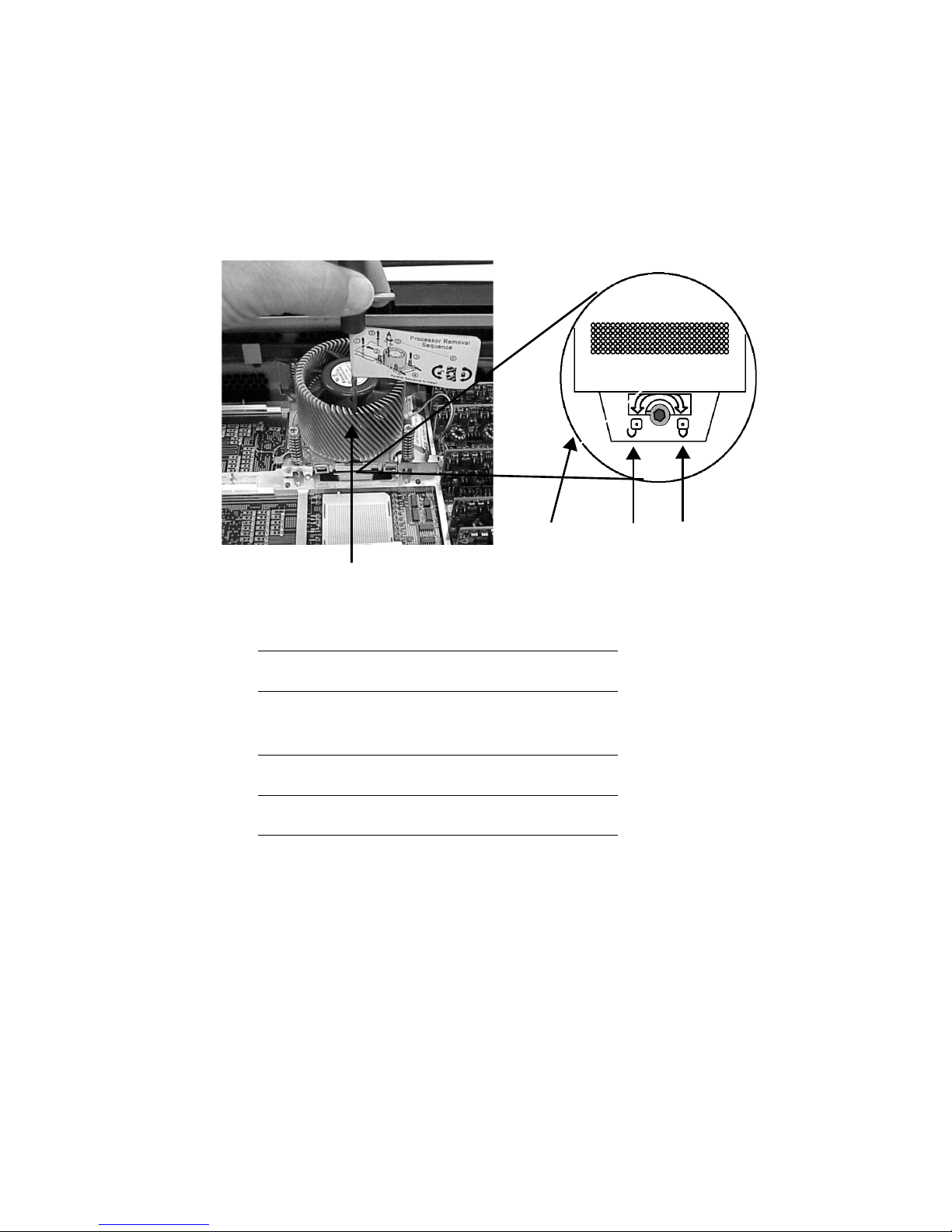

Unlocking the Processor Locking Mechanism

1Insert special processor tool here

2The special processor tool rotates

this lock underneath the heat sink

3Unlocked

4Locked

234

9. Remove the turbo fan heatsink and processor from the

system.

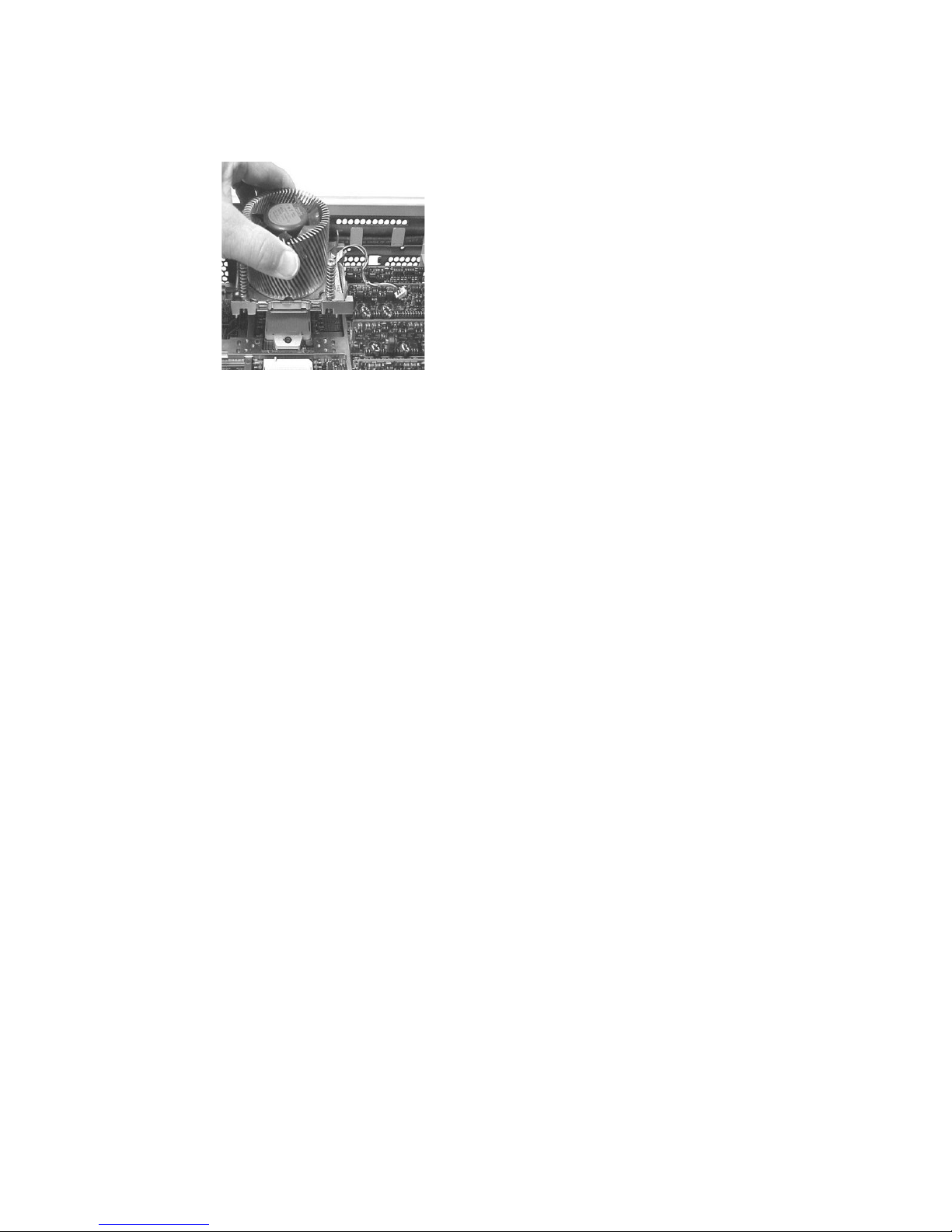

Removing the Turbo Fan Heatsink and the Processor

Install the New Processor

You must have a processor in socket CPU0 before installing one

in socket CPU1.

1. If you have not already done so, turn off the system,

disconnect all power and external cables and remove the

system cover(s) and remove the old processor.

2. Ensure that the processor locking mechanism is rotated into

the unlocked position.

Processor Locking Mechanism

3. Check to ensure that no processor pin is bent.

1Unlocked

2Locked
