IBASE Technology MI888 Manuale utente
MI888
Intel®Pineview-M/ Pineview-D +ICH8M
Luna-Pier / Luna-Pier Refresh Platform
Mini-ITX Motherboard
USER’S MANUAL
Version 1.0
ii
MI888 User’s Manual
Acknowledgments
AMI BIOS is a trademark of American Megatrends Inc.
PS/2 is a trademark of International Business Machines
Corporation.
Intel and Luna-Pier are registered trademarks of Intel
Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
Winbond is a registered trademark of Winbond Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.
MI888 User’s Manual iii
Table of Contents
Introduction .......................................................5
Checklist ......................................................................................6
MI888 Specifications...................................................................7
Board Dimensions........................................................................8
Installations .......................................................9
Installing the Memory................................................................10
Setting the Jumpers....................................................................11
Connectors on MI888 ................................................................15
BIOS SETUP ....................................................23
Drivers Installation ......................................43
Intel Chipset Software Installation Utility.................................44
Intel Pineview Chipset Family Graphics Driver Installation.....46
Realtek High Definition Codec Audio Driver Installation ........48
Realtek RTL8111DL LAN Drivers Installation ........................49
Appendix ...........................................................51
A. I/O Port Address Map ...........................................................51
B. Interrupt Request Lines (IRQ)...............................................52
C. Watchdog Timer Configuration ............................................53
D. Digital I/O Sample Code.......................................................58
iv
MI888 User’s Manual
This page is intentionally left blank.
INTRODUCTION
Introduction

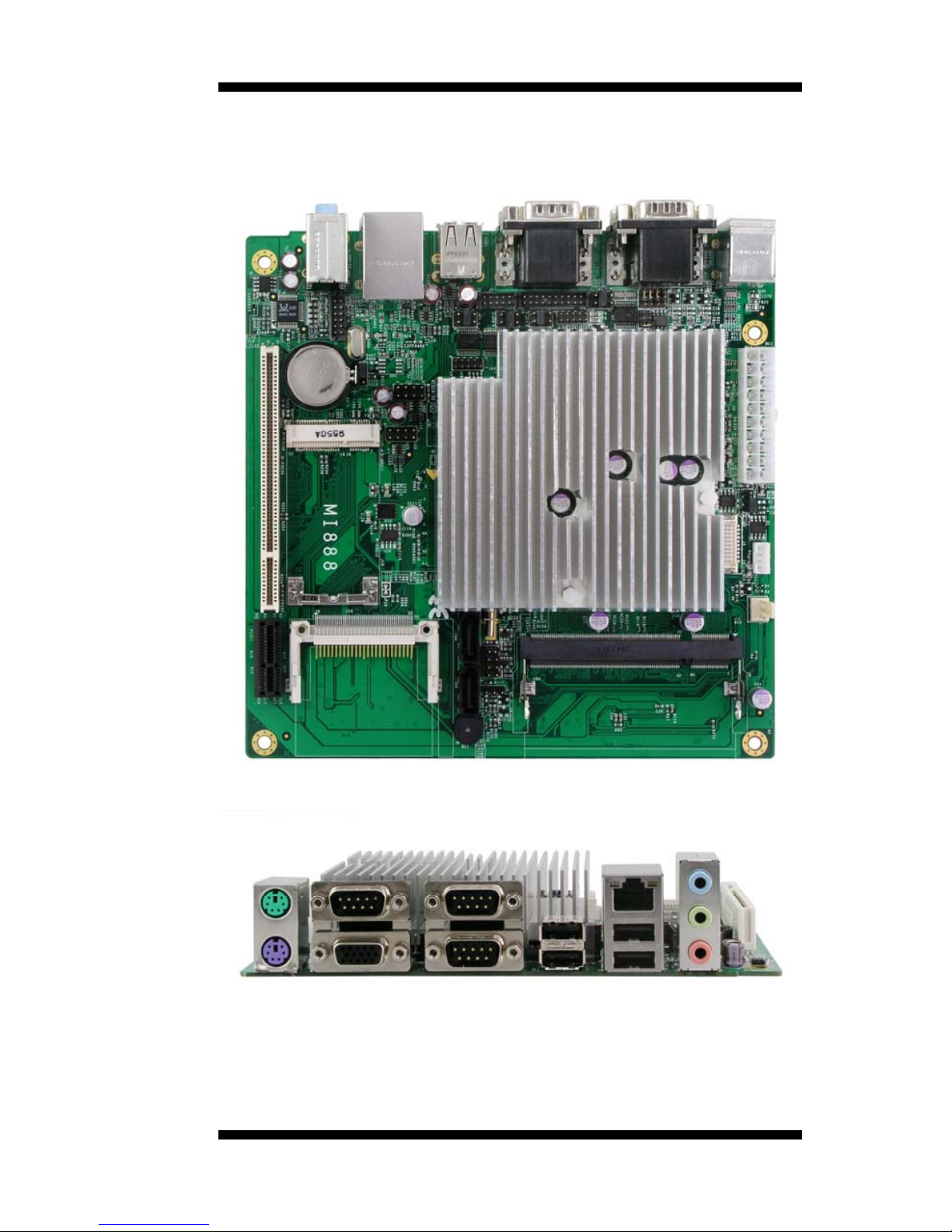

MI888 Mini ITX Motherboard
MI888 Edge Connectors
MI888 User’s Manual 5
INTRODUCTION
6
MI888 User’s Manual
Checklist
Your MI888 package should include the items listed below.
•The MI888 Intel®Luna-Pier Mini-ITX motherboard
•This User’s Manual
•1 CD containing chipset drivers and flash memory utility
•Cable kit (USB, Serial port, Serial ATA)
INTRODUCTION
MI888 User’s Manual 7
MI888 Specifications
Form Factor MiniITX
CPU Type Intel® Pineview-M & Pineview-D Microprocessor (45nm
Technology)
CPU Speed Atom SC N450 1.66 GHz/ 512KB L2 cache (MI888)
Atom DC D510 1.66GHz / 1MB L2 cache (MI888-D5)
Green /APM APM1.2
BIOS AMI BIOS, support ACPI Function
Chipset Intel® Luna-Pier / Luna-Pier Refresh platform
Pineview-M : 22mm x 22mm, Micro-FCBGA8 (5.5W)
or Pineview-D : 22mm x 22mm, Micro-FCBGA8 ( 13W for DC)
ICH8M: 31mm x 31mm, 676-pin T-PBGA (2.4W)
Memory DDR2 667MHz
N450 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single
channel
D510 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single
channel
VGA Intel® Integrated Graphics Controller
Luna Pier supports DirectX 9 Graphic (200MHz)
Luna Pier Refresh supports DirectX 9 Graphic (400MHz)
OpenGL 1.4
LVDS 18-bit one channels LVDS interface w/DF13 socket x1
LAN Realtek 8111DL x 1
USB ICH8M built-in USB 2.0 host controller, support 8 ports
Serial ATA Ports ICH8M built-in SATA controller, supports 2 ports
Parallel IDE ICH8M built-in one channel Ultra DMA 33/66/100, for CF Type II
(Component side)
Audio Intel ICH8M built-in audio controller w/ Realtek ALC662 Codec
Supports 5.1 CH audio (Line-out, Line-in & MIC )
LPC I/O Winbond W83627UHG :
COM1 (RS232/422/485), COM2(RS232), COM3 (RS232), COM4
(RS232), with pin-9 with power for 4 ports (500 mA for each port)
Hardware monitor (2 thermal inputs, 4 voltage monitor inputs,
VID0-4 & 1 x Fan Header)
Digital IO 4 in & 4 out
KB/Mouse
Connector
Yes
Expansion Slots Mini PCI-express socket x 1 for Wireless LAN or other module
PCI + PCI-Express(1x) slot x1
Edge Connector PS/2 KBMS connector x 1
DB15 + DB9 Stack connector x1 for VGA+COM 1
Dual DB9 Stack connector x 1 for COM2,3
RJ45 + Dual USB stack connector x1 for LAN 1 + USB 1,2
Dual USB stack connector x 1 for USB 3, 4
Audio 3-port connector x 1 (Line-out, Line-in, MIC)
On Board
Header/Connecto
r
2x4 pins header x 2 for 4 USB ports
LVDS ( DF13 X 1 )
Mini PCI-e connector x 1
12 pins header x1 for front audio
DF11-10 pins box header x 1 for COM4
CF type II connector x 1
2x5 pin header x 1 for Digital I/O
Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)
Power Connector ATX (20-pin)
Board Size 170mm x 170mm
INTRODUCTION

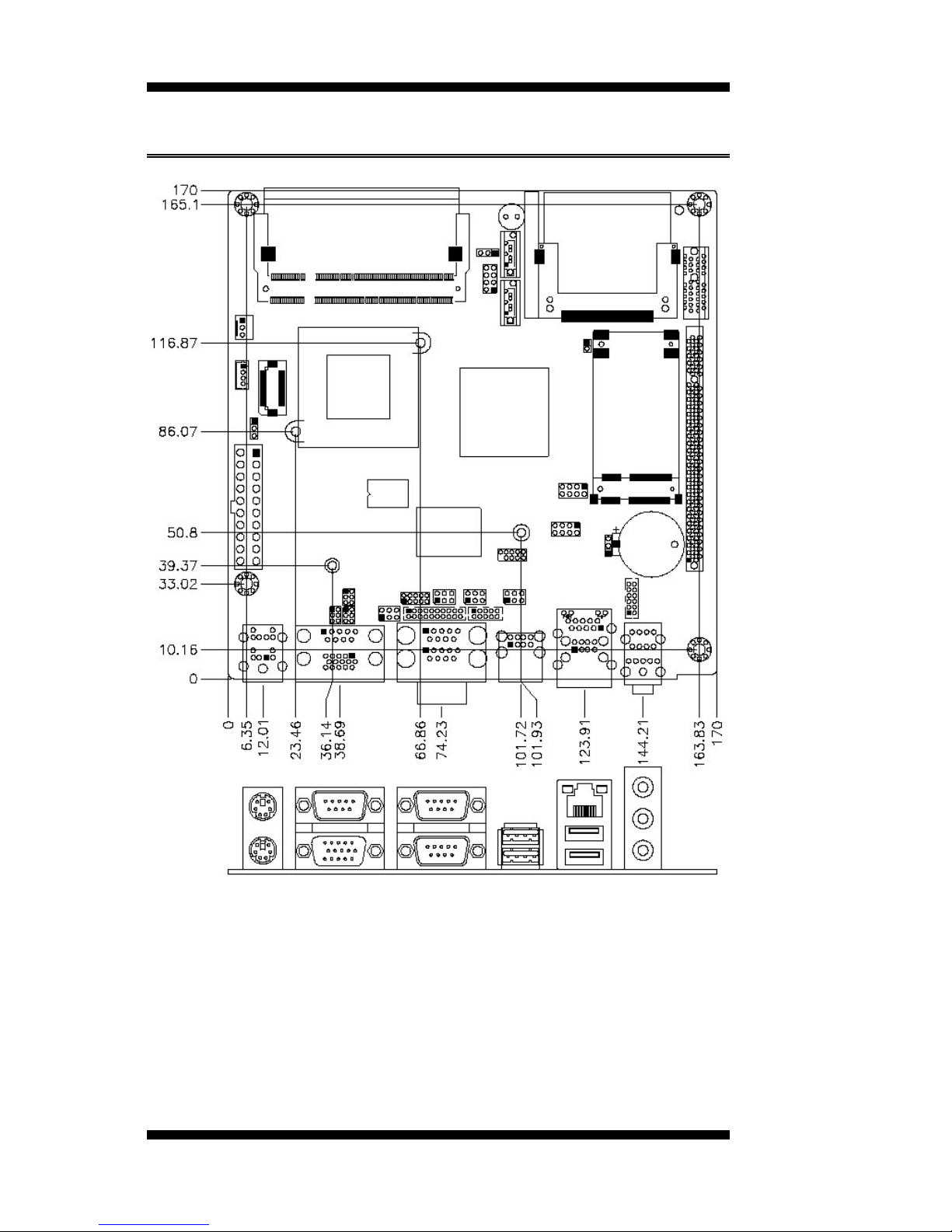

Board Dimensions
8
MI888 User’s Manual
INSTALLATIONS
MI888 User’s Manual 9
Installations
This section provides information on how to use the jumpers and
connectors on the MI888 in order to set up a workable system. The
topics covered are:
Installing the Memory ......................................................................... 10
Setting the Jumpers.............................................................................. 11
Connectors on MI888.......................................................................... 15
INSTALLATIONS
Installing the Memory
The MI888 board supports one DDR667 DDR2 memory.
Remarks:
N450 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single channel
D510 supports SO-DIMM x 1 (w/o ECC), Max. 2GB , Single channel
Installing and Removing Memory Modules
To install the DDR2 modules, locate the memory slot on the board and
perform the following steps:

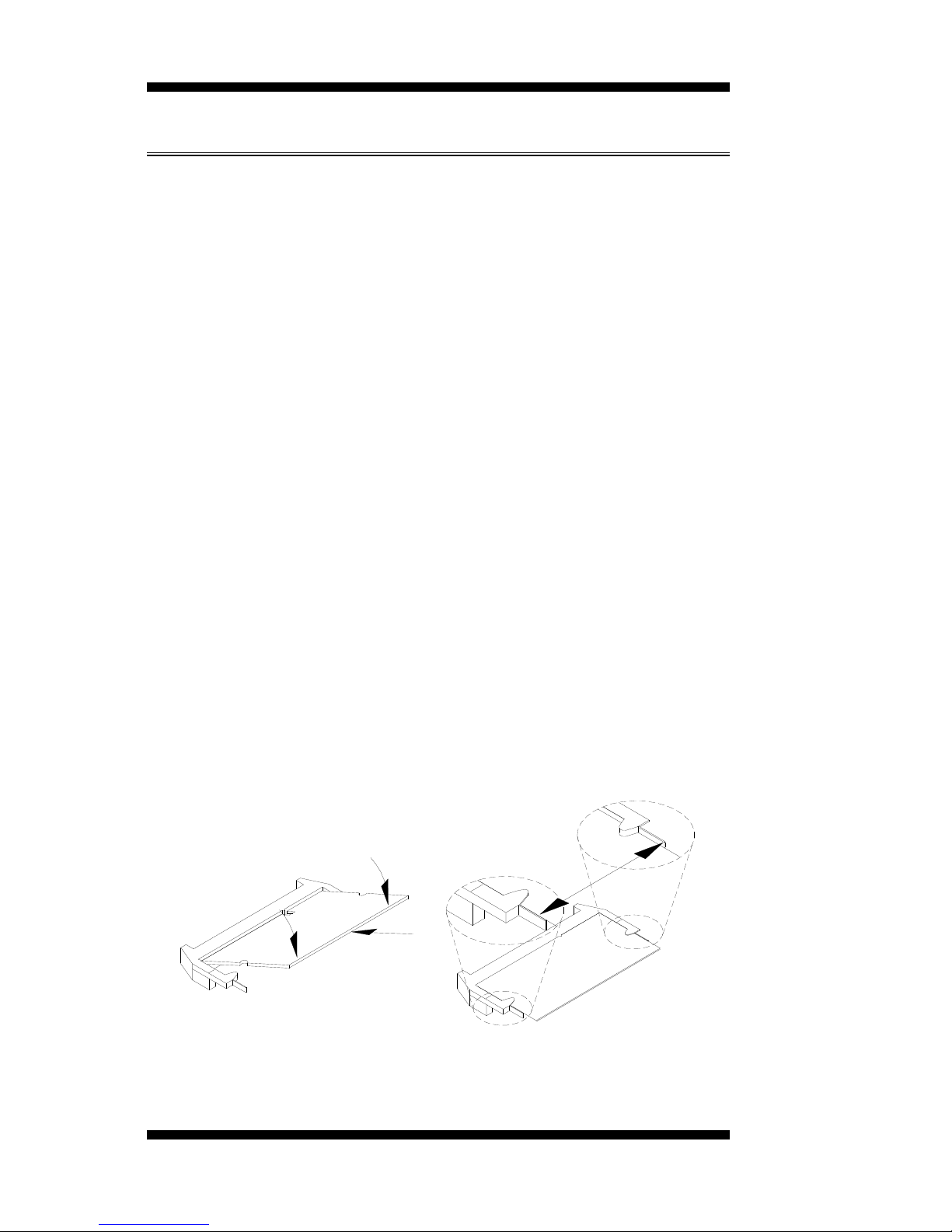

1. Hold the DDR2 module so that the key of the DDR2 module aligns
with that on the memory slot. Insert the module into the socket at a
slight angle (approximately 30 degrees). Note that the socket and
module are both keyed, which means that the module can be installed
only in one direction.
2. To seat the memory module into the socket, apply firm and even
pressure to each end of the module until you feel it slip down into the
socket.
3. With the module properly seated in the socket, rotate the module
downward. Continue pressing downward until the clips at each end
lock into position.
4. To remove the DDR2 module, press the clips with both hands.
10
MI888 User’s Manual
