IBASE Technology MB870 Manuale utente

MB870

Socket 478 Pentium 4

ATI RS300M Mini ITX

USER’S MANUAL

Version 1.0

ii MB870 User’s Manual

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Pentium 4 are registered trademarks of Intel

Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MB870 User’s Manual iii

Table of Contents

Introduction .......................................................1

Product Description............................................................. 1

Checklist..............................................................................2

Specifications ......................................................................3

Board Dimensions ...............................................................4

Installations .......................................................5

Installing the CPU ............................................................... 6

Installing the Memory .........................................................7

Setting the Jumpers .............................................................8

Connectors on MB870 ...................................................... 12

Watchdog Timer Configuration ........................................23

Digital I/O Sample Code ................................................... 27

BIOS Setup.......................................................31

Drivers Installation ......................................50

ATI Chipset Software Installation Utility .........................51

Realtek AC97 Codec Audio Driver Installation................ 55

Realtek RTL8100 LAN Drivers Installation ..................... 57

Appendix ...........................................................59

A. I/O Port Address Map................................................... 59

B. Interrupt Request Lines (IRQ)...................................... 60

iv MB870 User’s Manual

This page is intentionally left blank.

INTRODUCTION

MB870 User’s Manual 1

Introduction

Product Description

The MB870 Pentium 4 Mini ITX board incorporates the ATI RS300M

chipset and supports 478-pin Intel Pentium 4 processors of 2GHz and up

to 3.2GHz+ with FSB 800MHz/533MHz/400MHz. MB870 supports the

Pentium 4 processor with 256-KB L2 cache, Pentium 4 processor with

512-KB L2 cache on 0.13 micron process.

The I/O functions are on MB870 integrated onto the IXP150. It supports

the integrated graphics processor (IGP) on the IGP9180. The IGP has

3D, 2D, and video capabilities. The system memory size can be up to

1GB, using the single DDR socket on board. Four USB ports are

supported with the USB 1.1/2.0 standard.

MB870 supports TV out and LVDS with the use of the ATI RS300M

integrated graphics device that accepts two digital graphics input data

streams. One data stream outputs through an LVDS transmitter to an

LCD panel, while the other data stream is encoded for NTSC or PAL TV

and outputs through a 10-bit high speed DAC. The TV encoder device

encodes a graphics signal up to 1024x768 resolution and outputs the

video signals according to NTSC or PAL standards. The LVDS function

supports 18 bit single and dual channel LCD panels.

*The board does not support 24-bit single and dual channel LCD

panels.

The MB870 Mini ITX SBC supports CRT VGA interface as well as TV

out and LVDS interface. Realtek LAN 8100BL supports Ethernet

functionality (10/100Mb). The board also has AC97 6CH audio, 4 COM

ports, UDMA 100, 4 USB ports, two serial ATA ports, watchdog timer

and a PCI slot for expandability. Dimensions of the board are 170mm x

170mm.

This board represents the perfect choice for those who want superior

performance for POS, kiosk, ATM, Web payphone, medical and other

embedded applications.

INTRODUCTION

2MB870 User’s Manual

Checklist

Your MB870 package should include the items listed below.

• The MB870 P4 Mini ITX board

• This User’s Manual

• 1 CD containing chipset drivers and flash memory utility

• Optional cables such as:

• 1 slim FDD Ribbon Cable

• 2 IDE Ribbon Cables (40-pin & 44-pin)

• 1 COM Port Cable

• Serial ATA Cable

INTRODUCTION

MB870 User’s Manual 3

Specifications

Product Name MB870

Form Factor Mini ITX

CPU Type Socket 478 (Intel Pentium 4 / Celeron)

CPU Voltage 0.8375V~1.6V (VRD10)

System Speed 2.0AG~3.2GHz

CPU Operating

Frequency

400/533/800MHz

Green /APM APM1.2

CPU Socket Socket 478

Chipset

ATI RS300M Chipset

NB: Mobility IGP9180 868 PIN BGA

SB: IXP150 457 PIN BGA

BIOS Award BIOS, with ACPI Function

Cache 128K/256K/512K Level 2 (CPU integrated)

VGA Mobility IGP9180 embedded, AGP 4X,CRT, TV-out,

LVDS

LAN Realtek RTL8100 10/100Mb LAN controller

Audio IXP150 built-in sound controller + AC97 Codec

ALC655 AC3 5.1 CH. (Line-out, Line-in, Mic)

Memory type

1 x DDR, 2.5V, DDR266/333/400 SDRAM(without

ECC Function) DIMM Module, Max. capacity - 1GB

LPC I/O 1. First I/O : Winbond 83627HF: IrDAx1 Parallel x1,

COM1(RS-232), COM2(RS-232), FDC 1.44MB (Slim type),

Hardware monitor (3 thermal inputs, 8 voltage monitor

inputs, VID0-4 , 1 chassis open detection ,3 fan headers)

2. Secondary I/O: Fintek F81216 support COM3,4 (RS-232)

Keyboard

Controller

Winbond 83627HF built-in

Local bus IDE IXP150 built-in, IDE1 40-pin pitch 2.54mm (Ultra

DMA 33/66/100), IDE2 44-pin pitch 2.0mm

Serial ATA SiI3512, 2 ports

Digital I/O 4 in, 4 out

On board D-type

connector

PS/2 Keyboard/Mouse, VGA(CRT), COM1, Printer,

USBx2, RJ-45, Line-out , Line-in, Mic, TV-out

Power Connector ATX 12V

PCI Slot 1 slot (support 2 bus master)

USB 4 ports, USB 2.0

IrDA (Infrared Ray) Pin header, allows infrared wireless communication.

Watchdog Timer Yes (256 segments, 0,1,2…255. sec/min)

System Voltages +5V, +12V, -12V, 5VSB-5V, 3.3V

Board Size 170 x170mm

Other Features Modem Wakeup, LAN Wakeup

INTRODUCTION

4MB870 User’s Manual

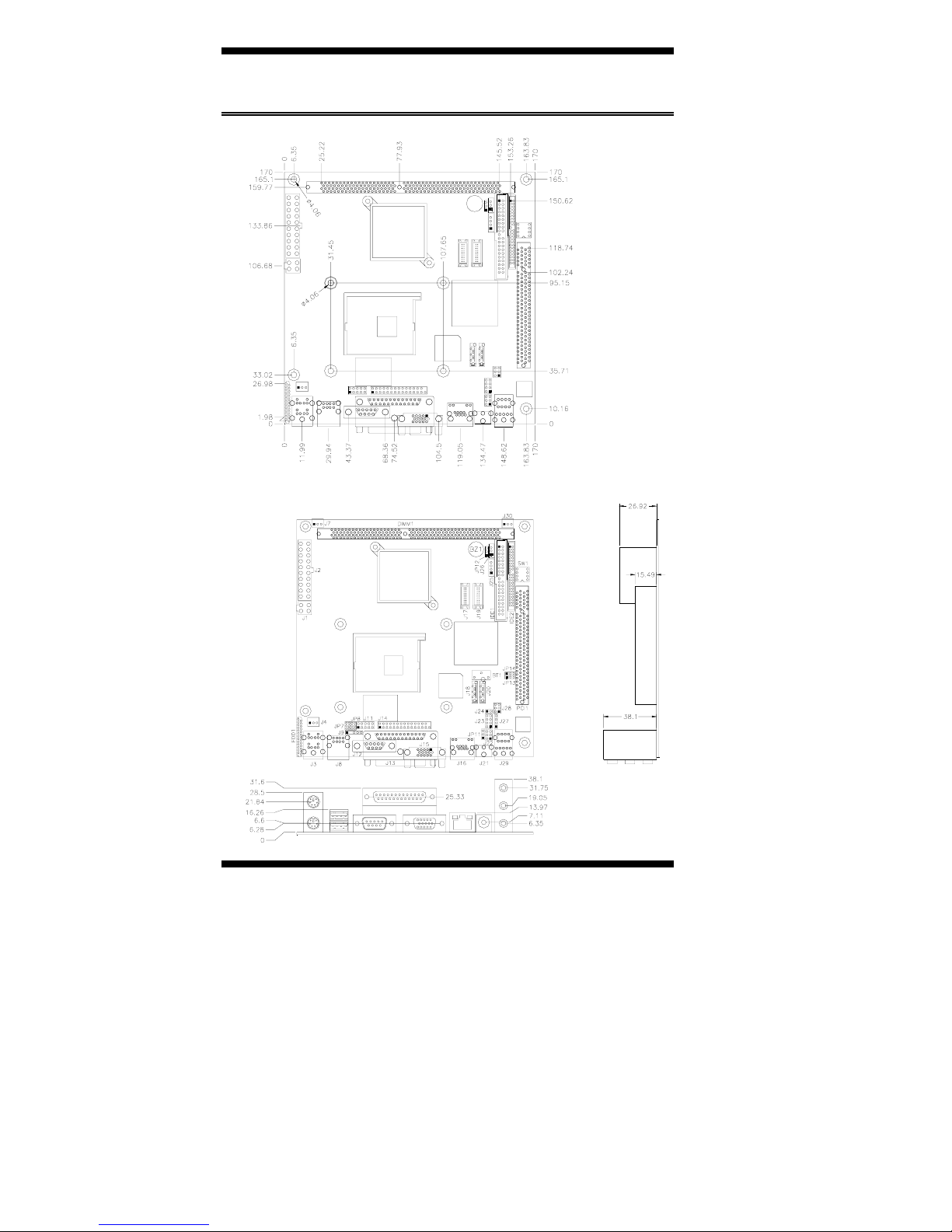

Board Dimensions

INSTALLATIONS

MB870 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the MB870 in order to set up a workable system. The

topics covered are:

Installing the CPU ............................................................... 6

Installing the Memory .........................................................7

Setting the Jumpers ............................................................. 8

Connectors on MB870 ...................................................... 12

Watchdog Timer Configuration ........................................23

Digital I/O Sample Code ................................................... 27

INSTALLATIONS

6MB870 User’s Manual

Installing the CPU

The MB870 embedded board supports a Socket 478 processor socket for

Intel Pentium 4 processors.

The Socket 478 processor socket comes with a lever to secure the

processor. Raise this lever to about a 90°angle to allow the insertion of

the processor. Place the processor into the socket by making sure the

notch on the corner of the CPU corresponds with the notch on the inside

of the socket. Once the processor has slide into the socket, return the

lever to the lock position. Refer to the figures below.

After you have installed the processor into the socket, check if the

jumpers for the CPU type and speed are correct.

NOTE: Ensure that the CPU heat sink and the CPU top surface are in

total contact to avoid CPU overheating problem that would

cause your system to hang or be unstable.
