IBASE Technology IB800 Manuale utente

IB800

Full-Size Socket 478 Pentium 4

Intel 845 CPU Card

USER’S MANUAL

Version 1.0B

ii IB800 User’s Manual

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

IntelandPentium 4are registeredtrademarks ofIntel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

IB800 User’s Manual iii

Table of Contents

Introduction........................................................1

Product Description..........................................................1

Checklist...........................................................................2

Specifications....................................................................3

Board Dimensions.............................................................4

Installations........................................................5

Installing the CPU.............................................................6

ATX Power Installation ....................................................7

MicroPCI Daughter Card Installation................................7

Installing the Memory (DIMM) .........................................8

Setting the Jumpers...........................................................9

Connectors on IB800 ......................................................14

BIOS Setup........................................................28

Drivers Installation.......................................50

Appendix............................................................72

A. I/O Port Address Map.......................................................73

B. Interrupt Request Lines (IRQ) .........................................74

iv IB800 User’s Manual

This page is intentionally left blank.

INTRODUCTION

IB800 User’s Manual 1

Introduction

Product Description

The IB800 Pentium 4 Full Size PICMG CPU Card incorporates the

Intel® advanced 845 Chipset Memory Controller hub and supports

478-pin Intel Pentium 4 processors of 1.3GHz and up to 2GHz. This

CPU card represents the perfect choice for those who want superior

performance for rugged and demanding applications in industrial

automation, image processing, multimedia and telecommunications.

The IB800 CPU card has a unique thermal cooling design that makes it

ideal for meeting 1U chassis requirements. Designed for the highest level

of computing performance yet available on SBCs, IBase’s IB800 features

400MHz front side bus, ATA-100 IDE data transfers, and up to 3GB of

SDRAM support that delivers 1GB/s of memory bandwidth. IB800

features ATI Mobility Radeon M6-M (8MB embedded) or M6-D (16MB

embedded) graphics controller offering 4X AGP and 8MB or 16MB of

internal video Double Data Rate RAM that supports interface for TMDS,

LVDS, CRT and TV-out interface.

This single board computer also offers flexibility with 4 USB ports, ICH2

integrated Ethernet, watchdog timer, DiskOnChip socket, ISA High

Drive, PCI to ISA bridge and an MicroPCI socket supporting MicroPCI

add on cards from IBase.IB800 is a high-performance flexible CPU card

that comes with one built-in MicroPCI socket that supports MicroPCI

daughter cards with VGA, VGA/LAN, Ethernet (LAN), SCSI, and IEEE

1394 functions.

DiskOnChip flash disks are storage devices that have no moving parts

and emulates FDD/HDD with Flash/RAM/ROM offering reliable

data/program storage and long life span. They are reliable and suitable for

industrial or other harsh environments characterized by motion, shock,

vibration, adverse temperature, dust and humidity. Other features include

faster data access, longer MTBF, lower power consumption, cost

effective for small capacity and small form factor.

INTRODUCTION

2IB800 User’s Manual

Checklist

Your IB800 package should include the items listed below.

•The IB800 Industrial CPU Card

•This User’s Manual

•1 IDE Ribbon Cable

•1 Floppy Ribbon Connector

•2Serial Port Ribbon Cable and 1 Parallel Port Attached to a

Mounting Bracket

•1 Y-Cable supporting a PS/2 Keyboard and a PS/2 Mouse

•1 CD containing the following:

•Chipset Drivers

•Flash Memory Utility

INTRODUCTION

IB800 User’s Manual 3

Specifications

Processor

Supported Socket 478 support Intel Pentium 4

1.3GHz~2GHz, 400MHz Bus Speed

Chipset Intel 845 Chipset

BIOS Award BIOS

Supports ACPI

System Memory 3x DIMM sockets support up to 3GB capacity

PC100/PC133 supported

LPC I/O Chipset ITE IT8712 (keyboard controller is built-in)

I/O Features 1x FDD (up to 2.88MB, 3 Mode, LS120)

1x Parallel Port (EPP, ECP Port)

2x Serial Ports (1x RS232 and 1x RS232/422/485)

1x IrDA TX/RX Headers

Bus Master IDE

2x IDE interfaces for up to 4 devices; supports PIO Mode 3/4

or UDMA/33/66/100 HDD, and ATAPI CD-ROM

VGA ATI Mobility M6 graphics controller

Embedded 8MB/16MB DDR memory

Supports TMDS (daughter card), LVDS, CRT, TV-out

Audio ICH2 Built-

in sound controller + AC97 Codec STAC9721

(Line out, Line-in, Mic with ID120 daughter card)

LAN ICH2 integrated Ethernet controller

10Base-T / 100Base-TX protocol

Two RJ-45 on board with transformer for 2nd LAN

Optional Dual Ethernet solution via MicroPCI socket

Hardware

Monitoring Built-in IT8712

Monitors CPU/system temperature and voltages

SSD InterfaceSupport M-Systems 2MB~144MB DiskOnChip flash disk

MicroPCI Socket

One MicroPCI socket supports MicroPCI daughter cards with

VGA, Ethernet, SCSI or IEEE 1394 functions.

Other Features Pin header for 4 USB ports, 256-level Watchdog timer

ISA high drive, PCI to ISA bridge (ITE 8888)

PICMG compliance

Onboard D-type

connectors PS/2 Mouse, PS/2 Keyboard, VGA, Two RJ-45

Power Connector

ATX 12V

System Voltage +5V, +12V, -12V, Vcore

Power

Consumption Pentium 4 with 1.5GB SDRAM

1.8GHz -- +5V: 5.65A +12V: 8.48A -12V:0.2A

1.9GHz -- +5V: 5.74A +12V: 8.98A -12V:0.22A

2.0GHz -- +5V: 5.68A +12V: 10.34A -12V:0.2A

Form Factor Full Size

Dimensions 338mm x 122mm (13.3” x 4.8”)

INTRODUCTION

4IB800 User’s Manual

Board Dimensions

INSTALLATIONS

IB800 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the IB800 in order to set up a workable system. The topics

covered are:

Installing the CPU.............................................................6

ATX Power Installation ....................................................7

MicroPCI Daughter Card Installation................................7

Installing the Memory (DIMM) .........................................8

Setting the Jumpers...........................................................9

Connectors on IB800 ......................................................14

INSTALLATIONS

6IB800 User’s Manual

Installing the CPU

The IB800 CPU Card supports a Socket 478 processor socket for Intel

Pentium 4 processors.

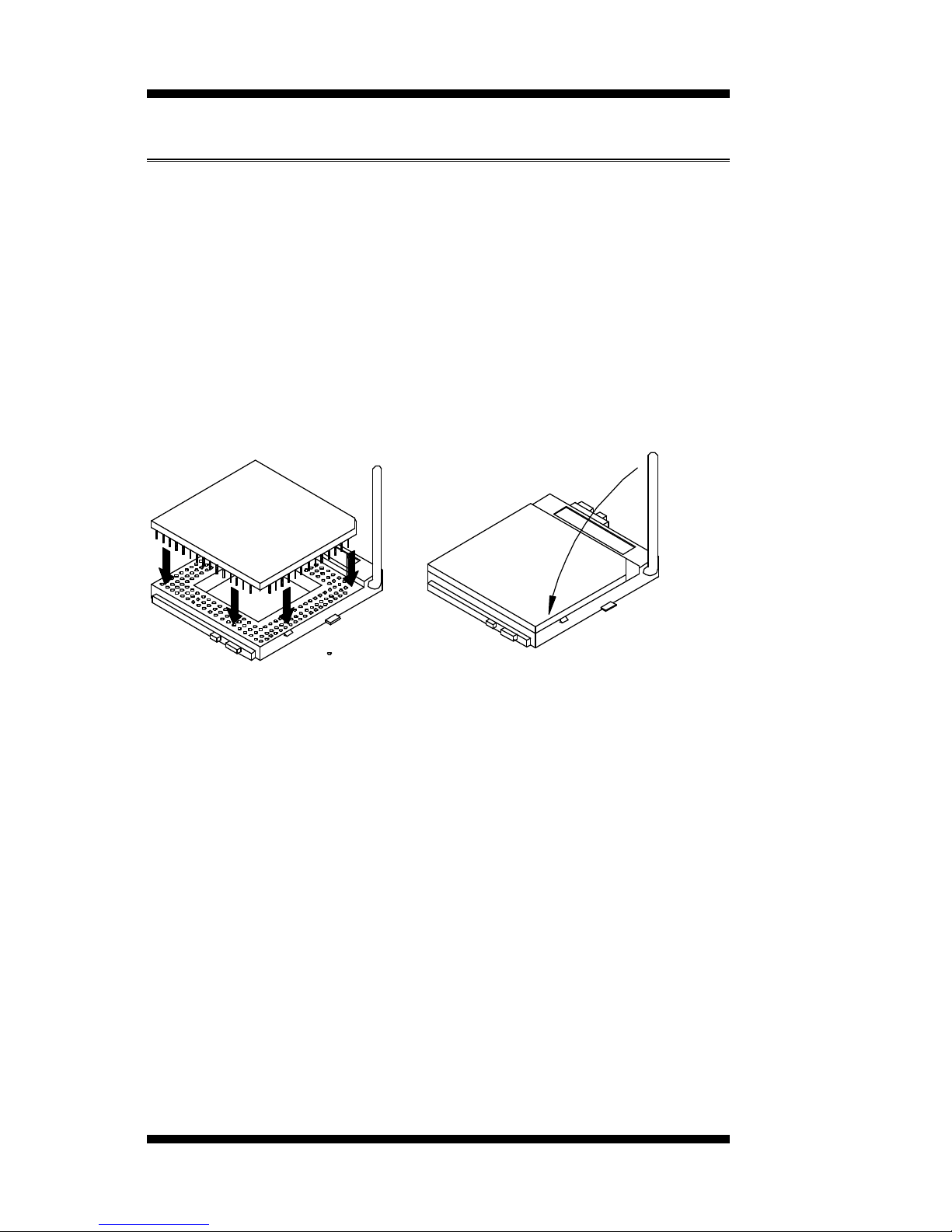

The Socket 478 processor socket comes with a lever to secure the

processor. Raise this lever to about a 90°angle to allow the insertion of

the processor. Place the processor into the socket by making sure the

notch on the corner of the CPU corresponds with the notch on the inside

of the socket. Once the processor has slide into the socket, return the lever

to the lock position. Refer to the figures below.

After you have installed the processor into the socket, check if the

jumpers for the CPU type and speed are correct.

NOTE:

Ensure that the CPU heat sink and the CPU top surface are in

total contact to avoid CPU overheating problem that would

cause your system to hang or be unstable.
