IBASE Technology IB897 Manuale utente

IB897

Intel®AtomTM E3800 SoC Series

3.5”Disk Size SBC

USER’S MANUAL

Version 1.0

IB897 User’s Manual

Acknowledgments

AMI BIOS is a trademark of American Megatrends Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Atom are registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Nuvoton is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

IB897 User’s Manual iii

Table of Contents

Introduction.......................................................1

Product Description.............................................................1

Specifications......................................................................2

Checklist..............................................................................3

Board Dimensions for [IB897-I45/I27/I15]......................... 4

Board Dimensions for [IB897-I45P/I27P/I15P].................. 4

Installations.......................................................5

Installing the Memory.........................................................6

Setting the Jumpers.............................................................7

Connectors on IB897.........................................................11

BIOS Setup.......................................................27

Drivers Installation......................................43

Intel Chipset Software Installation Utility........................44

VGA Drivers Installation..................................................45

Realtek High Definition Audio Driver Installation...........46

Intel Trusted Execution Engine Installation......................47

Appendix............................................................49

A. I/O Port Address Map ..................................................49

B. Interrupt Request Lines (IRQ)......................................50

C. Digital I/O Sample Code ..............................................51

D. Watchdog Timer Configuration...................................56

IB897 User’s Manual

This page is intentionally left blank.

INTRODUCTION

IB897 User’s Manual 1

Introduction

Product Description

IB897 is a 3.5-inch single board computer based on the Intel®AtomTM

E3800 series processors. It supports two DDR3L (1.35V) SODIMM

sockets for a maximum memory capacity of 8GB.

IB897 features the Intel®Gen7 w/4EUs graphics engines and has both

CRT and DisplayPort video display interface, and 24-bit LVDS dual

channel interface with the use of the NXP PTN3460 device.

Onboard connections are available for two SATAII ports, two COM

ports, one USB 3.0 ports, four USB2.0 ports, audio, two Mini PCI-e(x1)

slots, and Micro SD. Power input is made with a +9~+30V DC in

interface.

IB897 Features:

Supports AtomTM E3800 series SoC processors

Two DDR3L SO-DIMM, 1066/1333 MHz, Max. 8GB memory

Integrated graphics for VGA, DP displays

2 x SATA II connectors

2x COM port connectors

1 x Mini-PCIe(x1) slot (w/ USB/mSATA support)

1 x Mini-PCIe(x1) slot (w/ USB support)

2x GbE (RJ-45) connectors

24-bit dual channel LVDS

Micro SD

1x 9V to 30V DC-in power connector

INTRODUCTION

IB897 User’s Manual

Specifications

Product Name

IB897

Form Factor

3.5”disk size SBC

SoC

Type/Speed

Intel® AtomTM QC E3845 /2MB cache/1.91GHz (IB897-I45&I45P)

Intel® AtomTM DC E3827 /1MB cache/1.75 GHz (IB897-I27&I27P)

Intel® AtomTM SC E3815 /512KB cache/1.46 GHz (IB897-I15& I15P)

Package = FCBGA1170, 25mmx27mm, 22nm,Tj= -40ﾟC to +110ﾟC

BIOS

AMI BIOS

Memory

Intel® AtomTM SoC integrated memory controller

Support DDR3L (1.35V only), Non-ECC memory only

2 x DDR3 SO-DIMM socket [IB897-I45_P/IB897-I27_P], 8GB max.

1 x DDR3 SO-DIMM socket [IB897-I15_P], 4GB max.

VGA

Intel® Gen7 w/4 EUs graphics engines

DisplayPort x 1 [Support to 2560x1200@60Hz]

CRT x 1 via pin header [Support to 1920x1080@60Hz]

LVDS

24-bit dual channel via NXP PTN3460 thru eDP

(Support to1920x1200 @ 60 Hz)

LAN

Intel® I210IT PCIe Gigabit LAN x 2

USB

Intel® AtomTM SoC built-in USB host controller

Support USB 2.0 x 4 ports; USB 3.0 x 1 port,

extra USB 2.0 x4 ports (Thru SMSC HUB USB2514)

Serial ATA

Intel® AtomTM SoC built-in SATA II controller, supports 2 ports

Audio

Intel®AtomTM SoC built-in HD Audio controller + Realtek ALC269QHD

Codec w/class-D speaker amplifier (2.3W per channel @ 5V power

supply) [7mm x 7mm @ 48-QFN]; support 2-channel audio out + amp

LPC I/O

Nuvoton NCT5523D [64-pin LQFP, 7x7x1.4mm]

-COM #1 (RS232/422/485) [EXAR SP339EER1 x 1 for jumper-less]

-COM #2 (RS-232 only)

[Hardware Monitor]: 2x Thermal inputs; 2x Voltage monitoring

Digital IO

4 in & 4 out

Expansion

Slots

Mini PCI-e socket x2(1xFull-sized+1xHalf-sized,)

**Full length MiniPCIe (1x) support mSATA**

Edge

Connector

DB9 for COM1, DisplayPort, RJ45 x 2 for LAN 1 & 2

USB 2.0 vertical connector x 1, USB 3.0 vertical connector x 1

LED indicators (red+green) x1 for power and HDD status & power

button x 1(IB897-I45/I27/I15)

4-pin header for LED indicator & 2-pin header for power button via

cable (IB897-I45P/I27P/I15P)

Onboard

Header/

Connector

2x8 pin header for CRT; 2x4 pin header for 2x USB 2.0

DF20 socket connector x2 for 24-bit dual channel LVDS

4-pin box header for backlight/brightness control (PWM)

2x6 pin box header for Audio, 4-pin header for speaker

2x5 pin box header for COM2

2x5 pin headers for LPC (80-port card debugging purpose)

Mini PCI-e(1x) connector x2, 5 pins box header for smart battery

SATA connector x 2for SATA device

4-pins power connector (JST type, for SATA device)

2-pins connector for power input, Micro SD slot (type 3.3V)

Watchdog

Yes (256 segments, 0, 1, 2…255 sec/min)

Power Connector

9V ~ 30V DC-in thru onboard 2-pin connector

Others

iSMART 2.0 [Auto-scheduler / Power resume]

OS Support

Windows 8.1 / Embedded; Windows 7 / Embedded, Linux

RoHS / REACH/

CE / FCC

Yes / Yes / Yes / Class B

Operating Temp.

-40ﾟC to +85ﾟC

Board Size

102mm x 147mm

INTRODUCTION

IB897 User’s Manual 3

Checklist

Your IB897 package should include the items listed below.

The IB897 SBC

This User’s Manual

1 CD containing chipset drivers and flash memory utility

INTRODUCTION

IB897 User’s Manual

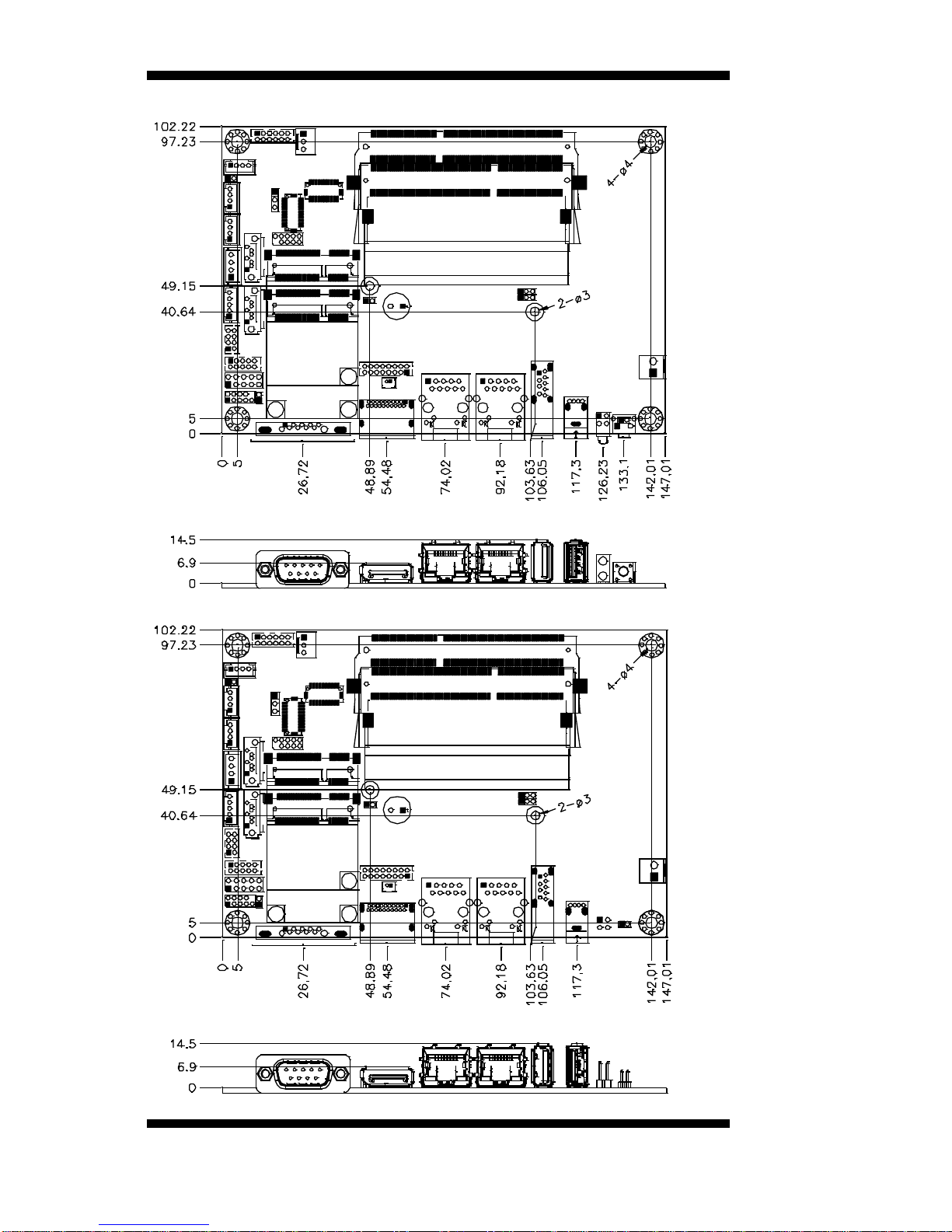

Board Dimensions for [IB897-I45/I27/I15]

Board Dimensions for [IB897-I45P/I27P/I15P]

INSTALLATIONS

IB897 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the IB897 in order to set up a workable system. The topics

covered are:

Installing the Memory............................................................................ 6

Setting the Jumpers................................................................................ 7

Connectors on IB897........................................................................... 11

INSTALLATIONS

IB897 User’s Manual

Installing the Memory

The IB897 board supports TWO DDR3L memory socket for a maximum

total memory of 8GB DDR3L memory type.

Installing and Removing Memory Modules

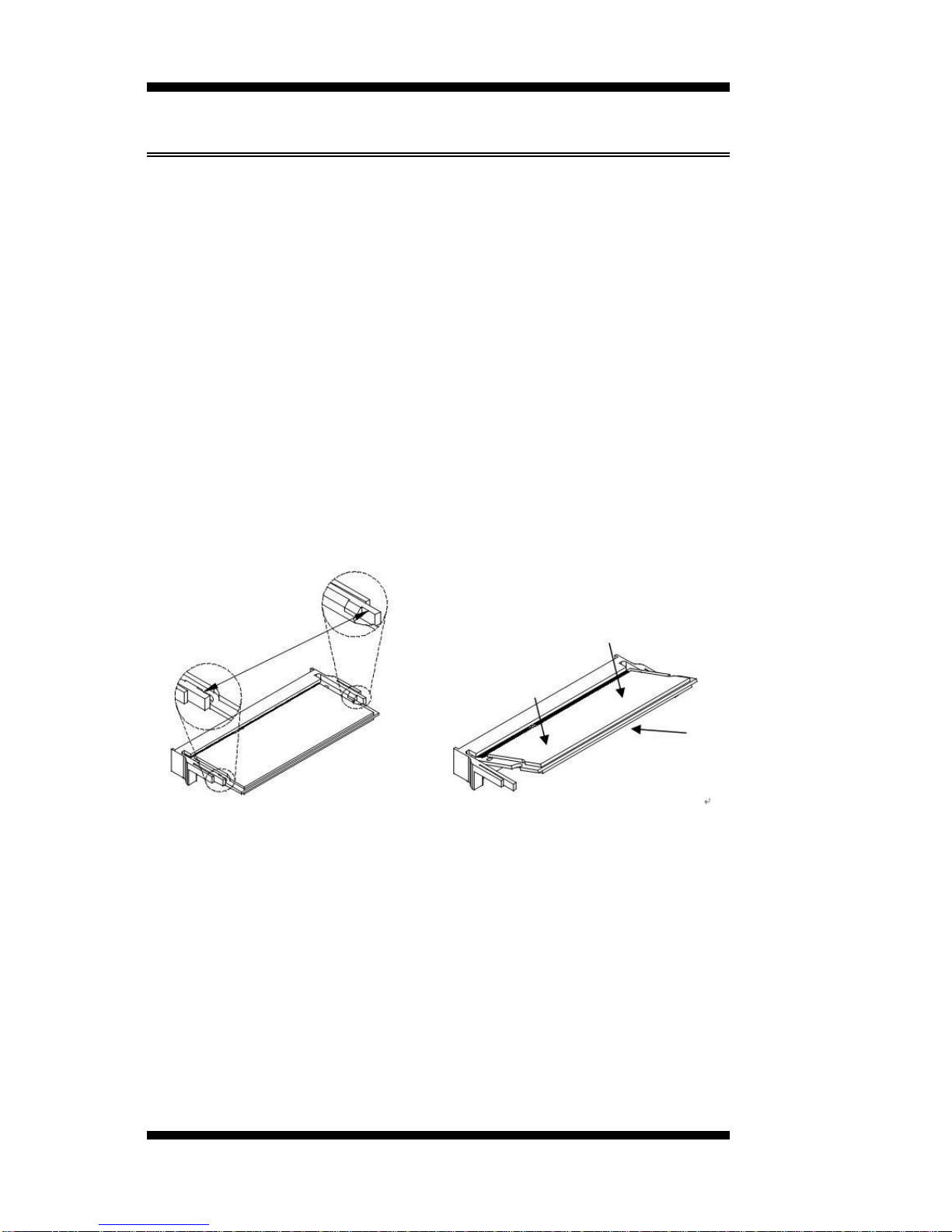

To install the DDR3L modules, locate the memory slot on the board and

perform the following steps:

1. Hold the DDR3L module so that the key of the DDR3L module

aligned with that on the memory slot.

2. Gentlypush the DDR3L module in an upright position until the clips

of the slot close to hold the DDR3L module in place when the

DDR3L module touches the bottom of the slot.

3. To remove the DDR3L module, press the clips with both hands.

** Channel-A slot must be installed with

memory module for booting up**
