IBASE Technology IB887 Manuale utente

IB887

Intel Atom 945GSE

3.5-inch Embedded Board

USER’S MANUAL

Version 1.0

IB887 User’s Manual

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel® and Atom™ are registered trademark and trademark of

Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

IB887 User’s Manual iii

Table of Contents

Introduction.......................................................1

Product Description.............................................................1

Checklist..............................................................................2

IB887 Specifications...........................................................3

Board Dimensions...............................................................4

Installations.......................................................5

Installing the Memory.........................................................6

Setting the Jumpers .............................................................7

Connectors on IB887.........................................................11

BIOS Setup.......................................................19

Drivers Installation......................................43

Intel Chipset Software Installation Utility.........................44

VGA Drivers Installation ..................................................45

Realtek High Definition Audio Driver Installation...........46

LAN Drivers Installation...................................................48

Appendix...........................................................52

A. I/O Port Address Map...................................................52

B. Interrupt Request Lines (IRQ)......................................53

C. Watchdog Timer Configuration....................................54

IB887 User’s Manual

This page is intentionally left blank.

INTRODUCTION

IB887 User’s Manual 1

Introduction

Product Description

The IB887 is a small footprint single board computer that is configured

with the Intel Atom processor N270 at 1.6GHz, FSB533 and the Mobile

Intel 945GSE Express Chipset with the ICH7M.

This 3.5-inch disk-size embedded board provides greater flexibility for

developers of embedded computing solutions. It is ideally suited for

rugged and compact designs as in Internet devices and applications in

automation, industrial control, data acquisition, thin client and other

embedded PC applications.

IB887 features the Intel's Graphics Media Accelerator 950 core, making

it compatible with Windows Vista Premium, and Chrontel CH7308 for

24-bit dual LVDS channel. One DDR2 SO-DIMM on board implements

up to 1GB of system memory. Dual Gigabit LAN is also available.

Advanced connectivity and expansion interfaces are provided by one

IDE, one high-speed SATA-II, two serial ports, fourUSB 2.0 ports and a

CF socket. Dimensions of the board are 102x147mm.

INTRODUCTION

Checklist

Your IB887 package should include the items listed below.

•The IB887 embedded board

•This User’s Manual

•1 CD containing chipset drivers and flash memory utility

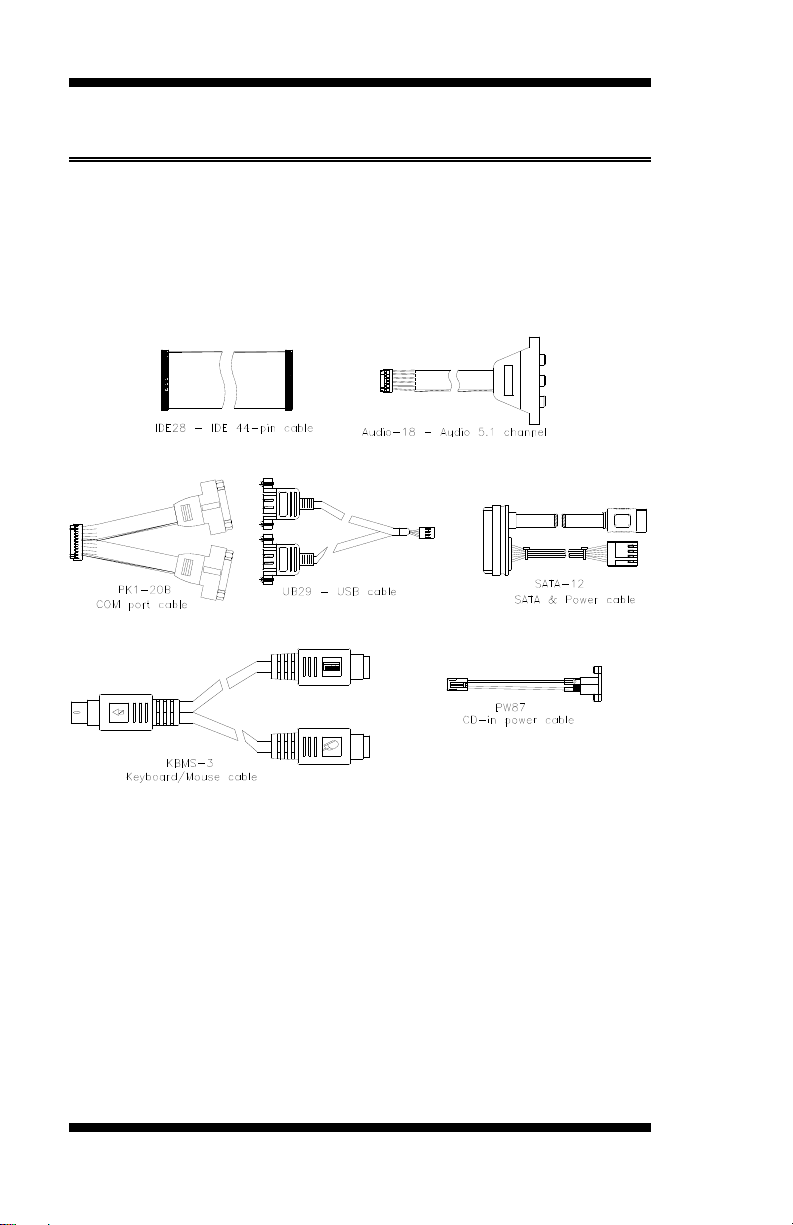

•Cables are (shown below) optional.

H.R

ATA

Serial

COM2

COM1

IB887 User’s Manual

INTRODUCTION

IB887 User’s Manual 3

IB887 Specifications

CPU Type Intel New architecture CPU on 45nm processor

- Intel® Atom™ processor N270 (code name Diamondville)

CPU

Speed/FSB CPU Clock speed = 1.60GHz

FSB=533MHz

L2 Cache=512K

Green /APM APM1.2

BIOS Award BIOS: supports ACPI Function

Chipset Intel 945GSE Chipset

GMCH: QG82945GSE 27 mm x 27 mm -998-pin FCBGA

ICH7M: NH82801GBM 31mm x 31mm -652-pin BGA

Memory DDRII 533 SO-DIMM x 1 (w/o ECC function), supports Single

channel., Max. 1GB

VGA 945GSE built-in, Intel® Graphics Media Accelerator 950

Graphics Core, Supports CRT w/ D-Sub 15-pin

LVDS CH7308 x 1 onboard Chrontel

24-bit dual channel LVDS interface w/ DF13 socket x2

LAN PIC-E Intel®82574L Gigabit LAN x 2

USB ICH7M built-in USB 2.0 host controller, support 4 ports,

Audio ICH7M built-in Audio controller + HD Codec ALC662 w/ 6

channels (Line-out, Line-in, Microphone.)

IDE ICH7M built-in Ultra DMA 33, 44-pin box-header x1 for IDE1, CF

type II

SATA ICH7M built-in SATA controller, supports 1 ports

LPC I/O Winbond 83627EHG:

- COM1 (RS232), COM2 (RS232/422/485),

- Hardware monitor (3 thermal inputs, 6 voltage monitor inputs)

- KB/Mouse Connector (KB 1ST Priority)

RTC/CMOS ICH7M built-in with on board Lithium Battery

Edge

Connector PS/2 connector x1 for PS/2 KB/Mouse

CRT x1 (D-Sub 15)

RJ45 x2 for LAN

USB connector x2 for USB1/2

On Board

Header /

Connectors

DF13 socket x2 for LVDS

DF11 8-pin header for 2 USB ports

44-pin box header x1 for IDE

CF type II connector

DF11 20-pin header x 1 for COM1/COM2

DF11 16-pin header x 1 for Audio

SATA connector X1

4-pin SATA power connector

Power

Connector 2-pin DC Power connector x1

Digital I/O 4 in / 4 out

Watchdog

Timer Yes (256 segments, 0, 1, 2…255. sec/min)

Board Size 102 x147mm

INTRODUCTION

[

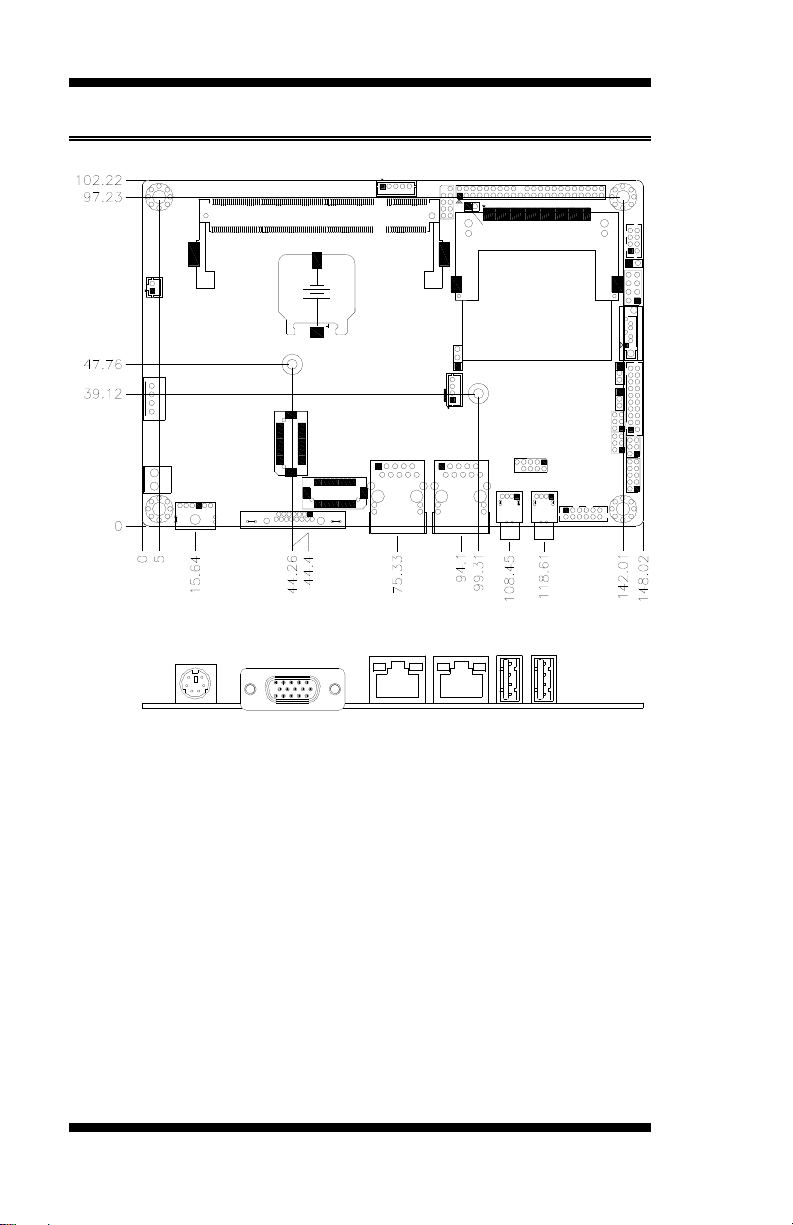

Board Dimensions

IB887 User’s Manual

INSTALLATIONS

IB887 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the IB887 in order to set up a workable system. The topics

covered are:

Installing the Memory ........................................................................... 6

Setting the Jumpers................................................................................ 7

Connectors on IB887........................................................................... 11

INSTALLATIONS

Installing the Memory

The IB887 board supports one DDR2 memory socket that can support

up to 1GB memory, DDR2 400/533 (w/o ECC function).

Installing and Removing Memory Modules

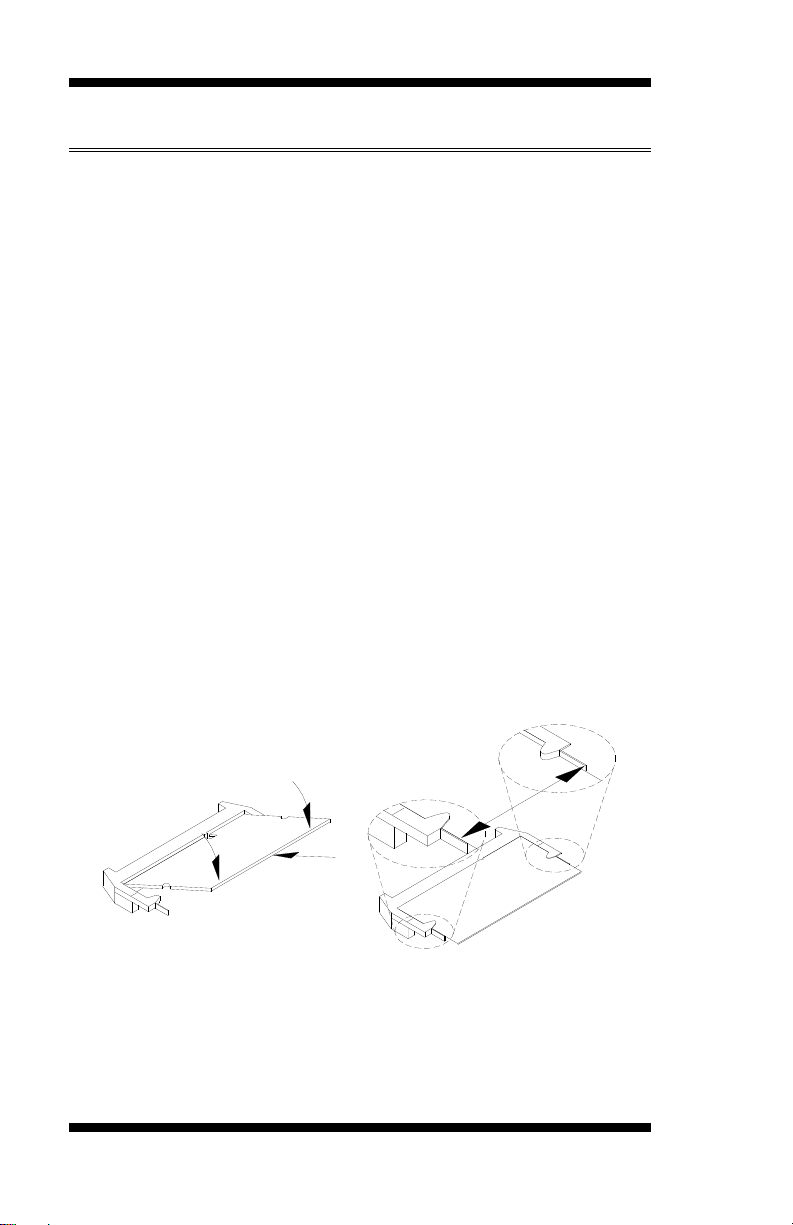

To install the DDR2 modules, locate the memory slot on the board and

perform the following steps:

1. Hold the DDR2 module so that the key of the DDR2 module aligns

with that on the memory slot. Insert the module into the socket at a

slight angle (approximately 30 degrees). Note that the socket and

module are both keyed, which means that the module can be installed

only in one direction.

2. To seat the memory module into the socket, apply firm and even

pressure to each end of the module until you feel it slip down into the

socket.

3. With the module properly seated in the socket, rotate the module

downward. Continue pressing downward until the clips at each end

lock into position.

4. To remove the DDR2 module, press the clips with both hands.

IB887 User’s Manual
