IBASE Technology MB894 Manuale utente

MB894

Socket 479 Pentium®M

Intel®855GME Micro ATX Motherboard

USER’S MANUAL

Version 1.0

ii MB894 User’s Manual

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Pentium are registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MB894 User’s Manual iii

Table of Contents

Introduction...................................................... 1

Product Description.......................................................... 1

Checklist .......................................................................... 2

MB894 Specifications....................................................... 3

Board Dimensions............................................................. 4

Installations...................................................... 5

Installing the CPU ............................................................ 6

Installing the Memory....................................................... 7

Setting the Jumpers........................................................... 8

Connectors on MB894.................................................... 13

Watchdog Timer Configuration....................................... 25

BIOS Setup...................................................... 29

Drivers Installation..................................... 53

Intel Chipset Software Intallation Utility ......................... 54

VGA Drivers Installation................................................ 55

AC97 Codec Audio Driver Installation............................ 56

Intel PRO LAN Drivers Installation................................ 57

Realtek Network Interface Controller Drivers Installation 58

Appendix........................................................... 59

A. I/O Port Address Map................................................ 59

B. Interrupt Request Lines (IRQ).................................... 60

iv MB894 User’s Manual

This page is intentionally left blank.

INTRODUCTION

MB894 User’s Manual 1

Introduction

Product Description

The MB894 Pentium®M Micro ATX motherboard incorporates the

Intel®advanced 855GME Chipset that supports processors from

600MHz to 2.0MHz in 479-ball Micro-FCBGA package with a front

size bus of 400MHz.

Graphics display functionality is provided by the integrated-chipset

VGA controller that supports CRT display and LVDS interface with

24-bit panel specifications. Ethernet connectivity comes from the

ICH4-integrated Ethernet 10/100 Ethernet controller and an optional

secondary LAN using a Realtek 8110S-32 Gigabit Ethernet.

Two DDR DIMM sockets supports up to 2GB of memory. Four COM

ports are supported, with the Winbond W83627HF and Finktek F81216

multi I/O chipsets. There are two IDE connectors –IDE1 supporting

UDMA33/66/100 and IDE2 a CF Type II socket for its slave channel.

Other I/O features include watchdog timer, 4-in/4-out digital I/O, and

two USB ports on board and four USB ports using pin headers.

Expansion slots composed of three PCI, one ISA and one mini PCI slot.

The board uses a 20-pin ATX power.

INTRODUCTION

2MB894 User’s Manual

Checklist

Your MB894 package should include the items listed below.

•The MB894 Pentium M ATX Motherboard

•This User’s Manual

•1 CD containing chipset drivers and flash memory utility

•I/O Shield Plate

•IB3A Cable Kit with cables including:

•1 FDD Ribbon Cable

•1IDE Ribbon Cable

•1 COM Port Cable

•1 COM Port Cable (with two connectors)

•Optional cables such as:

•USB Cable with two connectors (USB2K-4)

INTRODUCTION

MB894 User’s Manual 3

MB894 Specifications

Form Factor Micro ATX

CPU Type Micro-FCPGA Intel Pentium M / Celeron M CPU

CPU Voltage 0.700V ~1.708V

System Speed Up to 2GHz

FSB 400 MHz processor operating frequency

Green /APM APM1.2

CPU Socket Socket 479

Chipset

Intel 855GME / 852GM Chipset:

GMCH: 82855GME 732-pin mFCBGA / 82852GM

ICH4: 82801DB 421-pin BGA

BIOS Award BIOS; Support ACPI function

Cache 1MB Level 2 (CPU integrated)

VGA Intel 82855GME / 82852GM built-in Intel extreme

Graphics 2; Intel Dynamic Video Memory up to 64MB

shared with system

LVDS Intel 82855GME built-in, support resolution up to

1600x1200, 24bit dual channel.

Memory type Two DDR DIMM socket, support up to 2GB DDR

200/266/333 SDRAM

1st LAN ICH4 integrated LAN (10/100Mb) + PHY 82562ET

2nd LAN RTL8110s-32 (10/100/1000) Ethernet Controller.

USB 6ports, USB Version 2.0

LPC I/O Winbond W83627HF: Parallel x1, COM1 (RS-232),

COM2 (RS-232/422/485), FDC 1.44MB (Slim), IrDA,

Hardware monitoring

2nd LPC I/O Fintek F81216:COM3, COM4 support RS-232

PCI to ISA bridge Winbond 83628, 83629

Digital I/O 4in/4out

IrDA Pin header

RTC/CMOS Intel ICH4 built-in RTC with onboard Lithium battery

Local bus IDE ICH4 built-in, IDE1/IDE2, (UDMA 33/66/100)

Type II CF socket 1 port using IDE2 Slave channel (PCB solder side)

Expansion slots PCI slot x3, ISA slot x1, mini PCI slot x1

Audio ICH4 Built-in Sound controller + AC97 Codec ALC 655

5.1 Channel (Line-out, Line-in & Mic.)

D-sub Connectors DB15 x 1 for CRT

RJ45+USB Connector x 2

DB25 x 1 for parallel port

DB9 x 1 for COM1

Mini-DIN x 1 for PS/2 KB/MS

Audio x 1 for Line-Out, MIC, (Line-In via pin header)

Watchdog Timer Yes (256 segments: 0, 1, 2,..., 255 sec/min)

Power Connector ATX (20 pin)

Dimensions 244mm x 244mm

INTRODUCTION

4MB894 User’s Manual

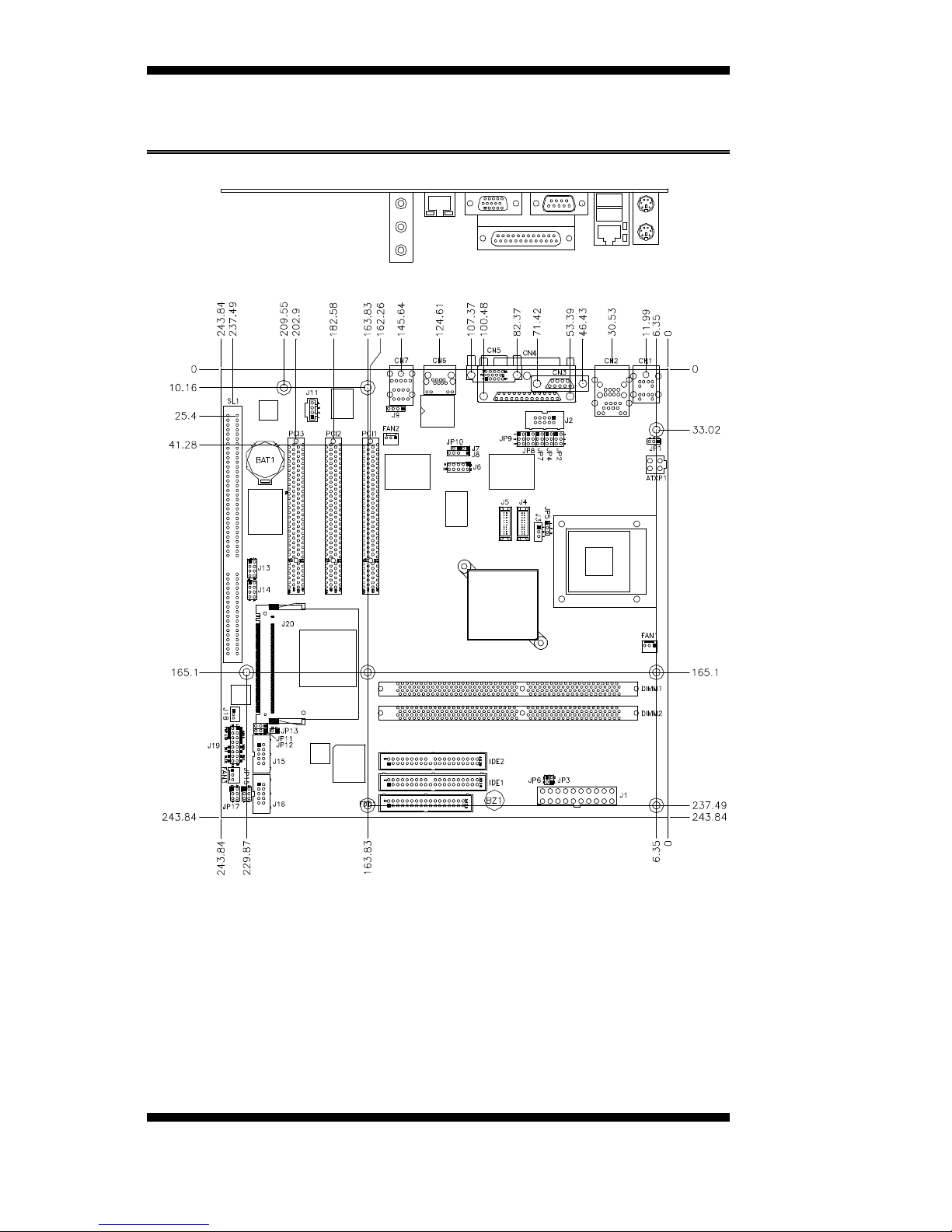

Board Dimensions

INS

TALLATIONS

MB894 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the MB894 in order to set up a workable system. The

topics covered are:

Installing the CPU....................................................................6

Installing the Memory...............................................................7

Setting the Jumpers...................................................................8

Connectors on MB894 ............................................................ 13

Watchdog Timer Configuration .............................................. 25

INSTALLATIONS

6MB894 User’s Manual

Installing the CPU

The MB894 motherboard supports a Socket 479processor socket for

Intel®Pentium®M or Celeron®M processors.

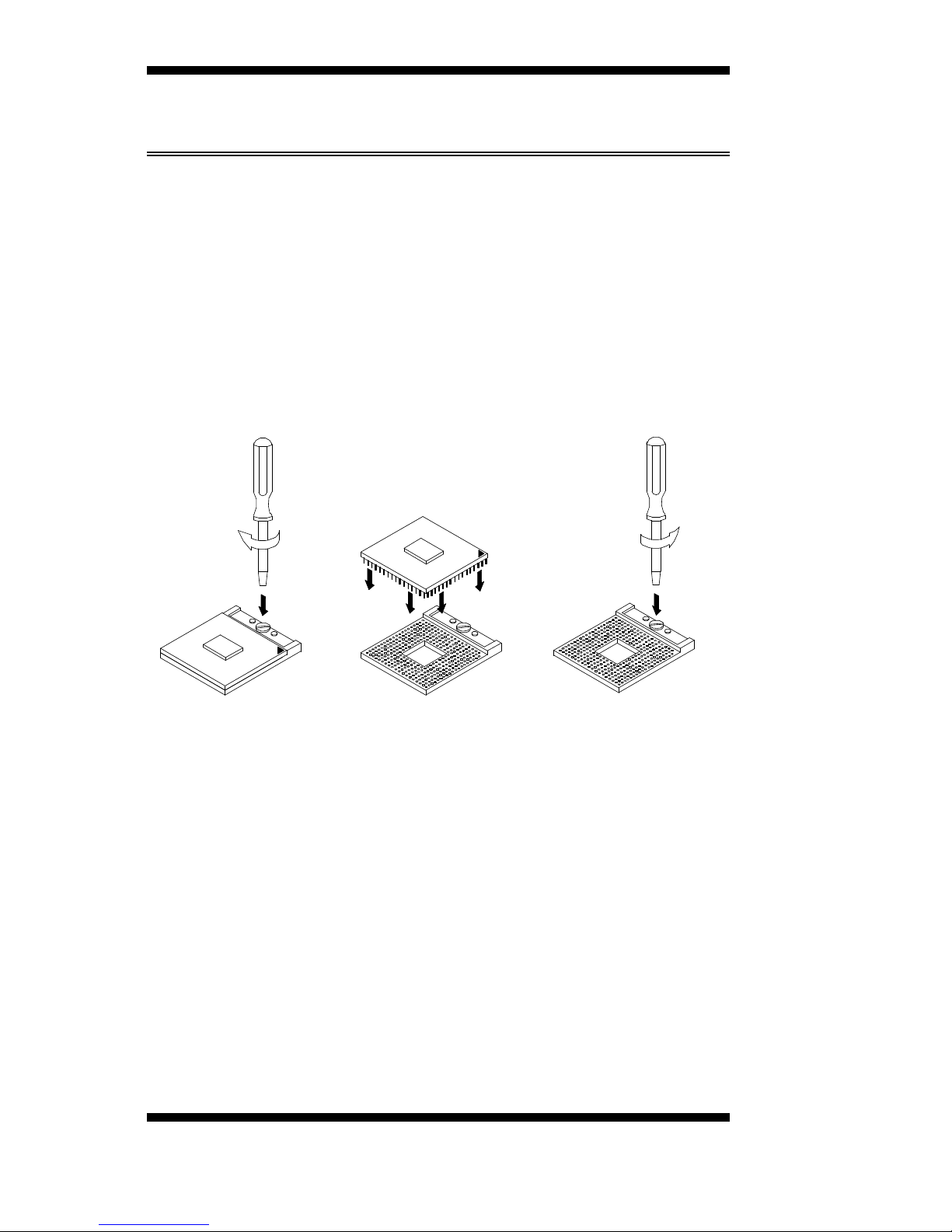

The processor socket comes with a screw to secure the processor. As

shown in the left picture below, loosen the screw first before inserting

the processor. Place the processor into the socket by making sure the

notch on the corner of the CPU corresponds with the notch on the inside

of the socket. Once the processor has slide into the socket, fasten the

screw. Refer to the figures below.

After you have installed the processor into the socket, check if the

jumpers for the CPU type and speed are correct.
