IBASE Technology MI910 Manuale utente

MI910/MI910F

Intel ®CoreTM 2 Duo/

Celeron GM965

Mini-ITX Motherboard

USER’S MANUAL

Version 1.0

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Intel® Core 2 Duo and Intel® Celeron processors are

registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

ii MI910 User’s Manual

Table of Contents

Introduction.......................................................1

Product Description.............................................................1

Checklist..............................................................................2

MI910 Specifications ..........................................................3

Board Dimensions...............................................................4

Installations.......................................................5

Installing the CPU...............................................................6

Installing the Memory.........................................................7

Setting the Jumpers .............................................................8

Connectors on MI910........................................................11

BIOS Setup.......................................................27

Drivers Installation......................................49

Intel Chipset Software Installation Utility.........................50

VGA Drivers Installation ..................................................52

AC97 Codec Audio Driver Installation.............................54

LAN Drivers Installation...................................................55

Appendix...........................................................57

A. I/O Port Address Map...................................................57

B. Interrupt Request Lines (IRQ)......................................58

C. Watchdog Timer Configuration....................................59

MI910 User’s Manual iii

IMPORTANT NOTE: When the system boots without the CRT being

connected, there will be no image on screen when you insert the

CRT/VGA cable. To show the image on screen, the hotkey must be

pressed (CTRL-ALT-F1).

THE MI910 MINI ITX MOTHERBOARD

iv MI910 User’s Manual

INTRODUCTION

MI910 User’s Manual 1

Introduction

Product Description

The MI910 Mini ITX board incorporates the Mobile Intel® GM965 Express

Chipset for Embedded Computing, consisting of the Intel® GM965 Graphic

Memory Controller Hub (GMCH) and Intel® I/O Controller Hub (ICH8-M), an

optimized integrated graphics solution with a 533MHz and 800MHz front-side

bus. Dimensions of the board are 170mm x 170mm.

The integrated powerful 3D graphics engine, based on Intel® Graphics Media

Accelerator X3100 (Intel® GMA X3100) architecture, operates at core speeds of

up to 400 MHz. It features a low-power design, is validated with the Intel® Core

2 Duo and Intel® Celeron processors on 65nm process. With dual channel

DDR2 667MHz two DIMM socket on board, the board supports up to 4GB of

DDR2 system memory.

Intel® Graphics supports a unique intelligent memory management scheme

called Dynamic Video Memory Technology (DVMT). DVMT handles diverse

applications by providing the maximum (384MB) availability of system

memory for general computer usage, while supplying additional graphics

memory when a 3D-intensive application requests it. The Intel GMA X3100

graphics architecture also takes advantage of the high-performance Intel

processor. Intel GMA X3100 graphics supports Dual Independent Display

technology.

The main features of the board are:

Supports Intel® CoreTM 2 Duo (Merom 800MHz), Intel® Celeron

Supports up to 2.4GHz, 533MHz/800MHz FSB

Two DDR2 SDRAM DIMM, Max. 4GB memory

Onboard 10/100 BaseT and Marvell PCI-Express Gigabit LAN

Intel® GM965 Express VGA for CRT / LVDS

2x SATA, 6x USB 2.0, 2x COM, Watchdog timer, 1394

1x MiniPCI, 1x PCI, 1xPCI-E(x1) slots, optional DVI

Optional daughter cards:

ID390: Chrontel 7308, supports 24 bit single or dual LVDS channel

ID390C: Chrontel 7021, supports CRT

ID391: Chrontel 7307C, single DVI (connector on cable)

ID391D: Chrontel 7307C, dual DVI (connector on cable)

ID392D: Chrontel 7307C, dual DVI (one connector on card and one on cable)

MI910/MI910L only

INTRODUCTION

2MI910 User’s Manual

Checklist

Your MI910 package should include the items listed below.

•The MI910 Mini-ITX motherboard

•This User’s Manual

•1 CD containing chipset drivers and flash memory utility

•Cable kit (IDE, Serial port, Serial ATA)

INTRODUCTION

MI910 User’s Manual 3

MI910 Specifications

CPU Supported Intel® CoreTM 2 Duo, Intel Celeron mobile processors

CPU Voltage 0.700V ~ 1.5V (IMVP-6)

System Speed Up to 2.4GHz or above

CPU FSB 533MHz/800MHz FSB

Cache 1MB/2MB/4MB

Green /APM APM1.2

CPU Socket mPGA Socket 478

Chipset Intel GM965 Chipset

GMCH: GM965 1299-pin Micro-FCBGA

ICH8M: 82801HBM 678-pin mBGA

BIOS Award BIOS, support ACPI Function

Memory DDR2 667/533 SDRAM DIMM x2 (w/o ECC function), Max. 4GB

VGA GMA965 built-in, supports CRT

SDVO (Dual CH) Through ID390 card (Chrontel 7308, 24+24 bits single/dual channel

LVDS, Chrontel 7021, CRT)

Through ID391 card (Chrontel 7307C, DVI single or Dual)

LVDS LCD Panel GM965 built-in, supports 24+24 bits (Type 1 only), single or dual channel

LVDS

LAN 1. ICH8M 10/100/gigabit MAC + PHY (dual footprint option):

•Intel 82566DC Nineveh 10/100/1000 (MI910)

•Intel 82562V Ekron-N 10/100 (MI910L)

2. Marvell 88E8053 PCI-e Gigabit LAN controller x1 (MI910F)

USB ICH8M built-in USB 2.0 host controller, support 6 ports

Serial ATA Ports ICH8M built-in SATA controller, supports 2 ports

1394 TI TSB43LV22(dual port)

Parallel IDE ICH8M built-in one channel Ultra DMA 33/66/100,CF Type II

Audio ICH8M Built-in audio controller + AC97 Codec ALC885 w/ 7.1 channels,

SPDIF-OUT

LPC I/O W83627EHF: COM1, COM2 (RS232/RS422/RS485), slim FDC 1.44MB,

IrDA x1 & hardware monitor (3 thermal, 4 voltage monitor inputs, 2 fan

headers)

Digital IO 4 in & 4 out

Keyboard/Mouse Supports PS/2 Keyboard/Mouse Connector

Expansion Slots PCI slot x1, PIC-E (x1) slot x1 and Mini PCI socket x1

Edge Connector PS/2 connector x1 for keyboard/mouse

Gbit LAN RJ-45 + dual USB stack connector

10/100 LAN RJ45 + dual USB stack connector

DB9 x1 for COM 1; DB15 x1 for VGA

SPDIF-OUT connector x1; 1394 connector x1

RCA Jack 3x2 for Audio (Front-Out, Line-In, Mic, Center/LFE, Surround &

Surround Back)

Onboard Header/

Connector 40 pins box-header x1 for IDE1; 26 pins header x1 for slim floppy

CF Connector x1 @ solder side

10 pins pin-headerx1 for Digital I/O; 10 pins pin-header x1 for COM2

10 pins pin-header x 1 for USB 5,6; 5 pins pin-header x 1 for IrDA

DF13 connector x2 for LVDS;

10 pins pin-header x1 for audio Line-Out & Mic

4 pins pin-header x1 for CD in; 7 pins pin-header x1 for 1394

SATA connector x2 for SATA ports

Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)

System Voltage +5V, +3.3V, +12V, -12V, 5VSB (2A)

Others Modem Wakeup, LAN Wakeup

Board Size 170mm x 170mm (Mini ITX)

Note: MI910L uses GL960 chipset. It supports FSB 533MHz, DDR2

533MHz only.

INTRODUCTION

[

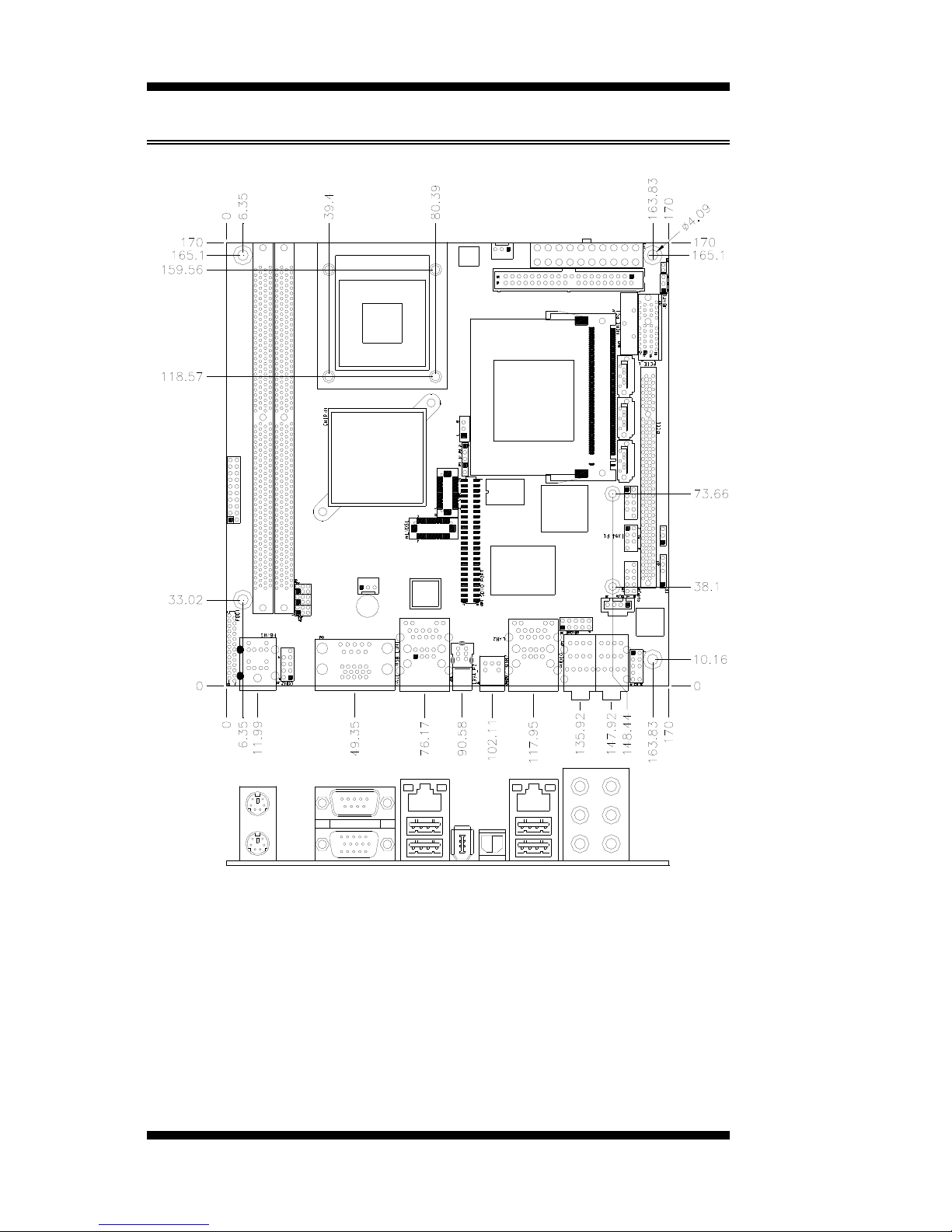

Board Dimensions

4MI910 User’s Manual

INSTALLATIONS

MI910 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the MI910 in order to set up a workable system. The

topics covered are:

Installing the CPU........................................................................ 6

Installing the Memory.................................................................. 7

Setting the Jumpers...................................................................... 8

Connectors on MI910 ................................................................ 11

INSTALLATIONS

Installing the CPU

The MI910 board supports a Socket 478MN (MEROM) processor

socket for Intel® CoreTM 2 Duo, Intel® Celeron mobile processors.

The processor socket comes with a screw to secure the processor. As

shown in the left picture below, loosen the screw first before inserting

the processor. Place the processor into the socket by making sure the

notch on the corner of the CPU corresponds with the notch on the inside

of the socket. Once the processor has slide into the socket, fasten the

screw. Refer to the figures below.

NOTE: Ensure that the CPU heat sink and the CPU top surface are in

total contact to avoid CPU overheating problem that would

cause your system to hang or be unstable.

6MI910 User’s Manual
