IBASE Technology MI930 Manuale utente

MI930/MI930F

AMD Athlon™ 64 / Athlon™ 64 x2

(Dual Core) / Sempron™

Mini-ITX Motherboard

USER’S MANUAL

Version 1.0A

MI930 User’s Manual

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

AMD Athlon™ 64 / Athlon™ 64 x2 (dual core) / Sempron™

processors are registered trademarks of AMD Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MI930 User’s Manual iii

Table of Contents

Introduction.......................................................1

Product Description.............................................................1

Checklist..............................................................................2

MI930 Specifications ..........................................................3

Board Dimensions...............................................................4

Installations.......................................................5

Installing the CPU...............................................................6

Installing the Memory.........................................................7

Setting the Jumpers .............................................................8

Connectors on MI930........................................................12

BIOS Setup.......................................................23

Drivers Installation......................................41

SM Bus Controller Driver Installation..............................42

VGA Drivers Installation ..................................................45

Realtek Codec Audio Driver Installation..........................47

LAN Drivers Installation...................................................50

Appendix...........................................................51

A. I/O Port Address Map...................................................51

B. Interrupt Request Lines (IRQ)......................................52

C. Watchdog Timer Configuration....................................53

MI930 User’s Manual

This page is intentionally left blank.

INTRODUCTION

MI930 User’s Manual 1

Introduction

Product Description

The MI930 Mini ITX board incorporates the Mobile AMD M690T Express

Chipset for Embedded Computing, consisting of the AMD M690T (North

Bridge) and SB600 (South Bridge), an optimized integrated graphics solution

with an 800MHz front-side bus. Dimensions of the board are 170mm x 170mm.

The M690T integrates an ATi Radeon X700-based graphics engine supporting

dual display, an LVDS interface, an integrated TMDS controller, and operates at

core speeds of up to 400 MHz. MI930 features a low-power design, is validated

with the AMD Athlon™ 64 / Athlon™ 64 x2 (dual core) / Sempron™ on 65nm

process. With two dual channel DDR2 800MHz DIMM sockets on board, the

board supports up to 4GB of DDR2 system memory.

The main features of the board are:

Supports AMD Athlon™ 64 / Athlon™ 64 x2 (dual core) / Sempron™

Supports up to 2.8GHz, 800MHz FSB

Two DDR2 SDRAM DIMM, Max. 4GB memory

2x Marvell PCI-Express Gigabit LAN

AMD M690T Express VGA for CRT / LVDS / DVI

2x SATA, 6x USB 2.0, 2x COM, Watchdog timer

1x PCI slot (expansion to two PCI slots)

INTRODUCTION

MI930 User’s Manual

Checklist

Your MI930 package should include the items listed below.

•The MI930 Mini-ITX motherboard

•This User’s Manual

•1 CD containing chipset drivers and flash memory utility

•Cable kit (IDE, Serial port, Serial ATA)

INTRODUCTION

MI930 User’s Manual 3

MI930 Specifications

CPU Supported AMD Athlon™ 64 / Athlon™ 64 x2 (dual core) / Sempron™ 64-bit

processor integrated w/ DDRII memory controller in CPU.

CPU Voltage 0.700V ~ 1.5V

System Speed Up to 2.8GHz or above

CPU FSB 800MHz FSB

Cache 128K/256K/512K1MB/2MB

Green /APM APM1.2

CPU Socket Socket AM2 (940pin)

Chipset ATI M690T / SB600 chipset

NB: M690T, 465-ball FCBGA (21x21mm)

SB: ATi SB600, 549-ball FCBGA (23x23mm, 0.8mm pitch)

BIOS Award BIOS, support ACPI Function

Memory DDR2 800/667/533 SDRAM DIMM x2 (w/o ECC function), Max. 4GB

VGA ATi M690T built-in Radeon X700 based graphic engine, supports full

DirectX9.0. RS690T integrates TMDS controller for DVI and 18 or

24-bit LVDS interface. Supports dual display for below display

combinations:

- Analog (CRT) + digital (DVI or LVDS)

- Both digital (DVI + LVDS)

LAN Marvell 88E8053 PCI-e Gigabit LAN controller x2

USB ATi SB600 built-in USB 2.0 host controller, support 6 ports

Serial ATA Ports ATi SB600 built-in SATA II (3.0Gb/sec) host controller, supports 2

ports and RAID 0, 1 function

Parallel IDE ATi SB600 built-in one channel Ultra DMA 33/66/100/133

Audio ATi SB600 built-in audio controller + AC97 Codec ALC888 w/ 7.1

channels

LPC I/O W83627EHG: COM1 (RS232), COM2 (RS232/422/485) & hardware

monitor (3 thermal inputs, 4 voltage monitor inputs, 2 fan headers).

Parallel, IrDA & Floppy not used

Digital IO 4 in & 4 out

Keyboard/Mouse Supports PS/2 keyboard/mouse connector

Expansion Slots PCI slot (32bits/33MHz) x1

8x2 pin-header x1 for LPC TPM adaptor card (reserved) or

8x2 pin-header x1 for LPC 2nd I/O adaptor card COM3 /COM4

(RS232) or COM3 /COM4 /COM5 /COM6 (RS232) (reserved)

Edge Connector PS/2 connector x1 for keyboard/mouse

DB9 & DVI stack connector x1 for COM 1 and DVI

RJ-45 + dual USB stack connector x2 for LAN1, 2 & USB1~4

RCA jack 3x1 for audio (Line-in, Line-Out, Mic.) & pin header for front

panel (Line-Out2, Mic2)

Onboard Header/

Connector DF13-20 x2 for LVDS

40-pin, 2.54mm, box-header x 1 for IDE1

5x2 pin-header x1 for USB5~6

5x2 pin-header x1 for front audio (headphone & Mic.)

10 pin-header x1 for COM2

8x2 pin-header x1 for VGA

Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)

System Voltage +5V, +3.3V, +12V, -12V, 5VSB (2A)

Others Modem Wakeup, LAN Wakeup

Board Size 170mm x 170mm (Mini ITX)

INTRODUCTION

[

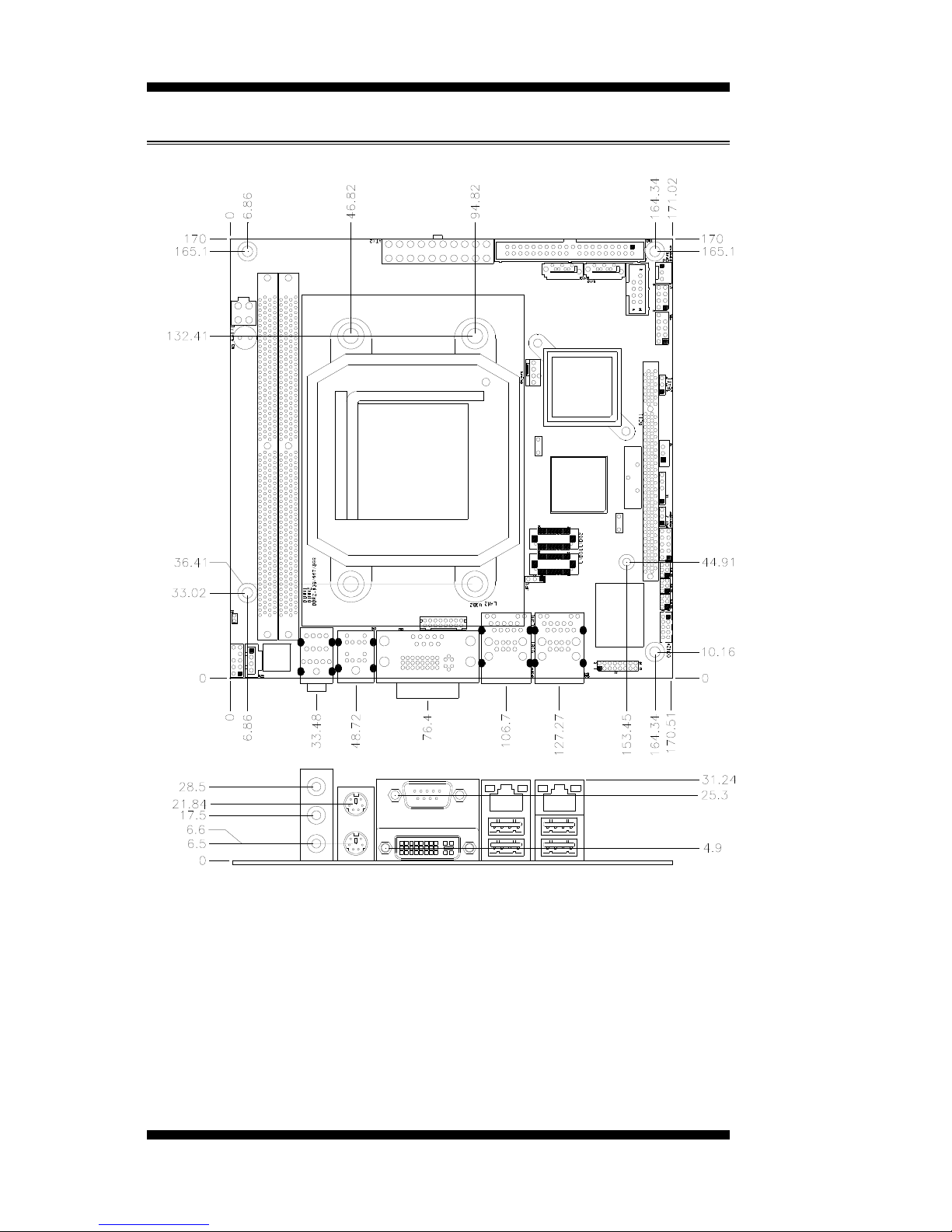

Board Dimensions

MI930 User’s Manual

INSTALLATIONS

MI930 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the MI930 in order to set up a workable system. The

topics covered are:

Installing the CPU........................................................................ 6

Installing the Memory.................................................................. 7

Setting the Jumpers...................................................................... 8

Connectors on MI930 ................................................................ 12

INSTALLATIONS

Installing the CPU

The MI930 board supports a Socket AM2 (940-pin) processor socket for

AMD Athlon™ 64 / Athlon™ 64 x2 (dual core) / Sempron™processors.

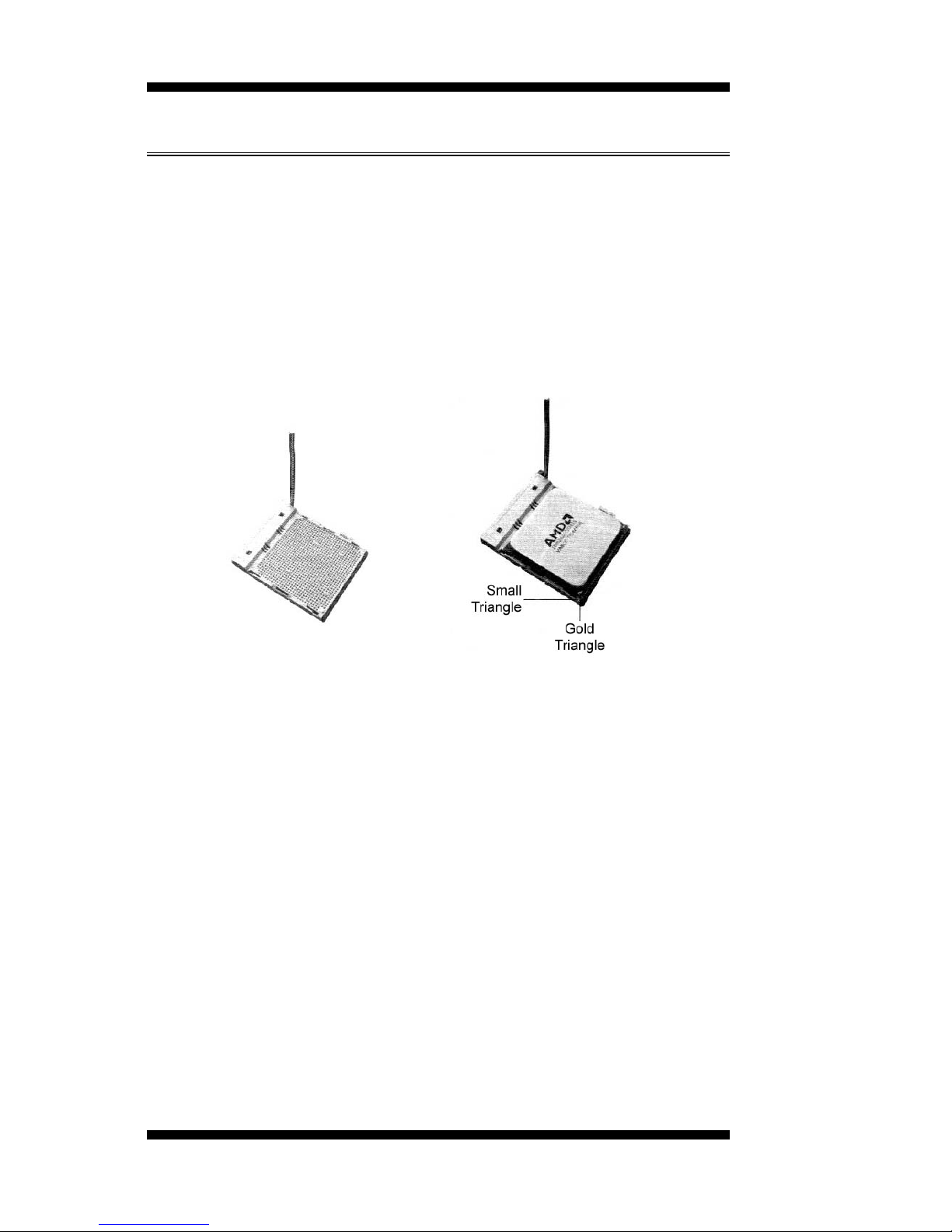

To install the CPU, unlock first the socket by pressing the lever

sideways, then lift it up to a 90 degree angle as shown below. Then,

position the CPU above the socket such that the CPU corner aligns with

the gold triangle matching the socket corner with a small triangle.

Carefully insert the CPU into the socket and push down the lever to

secure the CPU. Then, install the heatsink and fan.

NOTE: Ensure that the CPU heat sink and the CPU top surface are in

total contact to avoid CPU overheating problem that would

cause your system to hang or be unstable.

MI930 User’s Manual
