IBASE Technology MI991 Manuale utente

The information contained in this document has been carefully researched and is, to the best

of our knowledge, accurate. However, we assume no liability for any product failures or

damages, immediate or consequential, resulting from the use of the information provided

herein. Our products are not intended for use in systems in which failures of product could

result in personal injury. All trademarks mentioned herein are property of their respective

owners. All specifications are subject to change without notice.

Manual

iBASE

MI991

M I 991

I nt e l ®6th Generation Core

C2 3 6 /Q170/H110 PCH

Mini ITX Motherboa rd

USER’S MANUAL

Version 1.0

MI 9 9 1 U se r’s M anua l

Acknowledgments

AMI is a registered trademark of American Megatrends Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Intel®6th Generation Core DC/QC Processor are

registered trademarks of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Fintek is a registered trademark of Fintek Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MI 9 9 1 U se r’s M anua l iii

Table of Contents

Introduction...................................................... 1

Product Description............................................................ 1

Checklist............................................................................. 2

MI991 Specifications ......................................................... 3

Board Dimensions .............................................................. 5

Installations...................................................... 6

Installing the CPU .............................................................. 7

Installing the Memory......................................................... 8

Setting the Jumpers............................................................. 9

Connectors on MI991....................................................... 13

BIOS Setup.......................................................25

Drivers Installation ......................................45

Intel Chipset Software Installation Utility......................... 46

VGA Drivers Installation.................................................. 48

Realtek HD Audio Driver Installation .............................. 51

LAN Drivers Installation .................................................. 53

Intel® Management Engine Interface ............................... 56

Intel® USB 3.0 Drivers.................................................... 58

Appendix...........................................................61

A. I/O Port Address Map.................................................. 61

B. Interrupt Request Lines (IRQ)...................................... 62

C. Watchdog Timer Configuration ................................... 63

MI 9 9 1 U se r’s M anua l

This page is intentionally left blank.

I NTRODU CTI ON

M I 9 9 1 User’s Manual 1

Introduction

Product Description

The MI991 Mini ITX motherboard is based on the latest Intel®

C236/Q170/H110 chipset. The platform supports 6th Generation Intel®

Core processor family with LGA1151 packing and features an integrated

dual-channel DDR4 memory controller as well as a graphics core.

The latest Intel®processors provide advanced performance in both

computing and graphics quality. This meets the requirement of customers

in the gaming, POS, digital signage and server market segment.

The C236/Q170/H110 platform is made with 14-nanometer technology

that supports Intel’s first processor architecture to unite the CPU and the

graphics core on the transistor level. The MI991 Mini ITX board utilizes

the dramatic increase in performance provided this Intel’s latest

cutting-edge technology. Measuring 170mm x 170mm, the MI991 offers

fast 6Gbps SATA support (4 ports), USB3.0 (6 ports) and interfaces for

DVI-D, HDMI and DP displays. MI991AF-C236 and MI991AF features

Intel®Active Management Technology 11.0.

MI991 FEATURES:

•Supports Intel®6th Generation Core i7/i5/i3 QC/DC desktop

processors

•Two DDR4 SO-DIMM, 2133MHz, Max. 32GB memory

•Dual Intel® PCI-Express Gigabit LAN

•Integrated Graphics for DVI-D/DP/HDMI displays

•4x SATA 3.0, 8x USB 2.0, USB 3.0 (6 ports)

•4x COM, Watchdog timer

•1x PCI-E (x16) , 2x Mini PCI-E

•Optional AMT (MI991AF-C236 and MI991AF only)

I NTRODU CTI ON

MI 9 9 1 U se r’s M anua l

Checklist

Your MI991 package should include the items listed below.

•The MI991 Mini ITX motherboard

•This User’s Manual

•1 DVD containing chipset drivers and flash memory utility

•Serial ATA cable

•USB cable

•COM port cable

•I/O shield

•Audio Chassis Front Panel cable (Optional)

I NTRODU CTI ON

M I 9 9 1 User’s Manual 3

MI991 Specifications

Product Name

MI991AF [Intel Q170 PCH onboard]

MI991EF [Intel H110 PCH onboard]

MI991AF-C236 [Intel C236 PCH onboard]

**MI991AF will be the model name printed on PCB surface**

Form Factor

Mini-ITX

BIOS

AMI BIOS

CPU Type

Intel 6th Generation Intel®Xeon® /CoreTM i7/i5/i3/Pentium DT

processor FCLGA1151 package [37.5 mm x 37.5mm], TDP:

80W/65W/47W/35W

Xeon®E3-1275 V5 (3.6GHz ~ 4GHz) @ 80W

Xeon®E3-1225 V5 (3.3GHz ~ 3.7GHz) @ 80W

Xeon®E3-1268L V5 (2.4GHz ~ 3.4GHz) @35W

CoreTM i7-6700 (3.4GHz ~ 4GHz) @65W

CoreTM i7-6700TE (2.4GHz ~ 3.4GHz) @35W

CoreTM i5-6500 (3.2GHz ~ 3.6GHz) @65W

CoreTM i5-6500TE (2.3GHz ~ 3.3GHz) @35W

CoreTM i3-6100 (3.7GHz) @47W

CoreTM i3-6100TE (2.7GHz @35W

Pentium®G4400 (3.3GHz) @47W

Pentium®G4400TE (2.4GHz) @35W

Celeron®G3900 (2.8GHz) @65W

Celeron

G3900TE (2.6GHz) @35W

Cache Size

Up to 8MB

CPU Socket

LGA1151

Chipset

Intel®C236/Q170/H110 PCH, Package =23 mm x 23 mm, TDP=6W

Memory

Intel®6th Generation DT processors integrated memory controller,

-DDR4 SO-DIMM x 2, Max. =32GB [Vertical type]

DDR4-2133 MHz with 1.2V, ECC supported by CPU sku

VGA

Intel® 6th Generation DT processor integrated HD Gfx, supports 3

independent displays, DirectX 12, OpenGL 4.4

-DisplayPort x 1 (DP++, Thru port D, supports DP1.3)

**Resolution up to 4096x2304 @ 60 Hz**

-HDMI X 1 (Thru port B, with level shifter ASM1442K, supports

HDMI 1.4) ** Resolution up to 4096x2160 @ 24 Hz**

-DVI-D x 1 (Thru port C, with level shifter ASM1442K)

** Resolution up to 4096x2160 @ 24 Hz**

LAN

1.Intel® Jacksonville I219LM GbE PHY (C236 / Q170) [PCIe port #4]

Intel® Jacksonville I219V GbE PHY (H110) [PCIe port #4]

2.Intel® Pearsonville I211AT as 2nd GbE [PCIe port #12]

USB

USB 3.0 host controller [PCH Integrated], support 6 ports

- 4 ports via rear panel I/O [USB3 port #1~#4]

- Extra 2 ports via rear I/O panel [USB3 port #5~#6] (**MI991AF

only**)

USB 2.0 host controller [PCH Integrated], support 6 ports

-2 ports via rear panel I/O (**MI991EF only)

-2 ports via MiniPCIe socket

-2 ports via onboard pin header

Serial ATA

Intel® SKL-H PCH built-in SATA controller

-4 x SATA 3.0 for MI991

AF (C236/ Q170) [PCIe port #14~#17]

-3 x SATA 3.0 for MI991EF (H110) [PCIe port #14~#16]

Storage Device

mSATA x 1 thru Mini-PCIe slot [full-sized] [PCIe port #13]

Audio

Intel®SKL-H PCH built-in High Definition Audio controller + Realtek

ALC662 w/ 5.1 channels

I NTRODU CTI ON

MI 9 9 1 U se r’s M anua l

LPC I/O

Fintek F81846AD-I (128-pin LQFP [14mm x 14 mm])

-COM #1 (RS232/422/485) w/Fintek F81439 transceiver for jumper-less

selection

-COM #2~COM #4 (RS232 only)

Hardware Monitor (2 thermal inputs,4 voltage monitor inputs)

CPU Fan x 1(PWM type, 4-pin) + SYS FAN x 1(PWM type, 4-pin)

Digital IO

4 in & 4 out

IAMT 11.0

Intel®C236/ Q170 PCH built-in (MI991AF only)

TPM 1.2

Infineon SLB9660 [C01Z9660TT1207000P] for MI991AF series

Co-lay with ATMEL AT97SC3204-X4A14-10 [C01Z97SC3204X4000P]

**Meet FIPS 140-2 certification**

Expansion Slots

- PCI-Express (16x) x1 [Gen 3.0 PEG]

** Support bifurcation to 2x(8x) and 1x (8x) + 2 x (4x)**

- Mini PCIe x 2 w/ USB 2.0 signal [1 x Full-sized, 1 x Half-sized]

[PCIe port #5~#6]

- Supports mSATA thru Full-sized mini PCIe slot

Edge

Connectors

Dual DB9 stack connector for COM #1 / COM #2

DVI-D + HDMI stack connector x 1

DP + dual USB (3.0) [Blue color] stack connector x 1

RJ-45 (I219LM/V PHY)+ dual USB (3.0)[Blue color] stack connector x 1

RJ-45 (I211AT GbE)) + dual USB (3.0) [Blue color] stack connector x 1

Or RJ-45 (I211AT GbE)+ dual USB (2.0) stack connector x 1 [MI991EF]

Triplet type jack 3 x 1 for HD audio port [Line-in / Line-out / Mic-in]

Onboard

Header/

Connector

4 ports x SATA III [Blue color] or 3 ports (H110 only)

DF-11 2x4 pin-header x 1 for 2 ports USB 2.0

DF-11 2x5 box header x 2 for COM3/4 (RS232 only)

2x5 pin-header x 1 for front Audio (2.54 pitch)

2x5 pin-header x1 for Digital IO

2 x 4 pin header x 1 for front panel I/O (2.0 pitch)

2 x 2 pins ATX power connector x 1

2 x 2 pin header x 1 (Reserved for O company)

1 x ATX standard 24 pins type for power connector

2-pin connector for RTC battery (Refer to MI991)

Watchdog Timer

Yes (256 segments, 0, 1, 2…255 sec./min)

System Voltage

ATX standard 24-pins type & 4 pin type (+12V only)

iSMART Ver. 3.x

Yes

RAID

RAID function (0,1,5) ** MI991AF only**

Others

LAN W akeup

RTC battery by wiring type

Environment

Operation Temperature: 0~60 degree C

Storage Temperature: -20~80 degree C

Relative humidity: 0~90%, non-condensing

OS supporting

Windows 8.1(64b) / Embedded Industry 8.1(64b)

Windows 10 (64b)

Linux Fedora (64b) / Ubuntu (64b)

Windows 7 Pro (64b/32b)

Certification

CE (EN55032: 2012)

FCC Class B

LVD

Board Size

170mm x 170mm

RoHS

Yes

[

I NTRODU CTI ON

M I 9 9 1 User’s Manual 5

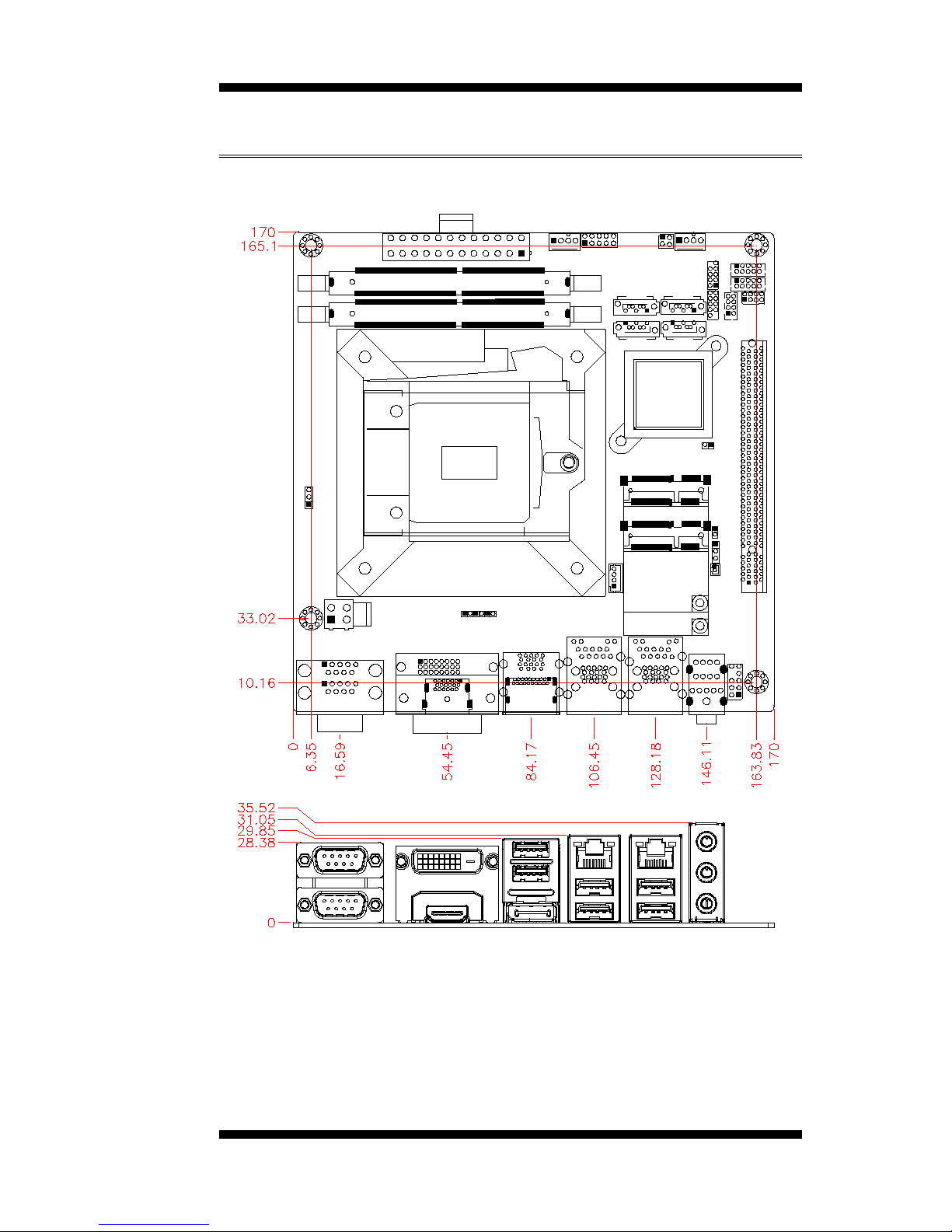

Board Dimensions
