IBASE Technology MI958 Manuale utente
MI958
AMD G-series APU+A55E FCH
Mini-ITX Motherboard
USER’S MANUAL
Version 1.0
ii
MI958 User’s Manual
Acknowledgments
AMI is a registered trademark of AMI Software International, Inc.
AMD and ATI are registered trademarks of AMD Corporation.
Microsoft Windows is a registered trademark of Microsoft
Corporation.
FINTEK is a registered trademark of FINTEK Electronics
Corporation.
REALTEK is a registered trademark of REALTEK Electronics
Corporation.
All other product names or trademarks are properties of their
respective owners.
MI958 User’s Manual iii
Table of Contents
Introduction.......................................................1
Product Description ............................................................1
Checklist..............................................................................2
Board Specifications ...........................................................3
Board Dimensions ..............................................................4
Installations.......................................................5
Installing the Memory.........................................................6
Setting the Jumpers .............................................................7
Connectors ........................................................................12
BIOS Setup.......................................................21

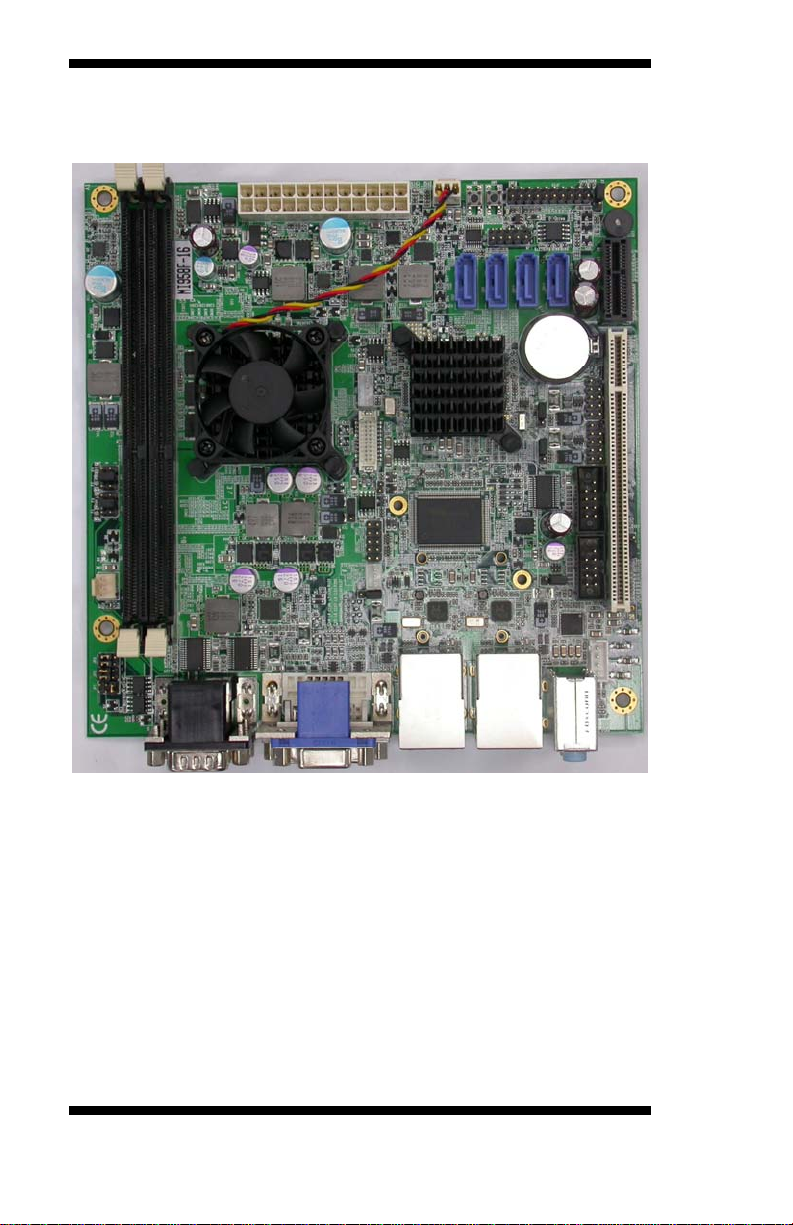

THE MI958 MINI ITX MOTHERBOARD
iv
MI958 User’s Manual
INTRODUCTION
MI958 User’s Manual 1
Introduction
Product Description
The AMD Embedded G-Series Processors with AMD Radeon™ HD 6000 Series
Graphics combine the central processing unit (CPU) with the graphics
processing unit (GPU) in a single-chip Accelerated Processing Unit (APU)
package. The APU connects to the AMD A55E Fusion Controller Hub through
the Unified Media Interface (UMI) to provide connections to the different
system devices. Dimensions of the board are 170mm x 170mm.
AMD Embedded G-Series processor-based systems include the DDR3 memory
interface, PCIe, UMI, DDI (Digital Display Interface), power delivery and
miscellaneous test signals that connect to the processor.
The AMD A55E Fusion Controller Hub is designed to deliver the quality and
performance needed for everyday computing, ultitasking, and multimedia
functionality. It also provides expanded I/O connectivity for advanced usage
models to take advantage of modern peripheral devices.
The main features of the board are:
Supports Dual Core AMD Embedded G-Series Processors
Supports up to DDR3-1066 MT/s
Two DDR3 SDRAM DIMMs, Max.8GB memory
Onboard Realtek Gigabit LAN
4x SATA-III, 8x USB 2.0, 4x COM, Watchdog timer,
1x PCI,1x PCI-E(x1) slots
1x VGA,1x DVI,1x LVDS
INTRODUCTION
2
MI958 User’s Manual
Checklist
Your AMD MI958 Development Board package should include the
items listed below.
•The MI958 Mini-ITX motherboard
•This User’s Manual
•1 CD containing chipset drivers and flash memory utility
•1 Serial ATA cable
INTRODUCTION
MI958 User’s Manual 3
MI958 Specifications
Product Name MI958F-10 (G-T40N APU onboard)
MI958F-14 (G-T48N APU onboard)
MI958F-16 (G-T56N APU onboard)
MI958F-165 (G-T56N C0 version APU onboard)
Form Factor Mini ITX
CPU Type AMD G-series APU Processor, 40 nm
FT1 413-BGA package (19mm x 19mm)
CPU
Operating Frequency G-T56N C0 version DC @1.65GHz (TDP=18W)
G-T56N DC @1.6GHz (TDP=18W)
G-T48N DC @1.4GHz (TDP=18W)
G-T40N DC @1.0GHz (TDP=9W)
Cache 1MB L2 cache
BIOS AMI BIOS, supports ACPI Function
Chipset AMD A55E FCH (TDP=4.7W)
BGA package 605balls (23 mm x 23 mm)
Memory 2 x DDR3 UDIMM, Single Channel, Max. 8GB
Up to DDR3-1333(G-T56N C0 version only) / DDR3-1066
Display AMD G-series APU built-in GPU
(G-T56N/G-T48N w/RadeonTM HD6310; G-T40N w/RadeonTM HD6250)
Supports DirectX®11, UVD3. Supports two simultaneous displays
1 x CRT [From APU DAC]
1 x DVI-D[From APU DP #1)
Expansion Slots PCI slot x 1
PCIe(1x) slot x1
MiniPCIe(1x) x 1
LAN Realtek 8111EPCI-Express GbE x 2[From APU]
**Only LAN #1 will support EuP**
USB A55E FCH built-in USB 2.0 host controller, support 8 ports
(4 x rear I/O ports + 4 x internal pin headers)
Audio A55E FCH built-in HD interface + Realtek ALC269QHD Codec
w/class-D speaker amplifier(2.3W per channel @ 5V power supply)
support 2-channel audio out + amp
Serial ATA A55E FCH built-in SATA III Controller for 4
LPC I/O Fintek F81865-I
COM1 (RS232/422/485), COM2/COM3/COM4 (RS232 only),
Hardware Monitor (2 thermal inputs,4 voltage monitor inputs & 2 Fan
headers) [CPU FAN controllable only; SYS FAN cannot]
COM1/2 with pin-9 with power for 2 ports (500 mA for each port)
Clock Generator Leverage A55E FCH internal Clock generator
Digital IO 4 in & 4 out
Edge Connector
Dual DB9 stack connector for COM #1 , #2
DVI-D+ DB15 stack connector x 1 for DVI & CRT
RJ-45 GbE LAN + dual USB stack connector x2
RCA Jack 3 x 1 for HD Audio
On Board Headers DF13 LVDS x 1 for 18-bit single channel
2 x 5 pins header x 2 for 4 ports USB
2 x 5 pins header x 2 for COM3/COM4
2 x 5 pins pin-header x1 for Digital IO
1 x 4 pins box header x 1 for speaker
1 x 4 pins box-header x 1 for LCD backlight control
SATA connector x 4 (blue color)
Watchdog Timer Yes (256 segments, 0, 1, 2…255. sec/min)
Power Connector ATX Power connector
RoHS Yes
Others CPU cooler onboard for T56N/T48N APU ; Heatsink for T40N APU
EuP feature onboard (Fintek F75160)
Board Size 170mm x 170mm
INTRODUCTION
[
Board Dimensions
4
MI958 User’s Manual
INSTALLATIONS
MI958 User’s Manual 5
Installations
This section provides information on how to use the jumpers and
connectors on the motherboard in order to set up a workable system. The
topics covered are:
Installing the Memory.................................................................. 6
Setting the Jumpers...................................................................... 7
Connectors ................................................................................ 12
INSTALLATIONS
Installing the Memory
The motherboard supports two DDR3 memory socket for a maximum
total memory of 8GB in DDR3 memory type.
Installing and Removing Memory Modules
To install the DDR3 modules, locate the memory slot on the board and
perform the following steps:
1. Hold the DDR3 module so that the key of the DDR3 module align
with those on the memory slot.
2. Gently push the DDR3 module in an upright position until the clips of
the slot close to hold the DDR3 module in place when the DDR3
module touches the bottom of the slot.
3. To remove the DDR3 module, press the clips with both hands.
6
MI958 User’s Manual
DDR3 Module
Loc
Loc Loc
Loc
