IBASE Technology MI990 Manuale utente

MI990

Intel® 6th generation Mobile platform

Mini ITX Motherboard

User’s Manual

Version 1.1

MI990 User’s Manual

Acknowledgments

AMI BIOS is a trademark of American Megatrends Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel is a registered trademark of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MI990 User’s Manual iii

Table of Contents

Introduction.......................................................1

Checklist..............................................................................2

MI990 Specifications ..........................................................3

Board Dimensions...............................................................6

Installations.......................................................7

Installing the Memory.........................................................8

Jumpers and Connectors......................................................9

BIOS Setup.......................................................27

Drivers Installation......................................47

Intel Chipset Software Installation Utility.........................48

VGA Drivers Installation..................................................50

Realtek HD Audio Driver Installation...............................53

LAN Drivers Installation...................................................55

Intel® Management Engine Interface...............................58

Intel® USB 3.0 Drivers.....................................................60

Appendix ...........................................................63

A. I/O Port Address Map...................................................63

B. Interrupt Request Lines (IRQ)......................................64

C. Watchdog Timer Configuration....................................65

iv MI990 User’s Manual

This page is intentionally left blank.

INTRODUCTION

MI990 User’s Manual 1

Introduction

The MI990 Mini ITX motherboard features Intel Skylake support and

comes with a range of features such support for 6th Generation Intel®

Xeon® / Core™i7/i5/i3 / Celeron® QC/DC processors, with speeds up to

3.7GHz and two DDR4 SO-DIMM for a maximum system memory of

32GB.

The MI990 supports graphics interface including DVI-D, HDMI (2.0),

DisplayPort and 24-bit dual channel LVDS. It has two Intel® Gigabit

LAN, 4x USB 2.0, 6x USB 3.0, 6x COM, 4x SATAIII, 1x PCI-E(x16), 2x

Mini PCI-E and 1x M.2 expansion interface. Standard features also include

Watchdog, Digital I/O, iAMT (11.0), TPM (2.0), vPro and iSMART 3.0

for auto scheduling and power saving features.

MI990 Features

Mini-ITX form factor

Onboard 6th Generation Intel® Xeon® / Core™i7/i5/i3 / Celeron®

QC/DC processors, up to 3.7GHz

2x DDR4 SO-DIMM, Max. 32GB

Intel® Processor integrated graphic device, supports DVI-D, HDMI

(2.0), DisplayPort and 24-bit dual channel LVDS

2x Intel® Gigabit LAN

4x USB 2.0, 6x USB 3.0, 6x COM, 4x SATAIII

1x PCI-E(x16), 2x Mini PCI-E, 1x M.2

Watchdog, Digital I/O, iAMT (11.0), TPM (2.0), vPro, iSMART 3.0

INTRODUCTION

2MI990 User’s Manual

Checklist

Your MI990 package should include the items listed below.

The MI990 motherboard

This User’s Manual

1 CD containing chipset drivers and flash memory utility

Serial ATA cable

COM port cable

I/O shield

INTRODUCTION

MI990 User’s Manual 3

MI990 Specifications

Product

Name

MI990VF-X28 [Support iAMT 11.0 & vPro & ECC]

MI990VF-6820 [Support iAMT 11.0 & vPro]

MI990VF-6440 [Support iAMT 11.0 & vPro]

MI990EF-6100 [Support EuP/ErP only]

Form

Factor

Mini-ITX

CPU

Type

- Intel®Skylake-H mobile processors (14 nm monolithic)

- FCBGA1440 , Package= 42mmx28mmx1.49mm

- TDP =45W/35W/25W (QC) ; 35W/ 25W (DC)

CPU

Speed

Xeon E3-1505M v5 @ 2.8GHz, up to 3.7GHz

Core i7-6820EQ @2.8GHz, up to 3.5GHz

Core i5-6440EQ @2.7GHz, up to 3.4GHz

Core i3-6100E @2.7GHz

Cache

Up to 8MB

Chipset

Intel®Skylake PCH-H

CM236 for MI990VF (Support vPro, iAMT); HM170 for MI990EF

Package =23 mm x 23 mm x 0.5mm

BIOS

AMI BIOS [16MB SPI ROM]

Memory

Intel®Skylake-H mobile processors integrated memory controller

DDR4-2133 MHz @1.2V SO-DIMM, Max. 32GB

VGA

Intel®Skylake-H mobile processor integrated HD Gfx, supports 3

independent displays,

HDMI (Thru port B, support HDMI 2.0 Via DP to HDMI

converter, Explore EP963C

**Resolution up to 4096x2304 @ 60 Hz**

DVI-D x 1 (Thru port C, with level shifter NXP PTN3360D)

**Resolution up to 4096x2304 @ 30 Hz**

DisplayPort x 1 (Thru port D)

**Resolution up to 4096x2304 @ 60 Hz**

LVDS (Thru eDP, via NXP PTN3460

**Supports up to1920x1200 @ 60 Hz**

LAN

1.Intel® Jacksonville PHY ** Package = 6mm x 6mm, QFN48**

I219LM GbE PHY for MI990VF; I219V GbE PHY for MI990EF

2.Intel®Pearsonville I211AT as 2nd GbE

USB

USB 3.0 host controller [Skylake-H PCH integrated], supports 6ports

- 6 ports in the rear panel

USB 2.0 host controller [Skylake-H PCH integrated] supports 6 ports

- 2 ports via MiniPCIe sockets

- 4 ports via onboard box header

INTRODUCTION

4MI990 User’s Manual

Serial

ATA

- Intel®CM236 PCH built-in SATA controller for MI990VF

Support 7x SATA 3.0(6Gbps)

4 x SATA III connector (PCIe#15~#18)

2 x mSATA (PCIe#14 , #19)

1x M.2 (PCIe#9)

- Intel®HM170 PCH built-in SATA controller for MI990EF

Support 4x SATA 3.0(6Gbps)

2 x SATA III connector (PCIe#15~#16)

1 x mSATA (PCIe#14)

1x M.2 (PCIe#9)

Audio

Intel®[Skylake-H PCH integrated] built-in High Definition Audio

controller + Realtek ALC892 w/ 7.1 channels

LPC I/O

Fintek F81866AD-I (128-pin LQFP [14mm x 14 mm])

COM #1 (RS232/422/485)

1. With Fintek F81439N transceiver x 1 for jumper-less

2. Support ring-in with power @500 mA (selectable for 5V or 12V)

COM #2~COM #6 (RS232 only)

Hardware Monitor (2 thermal inputs,4 voltage monitor inputs & 2 Fan

headers)

- CPU Fan x 1 (PWM Fan type, 4-pin connector)

- SYS Fan x 1 (PWM/ DC Fan type, 4-pin connector)

Digital IO

4 in & 4 out

TPM 2.0

Infineon SLB9665 (MI990VF series)

**Meet FIPS 140-2 certification**

iAMT

Intel®Active Management Technology ver. 11.0 (MI990VF series)

INTRODUCTION

MI990 User’s Manual 5

Expansion

Slots

- PCI-Express (16x) x1 [Gen 3.0 PEG]

- Mini PCIe x 2 ports [Full-sized] , both w/USB 2.0 signal,

Single mSATA MI990EF @ component side J18

Dual mSATA MI990VF series@ J18 & J26

- M.2 Type 2280 + Mechnical key M x1 [PCIe(x4)+SATA3.0]

Edge

Connectors

Dual DB9 stack connector for COM #1 / #2

DVI-D + HDMI stack connector x 1

Dual USB (3.0) +DisplayPort stack connector x 1

RJ-45 + dual USB (3.0) stack connector x 2

Triple type Jack 3 x 1 for HD Audio

Onboard

Header/Conn

ector

4 ports x SATA III [Blue color] for MI990VF series

2 ports x SATA III [Blue color] for MI990EF

DF-11 8-pin box-header x 2 for 4 ports USB 2.0

DF-20 20-pin connector x 2 for dual –channel LVDS

4 pins box header x 1 for LCD backlight control

2x5 pins pin-header x 1 for front panel audio [Support 7.1 Channel]

DF-11 10-pin pin-header x 4 for COM3 ~ COM6

2x5 pins pin-header x 1 for Digital IO

M.2 socket x1+ Mini PCIe x 1 @ component side

Mini PCIe x 1 @ solder side [MI990VF series only]

Watchdog

Timer

Yes (256 segments, 0, 1, 2…255 sec/min)

System

Voltage

ATX standard 20-pin type

4 pin type (+12V only)

Others

-LAN Wakeup

-iSMART 3.2

-RAID

-vPro [MI990VF series only]

OS support

- Windows 8.1(64-bit)

- Windows 10 (64-bit)

- Windows 7(32-bit / 64-bit)

- Fedora (Installation)

- Ubuntu (Installation)

Certification

CE (EN55032:2012)

FCC Class B

LVD

RoHS

YES

Board Size

170mm x 170mm

INTRODUCTION

6MI990 User’s Manual

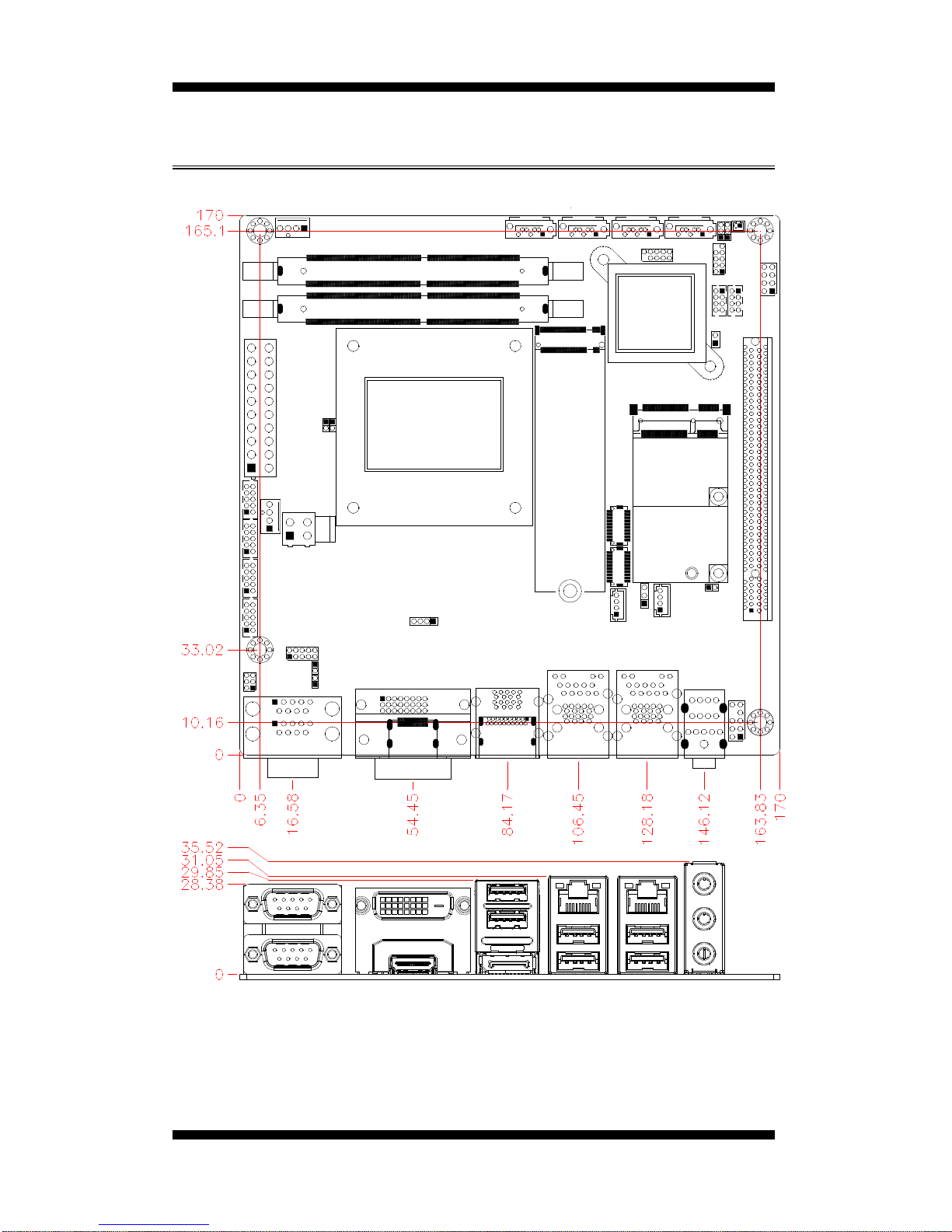

Board Dimensions
