IBASE Technology MI920 Manuale utente

MI920

Intel®Celeron®M 910GML

Intel®Pentium®M/915GME

Mini-ITX Motherboard

USER’S MANUAL

Version 1.0B

ii MI920 User’s Manual

Acknowledgments

Award is a registered trademark of Award Software International,

Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel and Pentium M are registered trademarks of Intel

Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MI920 User’s Manual iii

Table of Contents

Introduction.......................................................1

Product Description.............................................................1

Checklist..............................................................................2

MI920 Specifications ..........................................................3

Board Dimensions...............................................................4

Installations.......................................................5

Installing the CPU...............................................................6

Installing the Memory.........................................................7

Setting the Jumpers .............................................................8

Connectors on MI920........................................................12

BIOS Setup.......................................................21

Drivers Installation......................................45

Intel Chipset Software Installation Utility.........................46

VGA Drivers Installation ..................................................49

AC97 Codec Audio Driver Installation.............................52

LAN Drivers Installation...................................................54

Appendix...........................................................56

A. I/O Port Address Map...................................................56

B. Interrupt Request Lines (IRQ)......................................57

C. Watchdog Timer Configuration....................................58

iv MI920 User’s Manual

This page is intentionally left blank.

INTRODUCTION

MI920 User’s Manual 1

Introduction

Product Description

The MI920 Mini ITX board incorporates the Mobile Intel® 910GML/915GME

Express Chipset for Embedded Computing, consisting of the Intel® 910GML/

915GME Graphic Memory Controller Hub (GMCH) and Intel® I/O Controller

Hub 6-M (ICH6-M), is an optimized integrated graphics solution with a

400/533MHz front-side bus.

The integrated 32-bit 3D graphics engine, based on Intel® Graphics Media

Accelerator 900 (Intel® GMA 900) architecture, operates at core speeds of up to

320 MHz. It features a low-power design, is validated with Intel® Pentium M/

Celeron® M processors on 130nm or 90nm process. With one DIMM socket on

board, the board supports up to 1GB of DDR2 system memory (400MHz for

910GML, 400/533MHz for 915GME chipset).

Intel® Graphics supports a unique intelligent memory management scheme

called Dynamic Video Memory Technology (DVMT). DVMT handles diverse

applications by providing the maximum availability of system memory for

general computer usage, while supplying additional graphics memory when a

3D-intensive application requests it. The Intel GMA 900 graphics architecture

also takes advantage of the high-performance Intel processor. Intel GMA 900

graphics supports Dual Independent Display technology.

The main features of the board are:

 Supports Celeron® M processors, 400MHz FSB (910GML chipset)

 Supports Socket 479, 533/400MHz FSB (915GME chipset)

 One DDRII SDRAM DIMM supports up to 1GB of DDR2 400MHz

(910GML chipset), DDR2 400/533MHz (915GME chipset)

 Onboard 10/100 BaseT and Marvell PCI-Express Gigabit LAN

 Intel® 915 Express VGA for CRT, SDVO port supports LVDS and

DVI / LVDS

 2x SATA, 6x USB 2.0, 4x COM, Watchdog timer

 1x PCI, 1x MiniPCIe, CF socket, DC-in for +12V input

Dimensions of the board are 170mm x 170mm.

Ordering Information:

MI920F: Socket 479, 915GME, ICH6M, supports DVI, LVDS, 1x 10/100 LAN,

1x Gigabit LAN, Mini PCI-E

MI920L-C6K: Celeron M 600M/512K , 910GML, ICH6M, supports DVI,

LVDS, 1x 10/100 LAN

INTRODUCTION

2MI920 User’s Manual

Checklist

Your MI920 package should include the items listed below.

• The MI920 Celeron®M Mini-ITX motherboard

• This User’s Manual

• 1 CD containing chipset drivers and flash memory utility

• Cable kit (IDE, Serial port, Serial ATA, VGA)

INTRODUCTION

MI920 User’s Manual 3

MI920 Specifications

[ Form Factor Mini ITX

CPU Type Intel Celeron M / Pentium M (on Socket 479) processor (Banias or

Dothan core):

- Banias: ULV Celeron M 600MHz (512KB L2 Cache),

- Dothan: Zero L2 cache Celeron M 1GHz or Celeron M 373

CPU Voltage 0.700V ~ 1.708V

CPU FSB 400MHz (910GML); 400/533MHz (915GME)

CPU Socket Socket 479 co-layout with micro-FCBGA

Chipset Intel 910GML/915GME chipset

ICH6M: 82801FBM

BIOS /APM Award BIOS, support ACPI Function & APM1.2

Memory DDRII 400/533 SDRAM DIMM socket x1 (w/o ECC function), Max.

1GB

VGA 910GML built-in, supports dual display with CRT, LVDS & TV-Out

DVI Chrontel CH7307 x1 for DVI

LVDS Chrontel CH7308 x1 for 18 or 24-bit single/dual channel LVDS

LAN LAN1: ICH6M built-in 10/100BT MAC + Intel 82562ET PHY

Optional LAN2: Marvell 88E8053 PCI Express Gigabit LAN controller

USB ICH6M built-in USB 2.0 host controller, support 6 ports

Serial ATA ICH6M built-in SATA controller, supports 2 ports

Parallel IDE ICH6M built-in one channel Ultra DMA 33/66/100 for IDE & CF

Audio ICH6M built-in Audio controller + AC97 Codec ALC655 w/ 6 channels

(Line-out, Line-in & Mic.) + ADI SSM2304 4ohm 2W, class D, stereo

audio power amplifier (note: 1.4W for 8 ohm)

LPC I/O Winbond W83627EHG: PS/2 Keyboard/Mouse, 2x serial (RS232) &

Hardware monitor (3 thermal inputs, 4 voltage monitor inputs,

VID0-4 & 2 fan headers)

2nd I/O Fintek F81216DG x1 for COM3, 4 (RS-232)

Expansion Slots PCI (33MHz/32-bit) slot x1

Optional Mini PCI-express (1 lane) socket x1 (for wireless module)

Edge

Connectors DC-in power connector (Jack type) x1

PS/2 stack connector x1 for keyboard/mouse

DVI + DB9 stack connector x1 for DVI & COM 1

RJ45 (10/100) + dual USB stack connector x1 for LAN1 & USB1, 2

S-Video connector x1 for S-Video

RJ45 (GbE) + dual USB stack connector x1 for LAN2 & USB3, 4

*** Option with dual USB stack connector (LAN2 option)

3x1 phone jack stack connector x1 for Audio (Line-Out, Line-In & Mic)

Onboard

Headers /

Connectors

Compact flash socket (vertical type) x1 @component side

SATA connector x2 for 2 SATA ports

DF13-20 (20-pin) header x2 for LVDS

15 pins pin-header x1 for VGA

40 pins box-header x1 for IDE

30 pins pin-header x1 for COM2~4

8 pins pin-header x1 for USB 5~6

3 pins pin-header x1 for power LED

6 pins pin-header x1 for Reset, HDD LED & power button

Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)

System Voltage +5V, +3.3V, +12V, -12V, 5VSB

Other LAN Wakeup

Digital I/O 4 in + 4 out (TTL level)

Power In / Out Power Input: +12V DC power input

Power Output: 4-pin power connector x1 for HDD/CD-ROM/DVD

Board Size 170mm x 170mm

INTRODUCTION

4MI920 User’s Manual

Board Dimensions

INSTALLATIONS

MI920 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the MI920 in order to set up a workable system. The

topics covered are:

Installing the CPU........................................................................ 6

Installing the Memory.................................................................. 7

Setting the Jumpers...................................................................... 8

Connectors on MI920 ................................................................ 12

INSTALLATIONS

6MI920 User’s Manual

Installing the CPU

The MI920 board supports a Socket 479 processor socket for Intel®

Pentium®M or Celeron®M processors.

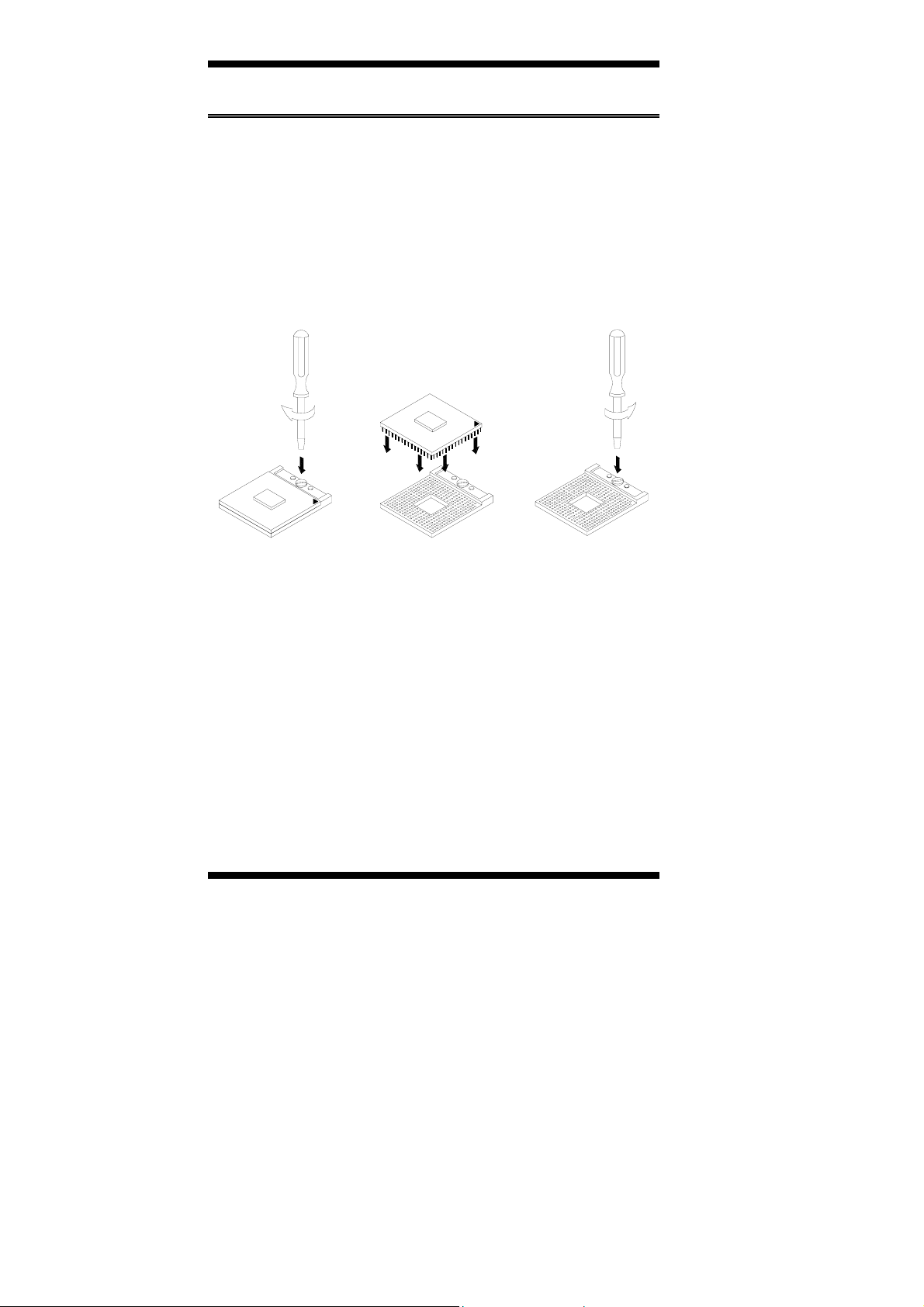

The processor socket comes with a screw to secure the processor. As

shown in the left picture below, loosen the screw first before inserting

the processor. Place the processor into the socket by making sure the

notch on the corner of the CPU corresponds with the notch on the inside

of the socket. Once the processor has slide into the socket, fasten the

screw. Refer to the figures below.

NOTE: Ensure that the CPU heat sink and the CPU top surface are in

total contact to avoid CPU overheating problem that would

cause your system to hang or be unstable.
