IBASE Technology MI836F Manuale utente

MI836F

Intel

Atom

SoC

(x6000 Series)

Mini-ITX Motherboard

User’s Manual

Version 1.0

(December 2022)

MI836

User’s Manual

No part of this publication may be reproduced, copied, stored in a retrieval

system, translated into any language or transmitted in any form or by any

means, electronic, mechanical, photocopying, or otherwise, without the prior

written consent of IBASE Technology, Inc. (hereinafter referred to as

“IBASE”).

Disclaimer

IBASE reserves the right to make changes and improvements to the

products described in this document without prior notice. Every effort has

been made to ensure the information in the document is correct; however,

IBASE does not guarantee this document is error-free.

IBASE assumes no liability for incidental or consequential damages arising

from misapplication or inability to use the product or the information

contained herein, nor for any infringements of rights of third parties, which

may result from its use.

Trademarks

All the trademarks, registrations and brands mentioned herein are used for

identification purposes only and may be trademarks and/or registered

trademarks of their respective owners.

MI836

User’s M

anual

iii

Compliance

This is a class B product. In a domestic environment, this product may cause

radio interference in which case users may be required to take adequate

measures.

This product has been tested and found to comply with the limits for a Class

A device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with manufacturer’s

instructions, may cause harmful interference to radio communications.

WEEE

This product must not be disposed of as normal household

waste, in accordance with the EU directive of for waste

electrical and electronic equipment (WEEE - 2012/19/EU).

Instead, it should be disposed of by returning it to a

municipal recycling collection point. Check local

regulations for disposal of electronic products.

Green IBASE

This product is compliant with the current RoHS

restrictions and prohibits use of the following substances in

concentrations exceeding 0.1% by weight (1000 ppm)

except for cadmium, limited to 0.01% by weight (100 ppm).

• Lead (Pb)

• Mercury (Hg)

• Cadmium (Cd)

• Hexavalent chromium (Cr6+)

• Polybrominated biphenyls (PBB)

• Polybrominated diphenyl ether (PBDE)

MI836

User’s Manual

Important Safety Information

Carefully read the precautions before using the board.

Environmental conditions:

•Use this product in environments with ambient temperatures between

0˚C and 60˚C.

•Do not leave this product in an environment where the storage

temperature may be below -20° C or above 80° C. To prevent from

damages, the product must be used in a controlled environment.

Care for your IBASE products:

•Before cleaning the PCB, unplug all cables and remove the battery.

•Clean the PCB with a circuit board cleaner or degreaser, or use cotton

swabs and alcohol.

•Vacuum the dust with a computer vacuum cleaner to prevent the fan

from being clogged.

WARNING

Attention during use:

•Do not spill water or any other liquids on this product.

•Do not place heavy objects on the top of this product.

Anti-static precautions

•Wear an anti-static wrist strap to avoid electrostatic discharge.

•Place the PCB on an anti-static kit or mat.

•Hold the edges of PCB when handling.

•Touch the edges of non-metallic components of the product instead of

the surface of the PCB.

•Ground yourself by touching a grounded conductor or a grounded bit of

metal frequently to discharge any static.

CAUTION

Danger of explosion if the internal lithium-ion battery is replaced by an

incorrect type. Replace only with the same or equivalent type recommended

by the manufacturer. Dispose of used batteries according to the

manufacturer’s instructions or recycle them at a local recycling facility or

battery collection point.

MI836

User’s M

anual

Warranty Policy

•IBASE standard products:

24-month (2-year) warranty from the date of shipment. If the date of

shipment cannot be ascertained, the product serial numbers can be

used to determine the approximate shipping date.

•3

-party parts:

12-month (1-year) warranty from delivery for the 3rd-party parts that are

not manufactured by IBASE, such as CPU, CPU cooler, memory,

storage devices, power adapter, panel and touchscreen.

＊PRODUCTS, HOWEVER, THAT FAIL DUE TO MISUSE, ACCIDENT,

IMPROPER INSTALLATION OR UNAUTHORIZED REPAIR SHALL

BE TREATED AS OUT OF WARRANTY AND CUSTOMERS SHALL

BE BILLED FOR REPAIR AND SHIPPING CHARGES.

Technical Support & Services

1. Visit the IBASE website at www.ibase.com.tw to find the latest

information about the product.

2. If you need any further assistance from your distributor or sales

representative, prepare the following information of your product and

elaborate upon the problem.

•Product model name

•Product serial number

•Detailed description of the problem

•The error messages in text or in screenshots if there is any

•The arrangement of the peripherals

•Software in use (such as OS and application software, including the

version numbers)

3. If repair service is required, you can download the RMA form at

http://www.ibase.com.tw/english/Supports/RMAService/. Fill out the

form and contact your distributor or sales representative.

MI836

User’s Manual

Table of Contents

Chapter 1 General Information.................................................... 1

1.1

Introduction .........................................................................................2

1.2

Features..............................................................................................2

1.3

Packing List......................................................................................... 3

1.4

Optional Accessories........................................................................... 3

1.5

Specifications ......................................................................................4

1.6

Block Diagram ..................................................................................... 6

1.7

Product View .......................................................................................7

1.8

Dimensions ....................................................................................... 10

Chapter 2

Hardware Configuration........................................ 11

2.1

Installations ....................................................................................... 12

2.1.1

Installing the Memory ........................................................... 12

2.1.2

Setting the Jumpers ............................................................. 13

2.2

Jumper & Connector Locations.......................................................... 14

2.2.1

Clear CMOS Data (SW1) ..................................................... 15

2.2.2

Clear ME Register (SW1) .................................................... 16

2.2.3

EDP Panel Power Selection (JP1)....................................... 17

2.2.4

LVDS Panel Brightness Selection (JP2) .............................. 18

2.2.5

LVDS Panel Power Selection (JP3)..................................... 19

2.2.6

ATX & AT Power Mode Selection (JP4)............................... 20

2.3

Connectors Quick Reference............................................................. 21

2.3.1

COM1 & COM2 RS-232/422/485 Ports (CN8) ..................... 22

2.3.2

COM3 & COM4 RS-232 Ports (J22, J21) ............................ 23

2.3.3

eDP Connector (CN2) ......................................................... 24

2.3.4

DC Power Input Connector (CN3) ....................................... 25

2.3.5

LCD Backlight Connector (J1) ............................................. 25

2.3.6

SATA HDD Power Connector (J2)....................................... 26

2.3.7

DC Power Input Connector (J3)........................................... 26

2.3.8

LVDS Connector (J4-CHA, J7-CHB) ................................... 27

2.3.9

SUS_CLK-OUT (J10) .......................................................... 28

2.3.10

Audio SPDIF-OUT (J12)...................................................... 28

2.3.11

Front Panel Settings Connector (J15).................................. 29

2.3.12

Audio Amplifier Connector (J16).......................................... 30

2.3.13

Audio Connector (J17)......................................................... 31

2.3.14

Digital I/O Connector (J19) .................................................. 32

MI836

User’s M

anual

vii

2.3.15

USB 2.0 Connector (J20, J23) .............................................33

2.3.16

CPU PWM Fan Power Connector (CPU_FAN1) ...................33

Chapter 3

Drivers Installation .............................................35

3.1

Introduction........................................................................................36

3.2

Intel

Chipset Software Installation Utility ...........................................36

3.3

HD Graphics Driver Installation ..........................................................37

3.4

HD Audio Driver Installation ...............................................................40

3.5

Intel

Management Engine Drivers Installation...................................41

3.6

LAN Driver Installation .......................................................................42

Chapter 4

BIOS Setup..........................................................44

4.1

Introduction........................................................................................45

4.2

BIOS Setup........................................................................................45

4.3

Main Settings.....................................................................................46

4.4

Advanced Settings.............................................................................47

4.5

Chipset Settings.................................................................................58

4.6

Security Settings................................................................................61

4.7

Boot Settings .....................................................................................63

4.8

Save & Exit Settings ..........................................................................64

Appendix ........................................................................................65

I/O Port Address Map ........................................................................66

Interrupt Request Lines (IRQ) ............................................................68

Watchdog Timer Configuration...........................................................69

On-Board Connector Types ...............................................................73

Chapter 1

General Information

The information provided in this chapter includes:

•Features

•Packing List

•Specifications

•Block Diagram

•Product View

•Dimensions

MI836F

User’s Manual

1.1 Introduction

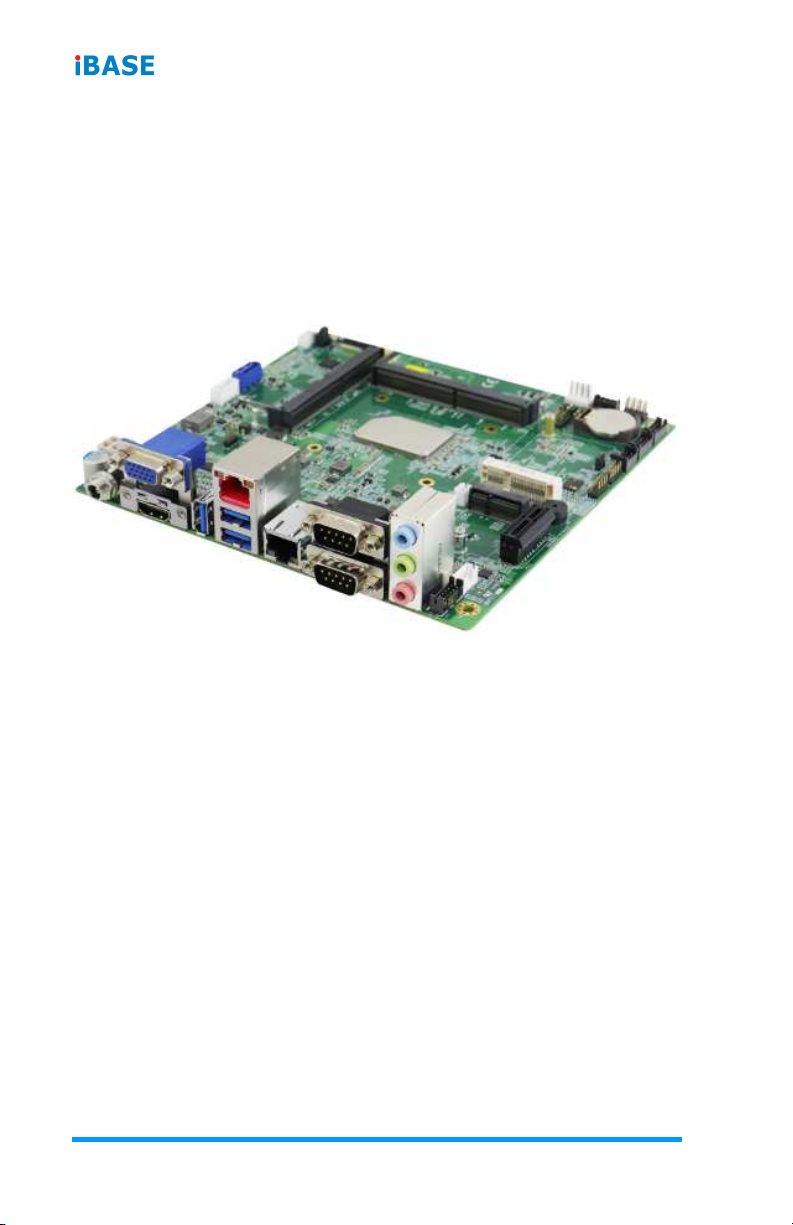

MI836F is a Mini-ITX motherboard based on the Atom x6000E series

processors with either LVDS or eDP graphics interface support. Other

graphics display ports available are VGA and HDMI 2.0b. Two DDR4

SO-DIMM sockets support up to 32GB of 3200MHz memory. Two 2.5G LAN

are on board as well as 3x USB 3.1 and four USB 2.0 and M.2 Key E and

mPCIe sockets. The board runs on +12V~24V DC power and operating

temperature from -40C to 70C.

MI836F

1.2 Features

•2 x DDR4 SO-DIMM with 32MB maximum support.

•2x 2.5G LAN, 4x COM, 1x HDMI, 1x VGA

•1x eDP or 1x 24-bit dual channel LVDS

•3x USB 3.1, 2x SATA III

•PCIe (x1), M.2 E2230, M.2 M2280 (SATA only), mPCIe expansion slots

•Configurable watchdog timer and digital I/O

•Reserved firmware TPM (fTPM)

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali IBASE Technology Scheda madre

IBASE Technology

IBASE Technology MB997 Manuale utente

IBASE Technology

IBASE Technology MI808 Manuale utente

IBASE Technology

IBASE Technology IB895 Manuale utente

IBASE Technology

IBASE Technology MBN800-8L Manuale utente

IBASE Technology

IBASE Technology MB835 Manuale utente

IBASE Technology

IBASE Technology IB704 Manuale utente

IBASE Technology

IBASE Technology IB945 Manuale utente

IBASE Technology

IBASE Technology MBN500 Manuale utente

IBASE Technology

IBASE Technology BISD3-QM77 Manuale utente

IBASE Technology

IBASE Technology MI912 Manuale utente

IBASE Technology

IBASE Technology IP400 Manuale utente

IBASE Technology

IBASE Technology MB875 Manuale utente

IBASE Technology

IBASE Technology IB827 Manuale utente

IBASE Technology

IBASE Technology MI941 Manuale utente

IBASE Technology

IBASE Technology MI992 Manuale utente

IBASE Technology

IBASE Technology MB980 Manuale utente

IBASE Technology

IBASE Technology MB970 Manuale utente

IBASE Technology

IBASE Technology MBB-1000AF Series Manuale utente

IBASE Technology

IBASE Technology ARRANDALE IB957 Manuale utente

IBASE Technology

IBASE Technology MB899 Manuale utente

IBASE Technology

IBASE Technology MI990 Manuale utente

IBASE Technology

IBASE Technology MB900-R Manuale utente

IBASE Technology

IBASE Technology IB885 Manuale utente

IBASE Technology

IBASE Technology IB981AF-C226 Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
