IBASE Technology MI941 Manuale utente

MI941

LGA775 Core2 Duo

Intel®G41 Chipset

Mini-ITX Motherboard

USER’S MANUAL

Version 1.0

Acknowledgments

AMI is a registered trademark of American Megatrends, Inc.

PS/2 is a trademark of International Business Machines

Corporation.

Intel is a trademark or registered trademark of Intel Corporation.

Microsoft Windows is a registered trademark of Microsoft

Corporation.

Winbond is a registered trademark of Winbond Electronics

Corporation.

All other product names or trademarks are properties of their

respective owners.

MI941 User’s Manual iii

Table of Contents

Introduction.......................................................1

Checklist..............................................................................1

Product Description.............................................................2

Specifications......................................................................3

Board Dimensions...............................................................4

Installations.......................................................5

Installing the CPU...............................................................6

ATX Power Installation ......................................................6

Installing the Memory.........................................................7

Setting the Jumpers .............................................................8

Connectors on MI941........................................................11

BIOS Setup.......................................................19

Drivers Installation......................................41

Intel Chipset Software Installation Utility.........................42

Intel G41 Chipset Family Graphics Driver Installation ....45

Realtek High Definition Audio Driver Installation...........48

Intel PRO LAN Network Drivers Installation...................50

Appendix...........................................................54

A. I/O Port Address Map...................................................54

B. Interrupt Request Lines (IRQ)......................................55

C. Watchdog Timer Configuration....................................56

MI941 User’s Manual

This page is intentionally left blank.

INTRODUCTION

MI941 User’s Manual 1

Introduction

Checklist

Your MI941 Core 2 Duo motherboard package should include the items

listed below:

The MI941 motherboard

This User’s manual

1 x I/O shield

1 x IDE cable

1 x SATA cable

1 CD containing the following:

Chipset Drivers

Flash Memory Utility

INSTALLATIONS

MI941 User’s Manual

Product Description

The MI941 Mini-ITX motherboard is designed for either the Intel

Core2 Duo or Core2 Quad processors of up to 1333MHz FSB.

It is based on the Intel G41 Express chipset and it comes with two

dual-channel DDR3 memory slots and 8GB memory capacity for

faster system responsiveness and support of 64-bit computing.

Dual independent display comes to life with the onboard Intel

G41 integrated graphics with CRT and DVI display interface. LAN

functionality is supported with a single Gigabit Ethernet

controllers.

MI941 is supports high-end features including high definition

audio, ten fast USB 2.0 ports, four SATAII and an eSATA port,

watchdog timer, digital I/O and four serial ports. Board

dimensions are 170mm by 170mm.

MI941 FEATURES

Supports Intel® Core™2 Quad / Core™2 Duo /

Pentium® Dual Core/ Celeron® processors

800MHz/1066MHz/1333MHz FSB

DDR3 DIMM x2, Max. 8GB

Single Gigabit LAN

Integrated G41 VGA for CRT & DVI interface

6x USB 2.0, 4x SATA II, 2x COM

HD audio, Watchdog timer, 1x PCI , 1x PCI-E x1

INTRODUCTION

MI941 User’s Manual 3

Specifications

Form Factor Mini ITX

Processor Supports Intel®Core TM 2 Quad /Core TM 2 Duo/ Celeron®processor

LGA775 socket

FSB 800/1066/1333 MHz

Chipset Intel®G41 Chipset consisting of:

Intel® 82G41 Graphic Memory Controller Hub (GMCH) (25W)

Intel®82801GB (ICH7) I/O Controller Hub(3.3W)

BIOS Phoenix BIOS

Memory Two 240-pin DDRIII 800/1066 DIMM sockets

Supports max. 4 GB system memory

Video Intel G41 integrated graphic subsystem(GMA X4500) , dual

independent display available through on-board VGA and DVI-D

LAN 1. Intel 82583V PCI Express Gigabit LAN controller x1

USB Intel ICH7 built-in USB 2.0 host controller, supports 6 ports:

- 4 ports in the rear I/O region, 2 ports with on-board headers

SATA II Intel ICH7 built-in SATA II controller (3.0Gb/sec) w/ 4 ports

IDE ICH7 built-in one channel Ultra DMA 33/66/100

Audio Intel ICH7 built-in high definition audio w/ Realtek ALC662 Codec

LPC I/O Winbond W83627DHG-P: COM1 (RS232), COM2

(RS232/422/485) & Hardware monitor

Hardware Monitor One fan connectors with tachometer support

CPU fan connector supports 4-wire fan with PWM control

Supports three thermal diodes (CPU die + 2 on-board)

Voltage monitoring for VCC (processor), 3.3V, 5V, and 12V

Edge Connectors PS/2 stack connector x1 for KB/MS

DB9 connector x 1 for COM1

Stack connector x 1 for VGA+DVI-D

RJ45 + dual USB stack connector x1 for LAN1 & USB1~2

Stack dual USB connector x1 for USB 3 & 4

Triple (3x1) phone jack stack connector x1 for High-Definition Audio

On Board Headers

/ Connectors Standard SATA (7-pin shrouded vertical) connector x4

2x4 pins pin-header x1 for USB 5-6

2x5 pins DF11-10 x1 for COM2 (RS232/422/485)

2x5 pins pin-header x1 for Digital I/O

2x5 pins pin-header x1 for front panel audio

40 pins box-header x1 for IDE

4 pins pin-header x1 for CPU fan & 3 pins pin-header x2 system fan

Expansion PCI +PCI-e(x1) slot x1

2x8 pins pin header x1 for adaptor card:

ID394 (4 serial ports)

ID395 (TPM function)

RTC ICH7 built-in RTC with on-board lithium battery

Watchdog Timer Yes (256 segments, 0, 1, 2…255 sec/min)

Digital IO 4 in and 4 Out

Other LAN Wakeup

Power Connector ATX

System Voltage +5V, +3.3V, +12V, -12V & 5VSB

RoHS Compliant Yes

Board Size 170 x 170mm

INSTALLATIONS

MI941 User’s Manual

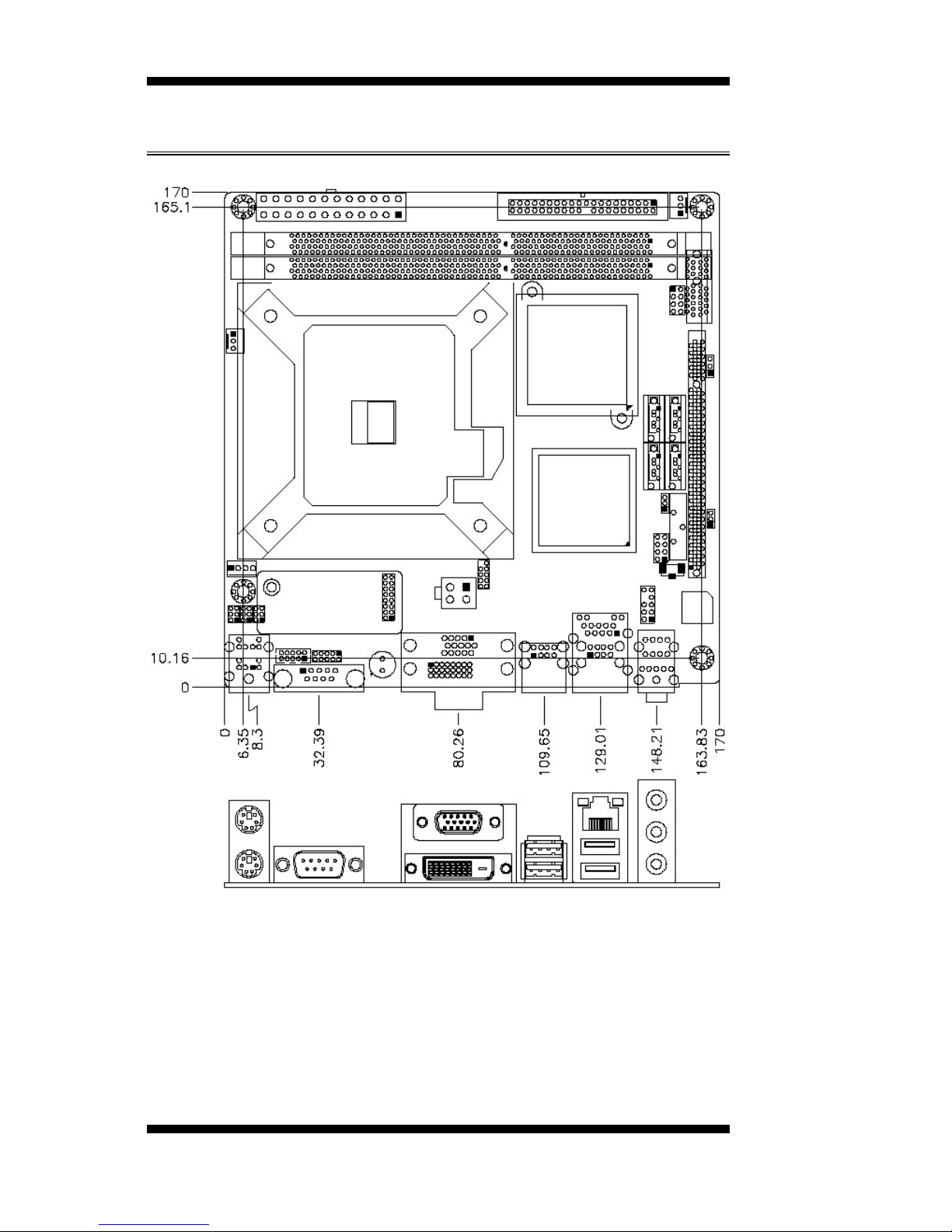

Board Dimensions

INSTALLATIONS

MI941 User’s Manual 5

Installations

This section provides information on how to use the jumpers and

connectors on the MI941 in order to set up a workable system. The

topics covered are:

Installing the CPU ................................................................................. 6

ATX Power Installation......................................................................... 6

Installing the Memory ........................................................................... 7

Setting the Jumpers................................................................................ 8

Connectors on MI941.......................................................................... 11

INSTALLATIONS

MI941 User’s Manual

Installing the CPU

The MI941 motherboard supports an LGA 775 processor socket for

Intel® Core 2 Duo processors.

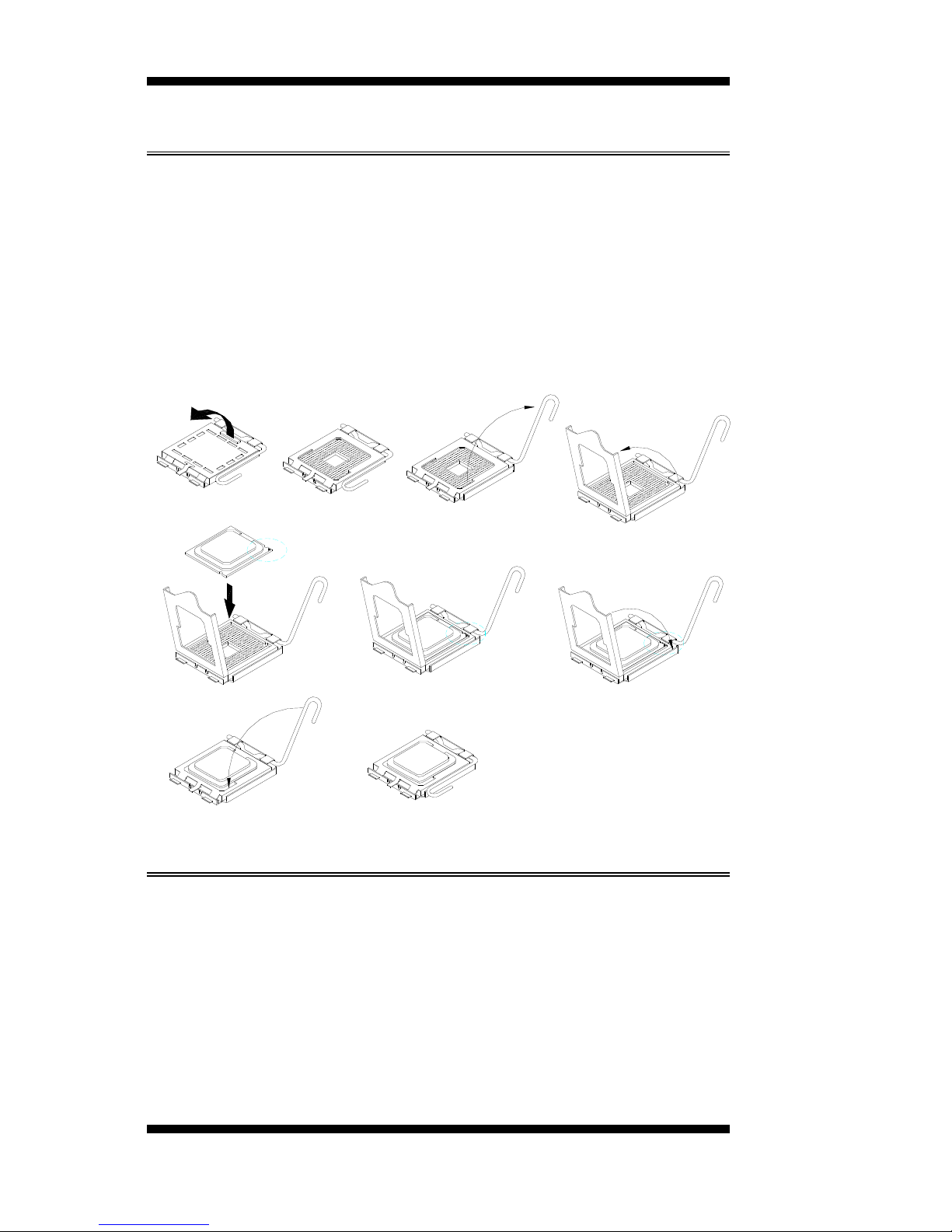

The LGA 775 processor socket comes with a lever to secure the

processor. Refer to the pictures below, from left to right, on how to place

the processor into the CPU socket. Please note that the cover of the

LGA775 socket must always be installed during transport to avoid

damage to the socket.

ATX Power Installation

The system power is provided to the motherboard with the ATX2 and

ATX1 power connectors. ATX2 is a 24-pin power connector and ATX1

is a 4-pin 12V power connector.

The 24-pin power connector can to be connected to a standard 20-pin

ATX power connector in a standard ATX power supply (Min. 400watt).

Note: The power supply 5VSB voltage must be at least 2A.
