icetro SSM-180 Manuale utente
Slush & Smoothie Machine User Manual
SSM-180, 280, 420, 560, 52(MINI)
·The product has been designed for indoor use only.
So do not use it outdoors.
·Before use of the product, be sure to become familiar with this manual.
Keep the manual in a convenient place for quick and easy reference.
·This manual contains the product warranty card.
·The product design is subject to change for performance enhancement
without prior notice.
2
Contents
1.Names of Parts 3~7
2.Overview 8
3.Safety Signs, Symbols, and Labels 8
4.Safety Instructions 9
5.Installation Requirements 10
6.Safety Cautions for Operation 11
7.Operation Procedure 12~19
7.1 Controllers
7.2 Operations
7.3 Cleaning and sterilization procedure
7.3.1 Disassembling the product
7.3.2 Cleaning the product
7.3.3 Sterilizing the product
7.3.4 Assembling the product
7.3.5 Sterilizing the site
8.Daily Check 20
8.1 Repairing the product (by qualified engineer only)
9.Specifications 21
10.Circuit Diagram 22~23
11.Before Calling Service 24
12.Part List 25~33
13.When Receiving Service 34
Product Warranty Card 35
- Keep the manual in a convenient place for quick and easy reference. -

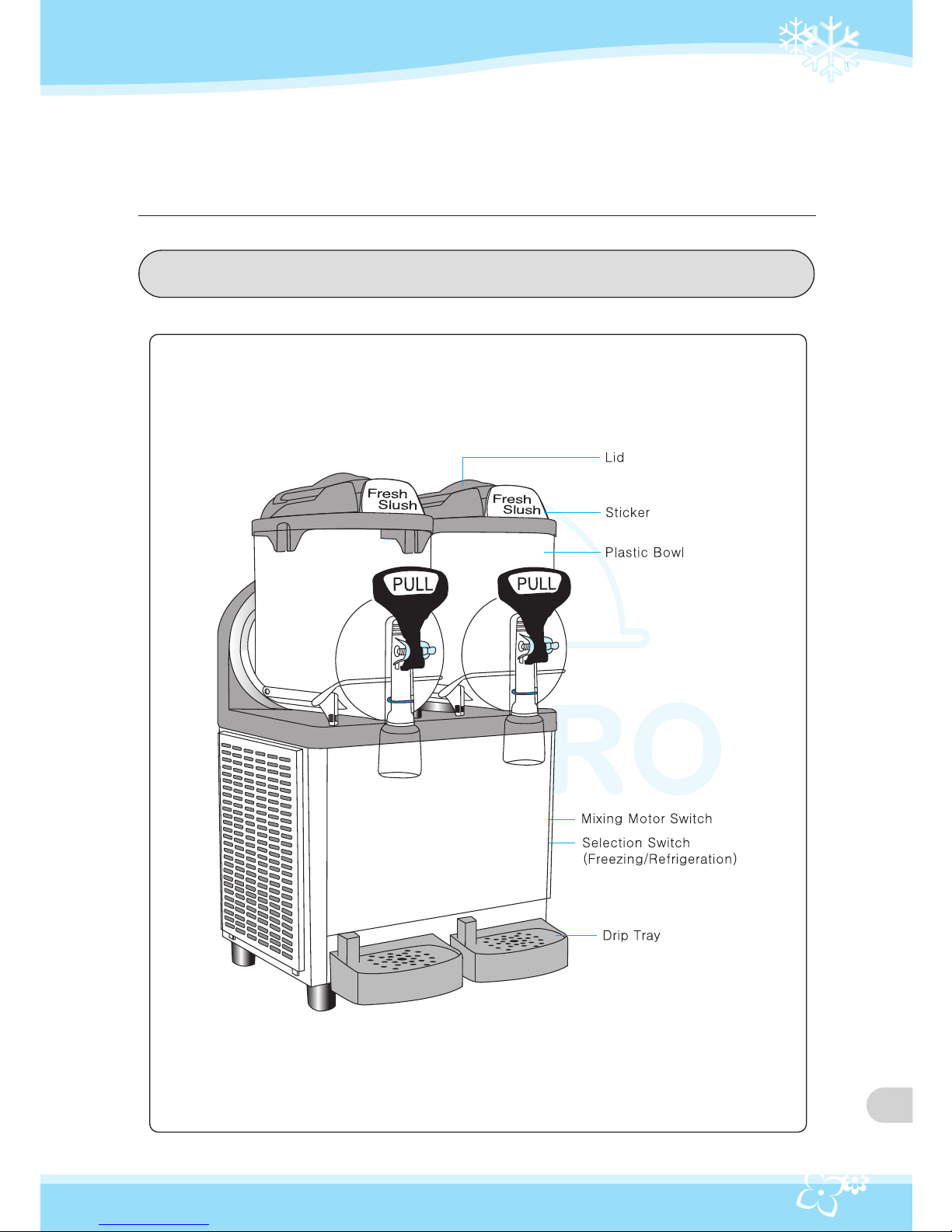

1. Names of Parts
Exterior and parts
MODEL : SSM-52
3
4
MODEL : SSM-180
5
MODEL : SSM-280
6
MODEL : SSM-420
7
MODEL : SSM-560
SSM-52 : See the part list.
8
The warnings and safety instructions in this manual do not cover all possible conditions and
situations.
While operating, moving or cleaning this product, manipulate it carefully based on common
sense. If a bad and non-understandable symptom happens, feel free to contact the
purchased site or service agency.
If you neglect this symbol and wrongly use the product, it may cause
death or serious injury.
This is the safety warning symbol. It is used to warn users of any potential
risk of injuries. To evade from the risk of injury or death, comply with the
safety requirements for the symbol.
Danger
Warning
Caution
Caution
If you neglect this symbol and wrongly use the product, it may cause a
potential risk of death or serious injury.
If you neglect this symbol and wrongly use the product, it may cause a
potential risk of injury.
If you neglect this with no caution symbol and wrongly use the product, it
may cause a potential risk of property damage.
Important
You must check the electrical rating on the nameplate of the product. The nameplate is
attached on the rear of the product. The nameplate specification has priority over
information in this manual. The electric circuit diagram of the product is attached inside of
the panel. In addition, the product specification is subject to change without prior notice.
2.Overview
To become familiar with this product, be sure to read this manual carefully.
This product requires cleaning and maintenance activities as in other machines.
Any disassembly or cleaning mistakes may cause a product failure.
It is highly recommended for the person in charge to have immersion training for activities.
3.Safety Signs, Symbols, and Labels
9
4.Safety Instructions
Be sure to use the grounded
consent.
It may cause a failure or
electric shock.
Do not move the product
by pulling the power plug.
It may cause a failure or electric
shock.
Do not forcibly bend the power
plug or place any heavy material
on it.
It may cause an electric shock or fire.
Remove water or dust from
the power plug and insert
it fully into the outlet.
It may cause a fire or electric shock.
Do not contact the power
plug with wet hands.
It may cause an electric shock or fire.
When the power plug is
removed from the outlet, insert
it after 5 minutes.
Otherwise, It may cause a
product failure.
When repairing the product or
replacing the parts, remove the
power plug from the outlet.
It may cause an electric shock or fire.
Do not pull off the power
plug.
It may cause a failure or
electric shock.
Do not connect multiple
products to
a single outlet.
It may cause a fire.
When not using the product for
a long time, remove the power
plug from the outlet.
It may cause an electric shock or fire.
Do not connect the power
plug arbitrarily or nor modify
it.
It may cause an electric shock or fire.
When the power plug is
damaged, do not replace it
arbitrarily and contact the
service agency.
It may cause an electric shock or fire.
Caution!
■Use this product as described in the user manual.
- If you do not follow the instructions, it may cause an electric shock or property loss.
- When transferring the product to another person, transfer the user manual also.
- Before supplying power, check whether the voltage is the same as the one
of the nameplate.
According to applicable electric code regulations and machine specifications, ground
the product and connect to the single phase power. If the product has no plug, install
the grounded plug to meet at least 15 A 250 V (220 to 230 V, 50 to 60 Hz). For directly
connecting the product to the main power, connect the power cord to the 2 pole circuit
breaker. Never use the extension cord with no grounding.
10

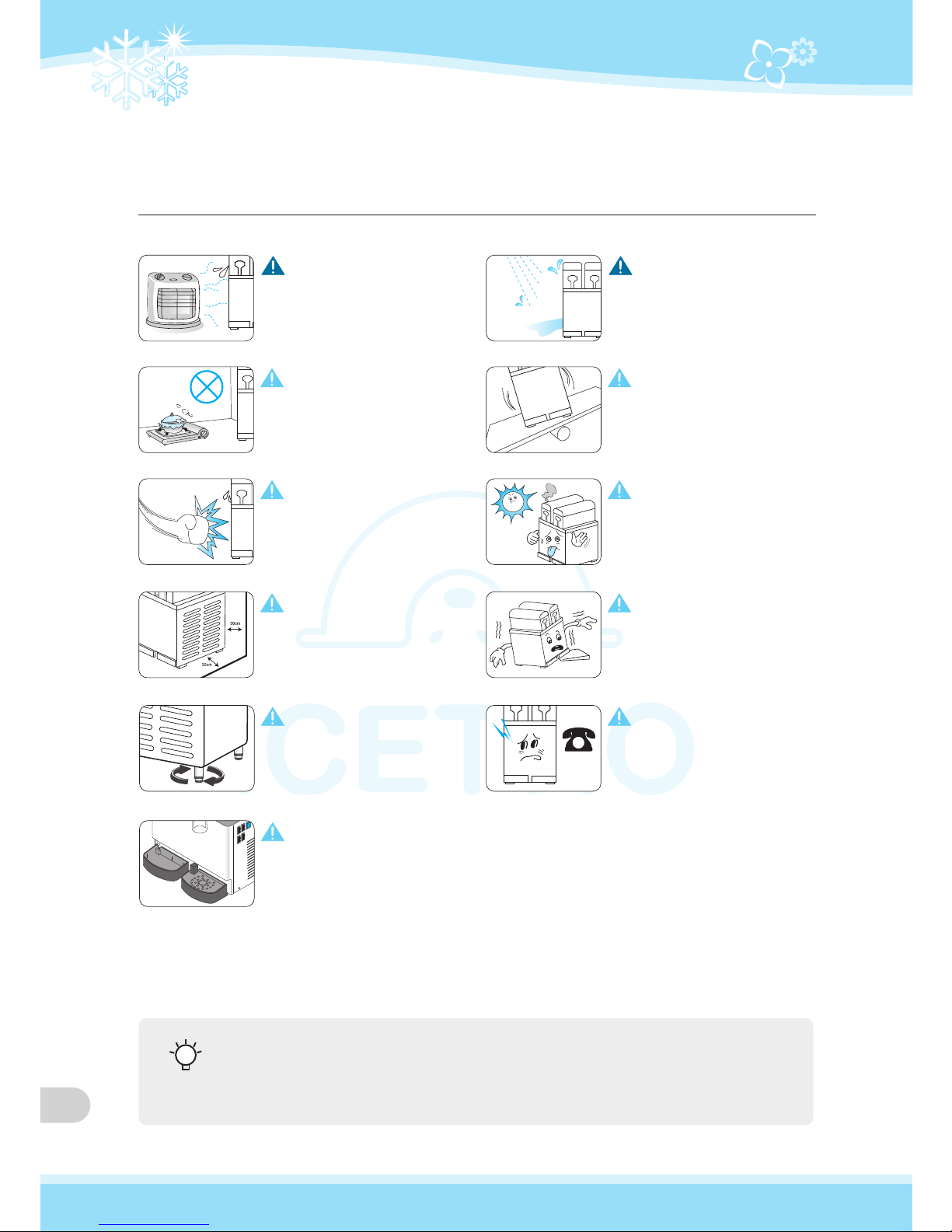

5. Installation Requirements
Do not install the product
near the heat generating
source.
It may cause a fire.
Do not install the product
in a humid, dusty, or water
(e.g. rain) splashing place.
It may cause an electric shock or fire.
Do not install the product near
combustible gases
or inflammable materials.
It may cause a fire.
When moving the product,
be careful not
to slip and fall.
It may cause an injury or
product damage.
Do not forcibly apply force or
shock to the product.
It may cause damage to the product.
This product is for indoor use
only. So install the product
inside the house.
Caution!
This product is for indoor use only. So do not install the product outdoors. Inevitably, when
the product is installed outside, prepare a shade to block direct sunlight, rain, wind, and dust
for sanitary control and optimal performance. Install the product in the place where you can
easily manage it to prevent robbery and loss by dangerous play.
Keep at least 30 cm distance
for the side and rear of the
product.
Do not install the product
on a weak or uneven floor.
It may cause vibration and noise.
Adjust the vertical balance of
the product not to shake and
then adjust the horizontal
balance.
Firmly fix the product.
The drain hose is located
on the top of the drain box.
Check any damage of the
product.
If found, contact the delivery agency
to request claims on it.
